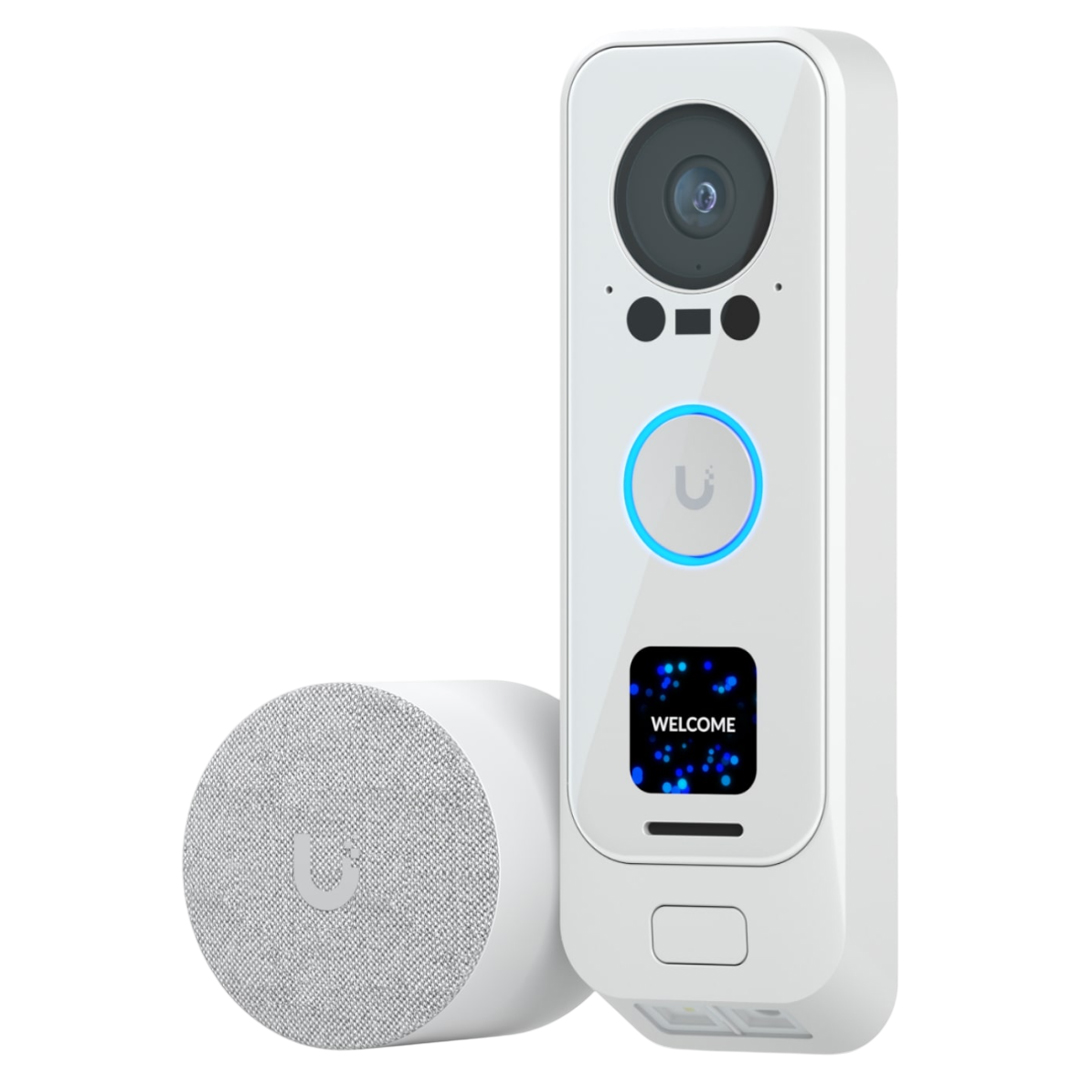

Ubiquiti G4 Doorbell Professional PoE Kit White

UVC-G4-DBELL-POE-WH | Ubiquiti
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
$729
Stock at Supplier We do not have this item in our warehouse, but stock is either already on its way or is generally available from the supplier.
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns
The Ubiquiti G4 Doorbell Professional PoE Kit White features a sharp 2MP main camera with a 138deg wide field of view and built-in IR night vision for clear video day or night. It includes a second camera to monitor packages, plus smart detection for people, vehicles, and animals and two-way audio. Powered via PoE for a clean, reliable setup, this IPX4 weather-resistant doorbell is ideal for home or business security and works seamlessly with the UniFi mobile app.

Features

Ubiquiti G4 Doorbell Professional PoE Kit White Feature 1

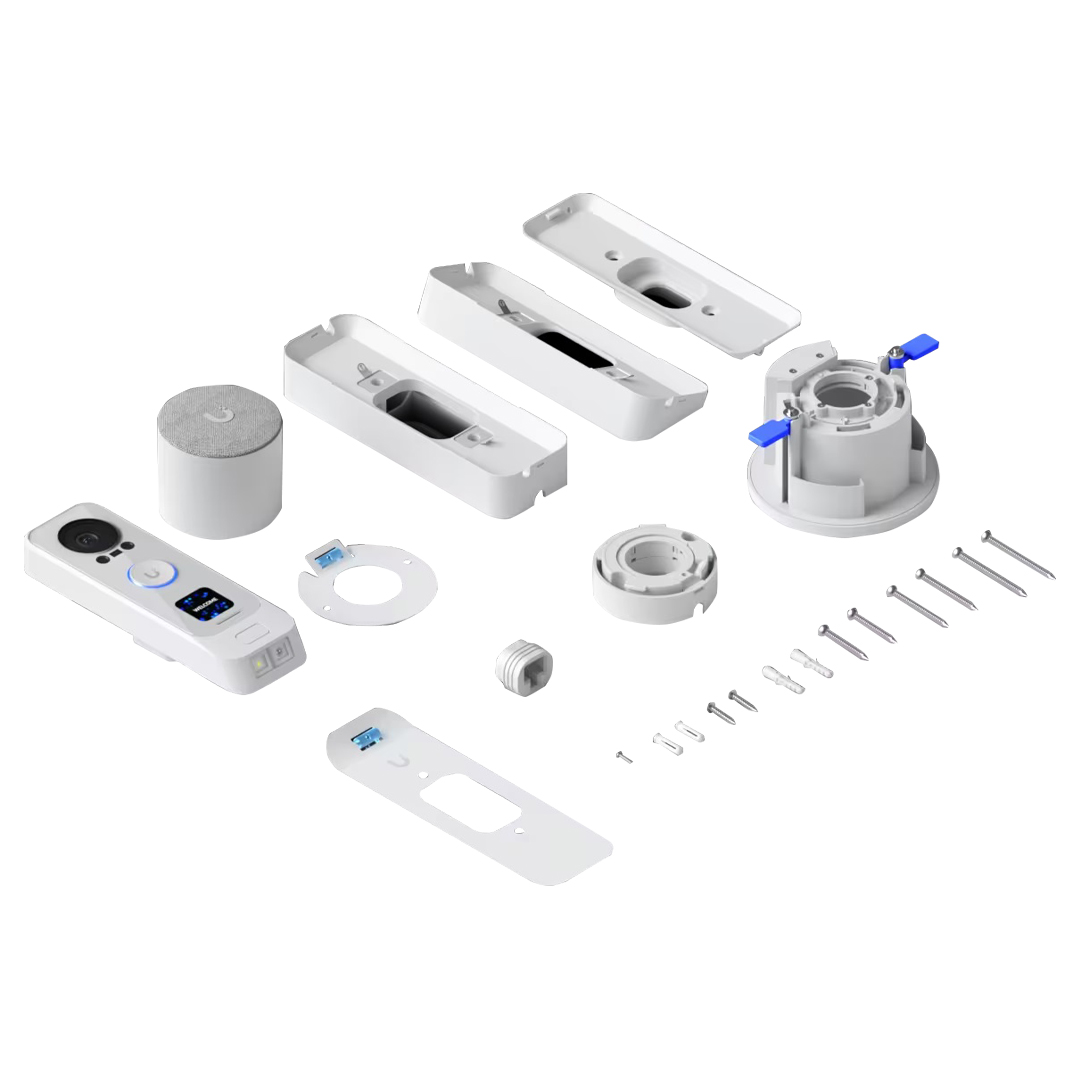

Deployment

Build Features

Ubiquiti G4 Doorbell Professional PoE Kit White Feature 2

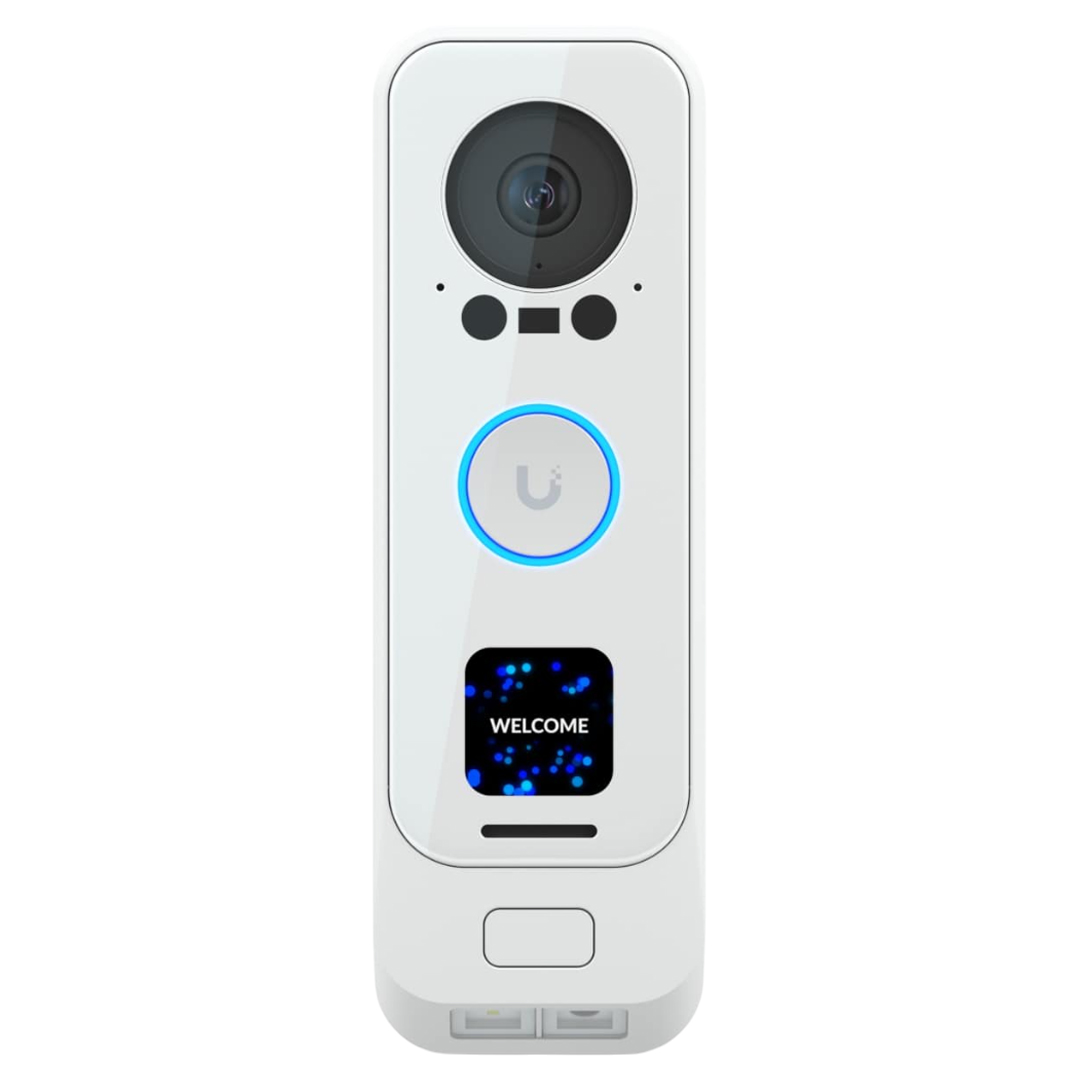

Front View

Ubiquiti G4 Doorbell Professional PoE Kit White Feature 3

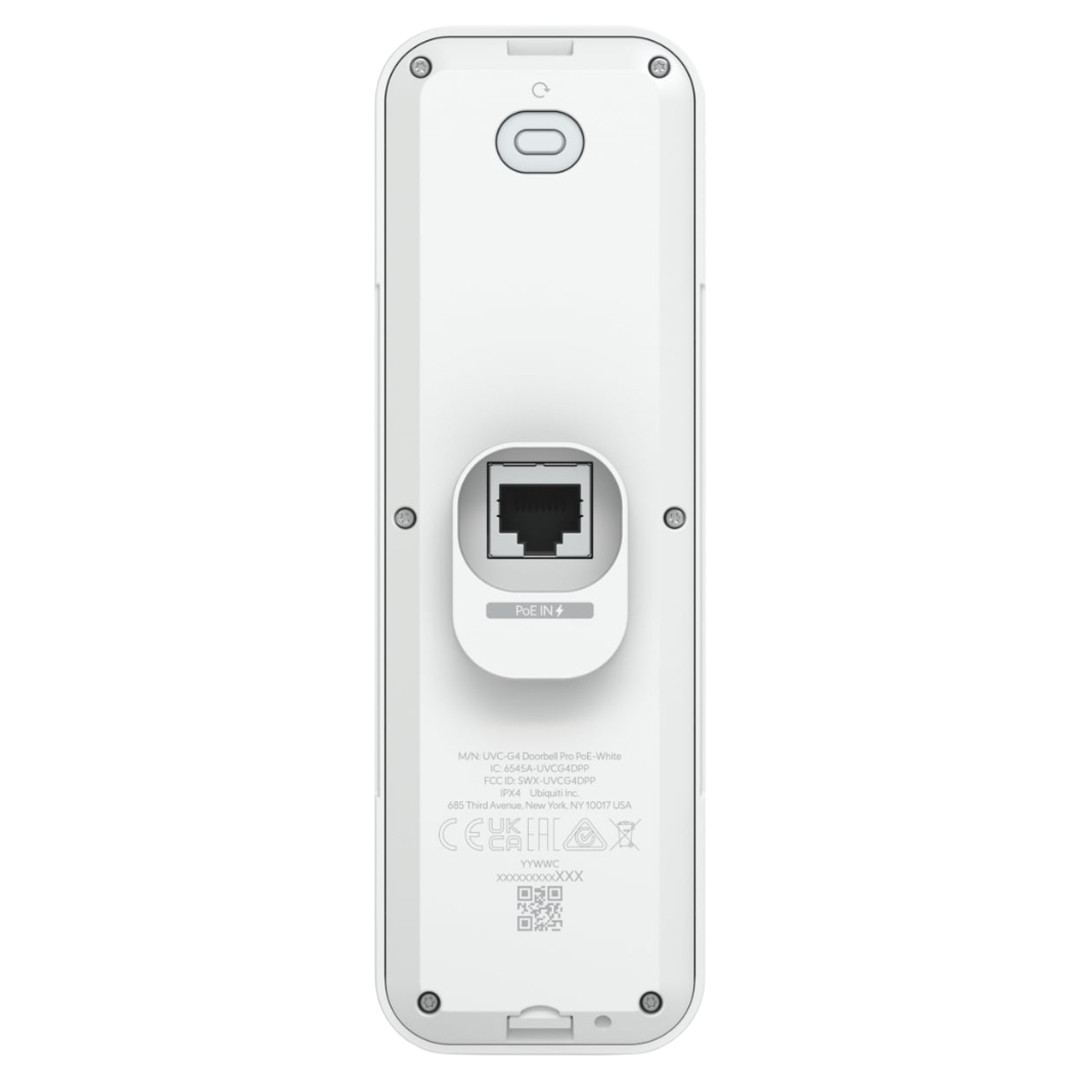

Back View

Ubiquiti G4 Doorbell Professional PoE Kit White Feature 4

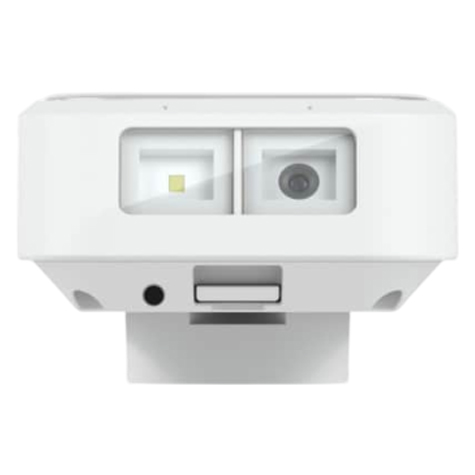

Top View

Chime

Ubiquiti G4 Doorbell Professional PoE Kit White Feature 5

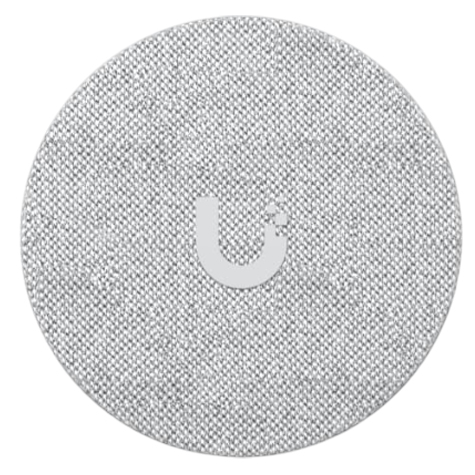

Front View

Ubiquiti G4 Doorbell Professional PoE Kit White Feature 6

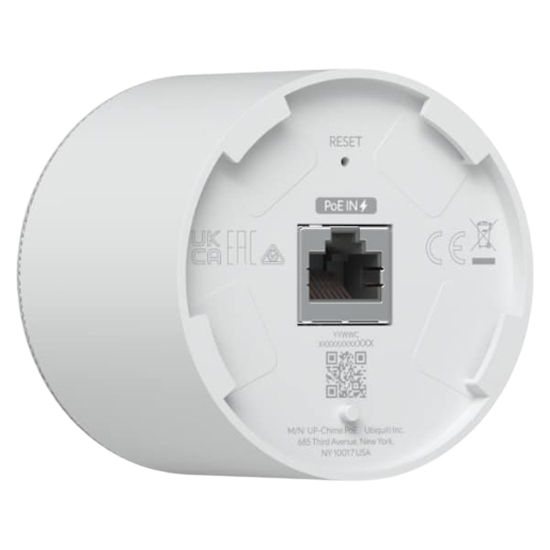

Back View

Specifications

General Data

Model Number UVC-G4-DBELL-POE-WH
Colour White
Dimensions Device: 160.6 x 51.7 x 35.1 mm (6.3 x 2 x 1.4")
Wall mount: 159.3 x 50.3 x 17.5 mm (6.3 x 1.9 x 0.7")
Wedge: 161.1 x 52.1 x 25.7 mm (6.3 x 2.1 x 1")
On-wall mount: 161.1 x 52.1 x 25.75 mm (6.3 x 2.1 x 1")
IR Night Vision 6 m (20 ft)
Smart Detections (People, Vehicles, Animals) Yes
Resolution FHD
Field of View Main camera: H: 138°, V: 114°, D: 155° (LDC On)
Main camera: H: 160°, V: 117°, D: 160° (LDC Off)
Package camera: H: 97.5°, V: 79.4°, D: 118.2°
Audio Two-way audio
Weatherproofing IPX4
Mounting Wall, wedge (Included)
Gang box, junction box (Optional)
Warranty 1 Year

Performance

Networking Interface GbE RJ45 port
Video Max. Frame Rate: 30 FPS
Resolution
Main camera: 2MP 1600 x 1200 (4:3)
Package camera: 2MP 1600 x 1200 (4:3)
Optics Sensor
Main camera: 5MP CMOS
Package camera: 8MP CMOS
Lens: Fixed focal length
Night Mode: Built-in IR LED illumination and IR cut filter

Hardware

Max. Power Consumption 7 W
Supported Voltage Range 37—57 V DC
Power Method PoE
Processor Quad-core Arm® Cortex®-A53 based chip
Weight Device: 264 g (9.3 oz)
Wall mount: 56 g (2 oz)
Wedge: 33 g (1.2 oz)
On-wall mount: 53 g (1.9 oz)
Enclosure Material Polycarbonate, Aluminium alloy
Mount Material Flat wall mount: Aluminium alloy
20° wedge mount: polycarbonate
Button (1) Ring button
(1) Factory-reset
Ambient Operating Temperature -30 to 40º C (-22 to 104º F)
Ambient Operating Humidity 0 to 90% noncondensing
NDAA Compliant Yes
Certifications CE, FCC, IC, SRRC

Software

Mobile App UniFi Protect iOS™ and Android™

Chime

Dimensions Device: Ø62 x 54 mm (Ø2.5 x 2.1")
In-wall mount: Ø89 x 63.1 mm (Ø3.5 x 2.5")
On-wall Mount: Ø62 x 20.2 mm (Ø2.5 x 0.8")
Weight Device: 158 g (5.6 oz)
In-wall mount: 91 g (3.2 oz)
On-wall mount: 28 g (1 oz)
Enclosure Material Polycarbonate, Aluminium alloy
Mount Material Polycarbonate, zinc alloy
Networking Interface 10/100 MbE port
Power Method PoE
Supported Voltage Range 44—57 V DC
Max. Power Consumption 3 W
LED R/G/B/W
Buttons (1) Factory-reset
Speaker Yes
Buzzer Yes
Ambient Operating Temperature 0 to 40° C (32 to 104° F)
Ambient Operating Humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
NDAA Compliant Yes
Backed by a 1 year Ubiquiti warranty.
