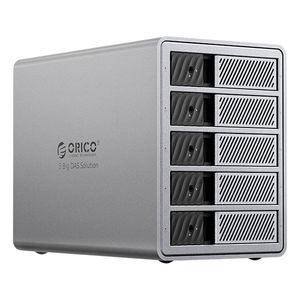

Orico RAID DAS Solution 5 Bay Hard Drive Enclosure

The ORICO 5-Bay RAID DAS Hard Drive Enclosure features five SATA bays (for 3.5-inch/2.5-inch drives), a USB 3.0/USB-C connection, a built-in 150W power supply, and supports up to 110 TB total storage (≈22TB per drive). It also offers multiple RAID modes, tool-free drive trays with locking, quiet cooling fan & all-aluminium shell for better heat dissipation.

Features

---

5 Bay RAID DAS Solution (ProRAID)

Large Capacity & Safe Storage

• Aluminium Alloy Shell
• 110TB
• 7 RAID Modes
• Multiple Heat Dissipation
• 150W Power Supply
• Data Security: Each bay adopts a safety lock
• Enterprise video storage
• Security surveillance
• Editing materials

Multiple RAID Models for Business Office

RAID Mode	Function	Hard Drive	Capacity	Safety	Speed
RAID O	Fast transmission Large capacity	2-5	SN	Ordinary	Good
RAID 1	Mutual backup	2	S	Good	Medium
RAID 3	Fast transmission	3-5	S x (N-1)	Medium	Medium
RAID 5	Large capacity	3-5	(S x N)/2	Good	Good
RAID 10	RAID O and RAID 1	4	Sum	Good	Good
Combine (Big)	Hard drive capacity merging	2-5	S	Ordinary	Ordinary
Clear	Normal mode	Normal mode	Normal mode	Normal mode	Normal mode

Tips

S is the minimum capacity among all hard drives, and N is the number of hard drives.

• Before using new Discs for RAID, back up the original data to prevent loss.
• Before switching RAID mode or replacing hard Discs, power off, backup data, and exit the hard disk box.

Note

Dual-drive bay supports 4 RAID modes: RAID 0, RAID 1, Combine, and Clear modes

Dual Methods Management

Software

Easily customise by downloading the software from the Orico official website

Manual

Through the switch and set button to manage Raid

Note

Instructions for use check the manual or ask customer service for help with operations.

110TB Mass Storage Expansion

Providing storage solutions for managing large data effortlessly

• 22 million Photos (5MB/Per)
• 73K Movies (1.5GB/Per)
• 3.6 million Songs (30MB/Per)

Note: 1-Bay supports up to 22TB

Smart Chip Fast & Stable

Excellent chip designed for high performance and reliability, capable of enduring continuous 24/7 use

• UASP
• Trim
• Smart

Note: The chip is a rendering, please refer to the actual product for the internal interface

150W Built-In Power Supply

12V/12.5A power adaptor supports to multiple Discs, reliable performance and space saving

Note:2-Bay was a 12V/4A power supply

Efficient Heat Dissipation

With high-speed, low-noise cooling fan preventing overheating issues

Sturdy and Durable

Aluminium alloy body with a cooling fan and pressure resistance to protect the hard disk from damage

Speedy & Stable

Supports the UASP protocol, a transmission speed of up to 235mb/s, a 1GB file transfer in 5 seconds

Note: The data is obtained from ORICO 211 Digital R&D and Manufacturing Lab

Wide Compatibility Plug & play

Compatible with Windows, MAC OS, Android, IOS and other operating systems to achieve cross-terminal and cross-platform use

• Windows
• Mac OS
• Android
• iOS

Connect the Router

Set up NAS to allow remote access

Note: The router needs within USB ports and have file sharing function, if unable to hdd case contact router servicer

Intelligent Sleep

Automatically enter sleep mode after 10 minutes of inactivity to extend the lifespan of the hard drive.

LED Light Design

Each tray is equipped with an LED indicator light, allowing you to check the working status at any time

Safety Lock Design

With a lock buckle design provides better protection for data security
