The ORICO 4-Bay RAID DAS Solution (ProRAID, model 9848RU3) features four 3.5-inch SATA drive bays with a built-in 150W power supply, supporting a maximum capacity of 88TB (22TB per bay). It offers USB 3.0 Type-B output at up to 5Gbps, along with support for eight RAID modes: RAID 0, 1, 3, 5, 10, JBOD, CLONE, and CLEAR. The enclosure is built from aluminium alloy for improved heat dissipation, includes an 80mm silent cooling fan plus front and rear vents, and uses safety-keyed, trayless bays for tool-free drive installation.
Features
Four-Bay Storage Expansion
Holds up to four 3.5-inch SATA hard drives, providing massive storage capacity for data-intensive applications.
Flexible RAID Support
Multiple RAID modes including RAID 0, 1, 3, 5, 10, and JBOD deliver versatile options for speed, redundancy, and data protection.
High-Speed USB 3.0 Interface
USB 3.0 connectivity ensures fast transfer speeds for efficient file management and backups.
Durable Aluminium Housing
Sturdy aluminium enclosure with optimised airflow design improves heat dissipation and stability.
Cross-Platform Compatibility
Supports Windows, macOS, and Linux systems, making it ideal for professional and personal use.
Specifications
| Model Number |
ORICO-9848RU3-AU-GY-BP |
| Colour |
Grey |
| Material |
Aluminium Alloy |

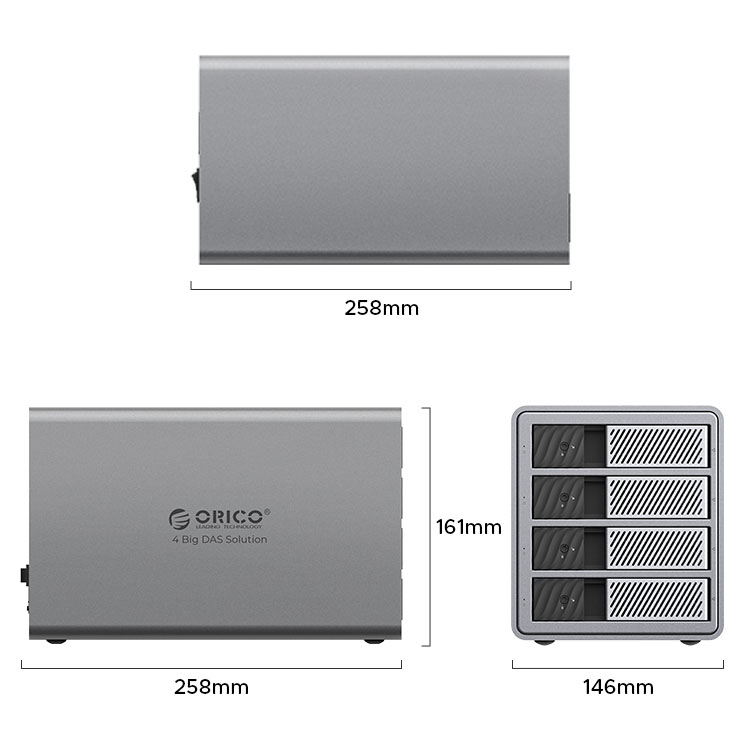

| Dimension |
258 x 146 x 161 mm |
| Output |
USB3.0 Type-B |
| Transmission Rate |
USB3.0 5 Gbps |
| Power Supply |
Built-in 150 W |
| Supported Capacity |
88 TB (22 TB Per Bay) |
| Supported System |
Windows, MAC OS, Android, iOS |
| Warranty |
1 Year |
Backed by a 1 year Orico warranty.
