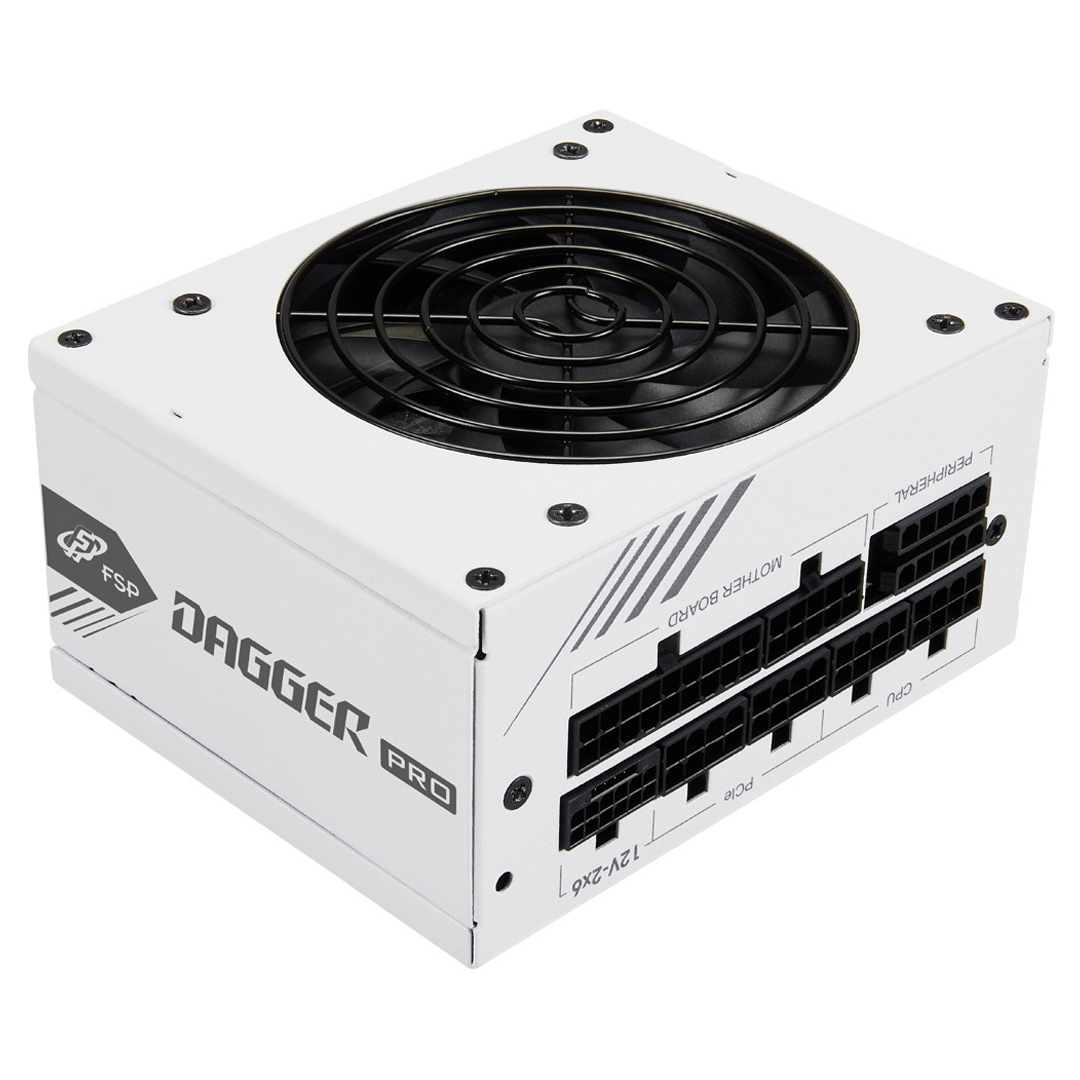

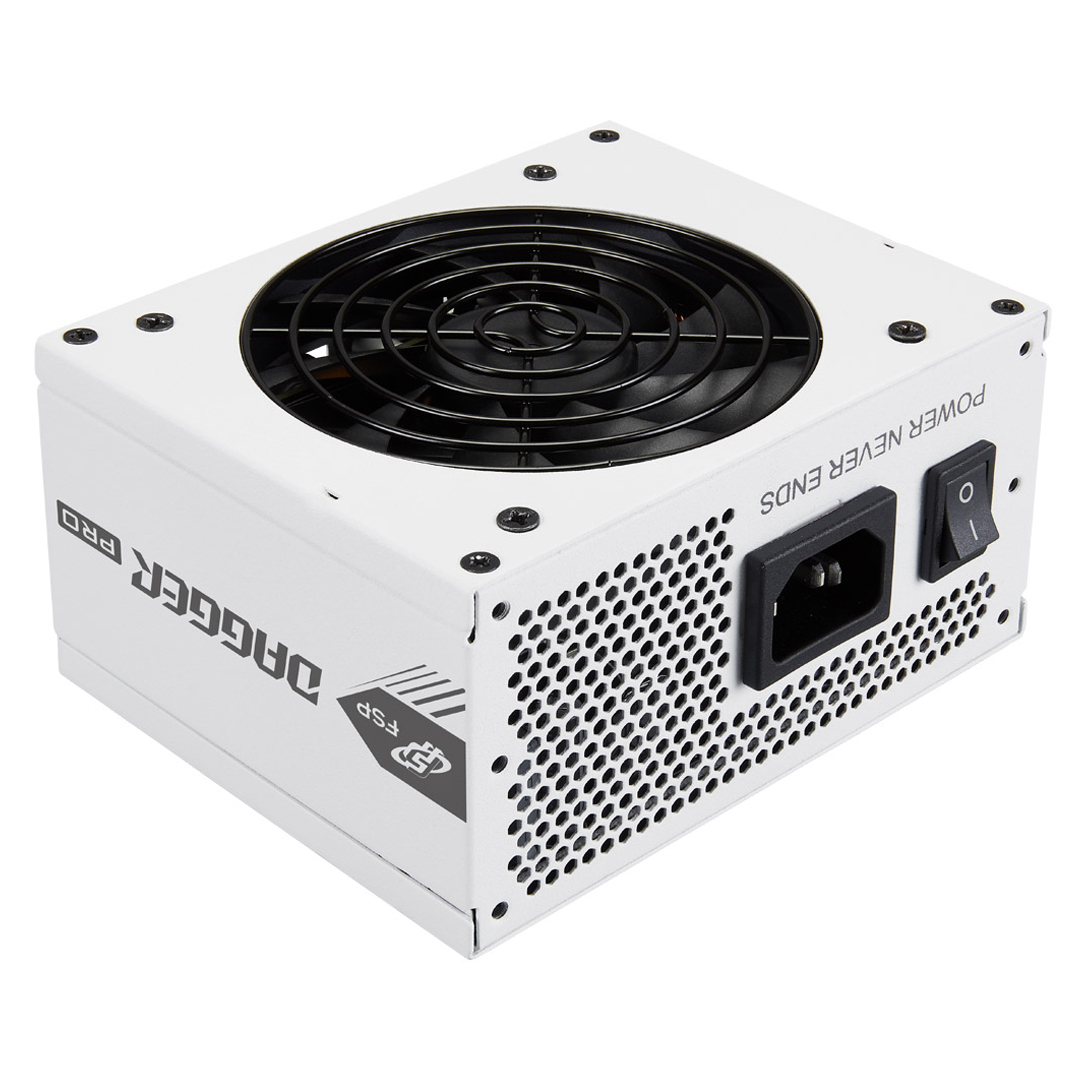

The FSP Dagger Pro SFX power supply is 80 PLUS Gold certified and delivers excellent performance with an 850W capacity, Japanese electrolytic capacitors and ATX 3.1 support. Including a 92mm ball bearing fan, and a modular design with flat ribbon cables to assist in cable management, all in a sleek white housing.
Features
Dagger Pro (ATX3.1) 850W White
Mighty High Performance Small Form Factor Power Supply
- Compliance with ATX12V V3.1(SFX12V V4.0 for 750W & 850W)
- Compliance with PCIe 5.1
- Efficiency ≧ 90% at typical load
- MIA IC (Multiple Intelligence Ability) chip set inside
- Semi-fanless design for silent operation
- Quiet and long-lasting 92mm ball bearing fan
- Powerful single +12V rail design
- Japanese electrolytic capacitors
- Intel latest CPU ready
- Circuit protections OCP, OVP, SCP, OPP, OTP
New ATX PSU Specifications
Updated ATX 3.1 specifications for the next-generation hardware power demands and ensure users get the most stable and cost-optimised performance possible with the highest power efficiency.
Tiny but Powerful
The DAGGER PRO(ATX3.1) series is compatible with most Mini-ITX and Micro ATX small form factor PCs. It is an ideal for home computer rigs but a great alternative for mini-PC enthusiasts.

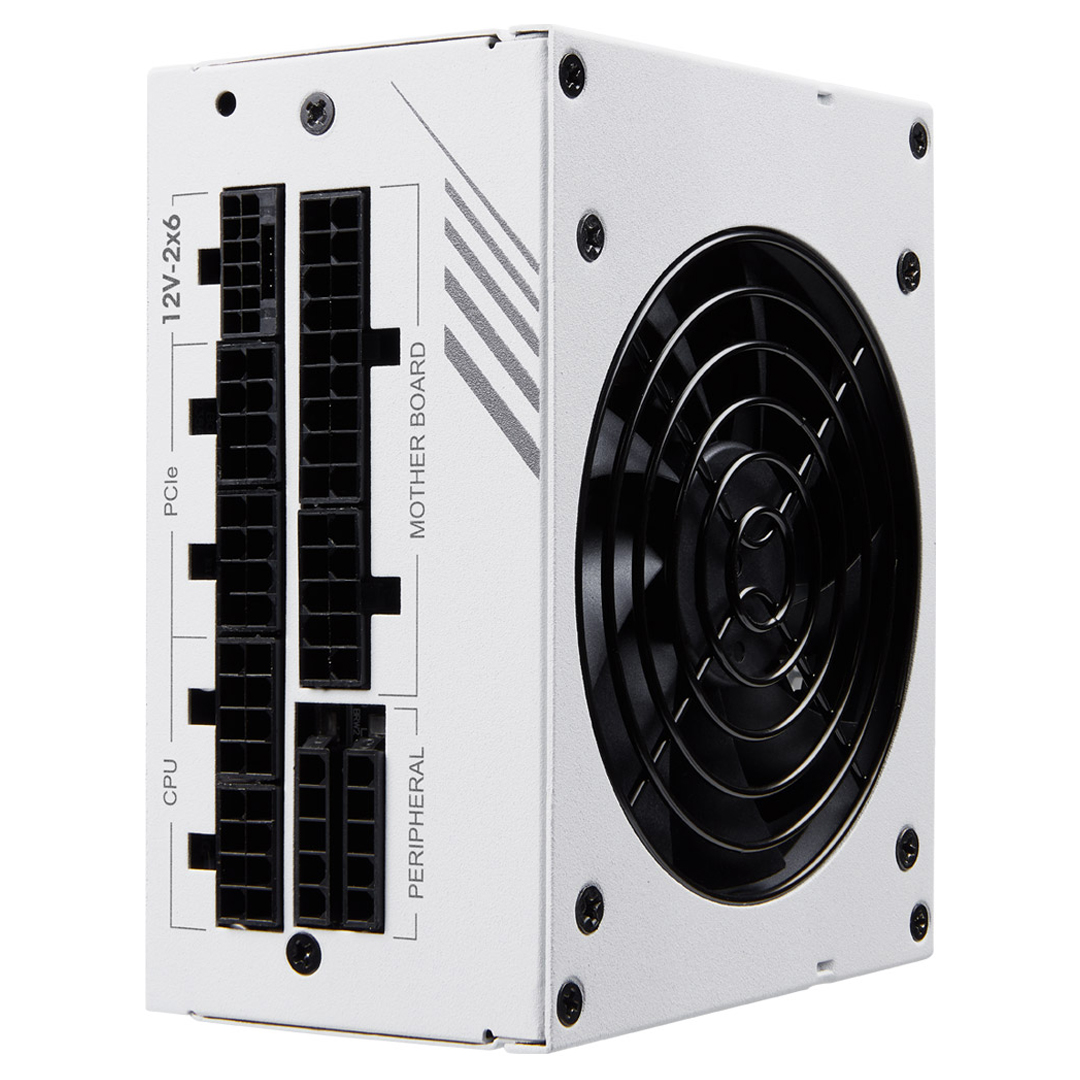

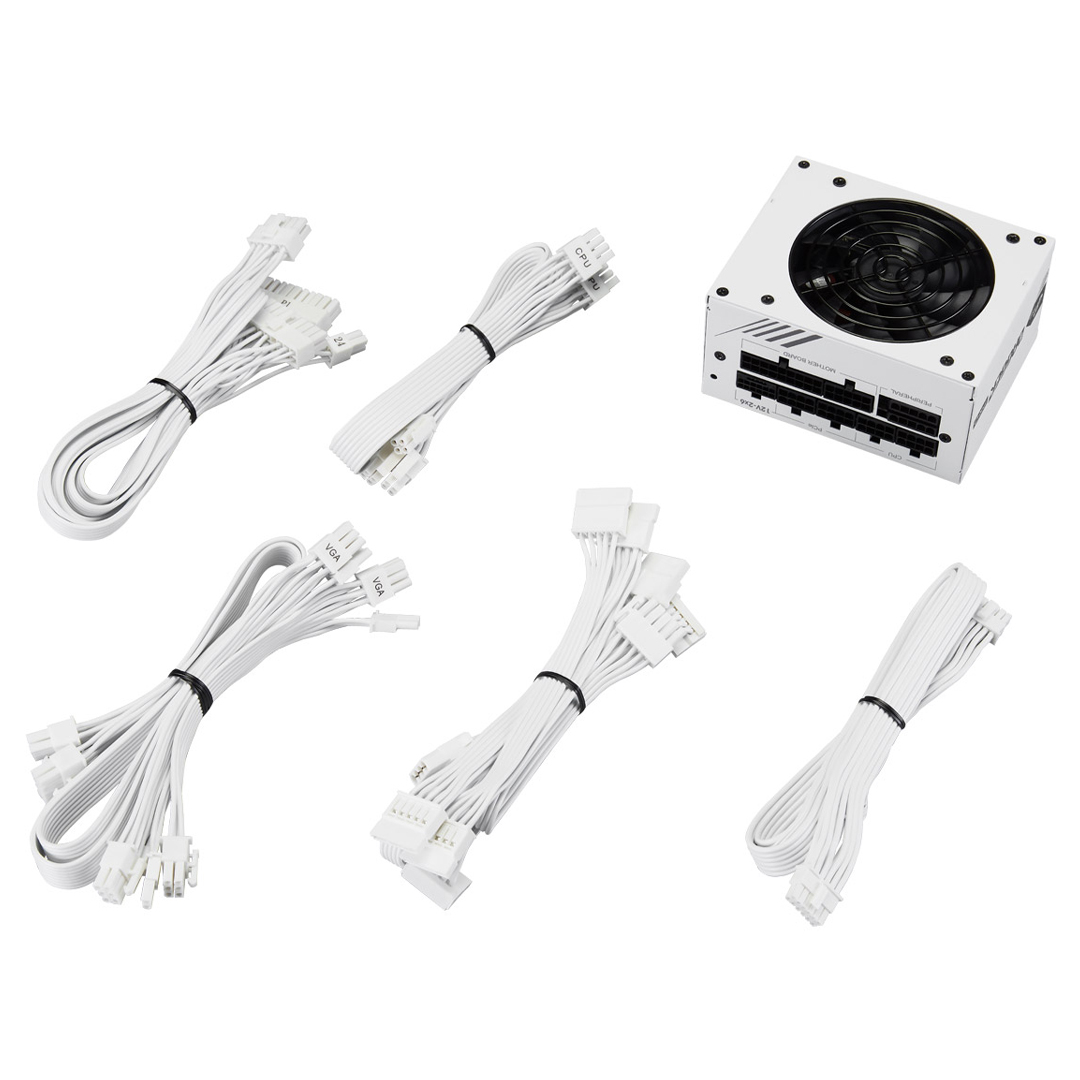

Advance Cable Management and Flat Ribbon Cables
Fully-modular design and flat ribbon cables provide easier installation. An ideal solution for applications with space constraints, enhancing overall airflow efficiency and cable management.
92mm Fan Optimised for Low-Noise Operation
DAGGER PRO(ATX3.1) series is included an advanced semi-fanless design that will spin over 20% loading, make silent and reduce noise under maximum operation.
80 Plus® Gold Certification
DAGGER PRO(ATX3.1) series is a power supply with 80 PLUS® Gold Certification that guarantees to operate at a minimum of 90% efficiency at 50% load of PSU rated power and as a result to reduce lots of electricity cost.
Powerful +12V Single Rail for Your Graphics Cards
Graphics card is a component which needs greedy and stable power supporting most. The compact size DAGGER PRO(ATX3.1) series comes with a single +12V rail design that offers graphics cards full power individually and to avoid any overloading conditions.
- Single +12V rail - Power 100%
- Multi +12V rail - Power 50%
High Compatibility for High Power
The DAGGER PRO(ATX3.1) series comes with a native PCIe 5.1 connector for the latest graphics cards and features dual CPU power connectors to support high-end motherboards for gaming enthusiasts.
Japanese Electrolytic Capacitors
DAGGER PRO(ATX3.1) series uses Japanese electrolytic capacitors to ensure a longer lifetime and protect your PSU from sudden power change!
Supports High-End Motherboards
Adapts to your individual requirements, not only does it fit into cases with the SFX form factor, but can also be installed in a simple steps into normal ATX, Micro-ATX or Mini-ITX cases.
Specifications
| Model Number |
SDA2-850-GEN5-WH |
| Colour |
White |
| Rated Output Power |
850 W |
| Form Factor |
SFX |
| 80 Plus Certification |
Gold |
| Input Voltage |
100 - 240 V |
| Input Current |
12 - 6 A |
| Input Frequency |
50 - 60 Hz |
| PFC |
Active PFC |
| Efficiency |
≥90% at typical load |
| Fan Type |
Ball bearing fan,92 mm |
| Dimensions(L x W x H) |
125 x 100 x 63.5 mm |
| Protection |
OCP, OVP, SCP, OPP, OTP |
| Warranty |
10 Years |

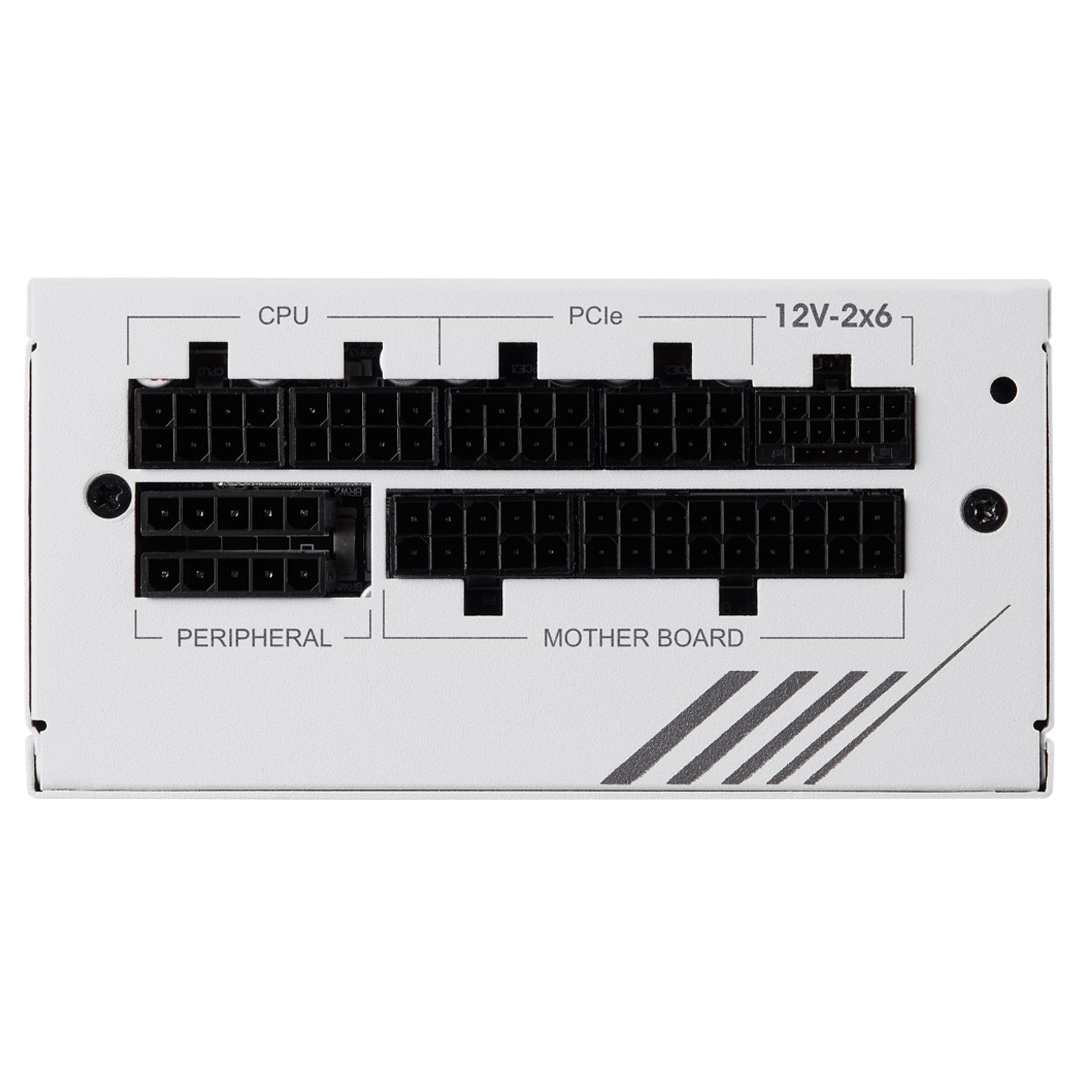

| Cables & Connectors |
MB 20+4 PIN x 1
CPU 4+4 PIN x 2
PCIe 6+2 PIN x 4
PCIe 12V-2x6 x 1
SATA x 6
Molex (Peripheral) x 2 |
| AC Input |
100 - 240 Vac ~ 12 - 6 A 50 - 60 Hz |
Power Table
| DC Output |
+3.3 V |
+5 V |
+12 V |
-12 V |
+5 Vsb |
| Max Output Current |
20 A |
20 A |
70.83 A |
0.3 A |
2.5 A |
| Max Combined Power |
120 W |
120 W |
850 W |
3.6 W |
12.5 W |
| Total Power |
850 W |
850 W |
850 W |
850 W |
850 W |
Backed by a 10 year FSP warranty.
