The Alogic DX3 Triple 4K Display Universal Docking Station features three DisplayPort outputs with DisplayLink technology, supporting up to three 4K UHD at 60Hz external displays. It also delivers 100W Power Delivery, plus adds multiple USB-A and USB-C ports, gigabit Ethernet, SD & microSD card readers and works with both USB-C and USB-A laptops.
Features
DX3 Triple 4K Display Universal Docking Station - with 100W Power Delivery
The DX3 is a robust docking station with a smooth metal finish in elegant space grey and black colours. Its premium design features and aesthetic make it a perfect fit on any desk.
Small Desk Footprint. Big Performance.
The DX3's compact design occupies minimal desk space to deliver premium performance. It's the ideal dock for a distraction-free desk set up focused on productivity.
The DX3 docking station provides universal compatibility across Windows, Mac and Chromebook computers and laptops.
USB-C & USB-A Laptop Compatible
IT decision-makers and organisations have more options with the DX3. It supports USB-C and USB-A laptop deployment.
Dual/Triple Display on M1/M2 Mac
M1/M2 Mac users can work on up to three screens when they plug into the DX3.
Specifications
General Data
| Model Number |
DUPRDX3-WW |
| Displays |
Single display, Dual display, Triple display |
| Host Connection Technology |
USB-C |
| Operating System |
Mac (Apple), iPad OS (Apple), Windows (Microsoft), Chrome OS (Google) |
| Mac Processor Type |
M1/M2/M3, M1/M2/M3 Ultra/Pro/Max, Intel |
| Display Supported on Mac M1/M2/M3 |
Single display, Dual display, Triple display |
| Display Supported on Mac M1/M2/M3 Ultra/Pro/Max |
Single display, Dual display, Triple display |
| Display Supported on Mac Intel |
Single display, Dual display, Triple display |
| Display Supported on Windows |
Single display, Dual display, Triple display |
| Display Supported on Chrome |
Single display, Dual display, Triple display |
| Display Supported Universal |
Single display, Dual display, Triple display |
| Video Outputs |
DisplayPort |
| Docking Station Type |
Desktop |
| Laptop Charging |
100W |
| Additional Features |
Ethernet, 3.5mm Audio, Card Reader |
| Compliance |
FCC, CE, RoHS |
| Resolution |
Up to 3 x 4K UHD 60Hz | USB-A hosts limited to 2x 4K UHD 60Hz outputs |
| Input |
1 x USB-C Port |
| Output |

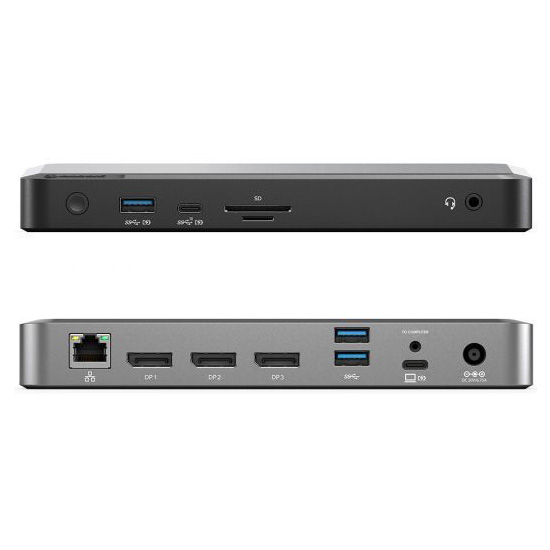

3 x DisplayPort (DP1.4/DP++), 1 x USB-C 3.1 Gen 2 (10G) BC 1.2 and Apple Charging Support, 1 x USB-A 3.1 Gen 1 (5G) BC 1.2 and Apple Charging Support, 2 x USB-A 3.1 Gen1 (5G), 1 x 3.5mm TRRS Audio / Microphone Jack, 1 x RJ45 Ethernet 1Gbps, 1 x SD Card Re |
| Audio |
Analogue audio line/microphone in/out |
| Device Compatibility |
Apple, Chromebook, Microsoft |
| Warranty |
2 Years |
Physical Characteristics
| Product Dimensions |
190 x 90 x 6.5mm (W x D x H) |
| Colour |
Space Grey and Black |
| Weight (Product) |
535g |
| Materials |
ABS |
Backed by a 2 year Alogic warranty.
