Epic Price ! TP-Link ER605W Omada AC1200 Gigabit Wi-Fi Gateway features dual-band AC1200 wireless (867 Mbps on 5 GHz + 300 Mbps on 2.4 GHz) and five Gigabit Ethernet ports (1 WAN, 2 WAN/LAN, 2 LAN) for flexible wired and wireless connectivity. It also supports load balancing across up to three WANs plus a suite of VPN options and integrates with TP-Link's Omada SDN cloud management for centralised monitoring and control.
Promotion Valid: 14/07/2026 - 26/07/2026
Features
ER605W Omada AC1200 Gigabit Wi-Fi Gateway
Always-On Coverage, Always-On Networking
- AC1200 Dual-Band Wi-Fi (867 Mbps on 5 G + 300 Mbps on 2.4 G) (Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network.)
- 5x Gigabit Ethernet Ports (1x WAN, 2x WAN/LAN, and 2x LAN) Provide High-Speed Connectivity
- 4x High-Gain External Antennas for Boosted Coverage
- Load Balancing on up to 3x WAN Ports
- IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE (These features are supported only in Standalone Mode.) VPN
- DoS Defence, IP/MAC/URL Filtering, and More Abundant Security Features
- Centralised Cloud Management via Web and Omada App
- Omada App for Easy Setup and Management
Smooth Networking Starts with AC1200 Dual Band WiFi
ER605W offers up to 300 Mbps on the 2.4 GHz band for everyday use and up to 867 Mbps on the 5 GHz band for HD streaming and conferencing, suitable for retail, small shops, small chain stores, branch offices, and more.
Up to Five Gigabit Ports for Gigabit Connectivity
ER605W boasts 1 WAN, 2 WAN/LAN, and 2 LAN ports, meeting diverse internet needs. Attach your wired devices like desktops or 4K HDTVs to ER605W for a seamless experience.
Robust Wireless Coverage Means No Dead Ends
Four external antennas send WiFi signals to every corner of your store. Stay connected and enjoy fast WiFi whether you’re working the shelves or register.
High-Security and High-Performance VPN
IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE (These features are supported only in Standalone Mode.) VPN easily build secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.
Abundant Security Features
- Powerful Firewall
- IP/MAC/URL Filtering
- Convenient VLAN Support
- IP-MAC Binding
- DoS Defence
- One-Click ALG Activation
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
Build Features

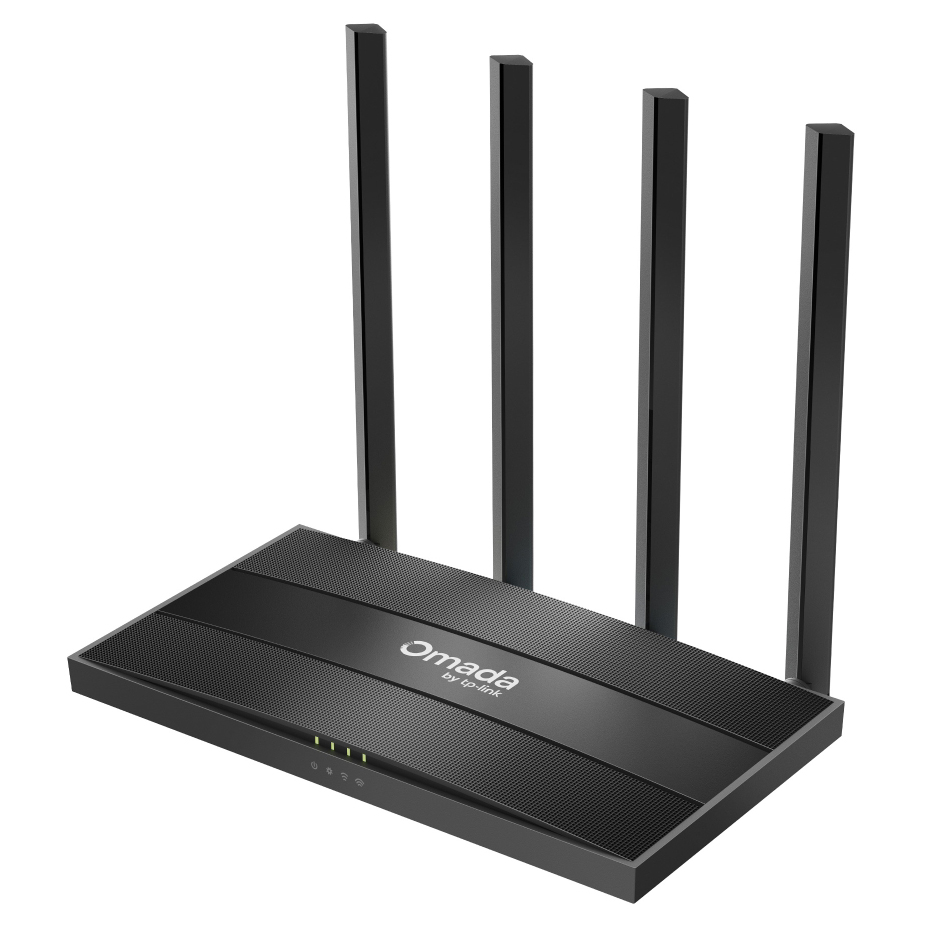

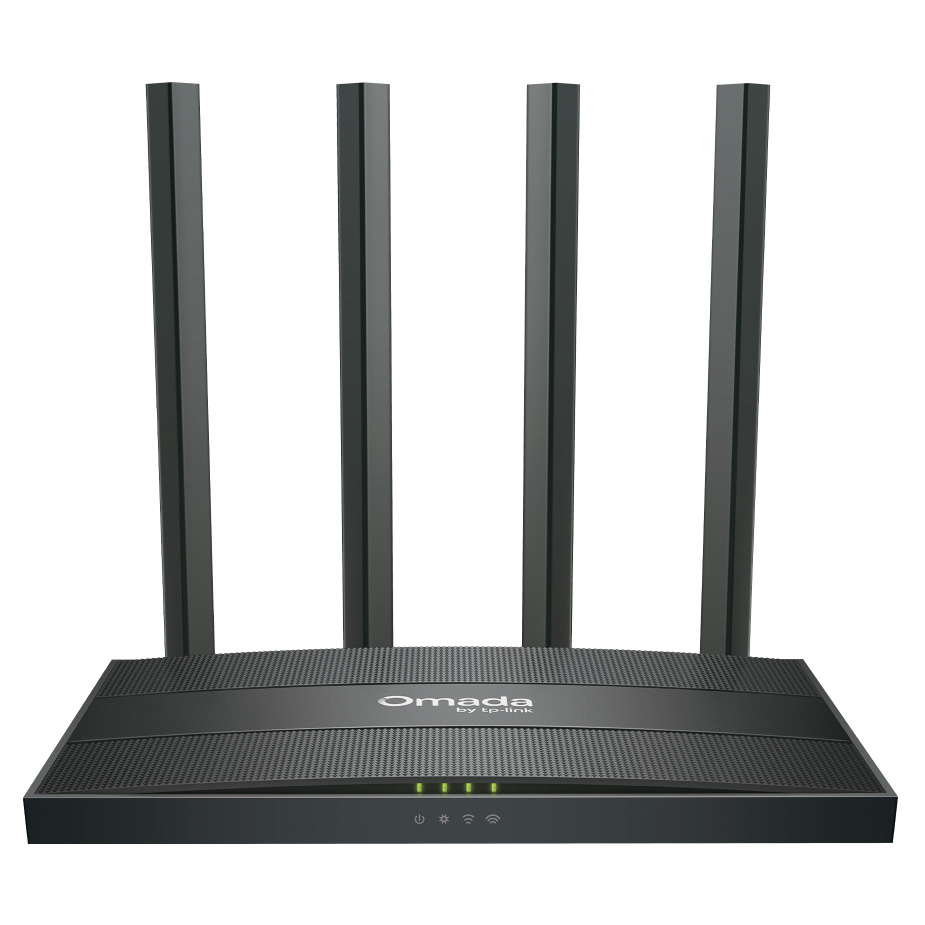

Front View

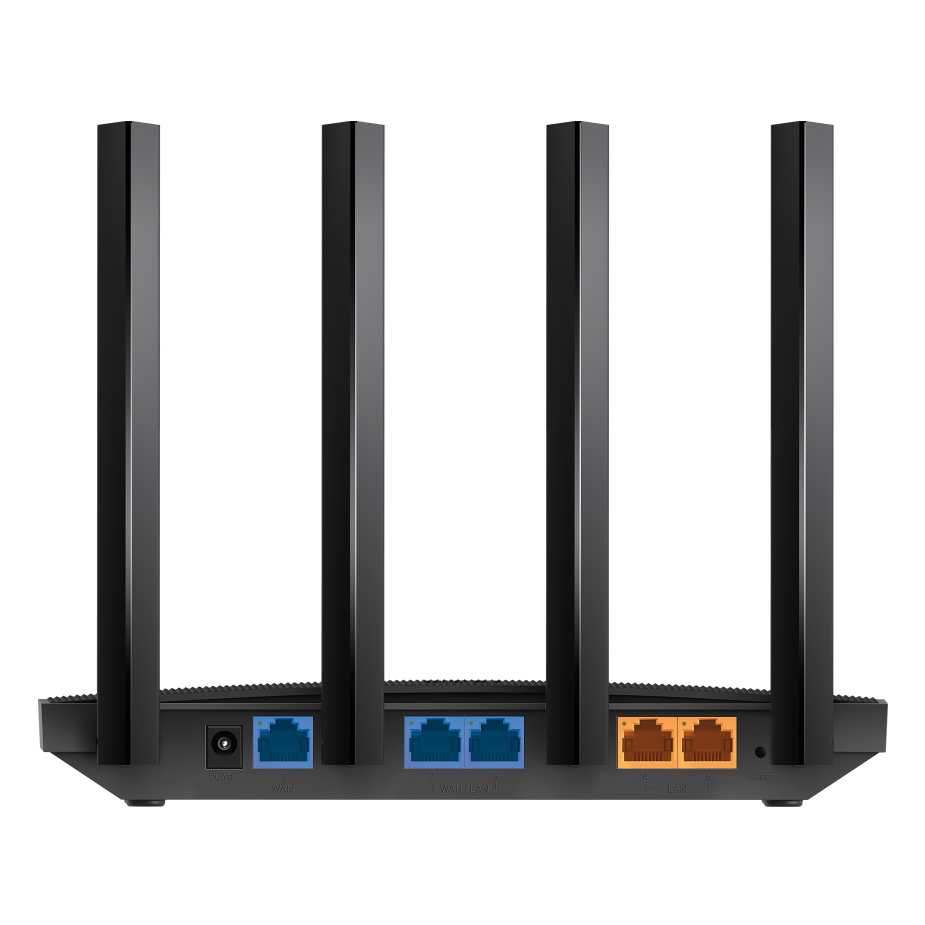

Back View
Specifications
General Data
| Model Number |
ER605W |
| Certification |
CE, FCC, RoHS |

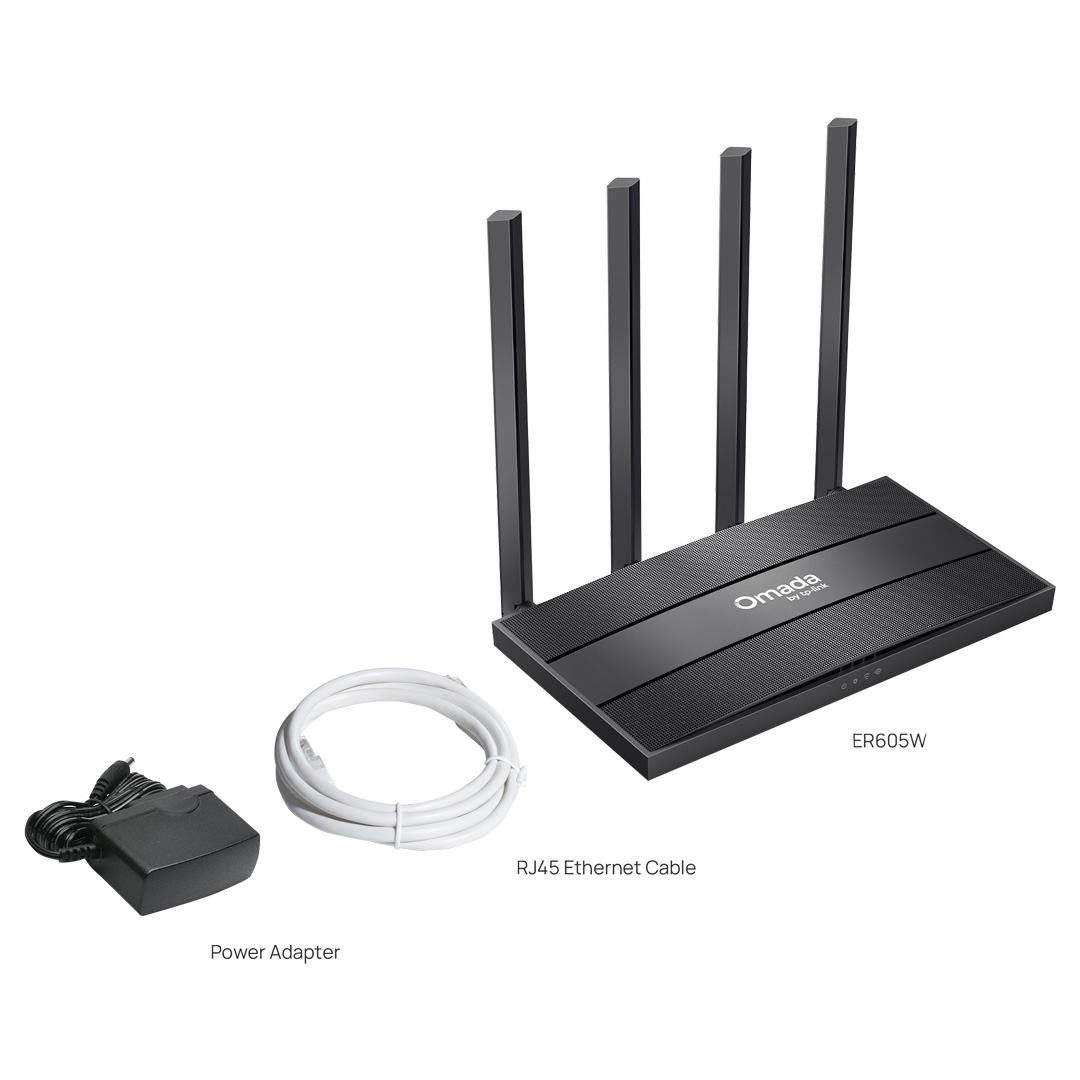

| What's Included |
ER605W
Power Adaptor
Ethernet Cable
Quick Installation Guide |
| Warranty |
5 Years |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
MAC OS, NetWare, UNIX or Linux |
| Environment |
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing |
| Web Authentication |
No Authentication
Simple Password (These features are supported only in Controller Mode.)
Hotspot (Local User / Voucher (These features are supported only in Controller Mode.) / SMS (These features are supported only in Controller Mode.) / Radius (These features are supported only in Controller Mode.))
External Radius Server
External Portal Server (These features are supported only in Controller Mode.)
LDAP |
Security
| Access Control |
Source/Destination IP Based Access Control |
| Filtering |
Web Group Filtering (These features are supported only in Standalone Mode.)
URL Filtering
Web Security (These features are supported only in Standalone Mode.) |
| ARP Inspection |
Sending GARP Packets
ARP Scanning (These features are supported only in Standalone Mode.)
IP-MAC Binding |
| Attack Defence |
TCP/UDP/ICMP Flood Defence
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN |
Hardware Features
| Interface |
1× Gigabit WAN Port
2× Gigabit WAN/LAN Ports
2× Gigabit LAN Ports |
| Button |
Reset Button |
| Power Supply |
12V DC / 1A Power Adaptor |
| Wi-Fi Frequency & Signal Rate |
2.4 GHz: 300 Mbps
5 GHz: 867 Mbps |
| Flash |
128 MB NAND |
| DRAM |
256 MB DDR3 |
| LED |
Power, SYS, 2.4G, 5G
WAN (1000/100/10M Link/Act),
WAN/LAN (1000/100/10M Link/Act)
LAN (1000/100/10M Link/Act) |
| Dimensions ( W x D x H ) |
8.5 × 4.6 × 1.2 in (215 × 117 × 32 mm) |
| Antenna |
2.4 GHz: 2× 5 dBi non-detachable antennas
5 GHz: 2× 5 dBi non-detachable antennas |
| Mounting |
Desktop/Wall-mounting |
| Max. Power Consumption |
EU: 9 W
US: 10.3 W |
Performance
| GRE |
Unencrypted: 180.1 Mbps
Encrypted: 56.9 Mbps |
| WireGuard VPN |
71.2 Mbps |
| Concurrent Session |
50,000 |
| New Sessions /Second |
2,028 |
| NAT (Static IP) |
909.3Mbps/937.5 Mbps |
| NAT(DHCP) |
938.3 Mbps /888.2 Mbps |
| NAT(PPPoE) |
929.9 Mbps /929.2 Mbps |
| NAT (L2TP) |
346.9 Mbps /337.6 Mbps |
| NAT (PPTP) |
487.1 Mbps/454.3 Mbps |
| OpenVPN |
16.8 Mbps |
| L2TP VPN Throughput |
Unencrypted: 400.3 Mbps
Encrypted: 127.5 Mbps |
| PPTP VPN Throughput |
Unencrypted: 523.6 Mbps
Encrypted: 52.7 Mbps |
| 66 Byte Packet Forwarding Rate |
1,453,489 pps /1,453,489 pps |
| 1,518 Byte Packet Forwarding Rate |
81,275 pps / 81,275 pps |
Wireless Features
| Advanced Features |
Multiple SSIDs: 16 in total (8 per radio)
Enable/Disable Wireless Radio
Enable/Disable SSID Broadcast
Automatic Channel Selection Algorithm
Transmit Power Control: Adjust transmit Power on dBm
Beamforming
Rate Limit: Based on SSID/Client
Load Balance
Band Steering
RADIUS Accounting
Reboot Schedule
MAC Authentication
Wireless Schedule
Wireless Encryption: WPA/WPA2 Personal, WPA/WPA2 Enterprise |
Basic Functions
| WAN Connection Type |
Static IP
Dynamic IP
PPPoE (supports MRU Configuration)
PPTP
L2TP |
| MAC Clone |
Modify WAN Address |
| DHCP |
DHCP Server
DHCPv6 PD Server (only in Standalone Mode)
DHCP Options Customisation
DHCP Address Reservation
Multi-IP Interfaces
Multi-Net DHCP |
| IPv6 |
StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN |
802.1Q VLAN |
| IPTV |
IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
Advanced Features
| Advanced Routing |
Static Routing
Policy Routing
RIP
OSPF |
| Bandwidth Control |
IP-Based Bandwidth Control |
| Load Balance |
Intelligent Load Balance
Application Optimised Routing
Link Backup(Timing, Failover)
Online Detection |
| NAT |
One-to-One NAT
Multi-Net NAT
Virtual Server
Port Triggering (These features are supported only in Standalone Mode.)
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG
UPnP |
| Session Limit |
IP-Based Session Limit |
VPN
| GRE |
Only in Standalone Mode |
| IPsec VPN |
6 IPSec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm IPsec
Failover
IKE v1/v2
MD5, SHA1, SHA-256, SHA2-384 and SHA2-512 Authentication
Algorithm NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS) |
| PPTP VPN |
PPTP VPN Server
PPTP VPN Client (6) 6 Tunnels
PPTP with MPPE Encryption |
| L2TP VPN |
L2TP VPN Server L2TP VPN Client (6) 6 Tunnels
L2TP over IPSec |
| OpenVPN |
OpenVPN Server OpenVPN Client (3)
18 OpenVPN Tunnels
"Certificate + Account" Mode
Full Mode |
| WireGuard VPN |
Yes |
Management Features
| Omada App |
Yes. |
| Centralised Management |
Omada App
Omada Hardware Controller
Omada Software Controller |
| Service |
Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customisation) |
| Maintenance |
Web Management Interface
Remote Management
Export & Import Configuration
Diagnostics (Ping & Traceroute) (These features are supported only in Standalone Mode.)
NTP Synchronise (These features are supported only in Standalone Mode.)
Port Mirroring
Syslog Support |
| Management Features |
Automatic Device Discovery
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration |
Backed by a 5 year TP-Link warranty.
