TP-Link EAP650 D30-Outdoor AX3000 Indoor/Outdoor WiFi 6 Access Point

The TP-Link EAP650 D30 Indoor/Outdoor AX3000 WiFi 6 Access Point features dual-band Wi-Fi 6 delivering combined speeds up to 3.0 Gbps (2.402 Gbps on 5 GHz + 574 Mbps on 2.4 GHz) with built-in 30 degree directional high-gain antennas for long-range, focused coverage. It's housed in a rugged, IP68 weatherproof, passive PoE and integrates with TP-Link's Omada SDN platform for cloud or controller-based centralized management.

Features

---

EAP650 D30-Outdoor AX3000 Indoor/Outdoor Wi-Fi 6 Access Point

• Superior Wi-Fi 6 Speeds: 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. (Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range, coverage, and maximum quantity of connected devices are based on test results under normal usage conditions. Actual wireless data throughput, wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition.)
• Directional Ultra-Range Coverage: Equipped with built-in high-gain directional antennas to deliver precise and extended coverage. (Coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.)
• Ideal for Warehouses and Outdoor Scenes: Features an IP68 waterproof enclosure with -30°C to +70°C operating range.
• 802.11k/v/r Seamless Roaming: Ensures uninterrupted connectivity for AGVs and handheld scanners.§
• Flexible Deployment: Supports 802.3at PoE and Omada Mesh technology.
• Centralised Cloud Management: Control everything from a single interface anywhere via the Omada app or Web UI.§
• Wi-Fi 6 Speeds up to 3.0 Gbps (Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range, coverage, and maximum quantity of connected devices are based on test results under normal usage conditions. Actual wireless data throughput, wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition.)
• PoE+ Support
• Automatic WLAN Optimisation

Designed for Warehouses

The EAP650 D30-Outdoor features a durable, fully sealed IP68 weatherproof enclosure, making it dustproof and capable of withstanding submersion in water. It is ideal for warehouse environments.

• Durable Waterproof Enclosure
• Operating Temperature of -30°C to 70°C
• No Ingress of Dust

Elevate Wi-Fi Experience for Shelf Areas with Directional Antennas

Equipped with 4× built-in dual-band directional antennas with high gain to ensure the optimal Wi-Fi experience ideal for precise and extended coverage. (Coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.)

• Recommended Installation Height: 13 ft / 4 m
• Recommended Coverage Length: 262 ft / 80 m

Directional Antennas for Ultra-Range Coverage in Outdoor Scenarios

• 2.4 GHz up to 1181 ft /360 m
• 5 GHz up to 2953 ft /900 m

Based on field tests in an open, outdoor, and unobstructed environment. The number listed here is the maximum distance of one EAP650 D30-Outdoor which the client's signal strength is ≥ -75 dBm. The real transmission range and recommended coverage may vary, according to the environment, receiving device, etc.

Stay Smooth with Seamless Roaming

Ensure users enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signals.

Seamless Integration into Omada SDN

Build Features

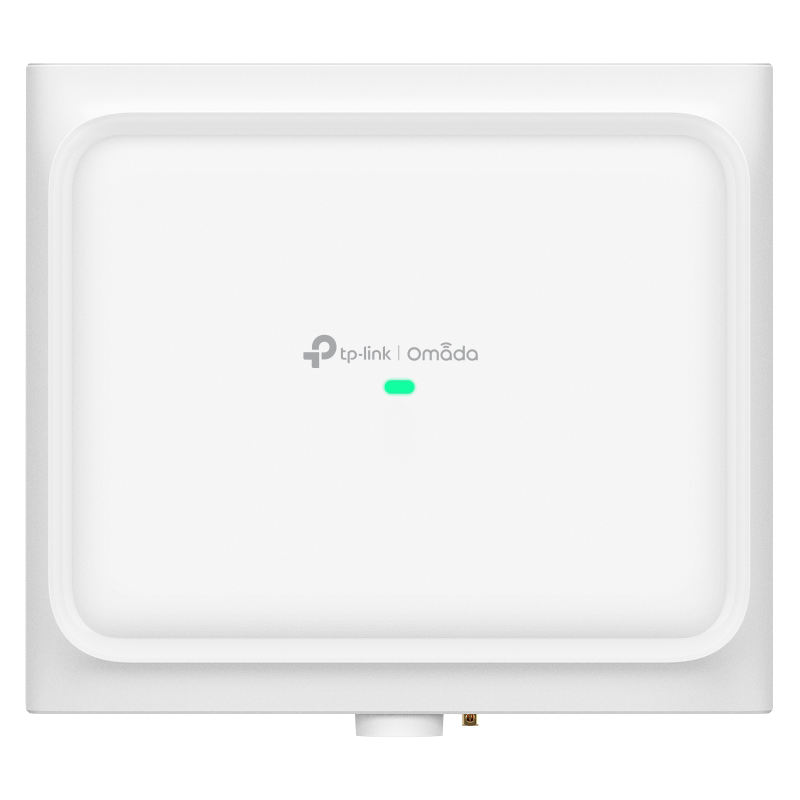

Front View

**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.

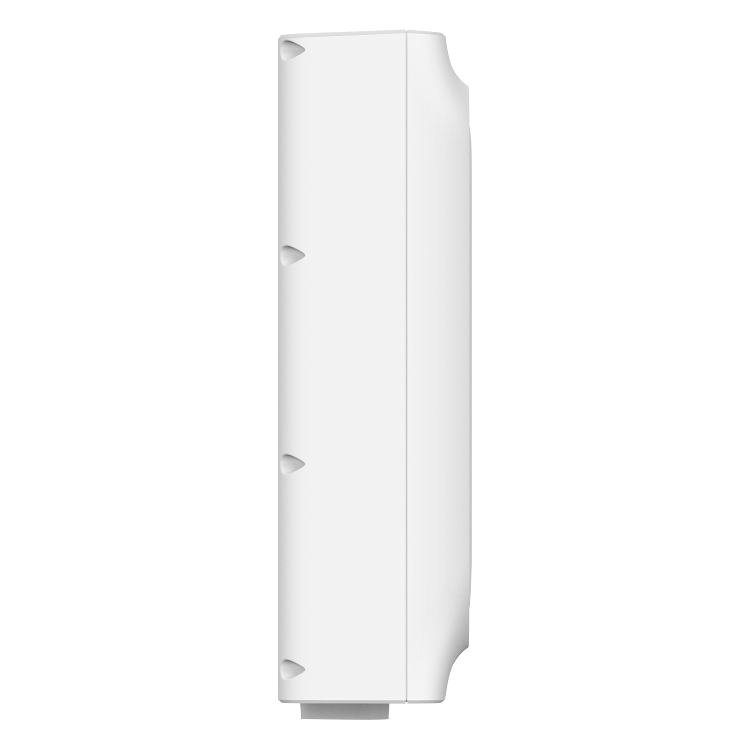

Side View

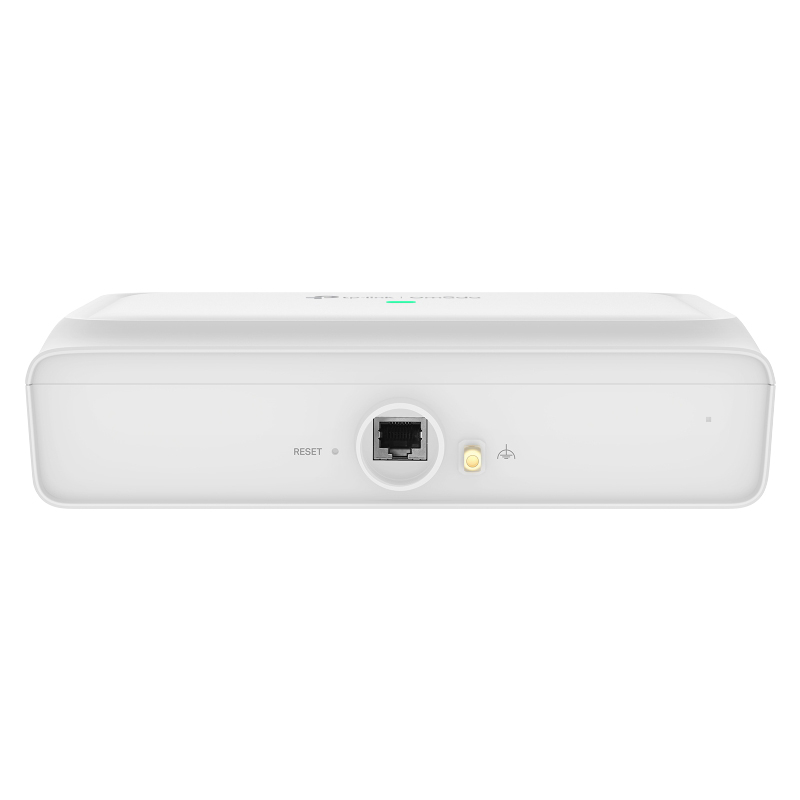

Bottom View
