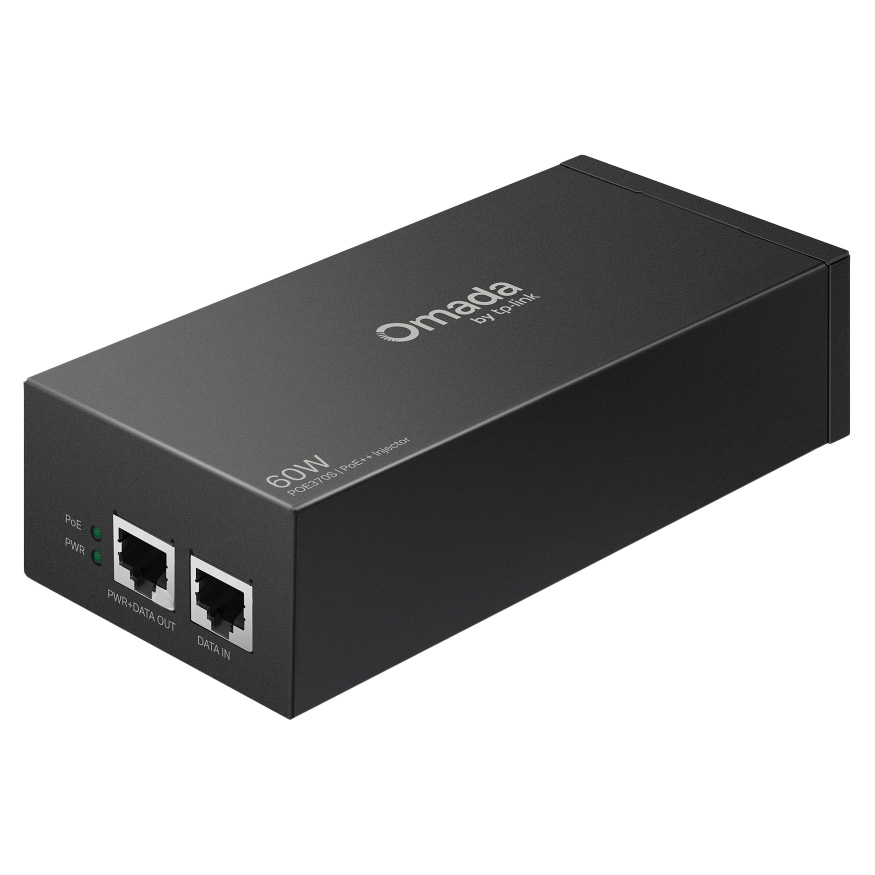

The TP-Link POE370S Omada PoE++ Injector features dual RJ-45 ports capable of up to 10 Gbps (including 2.5G, 5G, 10G speeds) plus a PoE++ output delivering up to 60 W, ideal for powering high-draw devices like PTZ cameras or access points. It includes a durable metal casing with both wall-mount and desktop installation options.
Features
Omada PoE++ Injector
The Omada PoE++ Injector POE370S fully complies with IEEE 802.3af/at/bt (type 3) standards with up to 60 W power supply. (POE370S is incompatible with Passive PoE and other non-standard PoE devices. The standards refer to IEEE 802.3af/at/bt.) It can easily expand your network to where there are no power lines or outlets, ideal for connecting PTZ IP Cameras, access points, and LEDs.
- 2 x 10Mbps/100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 Ports ensure faster transmission
- Complies with IEEE802.3af/at/bt standards, supplies up to 60 W
- Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
- Automatically determines and supplies the exact power to meet the device's need
- Wall-mounting and desktop design accommodates most installation scenarios
- Plug & Play installation, no configuration required
- Integrated power supply
- Durable metal casing
Specifications
General Data
| Model Number |
POE370S |
| Certification |
FCC, CE |
| What's Included |
POE370S
Power Cord
Installation Guide |
| Environment |
Operating Temperature: -5°C to 45°C (23°F to 113°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Humidity: 10% to 90%RH non-condensing
Storage Humidity: 5% to 90%RH non-condensing |
| Warranty |
3 Years |
Hardware Features
| Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3an |
| Interface |
2 x 10Mbps/100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 Ports |
| Network Media |
10Base-T/100Base-TX: UTP category 5 cable or above (maximum 100 m)
1000Base-T/2.5GBase-T: UTP category 5e cable or above (maximum 100 m)
5GBase-T: UTP category 5e cable or above (maximum 100 m)
10GBase-T: UTP category 6 cable or above (maximum 50 m)
STP category 6a cable or above (maximum 90 m) |
| Max. Power Consumption |
60 W |
| LED |
PWR, PoE |
| Dimensions (W x D x H) |
154.7 x 70 x 42 mm (6.09 x 2.76 x 1.65 in) |
Backed by a 3 year TP-Link warranty.
