Thermal Grizzly DeltaMate Extender MF10 Black

Features

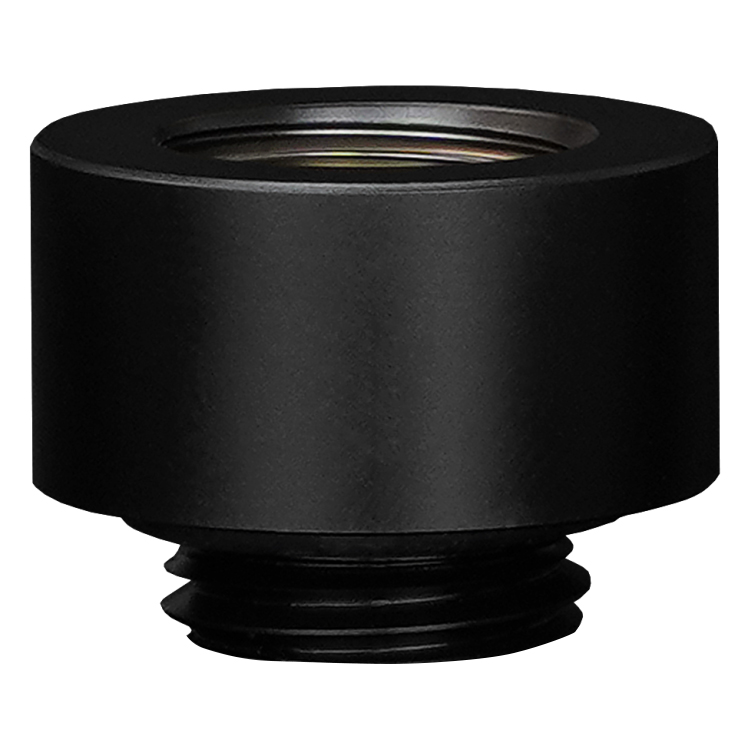

DeltaMate Extender - MF10 - Black - 1 Pc.

Machined brass extender fitting with EPDM O-ring, G1/4" threads

DeltaMate Extender Fittings are water cooling connectors designed for the individual components of a custom water cooling loop. As expected from Thermal Grizzly quality, the extender fittings are precisely machined from brass. Brass, as an alloy of copper and zinc, offers the advantage of being anodically compatible with other metals while being harder and more corrosion-resistant than copper. The sealing rings (O-rings) are made from highly elastic EPDM (ethylene propylene diene rubber), which is resistant to ozone and UV radiation. The robust design of the DeltaMate fittings allows for installation using an 8 mm hex key. The uniform outer diameter of all DeltaMate fittings ensures seamless integration of individual components.

The DeltaMate Extender - MF10 features one G1/4″ male thread and one G1/4″ female thread, and is finished with a matte-black chromium plating that’s both premium in appearance and easy to clean. Used as an extension fitting, it’s installed between the water-cooling component’s port and the fitting, increasing the spacing by 10 mm. Can be combined with a DeltaMate Rotary to create a direct replacement for conventional rotary fittings.

• Can be combined with a DeltaMate Rotary to create a direct replacement for conventional rotary fittings.
• Practical fixed length extender to increase the spacing between ports and fittings by 10.5mm.
• Consistent outer diameter with all DeltaMate fittings for completely seamless integration.
• Robust design allows installation with an 8mm hex key.

Note

Maximum thread depth 4.5mm!
