The Ubiquiti UniFi Device Bridge Pro Sector (UDB-Pro-Sector) is a high-performance 5 GHz wireless access point designed for point-to-multipoint connectivity. It features a 90 degree sector antenna with 17 dBi gain, supports data rates up to 400 Mbps and operates on the 5 GHz Wi-Fi 5 band. With a weatherproof design and IPX6 rating, it is suitable for outdoor use.
Features
Device Bridge Pro Sector
Deployment
Build Feature

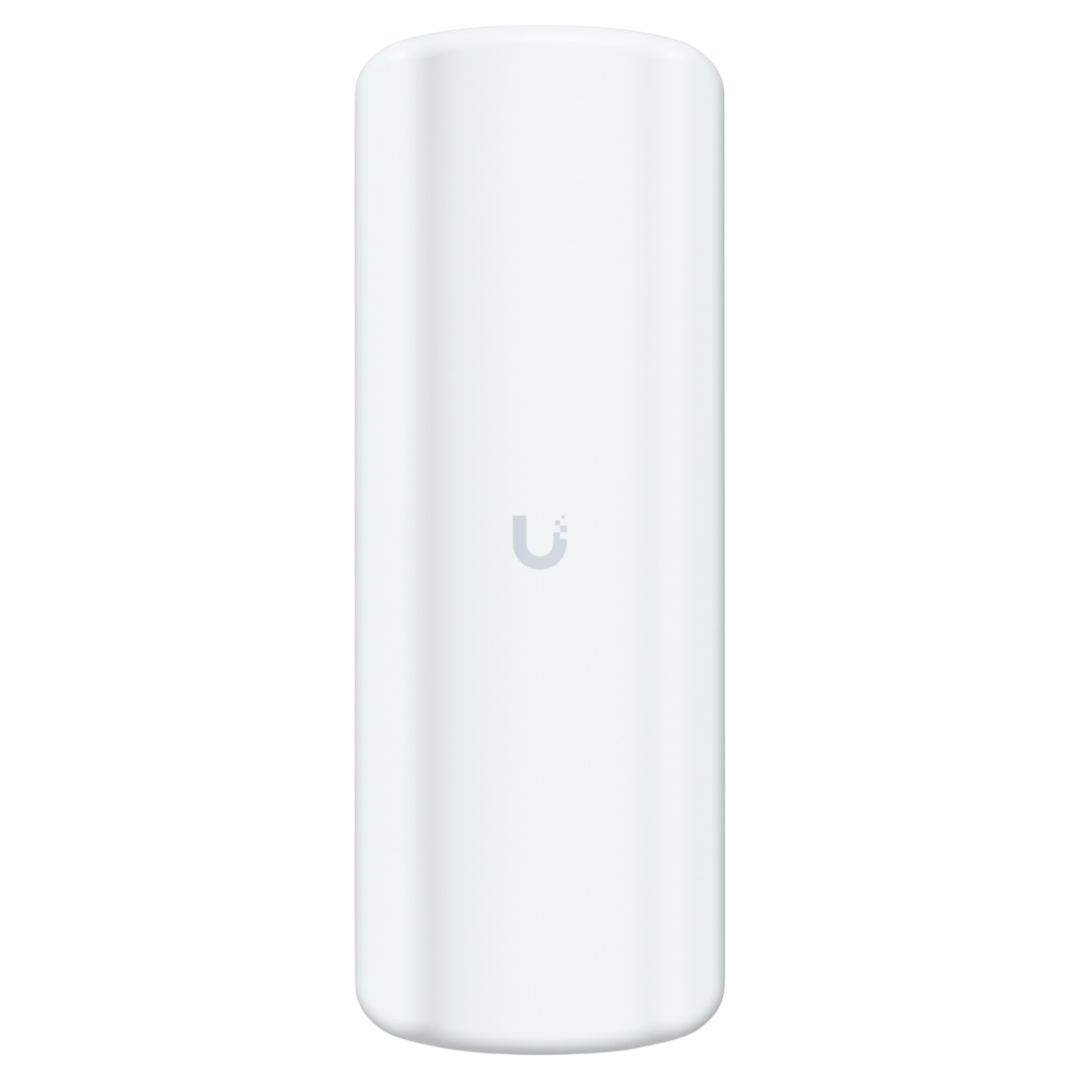

Front View

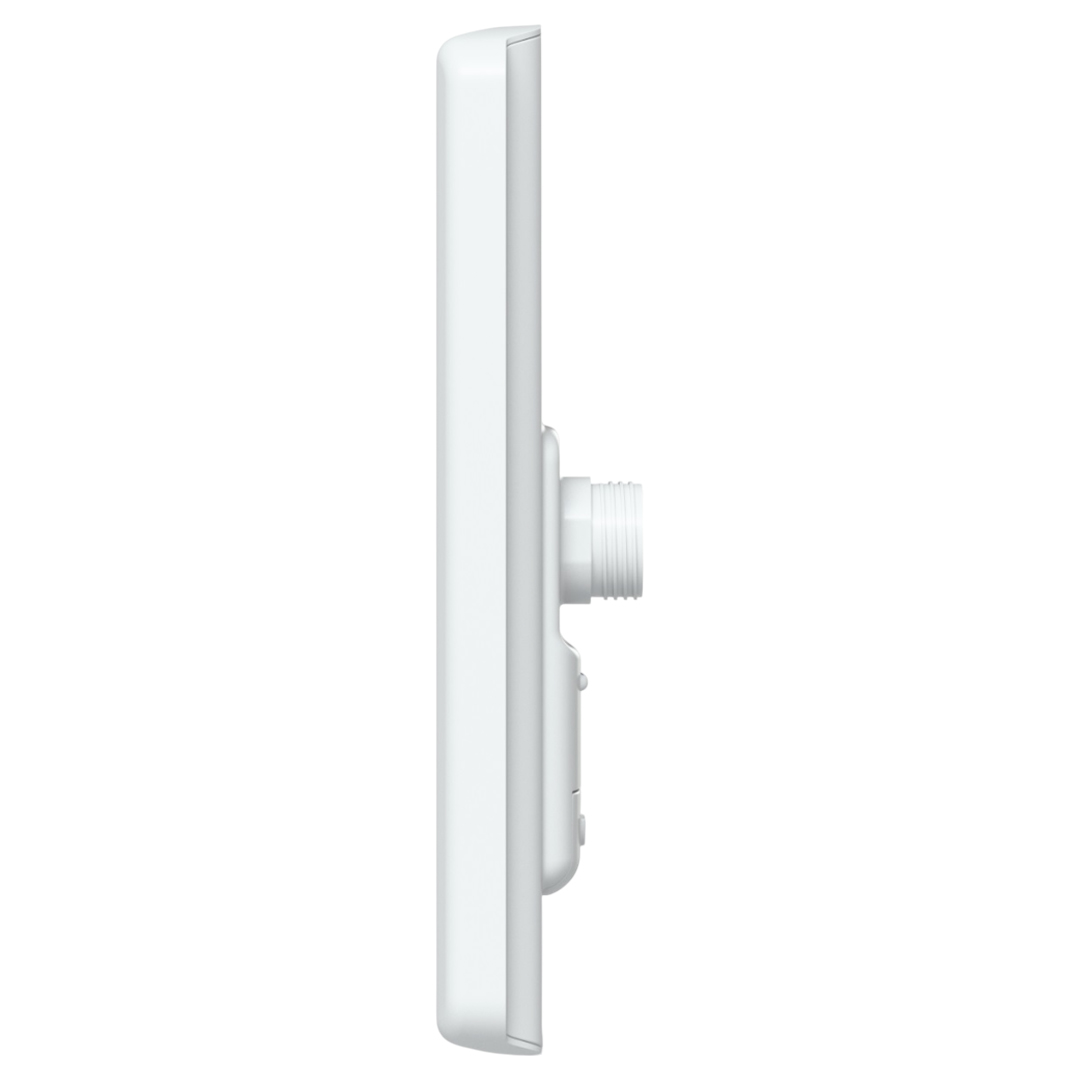

Side View

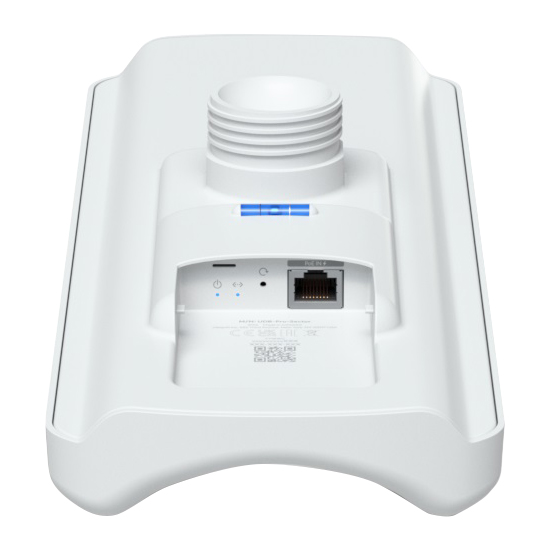

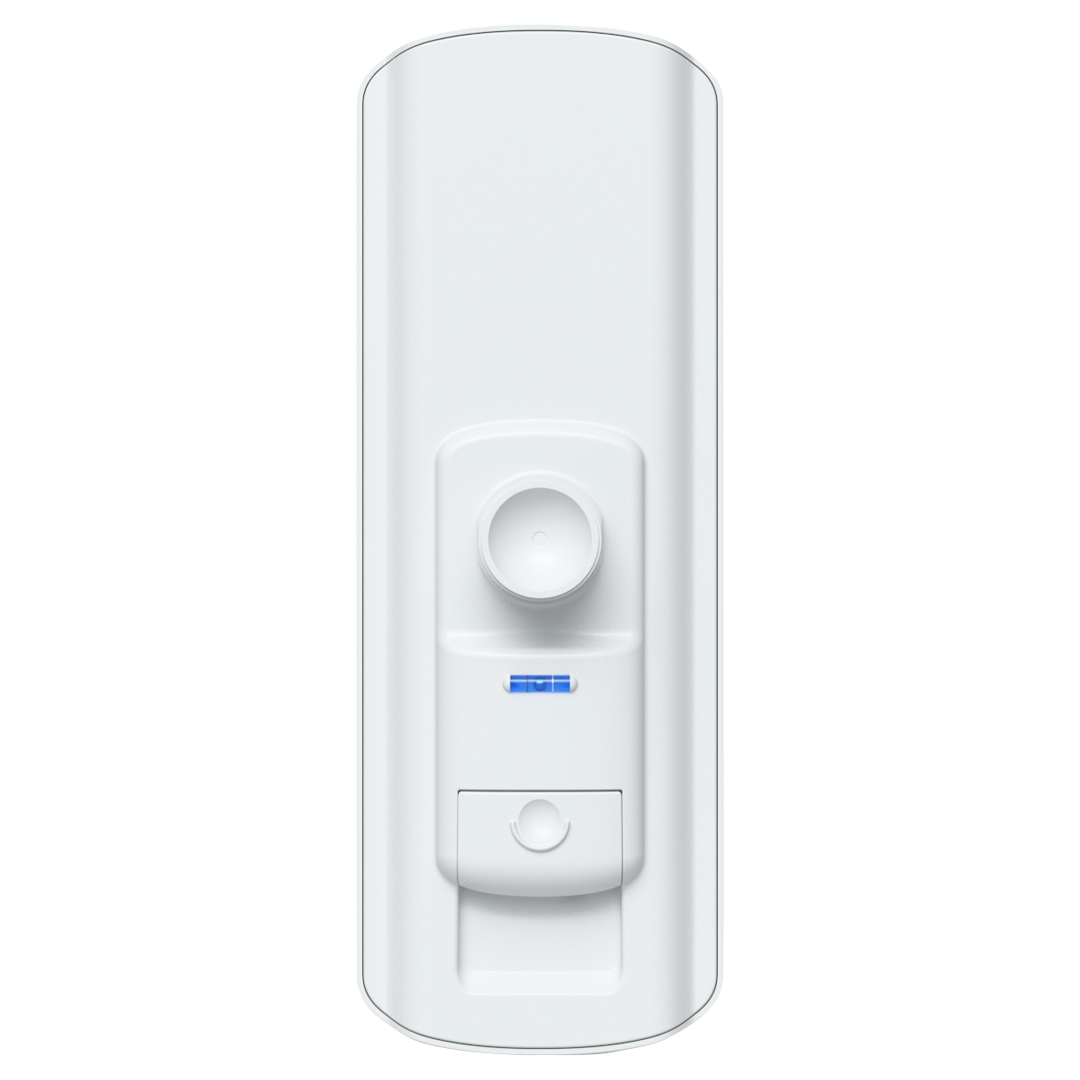

Back View
Specifications
General Data
| Model Number |
UDB-PRO-SECTOR |
| Dimensions |
360.9 x 129.6 x 71.4 mm (14.2 x 5.1 x 2.8”) |
| WiFi Standard |
WiFi 5 |
| Spatial Streams |
2 |
| Coverage Area |
5 km (3.1 mi) |
| Mounting Locations |
Pole |
| Weatherproofing |
IPX6 |
| Power Method |
PoE |
Performance
| MIMO |
5 GHz - 2 x 2 |
| Max. Data Rate |
5 GHz - 400 Mbps (BW40) |
| Antenna Gain |
5 GHz - 17 dBi |
| Max. TX Power |
5 GHz - 25 dBm |
| Max. Conducted TX Power |
25 dBm (Combined) |
| Supported Data Rates |
802.11ac (WiFi 5)
6.5 Mbps to 400 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Security |
WPA2 AES |
Hardware
| Max. Power Consumption |
6 W |
| Supported Voltage Range |
42.5—57 V DC |
| Networking Interface |
(1) GbE RJ45 port |
| Antennas |
Internal |
| Management |
Ethernet
WiFi |
| Channel Bandwidth |
20/40 MHz |
| Wind Loading |
128.2N at 200 km/h |
| Weight |
Device: 782 g (1.7 lb)
With mount: 835 g (1.8 lb) |
| Enclosure Material |
UV-stabilised polycarbonate |
| Mount Material |
UV-stabilised polycarbonate, stainless steel |
| Pole Mount Diameter |
0.9—2.4" (24—60 mm) |
| Button |
(1) Factory-reset |
| LEDs |
System
Power, Ethernet |
| Ndaa Compliant |
Yes |
| Certifications |
CE, FCC, IC |
| Operating Frequency |
US/CA
U-NII-1 5150 - 5250 MHz
U-NII-2A 5250 - 5350 MHz
U-NII-2C 5470 - 5725 MHz
U-NII-3 5725 - 5850 MHz
Worldwide
5150 - 5875 MHz |
| Ambient Operating Temperature |
-40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity |
5 to 95% noncondensing |
Backed by a 1 year Ubiquiti warranty.
