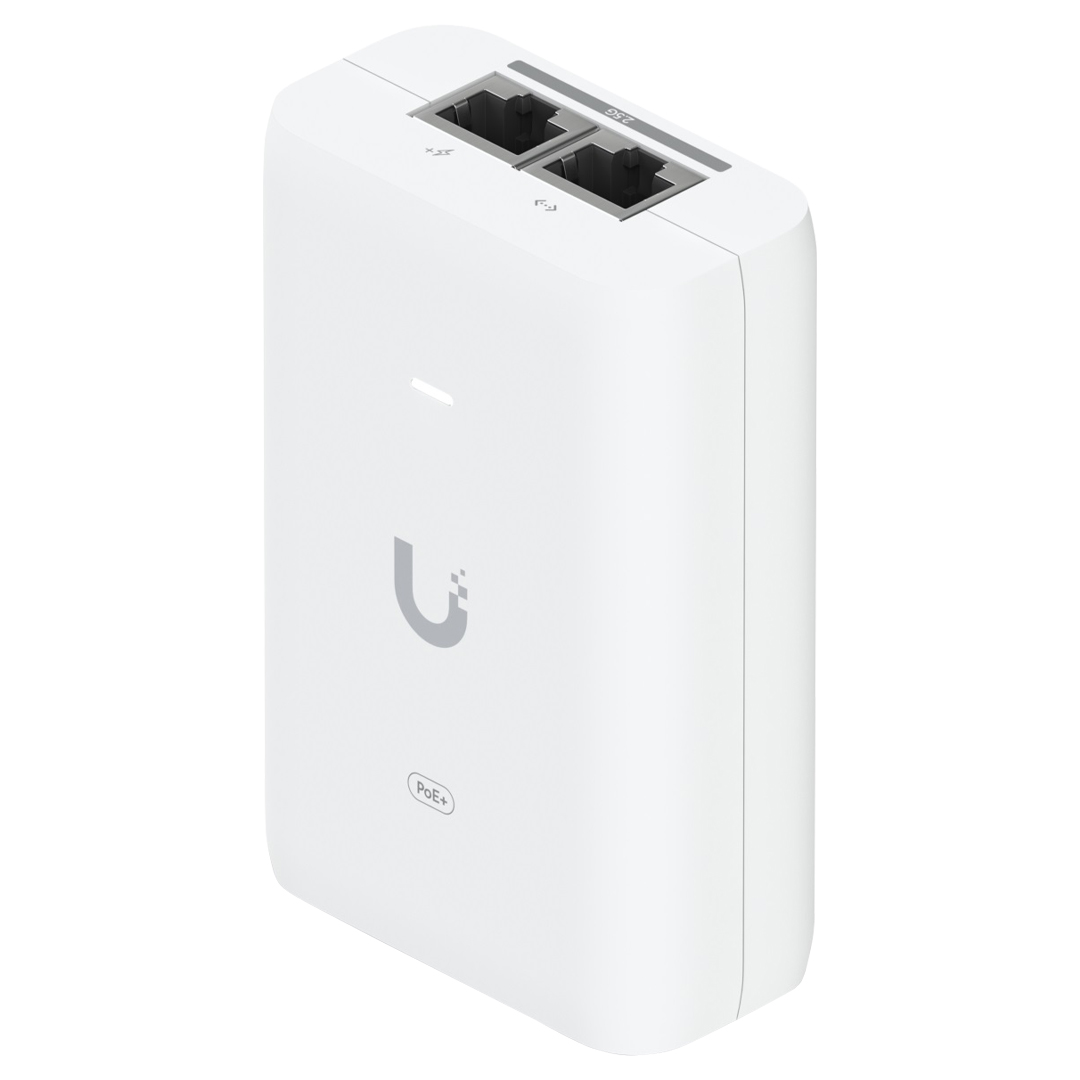

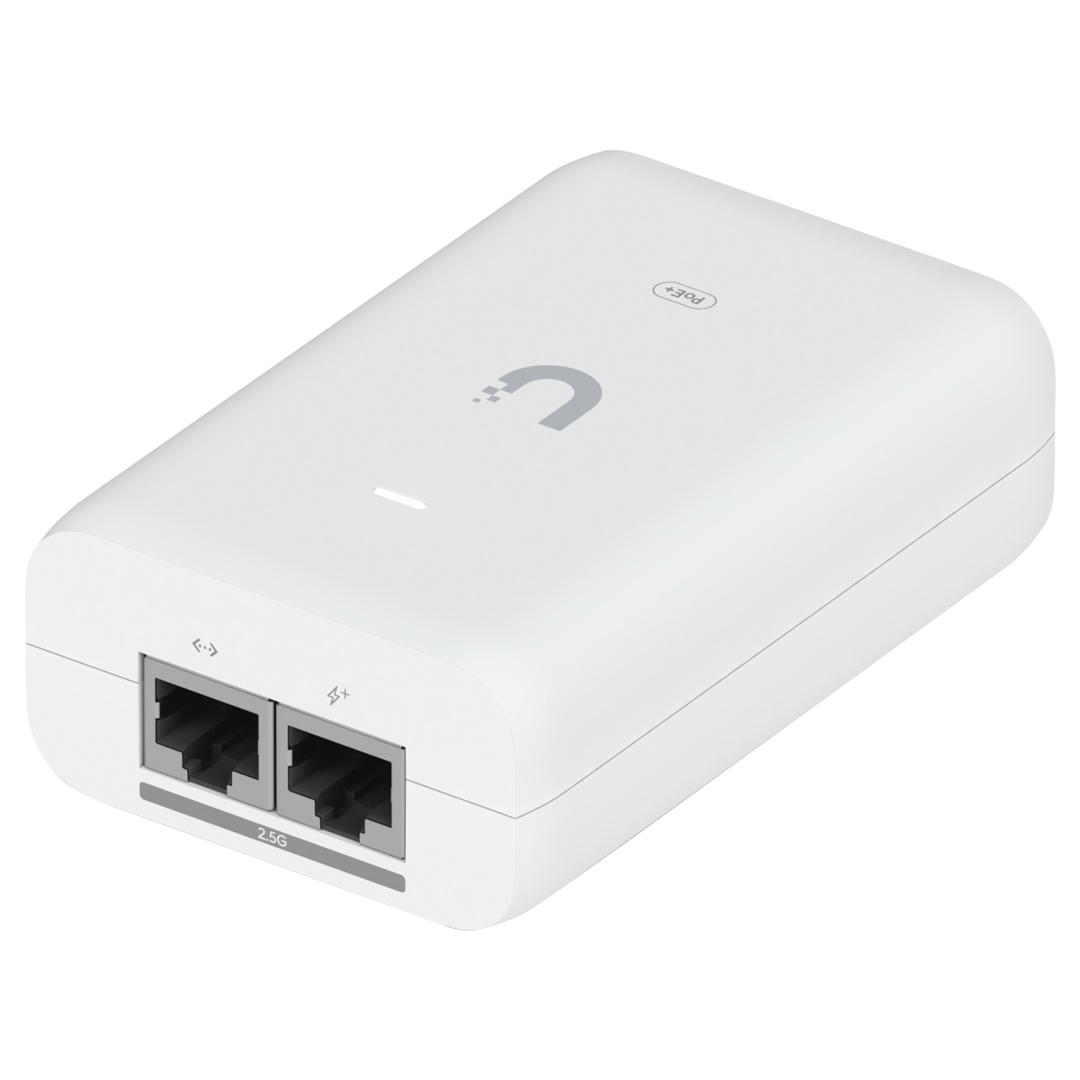

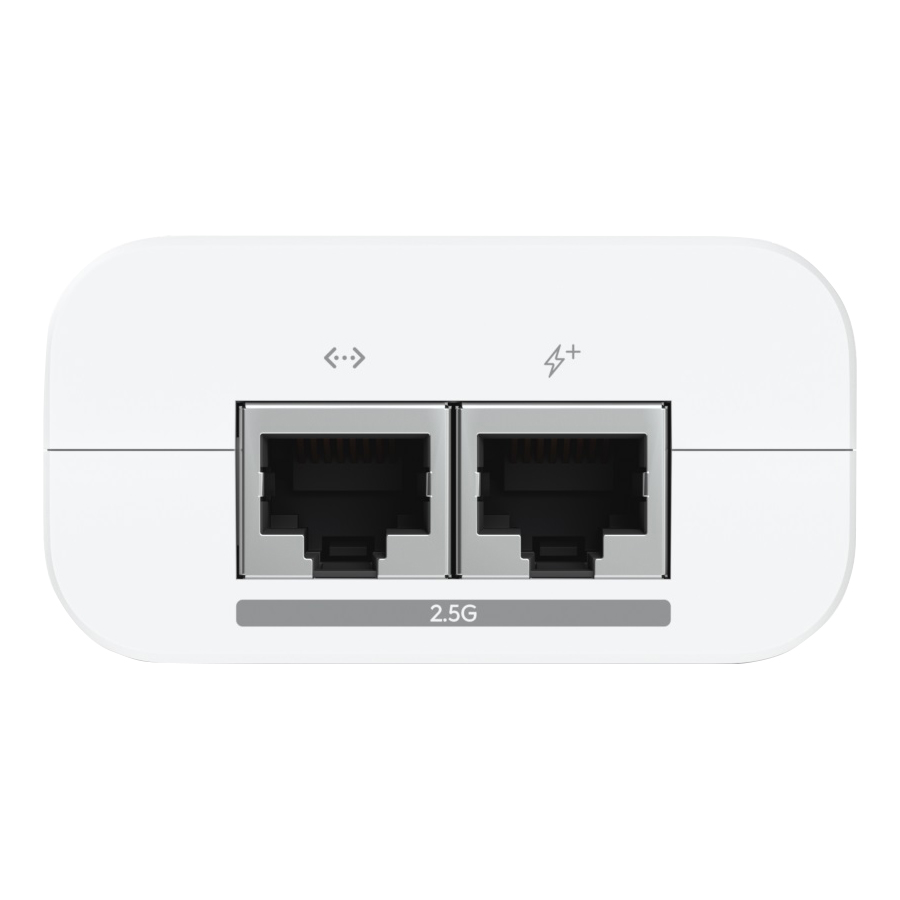

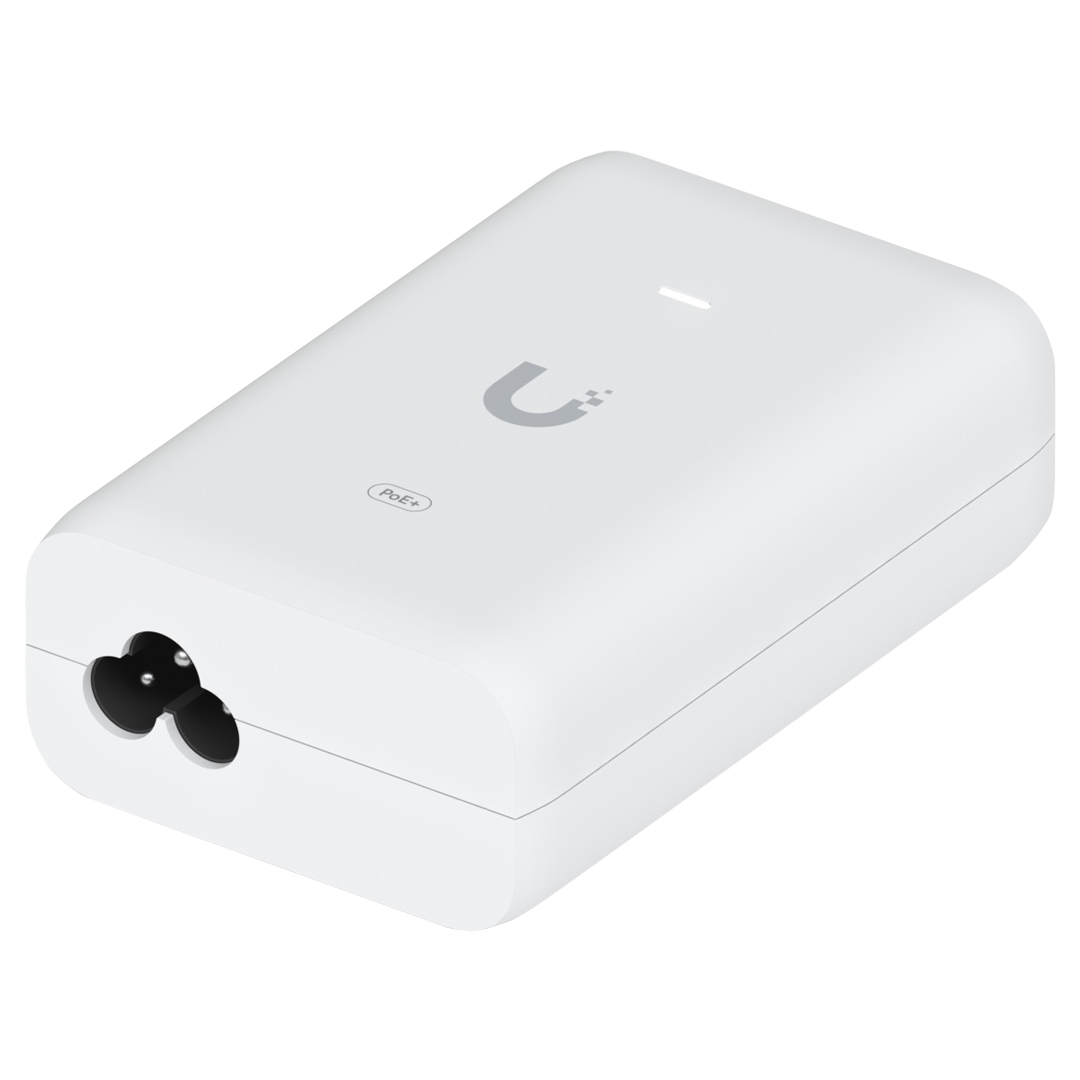

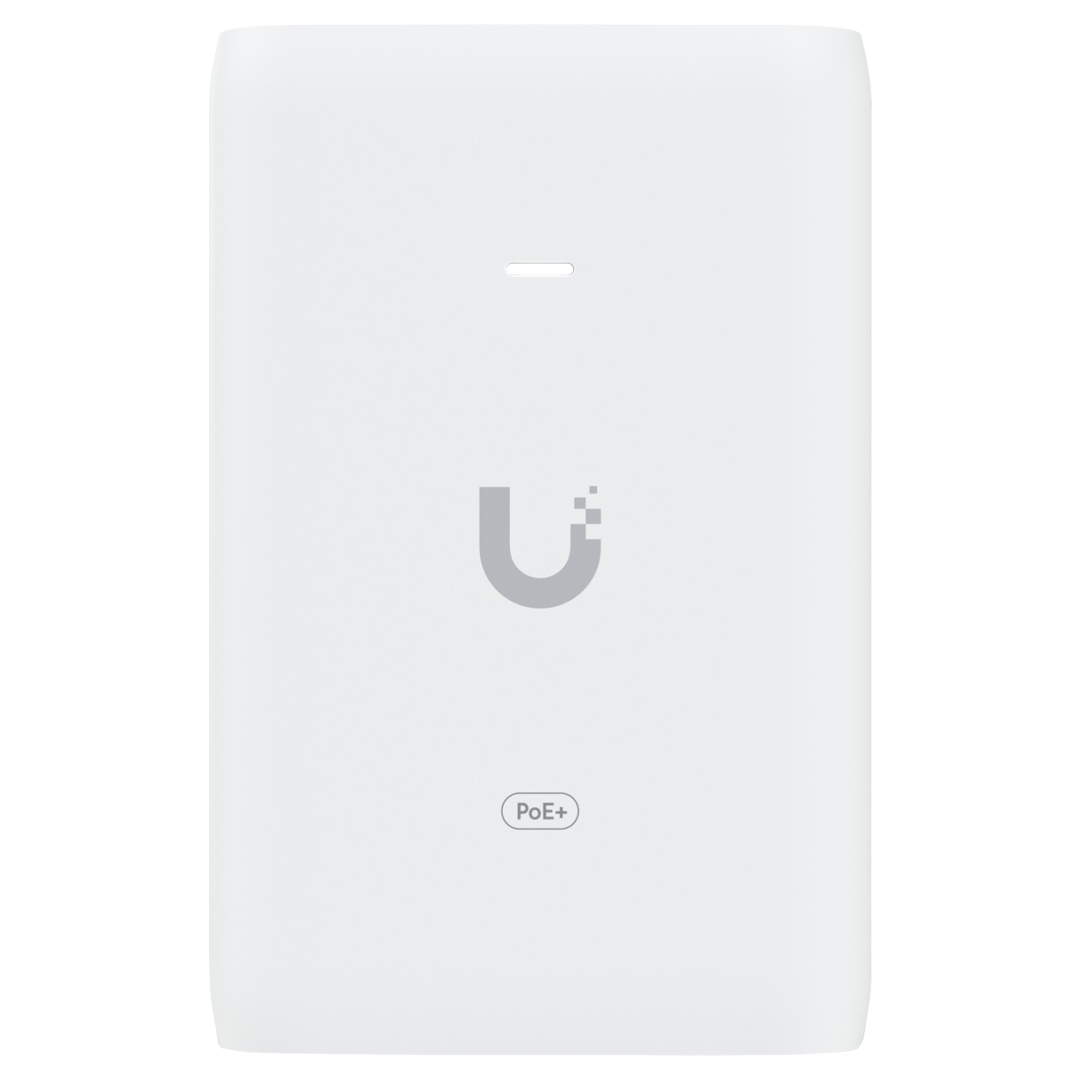

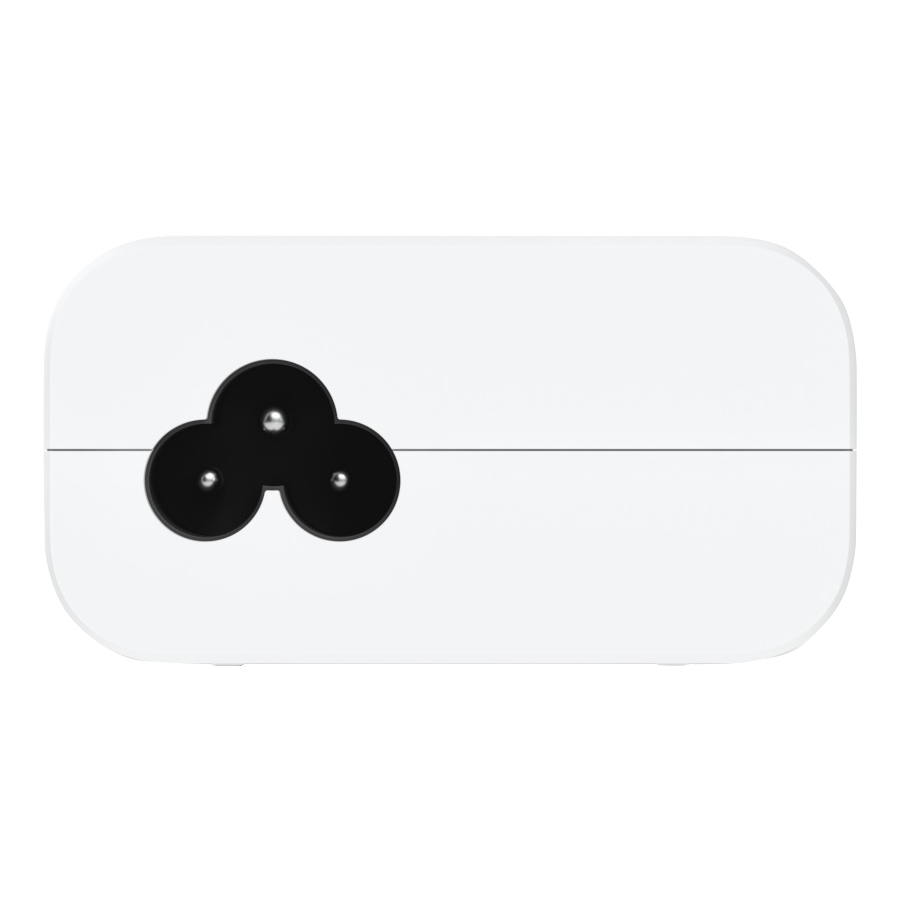

The Ubiquiti UniFi 2.5G PoE+ Adapter delivers up to 30W of Power over Ethernet Plus (PoE+) to UniFi devices, reducing reliance on PoE switches and providing a Multi-Gigabit LAN connection. It features surge, peak pulse, and overcurrent protection, ensuring reliable performance. The adapter includes an RJ45 data input, an AC cable with earth ground and a PoE+ output. An LED indicator provides status monitoring.
Features
High-Speed 2.5G Connectivity
Delivers fast 2.5GbE networking for reliable high-speed data transfer across your devices.
PoE+ Power Delivery
Supplies up to 30W of Power over Ethernet, allowing compatible devices to operate without separate power cables.
Plug-and-Play Installation
Simple setup with standard Ethernet connections, enabling quick deployment in existing networks.
Compact and Durable Design
Small form factor makes it easy to integrate into any network setup while providing robust performance.
Wide Device Compatibility
Supports a broad range of PoE+ enabled devices including access points, cameras, and switches.
Specifications
General Data
| Model Number |
UACC-PoE+-2.5G |
| Dimensions |
93 x 62 x 35 mm (3.7 x 2.4 x 1.4") |
| Weight |
156 g (5.5 oz) |
| Output Voltage |
48 V DC @ 0.65A |
| Rated Voltage |
100—240 V AC @ 50/60Hz |
| Gigabit LAN Port |
Yes |
| 2-Pair Powering |
Pins 4, 5 (+) and 7, 8 (-) |
| Clamping Protection |
11V Data, 60V power |
| Data In / PoE |
RJ45 Shielded Socket |
| Input Current |
0.75A Max. |
| Inrush Current |
<150A peak @ 230V AC |
| Efficiency |
>87% |
| Switching Frequency |
65 kHz Max. |
| Output Ripple |
1% Max. |
| Line Regulation |
≤ 1% |
| Load Regulation |
≤ 3% |
| Max. Surge Discharge |
1500A (8/20 μs) power |
| Peak Pulse Current |
36A (10/1000 μs) data |
| Response Time |
<1 ns |
| Shunt Capacitance |
<5 pF data |
| Surge Protection |
Difference and common mode |
| Ambient Storage Temperature |
-30 to 70°C (-22 to 158° F) |
| Ambient Operating Temperature |
0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity |
10 to 95% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, UL, UKCA, KC, CCC, RoHS |
Backed by a 1 year Ubiquiti warranty.
