Ubiquiti UniFi Pro Max 16 Port Gigabit PoE+ Switch

USW-PRO-MAX-16-POE | Ubiquiti
$687
Stock at Supplier We do not have this item in our warehouse, but stock is either already on its way or is generally available from the supplier.
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns
The Ubiquiti UniFi Pro Max 16 Port Gigabit PoE+ Switch (USW-Pro-Max-16-PoE) is a Layer 3 managed switch offering 16 Ethernet ports, 12 Gigabit PoE+ ports and 4 2.5GbE PoE++ ports, delivering a total PoE budget of 180W. It supports advanced Layer 3 features such as inter-VLAN routing, static routing, and DHCP relay, making it suitable for enterprise and high-performance networking environments. The switch also includes two 10G SFP+ uplink ports for high-speed connectivity. Its Etherlighting ports illuminate to indicate port location, speed/link and native VLAN/network, providing both functionality and visual clarity. The fanless design ensures silent operation and it offers versatile mounting options including desktop, wall and rack mounting.

Features

Pro Max 16 PoE

Ubiquiti UniFi Pro Max 16 Port Gigabit PoE+ Switch Feature 1

Deployment

Build Feature

Ubiquiti UniFi Pro Max 16 Port Gigabit PoE+ Switch Feature 2

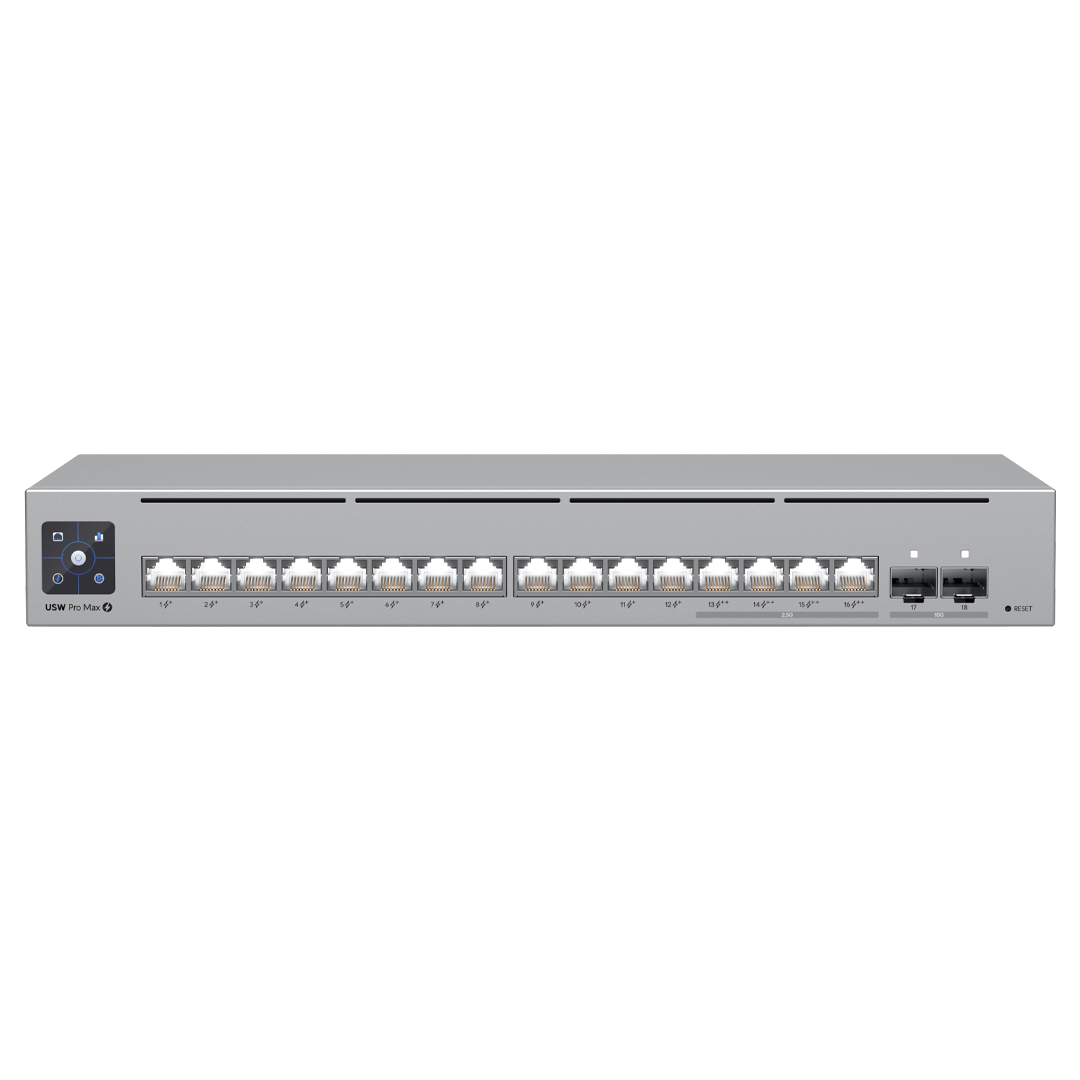

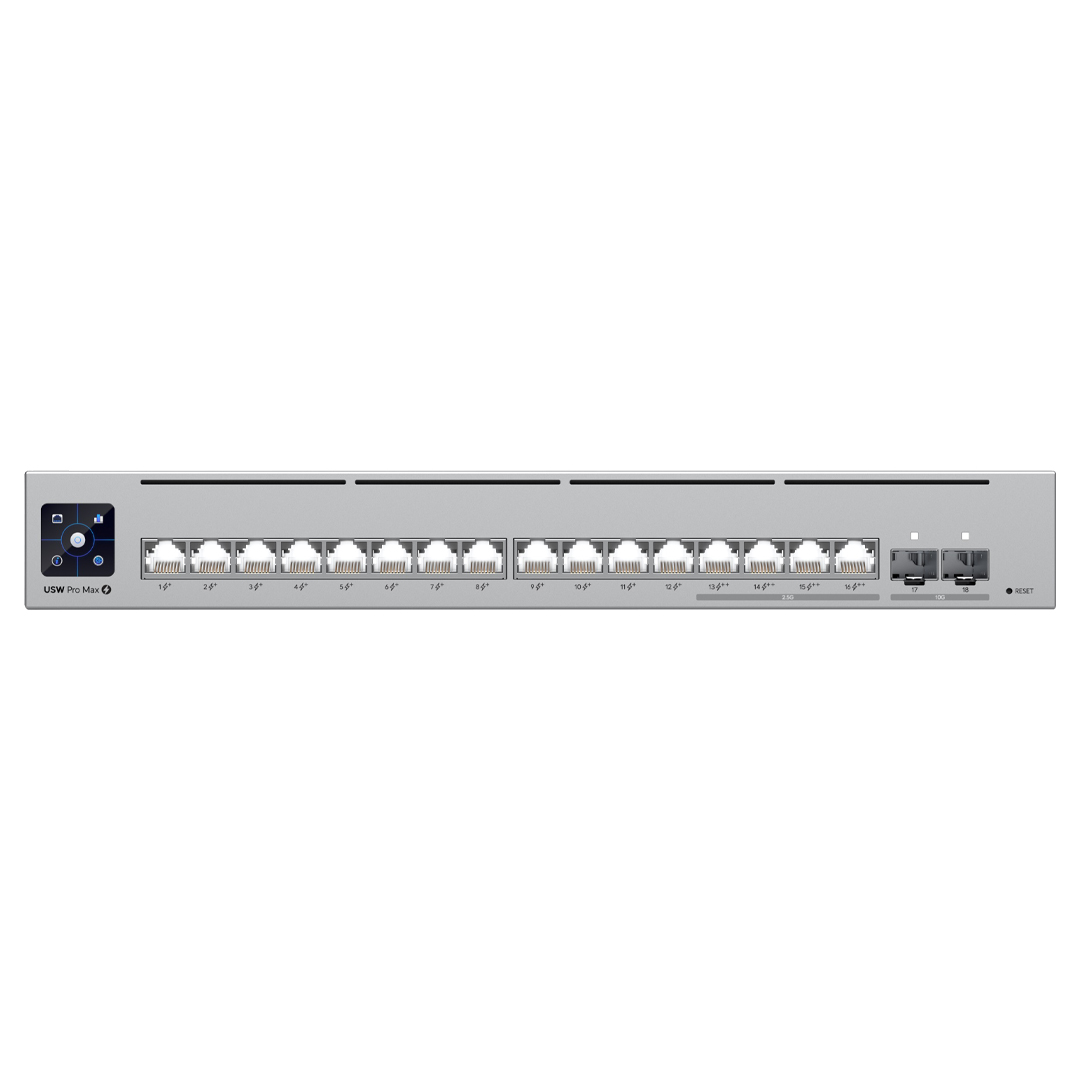

Front View

Ubiquiti UniFi Pro Max 16 Port Gigabit PoE+ Switch Feature 3

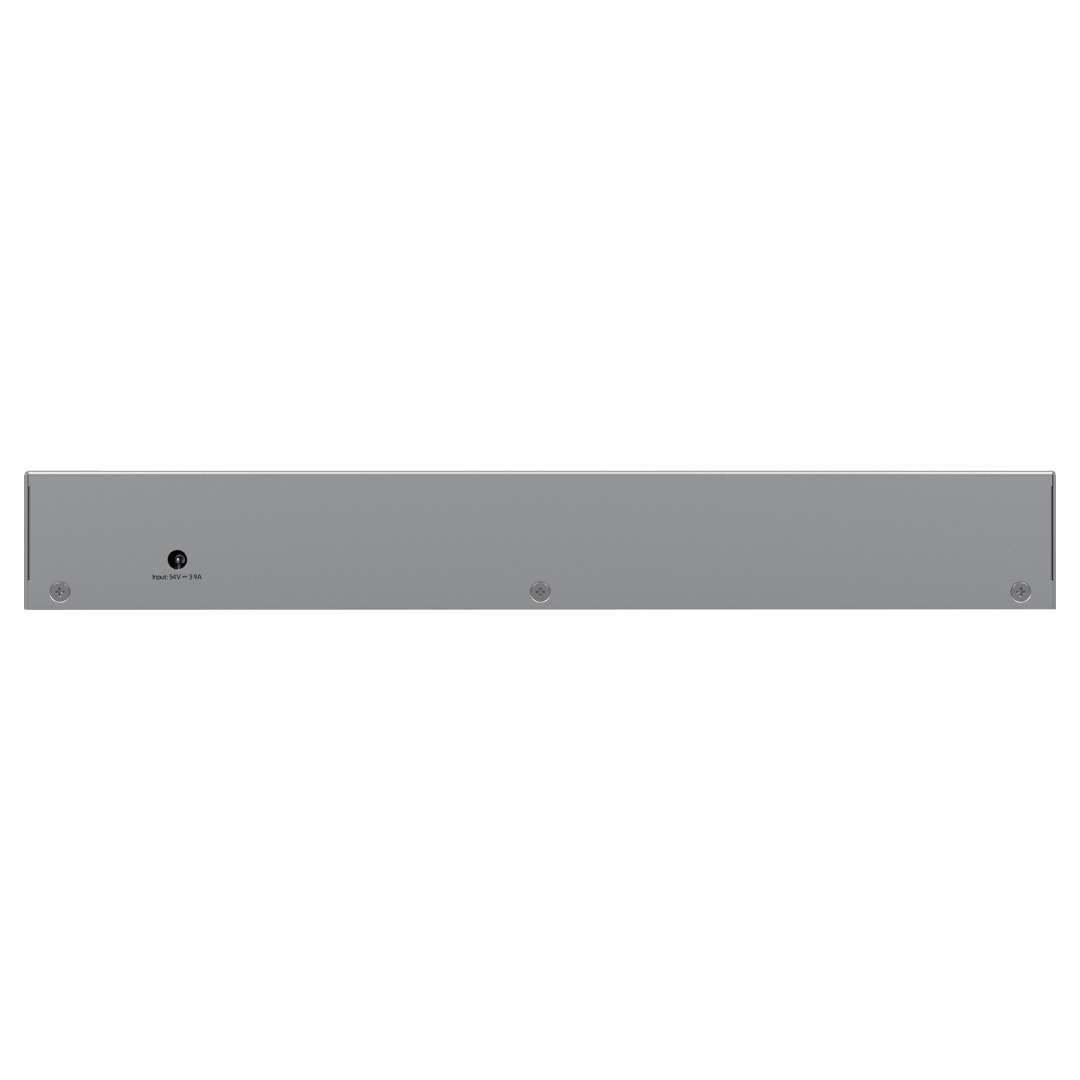

Back View

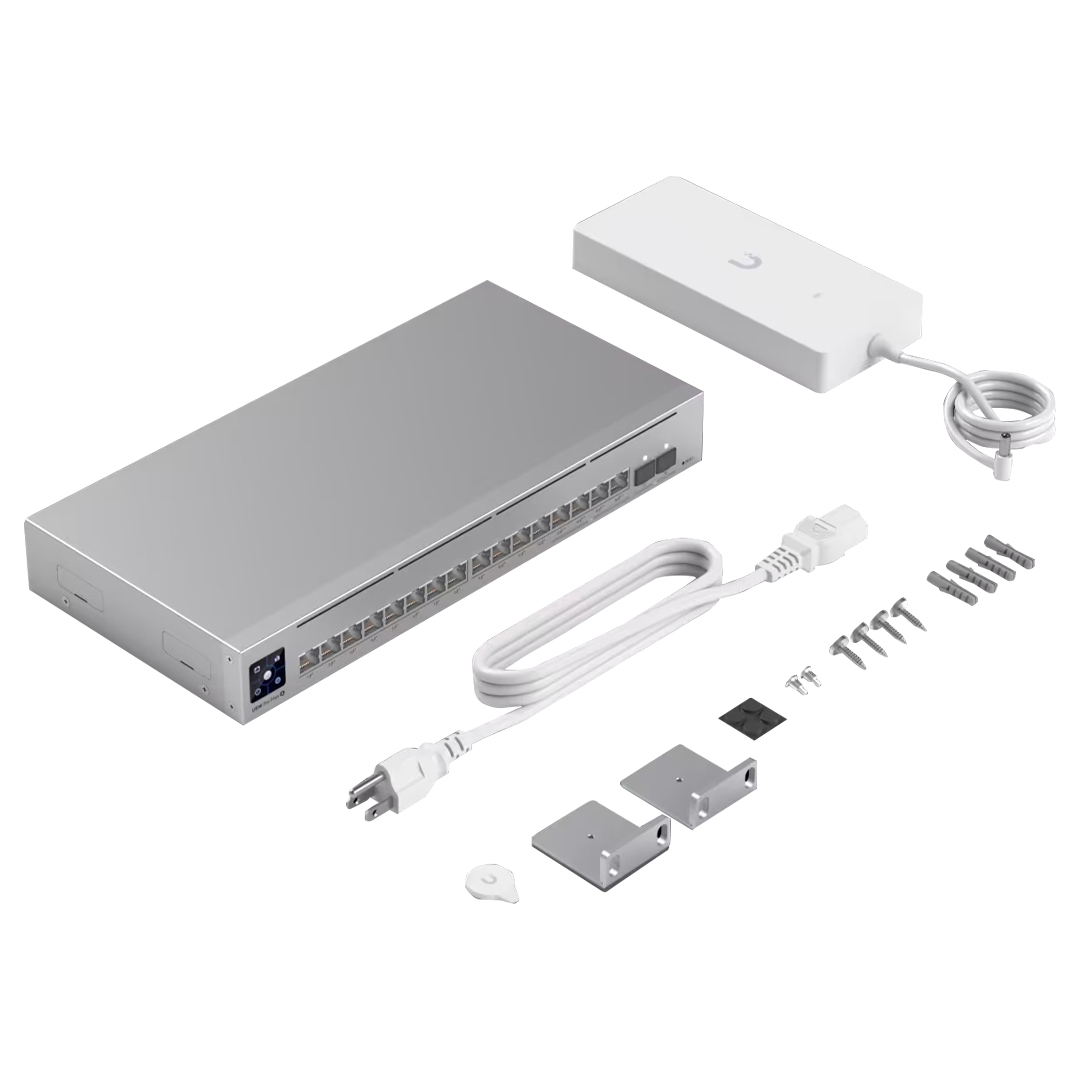

*54V, 210W DC power adaptor included.

Ubiquiti UniFi Pro Max 16 Port Gigabit PoE+ Switch Feature 4

Dimensions

**Pair with UniFi Etherlighting Patch Cables for optimal brightness.

Specifications

General Data

Model Number USW-PRO-MAX-16-POE
Dimensions 325.1 x 160 x 43.7 mm
(12.8 x 6.3 x 1.7")
Port Layout 1 GbE RJ45
12 (All PoE+)
(1G/100M/10M)
2.5 GbE RJ45
4 (All PoE++)
(2.5G/1G/100M/10M)
10G SFP+
2
(10G/1G)
Max. PoE Output Up to PoE++
Total PoE Availability 180 W
Layer 3 Yes
Form Factor Rack mount (1U), desktop, wall
Etherlighting™ Yes
Application Requirements UniFi Network
Version 8.1.127 and later

Performance

Switching Capacity 84 Gbps
Total Non-Blocking Throughput 42 Gbps
Forwarding Rate 62 Mpps
Supported VLANs 1,000
MAC Address Table Size 16,000
L3 Table Size ARP Entries - 6,000
IPv4 Routes - 512
Packet Buffer Size 1.5 MB
Access Lists IPv4 - 128
MAC - 128

Layer 3 Features

DHCP Server (Local Networks) Yes
DHCP Relay Yes
Inter-VLAN Routing (Local Networks) Yes
Static Routing (Local Networks) Yes

Layer 2 Features

LACP Port Aggregation Yes
STP & RSTP Yes
QoS (DSCP) Yes
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) Yes
Advanced IGMP Configuration (Querier, Fast Leave, Router Port) Yes
IGMP Snooping Yes
802.1X Control Yes
MAC-Based ACLs & Device Isolation Yes
DHCP Snooping & Guarding Yes
Egress Rate Limit Yes
Flow Control Yes
Storm Control Yes
Multicast & Broadcast Rate Limiting Yes
MAC Address Blocking Yes
IP-Based ACLs & Network Isolation Yes
MAC-Based Port Restriction Yes
Port Isolation Yes
Port Mirroring Yes
Jumbo Frames Yes
LLDP-MED Yes
Voice VLAN Yes
Loop Protection Yes

Hardware

PoE Ports PoE+
12
PoE++
4
Max. PoE Wattage Per Port by PSE PoE
15.4 W
PoE+
32 W
PoE++
64 W
Max. Power Consumption 25 W (Excluding PoE Output)
210 W (Including PoE Output)
Power Method AC Adaptor
Power Input Method AC input
Power Supply AC/DC, external, 210 W
Supported Voltage Range 50—54 V DC
Management Ethernet
AR
Heat Dissipation (Excluding PoE Output) 68 BTU/hr
Weight 2.1 kg (4.6 lb)
Enclosure Material SGCC steel
Mount Material SGCC steel
Supported Rack Depth 400~1200 mm
(15.7-47.2")
LCM Display 1.3" touchscreen
Ambient Operating Temperature -5 to 40° C (23 to 104° F)
Ambient Operating Humidity 10 to 90% noncondensing
Etherlighting™ Ethernet
Yes
SFP+
Yes
NDAA Compliant Yes
Certifications CE, FCC, IC, Anatel
Backed by a 1 year Ubiquiti warranty.
