ASUS ROG Falcata 75 Split Gaming Keyboard

ThE ASUS ROG Falcata 75 Split Gaming Keyboard features hot-swappable ROG HFX V2 magnetic switches with Hall effect sensors, offering ultra-responsive keystrokes and customizable actuation points from 0.1 to 3.5mm. Its tri-mode connectivity includes ROG SpeedNova 8K wireless technology, wired USB and Bluetooth, supporting up to five devices simultaneously with an 8,000Hz polling rate.

Features

---

ROG Falcata Gaming Keyboard

Swift. Sleek. Split.

ROG Falcata 75% split gaming keyboard with hot-swappable ROG HFX V2 Magnetic Switches and ROG Hall Sensor; featuring Rapid Trigger toggle, intuitive control and multi-function wheel, tri-mode connectivity with ROG SpeedNova 8K wireless technology, Zone Mode, four-layer dampening and detachable silicone wrist rests.

ROG Falcata is a 75% split gaming keyboard designed for precision and flexibility. It features the hot-swappable ROG HFX V2 Magnetic Switch and ROG Hall Sensor for ultra-responsive keystrokes. It includes a Rapid Trigger toggle, intuitive multi-function wheel and button, ROG SpeedNova 8K wireless technology, and tri-mode connectivity. A unique Zone Mode optimises hardware settings and primes the Falcata for top-tier performance in an instant. For user comfort, the Falcata includes four-layer dampening and detachable silicone wrist rests.

• Versatile split-keyboard design: Suits different gaming setups, allowing players to use the left keyboard module, freeing up space for their mousing hand
• Hot-swappable ROG HFX V2 Magnetic Switch: Refined keystrokes with customisable 0.1–3.5mm actuation and 0.01mm-step precise tuning
• New ROG Hall Sensor: Exceptional precision, accurate input detection, reduces electrical noise and interference, and increases magnetic flux limits for superior performance
• Intuitive control: Instantly adjust actuation point, Rapid Trigger sensitivity, volume, media, and keyboard lighting with the multi-function wheel and button
• Superb connectivity: ROG SpeedNova 8K wireless technology, wired USB, and Bluetooth connectivity supports up to five devices simultaneously; wired and wireless modes offer up to 8K polling rate
• Enhanced typing experiences: Integrated four-layer dampening absorbs pinging noises and offers a more cushioned typing feel
• Rapid Trigger toggle: Convenient switch for the fastest typing response and key repeat
• Detachable silicone wrist rests: Two pads perfectly complement the keyboard’s unique tilt-incline angles for unparalleled comfort

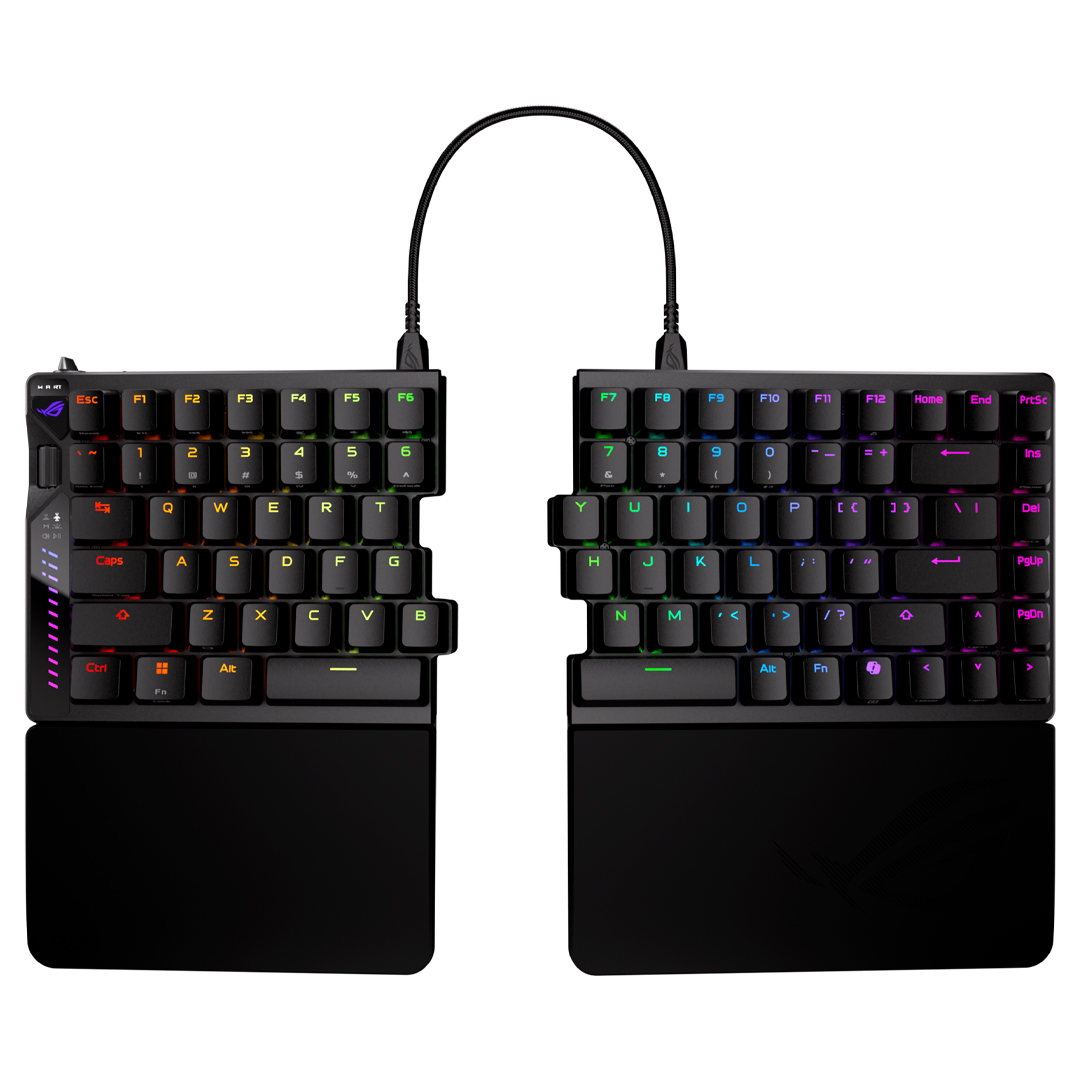

Compact 75% Split Design

The 75% layout of the Falcata includes the essential arrow, function, and navigation keys while keeping overall dimensions compact. The unique split design allows users to detach the side of the right keyboard, retaining the left half when gaming. Compared to a 65% keyboard, the split design frees up even more space for mouse movement.

A bundled link cable is required to ensure stable connection and optimal performance. Using third-party cables may result in the keyboard not responding.

ROG HFX V2 Magnetic Switches

This latest pre-lubed magnetic switch delivers solid, ultra-precise feel with lightning-fast responsiveness along with a 100-million-keystroke lifespan. The polycarbonate top housing and POM plastic stem and bottom housing ensure ultrasmooth keystrokes, while the walled-stem design enhances stability and keeps out dust and debris. This results in consistently smooth, reliable, and precise keypresses when gaming or typing.

• 3.5 mm Travel Distance
• 32 gf Initial Force
• 49 gf Total Force

Compatible with Aftermarket Keycaps

Standard cross-shaped stem design ensures compatibility with most keycaps, allowing users to customise their setup.

Switch Stem

Composite POM material enables a low friction coefficient for exceptionally smooth keystrokes.

Snap-Fit Design

A unique snap-fit mechanism prevents key wobble from affecting magnet movement, ensuring precise and accurate actuation.

Walled Stem Design

Enhance keystroke stability and prevent dust intrusion while maintaining compatibility with most keycaps.

Larger Magnet

Enlarged magnet boosts magnetic flux for even greater precision and responsiveness, reducing risk of accidental or missed keystrokes.

Based Housing

POM bottom housing delivers a deeper, more refined keystroke sound.

Customisable Actuation Point

With the ROG Hall Sensor and HFX V2 Magnetic Switch, the 0.1–3.5 mm actuation range of the Falcata can be adjusted in precise 0.01 mm increments. The actuation point can be tweaked via the multi-function wheel or web-based Gear Link interface.

ROG Hall Effect Technology

Leveraging the increased magnetic flux tolerance of the HFX V2 Magnetic Switch, the IC is now directly mounted on the PCB, allowing it to be positioned closer to the magnet without being affected by board thickness. This further enhances magnetic sensing accuracy without affecting saturation.

Rapid Trigger

A dedicated toggle switch on the top-left rear panel of the Falcata activates the Rapid Trigger feature for the fastest typing response and key repeat rate. By default, only WASD keys are enabled when this feature is activated. Rapid Trigger for other keys can be enabled via Gear Link.

Traditional mechanical switches require a return to the reset point before the next click registers. With ROG HFX V2 Magnetic Switch and the Rapid Trigger feature, the switch resets instantly as it moves upward, delivering maximum counter-strafing potential with minimal effort.

Speed Tap Mode

In Speed Tap mode, as soon as the system detects the input of two keys (e.g., A + D) it will prioritise the last input and automatically release the previous one. This means that in FPS games, pressing two opposing directional keys will no longer cause the character to stop moving; instead, directional changes can now be done immediately without releasing the previous key, eliminating any time gap for counter-strafing and ensuring precise aim every time.

*Speed Tap feature is turned off by default. Simultaneously press Fn + Caps keys for 1 second to activate.

• Key Press
• Signal Input
• Action In Game

Intuitive Controls

The innovative multi-function button and wheel allow for easy adjustments to various settings, including Rapid Trigger sensitivity, keyboard actuation point, volume, media playback, lighting, and custom commands. Additionally, the LED sidebar showcases dynamic light effects that reflect these adjustments in real-time.

Superb Connectivity

Tri-mode connectivity allows the Falcata to connect to five devices simultaneously via ROG SpeedNova 8K wireless technology, Bluetooth®, or wired USB. Experience ultra-responsive performance with up to an 8000Hz polling rate in SpeedNova wireless or wired modes, resulting in input refresh rates that are up to 8X faster than most gaming keyboards and reducing delay from 1ms to 0.125ms for precise, real-time actions. Plus, SpeedNova wireless mode enables up to 200 hours of battery life (Normal mode with RGB off.).

Inside the Build

Silicone Foam

Absorbs unwanted pinging noise.

PORON® Switch Pad

Cushions every switch, absorbing the impact on the PCB.

PORON® Dampening Foam

Absorbs keystroke vibration and enhance stability.

Silicone Pad

Minimises internal echoes.

Zone Mode

Zone Mode instantly activates the ultimate battle-ready keyboard setup. This mode unlocks peak competitive performance while disabling features like RGB lighting. Once enabled, gaming-critical keys are automatically set to an 8000 Hz polling rate by default, while lesser-used keys are reduced to 250Hz. The polling rate for each key can be further customised to user preferences.

*Simultaneously press Fn + ` keys to activate.

ROG PBT Doubleshot Keycaps

ROG PBT doubleshot keycaps provide a premium feel and offer long-lasting durability. Key design has been optimised with mid-height keycaps and a shorter stem to reduce key wobble, providing a more comfortable user experience.

* Keycap material may vary by region.

ROG UV-Coated ABS Keycaps

ROG UV-coated ABS keycaps utilise a layer of hard UV coating to provide superb abrasion resistance protection against keycap shining.

* Keycap material may vary by region.

ROG Keyboard Stabiliser

The pre-lubed keyboard stabiliser has been specially tuned with gamers in mind; it produces less friction, allowing long keys such as Spacebar, Shift and Enter to deliver keystrokes that stay true to the original switch feel.

Settings Anywhere, Anytime with Gear Link

Gear Link is a new web-based app that lets gamers customise keyboard settings without the need for additional file downloads or installation. Simply visit the Gear Link webpage, connect the device, and fine-tune settings – all from a browser.
