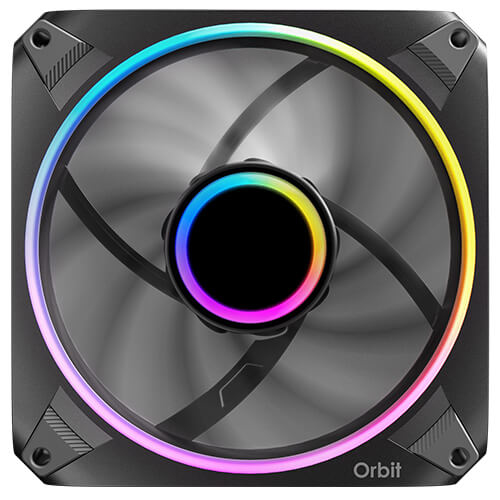

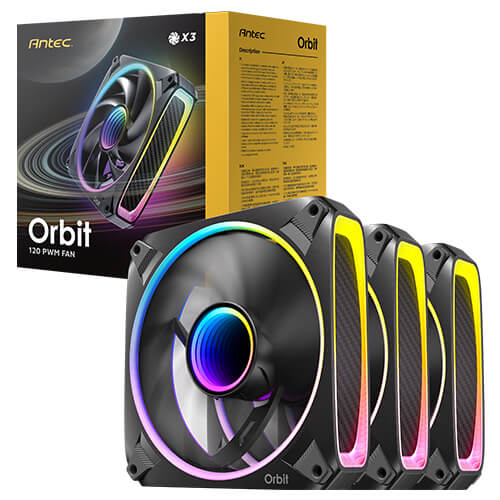

The Antec Orbit 120 ARGB PWM Fan 3 Pack Black is designed to enhance your PC's cooling and aesthetics. Each 120mm fan features a dual-ring ARGB lighting system and an infinity mirror effect at the center, creating a striking visual reminiscent of a wormhole. The 9-blade design increases airflow, providing better cooling performance. Equipped with fluid dynamic bearings, these fans offer extended lifespan, smoother operation and reduced vibration making them ideal for long-term reliability in high-performance builds.
Features
ORBIT 120 ARGB Fan
Extreme Lighting Effects

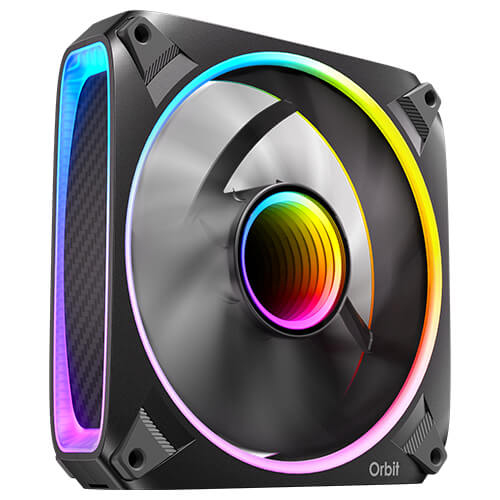

The front and rear covers of the fan feature a curved surface design. Combined with the infinity mirror effect at the centre of the blades, it evokes the image of a miniature interstellar portal like a wormhole.

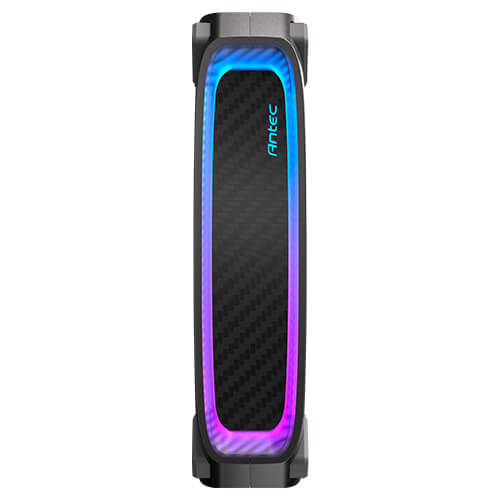

- Four-sided Lighting Effect
- Exquisite Carbon Fibre-look Design
- Infinity Mirror Light Effect
Dual Ring Design
Intelligent PWM Control
With intelligent fan control, the system ensures optimal cooling under high loads and complete silence at low loads. When PWM duty cycle drops below 6% in standby mode, the fan automatically stops through chip-based regulation, achieving ultra-silent operation.
28mm Thickness for Enhanced Performance
Increasing the thickness to 28mm widens the contact surface and increases the air inlet area between the fan and the chassis, delivering improved airflow.

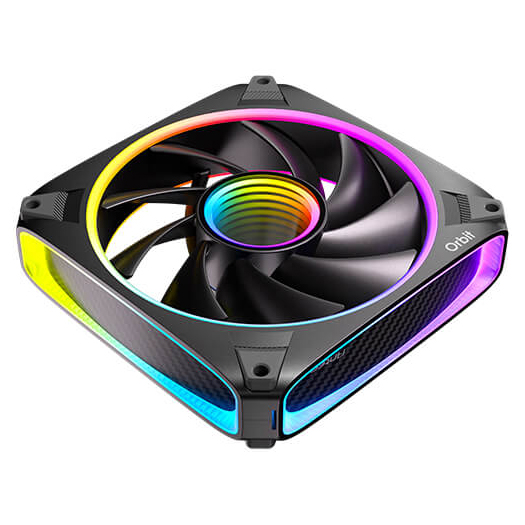

9 Fan Blade Design
The 9-blade design increases airflow, providing better cooling performance.
Fluid Dynamic Bearing For longer Life and Reduced Noise
FDB bearing achieves optimal longevity while also enhancing anti-vibration, ensuring quieter and more stable operation.
Cooling Performance
- Airflow 66.72 CFM
- Air Pressure 2.06 mmH2O
- Noise Level 31 dB(A)
Vibration-Absorbing & Anti-Noise Pads
Equipped with 8 rubber pads, effectively absorbing vibrations and minimising noise. Also features diagonal patterns, ensuring a cohesive overall design.
Fan Connector
- 3-Pin 5V ARGB Cable - Daisy Chain/Cable Length: 550 mm
- 4-Pin 12V PWM Cable - Cable Length: 550 mm
- Durable Woven Wire - Durable, braided nylon cables with a snakeskin texture boast both aesthetics and durability.
Specifications
| Model Number |
ORBIT-120-ARGB-3PK |
| Colour |
Black |
| Fan Type |
ARGB Fan |
| Dimensions |
120 x 120 x 28 mm |
| Bearing Type |
FDB |
| Fan Speed |
200-2000 ±10% RPM |
| Airflow |
0.48-66.72±5% CFM |
| Air Pressure |
0.02-2.06±5% mm H₂O |
| Fan Noise Level |
18-31±5% dB(A) |
| Lifespan |
50,000 hours / 40℃ |
| Connector |
Fan: 4-pin | LED: 3-pin |
| Rated Voltage |
Fan: DC 12 V | LED: DC 5 V |
| Operation Voltage |
Fan: DC 6.0 - 13.2 V | LED: DC 3.7 - 5.5 V |
| Rated Current |
Fan: 0.35 A | LED: 1 A |
| Warranty |
3 Years |
Backed by a 3 year Antec warranty.
