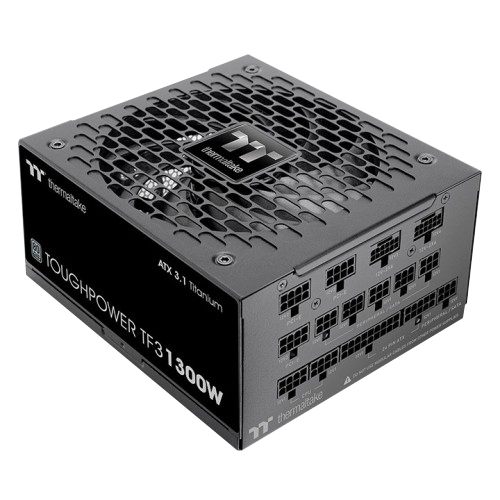

The Thermaltake Toughpower TF3 1300 W features 80 PLUS Titanium efficiency and full compliance with ATX 3.1 & PCIe 5.1 standards, offering dual native 12 V2x6 connectors that can deliver up to 600 W to next-gen GPUs. It includes a physical Over-Clocking Mode switch for toggling between safe multi-rail and high-performance single-rail output, ultra-quiet Thermaltake-tuned cooling and 100 % Japanese electrolytic capacitors for durability.
Note: This power supply requires a 15amp power input for operation.
Features
Thermaltake Toughpower TF3 1300W 80+ Titanium Full Modular PSU
Unlocking the Power of the Future
Toughpower TF3 1300W is 80 Plus Titanium certified and compatible with ATX 3.1 specifications. Designed with two native 12V-2x6 modular interface and bundled with two PCIe 12+4pin cables.
- 80 Plus Titanium certified
- ATX 3.1 & PCIe 5.1 ready
- Deliver up to 600W for PCIe 5.1 graphics cards.
- Physical overclocking mode switch
- Ultra quiet Thermaltake customised cooling fan
- 100% Japanese electrolytic capacitors
Ready for Next-Gen Hardware
The Toughpower TF3 Titanium 1300W delivers outstanding 80 Plus Titanium efficiency, designed to meet the demands of modern high-performance systems. Equipped with two native 12V-2x6 modular connectors, it supports PCle 12+4 pin RTX 50 & 40 series cards, making it fully compatible with next-generation PCIe 5.1 graphics cards. Built to adhere to Intel ATX 3.1 specifications, this power supply ensures superior reliability and future-ready compatibility for cutting-edge hardware.
Fully Compatible with ATX 3.1 Standards
The Toughpower TF3 1300W is fully compatible with ATX 3.1 specifications which supports up to 200% power excursion, reaches 60% efficiency at low load and complies with required power supply timing standards.
- 2X - Total Power Excursion
- 3X - GPU Power Excursion
- ATX 3.1 - 2X
- ATX 2.0 - 1.3X
PCIe Gen 5.1 Ready
Dual Native 12V-2x6 Connectors
The Toughpower TF3 1300W features two native PCIe 12V-2x6 connectors and includes two PCIe 12+4 pin cables, providing powerful and stable performance to meet the power demands of next-generation PCIe Gen 5.1 graphics cards.
The wattage marked on the PCIe 12V-2X6's cable is the recommended wattage. (Ref. Intel design guideline) The native PCIe 12V-2X6 connectors of the Toughpower TF3 1300W can deliver up to 600W for PCIe 5.1 graphics cards.
Note
- Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.
- Please follow the recommended power requirements from the GPU manufactures before using the 12V-2X6 cable.
Made to Comply with the Latest Graphics Cards
As the power consumption of graphics cards increase, so has their demand for power. The Toughpower TF3 1300W is designed to support NVIDIA and AMD graphics cards, it supports 8-pin PCIe cables for AMD graphics cards & RTX series graphics cards, it also comes with 2 x PCIe 12V-2X6 connectors for RTX 50 & 40 series cards that need a PCIe Gen 5.1 connector, ready to supply the graphics cards according to their different ways of connections.
- 1 x 8-pin GPU Power Connector
- 2 x 8-pin GPU Power Connector
- 3 x 8-pin GPU Power Connector
- 2 x 12V-2X6 GPU Power Connectors
Unlock Peak Overclocking Performance
Manual Overclocking Mode Switch
The OCM switch gives you the power to optimise your system's performance with ease. By default, the power supply operates in Multi-Rail mode with Over Current Protection (OCP) to ensure maximum safety for your components. For overclocking enthusiasts, a simple press of the OCM switch transitions the power supply to Single 12V rail mode, unleashing enhanced power delivery when you need it most.
The OCM switch can only be activated when the system is powered off.
80 Plus Titanium Certified
80 Plus Titanium certification means the Toughpower TF3 converts power efficiently, saves energy through its high efficiency up to 94%, resulting in lower power loss and heat buildup inside the power supply.
Thermaltake Customised Cooling Fan
The Toughpower TF3 1300W features the Thermaltake customised cooling fan, it is designed with specially tuned fan blades to push air further.
More Stable than Ever
100% high quality Japanese 105°C/221°F electrolytic capacitors provides great durability as well as offering the highest stability, while remaining reliable.
High-Class Technologies
The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.
Fully Modular Low-Profile Cables
Offers cable selection for users while powering the system at an advantageous voltage. Low-profile cables make cable management easier, reduces clutter and increase airflow inside the chassis.
< 30mV Low Ripple Noise Design
Top-end build quality with low ripple noise. All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components to function reliably for longer.
- +12V Rail - 120 mV, 30 mV
- +5V Rail - 50 mV, 30 mV
- +3.3V Rail - 50 mV, 30 mV
Built-In Industrial Grade Protection
To protect the hardware, Toughpower TF3 1300W is built with industry grade protections.
- OCP - Over Current Protection
- OPP - Over Power Protection
- OVP - Over Voltage Protection
- SCP - Short Circuit Protection
- UVP - Under Voltage Protection
- OTP - Over Temperature Protection
Intel C6/C7 States Ready
Toughpower TF3 1300W has been optimised to work with all generations of Intel's processors to achieve maximum energy savings.
Backed by a 10 year Thermaltake warranty.
