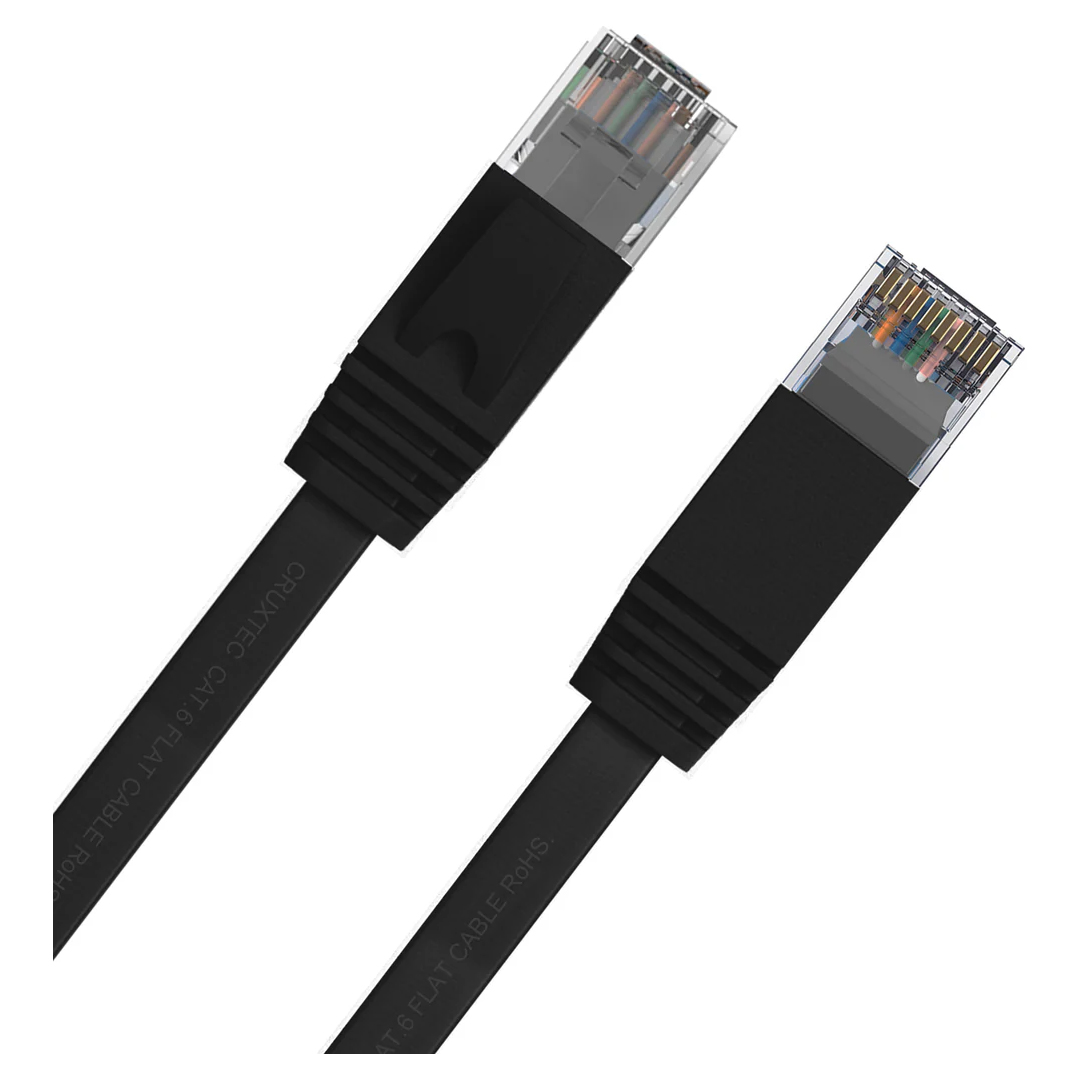

The Cruxtec CAT6 Flat Ethernet Cable features an unshielded (UTP), 32AWG, gold plated RJ45 construction providing transfer rates up to 1000Mbps. Manufactured with a flat design and 1 meter in length this Cat-6 standard cable is an ideal solution for space saving and reliable network connections.
Features
Cruxtec CAT6 UTP Flat Ethernet Cable Black
- Gold-plated RJ45 connectors
- 99.99%Oxygen Free Copper
- Gigabit Speed
- Anti-interference Twisted Pair Cable
- More inexpensive, lighter, and roll up or package much easier

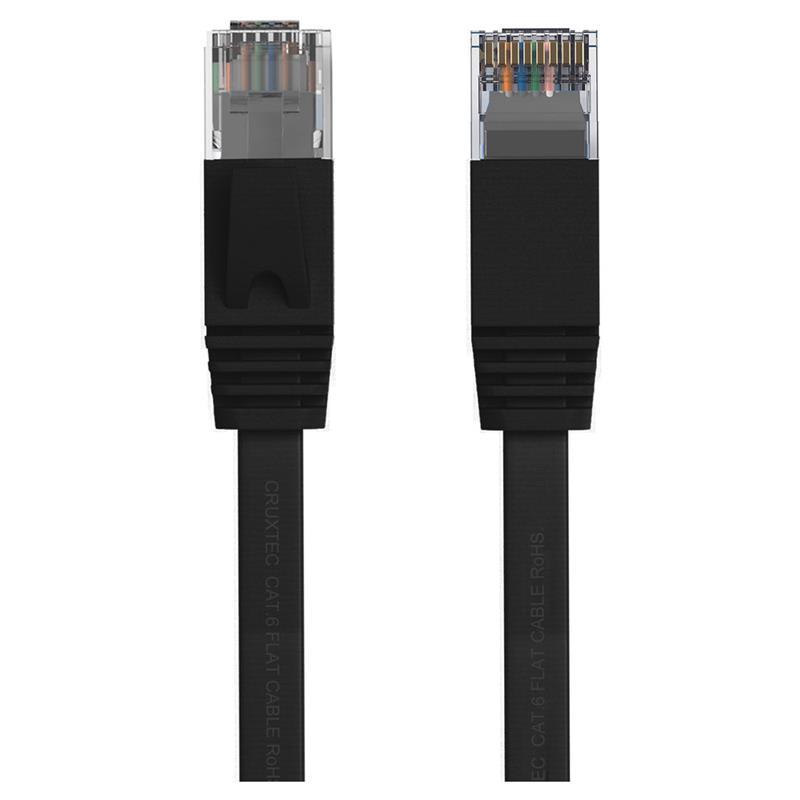

Gold-Plated RJ45 Connectors
It is highly conductive and durable
99.99% Oxygen Free Copper Conductor
Provides stable signal transmission, more durable and long-lasting, and is far less likely to corrode, due to the reduced oxygen content.

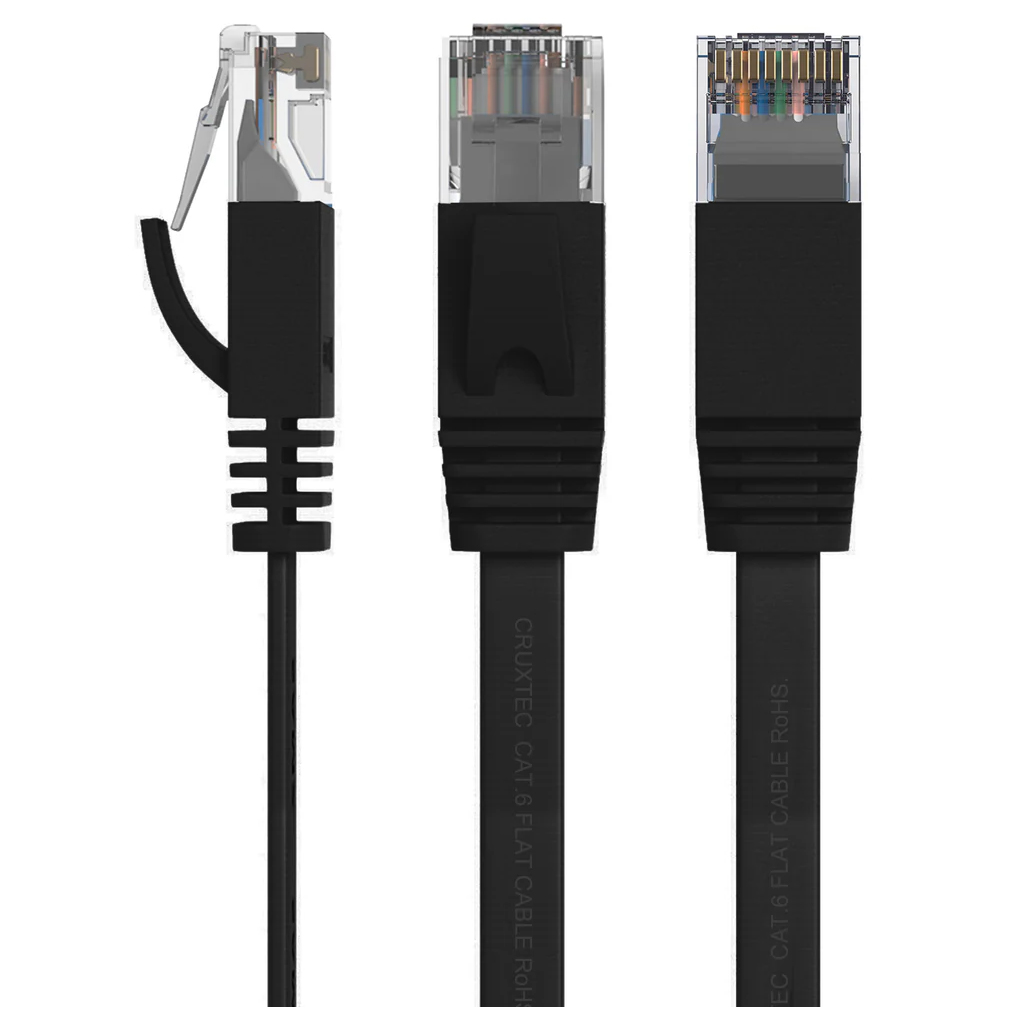

Press Type Buckle
Flexible and easy to use, soft, smooth and stable.
Anti-Interference Twisted Pair Cable
A twisted pairreduces electromagnetic radiation from the pair and crosstalk between neighboring pairsand improves rejection of external electromagnetic interference.
Wiring Scheme: T568B

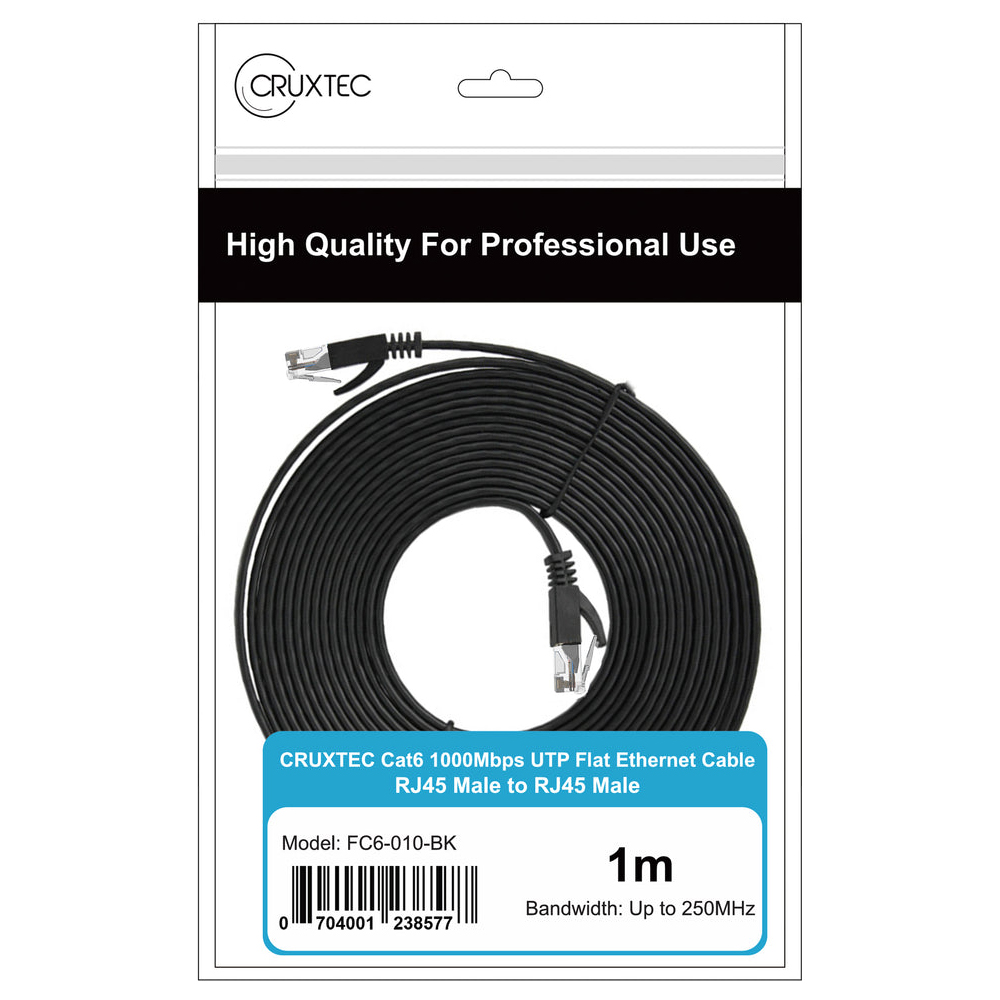

Simple and Elegant Packaging
Imaginative design and new materials are the key to more sustainable.
Specifications
| Model Number |
CRUXTEC-FC6-010-BK |
| Colour |
Black |
| Compliant Standard |
TIA-568-C.2-2009 , TIA-568.2-D-2018 |
| Suitable for |
10BASE-T, 100BASE-TX, 1000BASE-T/1000BASE-TX, PoE, PoE+ |
| Conductor Type |
CAT6 UTP 32AWG (Oxygen Free Copper) |
| Connectors |
Gold-plated RJ45 |
| Transfer Rate |
Up to 1000 Mbps |
| Bandwidth |
Up to 250 MHz |
| Sheath |
PVC |
| Insulation |
ROHS, REACH |
| Outside Diameter |
1.55 ± 0.1 mm x 6.0 ± 0.2 mm |
| Length |
1 m |
| Warranty |
Lifetime warranty |
Backed by a lifetime Cruxtec warranty.
