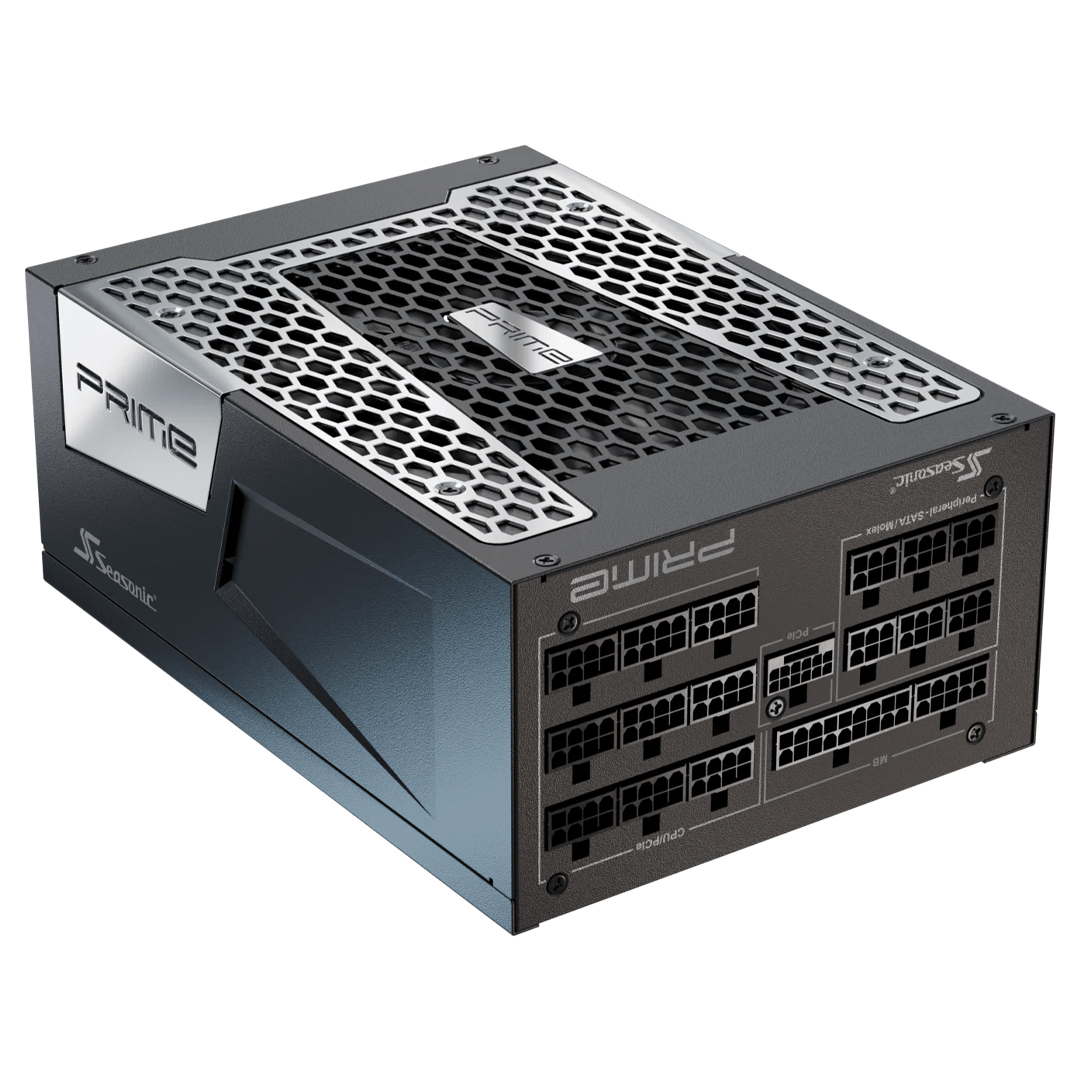

The Seasonic Prime TX-1300 Titanium 1300W power supply features top tier performance with ATX 3.1, native 12VHPWR connectors, digital fan control, and 105degC-rated Japanese electrolytic capacitors. Including ATX 3.0 and PCIe 5.0 compatibilty in a fully modular, durable design.
Note: This power supply requires a 15amp power input for operation.
Features
Prime TX ATX 3.1
Power. Performance. Prime.
The Seasonic PRIME TX ATX 3.1 Series is built on top of all the great features of PRIME TX platform with added ATX 3.1 and PCIe 5.1 compatibility. Currently the 1600 W and 1300 W units are equipped with native 12V-2×6 connectors, Digital Fan Control, and 105°C-rated Japanese electrolytic capacitors guarantee unwavering power delivery and long-term durability. All these qualities make these power supplies perfect to welcome the newest high power graphic cards and processors on the market.
- 80 PLUS® Titanium Certified: The PRIME TX 3.1 Series achieves the highest level of 80 PLUS® Titanium certification on the market with its 94 % efficiency at 50 % system load.

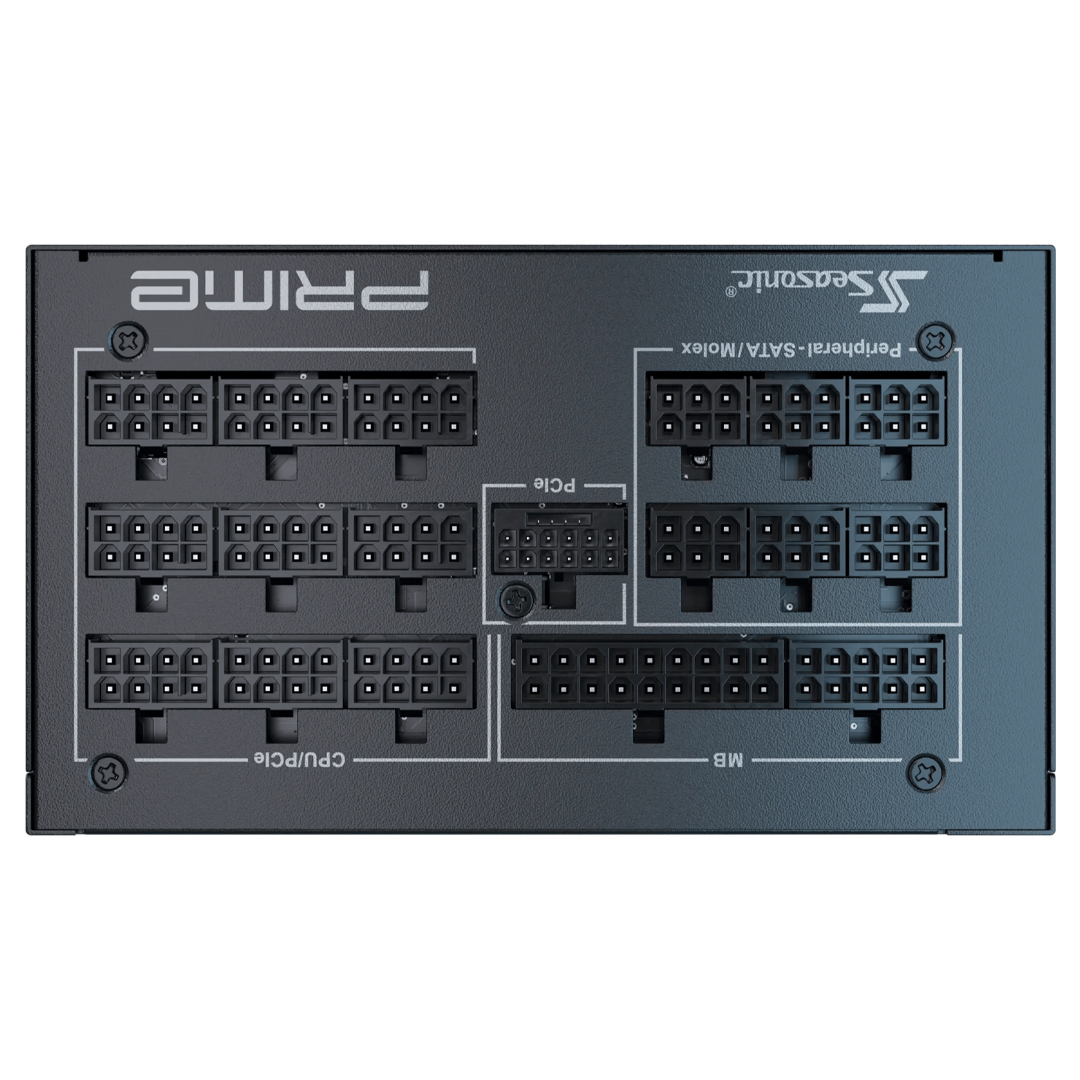

- Fully Modular Cabling
- ATX 3.1 & PCIe 5.1
- Dimensions: 210 mm (L) x 150 mm (W) x 86 mm (H)
- 12 Years Warranty
ATX 3.1 and 16-Pin PCIe Gen 5 Cable (12V-2x6)
Seasonic’s latest PRIME ATX 3.1 Series is designed and built to power new PC components requiring the new ATX 3.1 and PCIe 5.1 standards.
Micro Tolerance Load Regulation
Seasonic’s latest design keeps the output voltage within a very tight range, achieving under 0.5 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.
Intel Specifications
Digital Hybrid Fan Control
Seasonic’s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art digital fan control that enables users to keep the overall fan noise at the lowest possible level.
Note: The Digital Hybrid Fan Control chart is provided for reference only. The shape of the curve can look different due to the variability in ambient temperature, system set-up, air flow, and other unpredictable factors.
- Reduced noise without increase in temperature
- Extended fan life due to the reduced number of fan rotations
- Optimised heat dissipation at all times
- Unsurpassed silent performance in Fanless Mode
Fluid Dynamic Fan Bearing
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces.
As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the grooves helps to efficiently channel the lubricant and avert leakage.
Recommended 12V-2x6 Cable Installation
- BOTH 12V-2x6 connectors of your 12V-2x6 cable must always be plugged into your power supply, ensuring they are FULLY INSERTED, CLICK-LOCKED, and TIGHT.
- DO NOT bend or apply force to the cable after it is plugged into place.
Backed by a 12 year Seasonic warranty.
