The Thermalright Stream Vision 360mm AIO CPU Cooler is a high-performance all-in-one CPU liquid cooler featuring a 3.5-Inch display with 640x480 resolution, allowing for live system monitoring of frequencies, temperatures, and customisable themes using GIF animations or videos. The 3 x TL-H12-X28-R7 fans offer high-speed airflow and low noise levels. Compatible with AMD and Intel CPU sockets.
Features

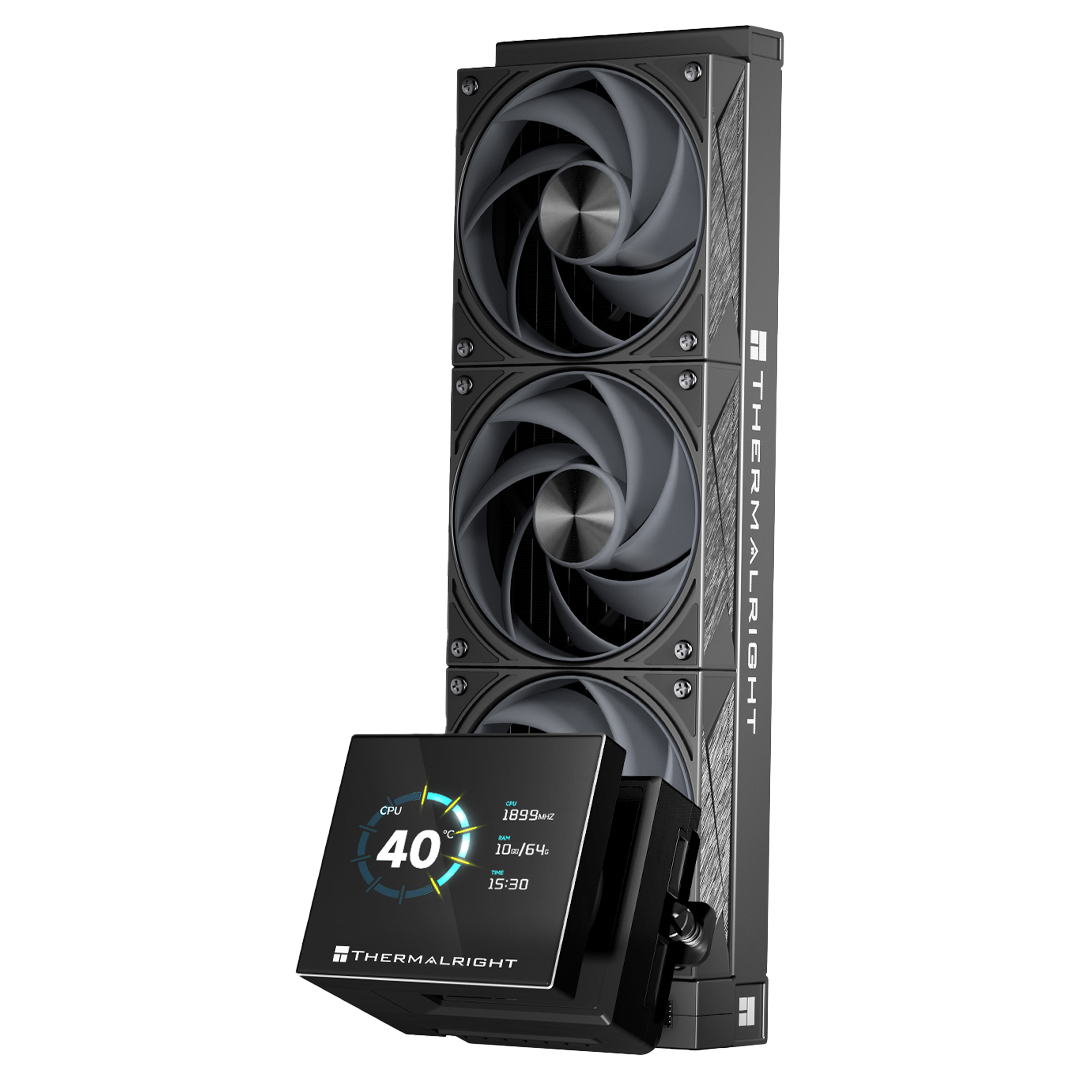

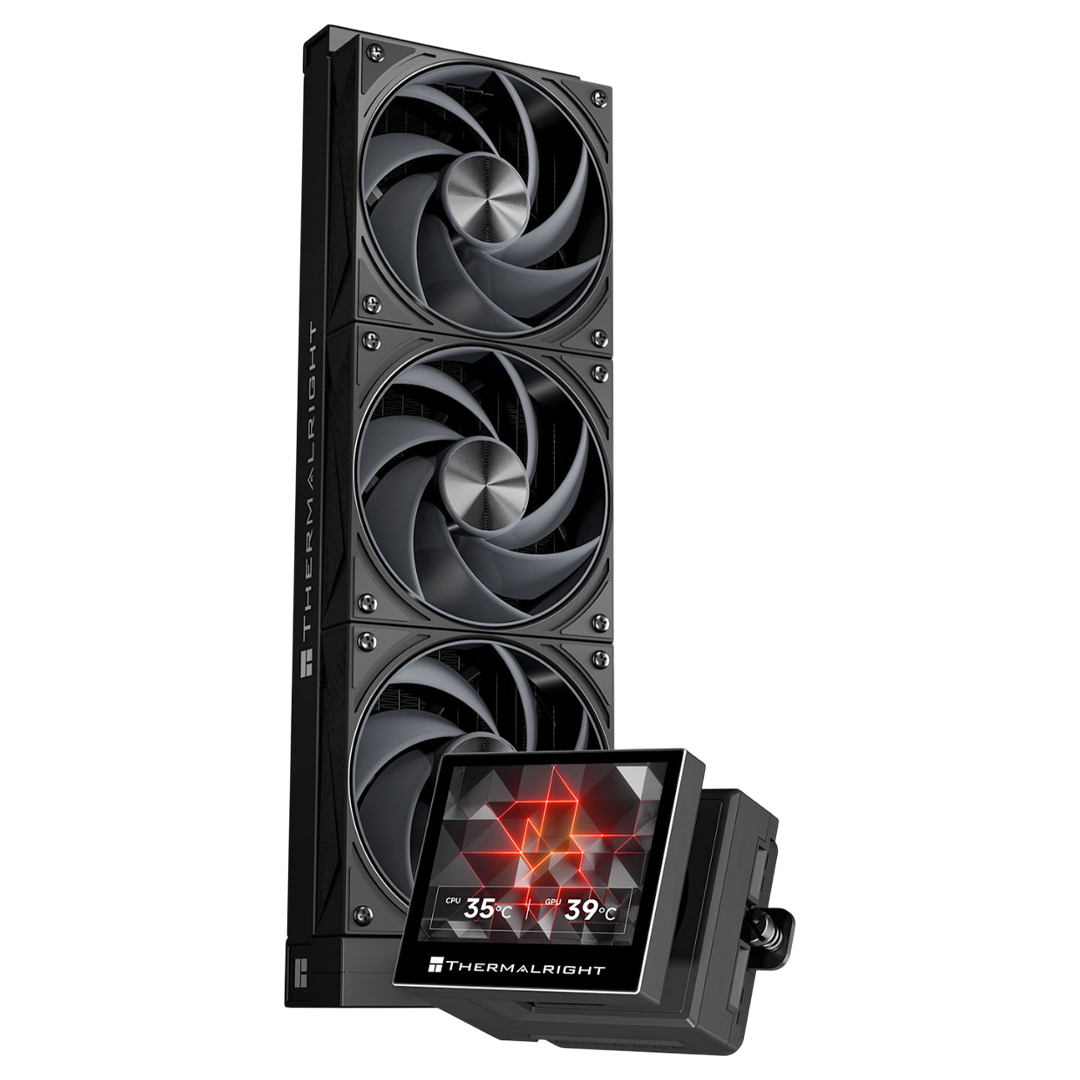

Stream Vision 360 ARGB Black AIO
High Performance Closed Loop All-in-One CPU Liquid Cooler.
- Integrated LCD Screen System Monitoring
- Customisable Theme Video Play Support
- 360mm Radiator with Three Fans
Full Colour IPS 3.5-Inch Display
640 x 480 resolution display and built-in memory give STREAM VISION ability to play large video files.
Live System Monitoring
Waterblock integrated 3.5-Inch LCD offers users live monitoring of system performance figures like clock frequencies, temperatures or more custom themes.
Customisable Animations or Videos
Use your favourite gif animation or video as custom theme backgrounds.

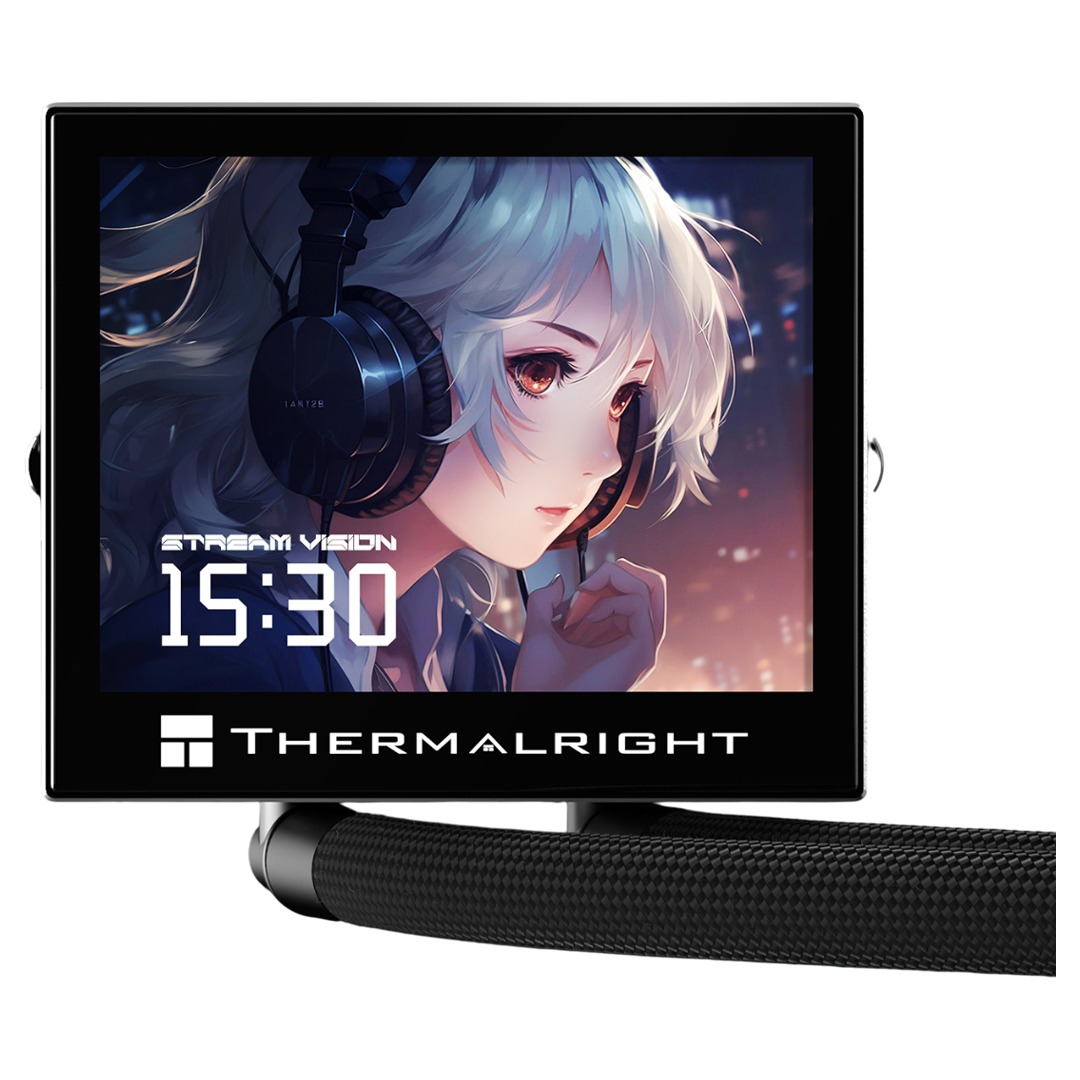

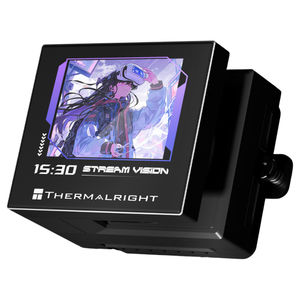

Aluminium Casing Waterblock with LCD Display
- System Monitoring
- Gif Picture Playback
- Video Playback

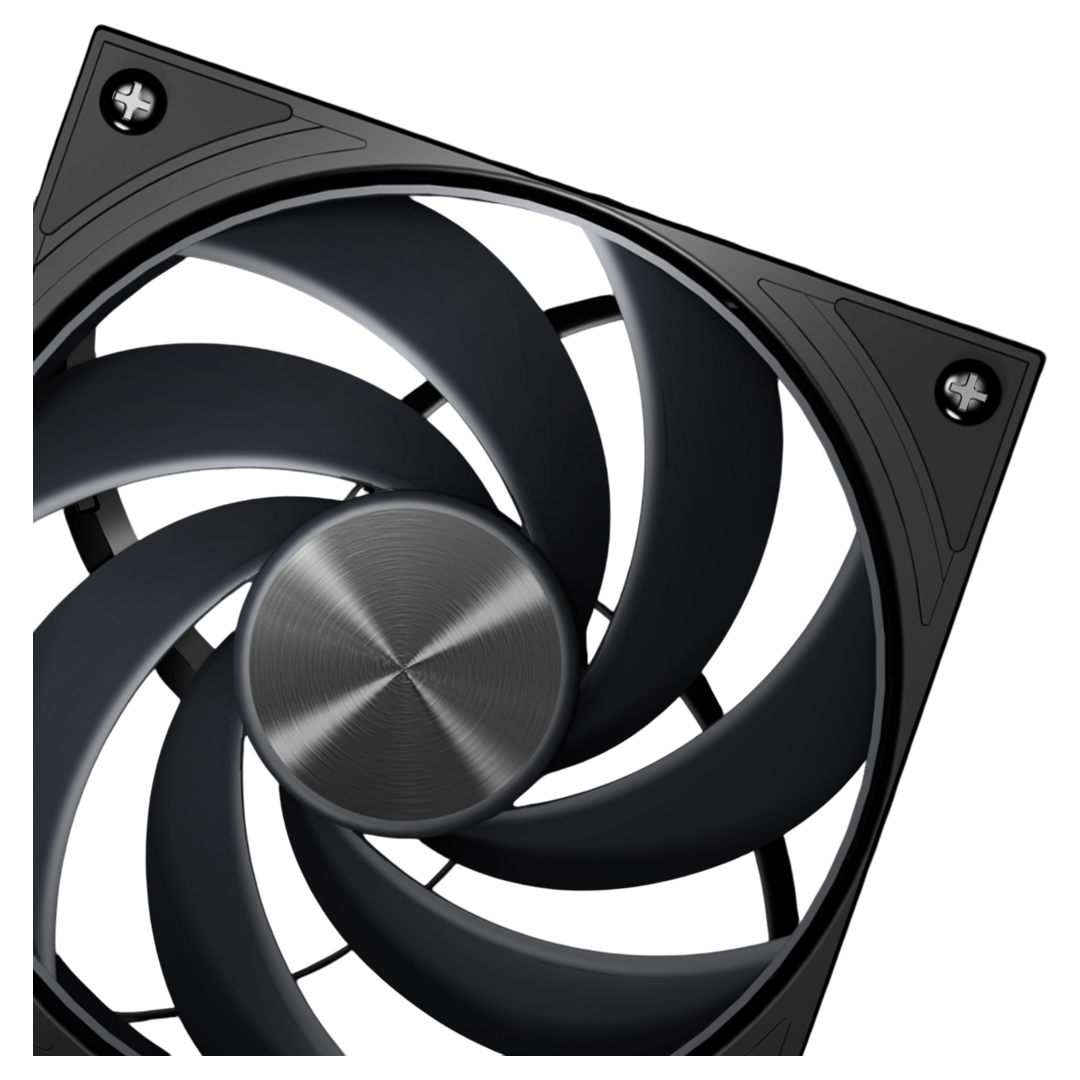

TL-H12-X28-R7
Thermalright engineered fan blades have high-static pressure performance, optimised for radiator use. Each fan is equipped with high precision S-FDB Bearing V2 for low noise operation and high durability. With PWM control, the fan is able to adjust its speed automatically according to system load.
- 95.4 CFM Airflow
- S-FDB Bearing V2
- 2400 RPM ± 10% Quiet fan operation
- 4-Pin PWM Connector
Specifications
General Data
| Model Number |
STREAM-VISION-360-BK |
| Colour |
Black |
| Pump Dimensions (LxWxH) |
69 mm x 92 mm x 76 mm |
| Radiator Dimensions (LxWxH) |
403 mm x 120 mm x 27 mm |
| Pump Rated Speed |
6400 RPM±10% (Max) |
| Screen Size |
3.5-Inch |
| Screen Resolution |
640x480 |
| Pump Rated Voltage |
12V DC |
| Connector |
4 Pin PWM |
| Radiator |
Aluminium |
| Warranty |
5 Years |
| Compatibility |
Intel: LGA115X/1200/1700/1851/2011/2066
AMD: AM4/AM5 |
Fan
| Model |
TL-H12-X28-R7 |
| Dimension (LxWxH) |
120 mm x 120 mm x 28 mm |
| Rated Speed |
2400 RPM±10% (Max) |
| Noise Level |
31.4 BA (Max) |
| Air Flow |
95.4 CFM (Max) |
| Air Pressure |
2.78 mm H₂O (Max) |
| Connector |
4 Pin PWM |
| Bearing Type |
S-FDB V2 Bearing |
Backed by a 5 year Thermalright warranty.
