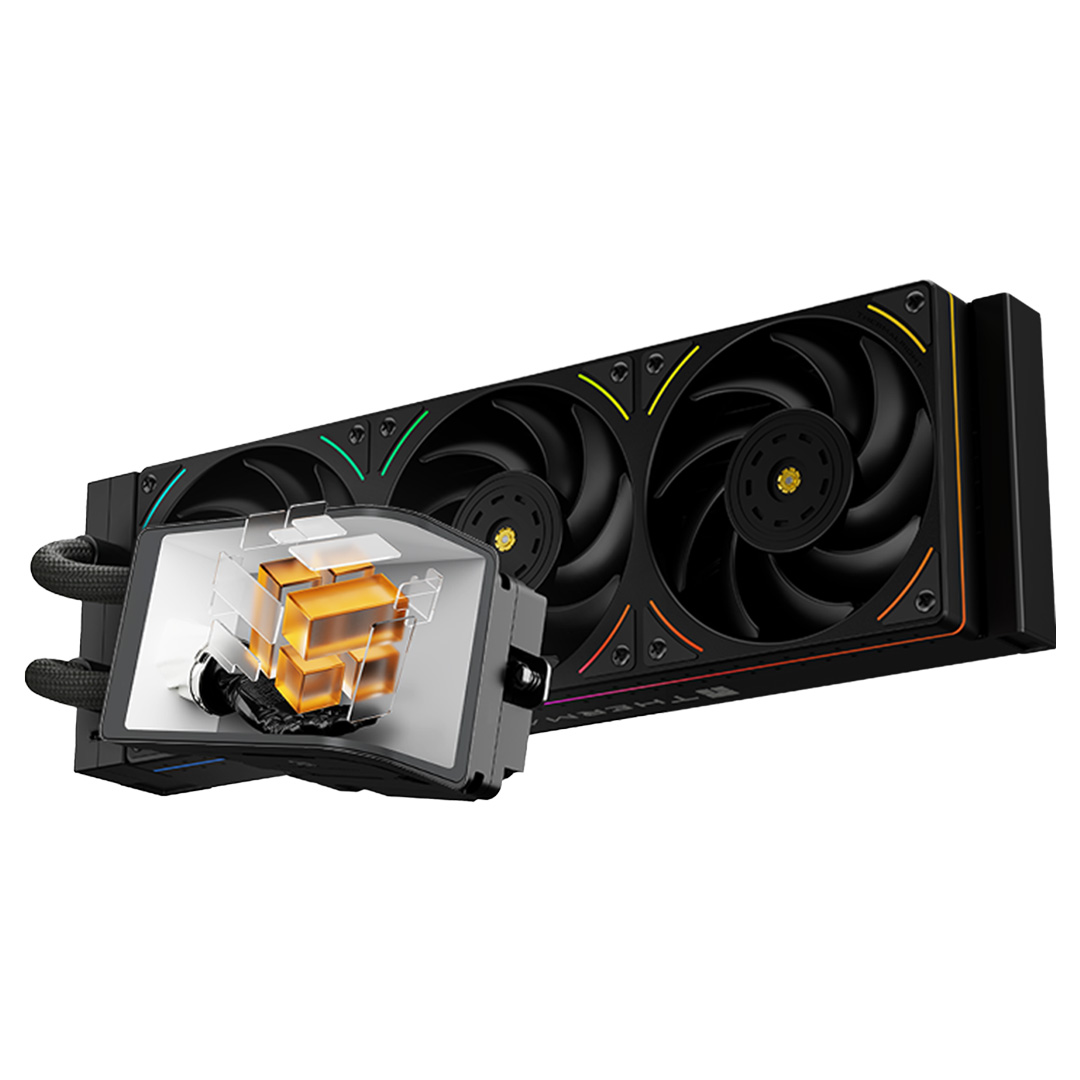

The Thermalright Wonder Vision 360mm UB ARGB AIO CPU Cooler Black is a premium liquid CPU cooler designed for powerful cooling performance with its 360mm size and high-speed 6400 RPM pump. Equipped with three 120mm ARGB fans, it provides efficient airflow and customisable lighting to enhance your PC's aesthetics. Featuring a large 6.67" curved screen that operates at 60hz in a sharp 2400 x 1800 resolution to bring customisation to a whole new level. Operating at just 27 dBA, it ensures a near-silent experience even during heavy workloads, making it an ideal choice for gamers and content creators looking for reliable, high-performance cooling solutions. Compatible with both AMD and Intel sockets.
Features
Wonder Vision 360mm UB ARGB
Rotatable and Customisable Curved Screen
Equipped with a large 6.67" curved screen 3D anamorphic effect, which features a sharp 2400 x 1800 pixel resolution that provides stunning visuals. With multiple presets, real-time statistics, custom pictures and animated gifs, the Thermalright Wonder Vision 360 UB ARGB brings pc aesthetics to another level.
New Pump Design
Accumulating several generations of solutions and recasting new structure, give efficient heat transfer, and optimised pump design features a strong nine-pole rotor motor, new fluid impeller that rotates up to 6400RPM while staying under a quiet 27. dB(A). New design pump maximise the cooling capacity with the pre-applied thermal paste.
Fan Speed
The high-performance fans run at 2150 RPM±10%, ensuring excellent cooling even during intense workloads and long gaming sessions.
Fan Airflow
With a massive airflow capacity of 69 CFM, this CPU cooler guarantees optimal heat dissipation for stable and consistent performance.
Noise Level
Engineered for quiet operation, it maintains a noise level of ≤27 DB(A), offering near-silent cooling without compromising efficiency.
Connector
The 4PIN PWM connector enables intelligent fan control, adjusting speed automatically based on system temperature to maintain ideal performance.
Dimension
At 360MM x 120MM x 25MM, this sleek and powerful cooler fits perfectly into most mid and full tower cases while maximising surface area for heat dispersion.
Specifications
General Data
| Model Number |
WONDER-VISION-360-UB-ARGB-BK |
| Colour |
Black |
| Pump Dimensions (LxWxH) |
120.1 mm x 80 mm x 107 mm |
| Radiator Dimensions (LxWxH) |
403 mm x 120 mm x 27 mm |
| Pump Rated Speed |
6400 RPM±10% (Max) |
| Screen Size |
6.67-Inch |
| Screen Resolution |
2400x1080 |
| Pump Rated Voltage |
12V DC |
| Connector |
4 Pin PWM |
| Radiator |
Aluminium |
| Warranty |
6 Years |
| Compatibility |
Intel: LGA115X/1200/1700/1851/2011/2066
AMD: AM4/AM5 |
Fan
| Model |
TL-UB36 |
| Dimension (LxWxH) |
360 mm x 120 mm x 25 mm |
| Rated Speed |
2150 RPM±10% (Max) |
| Noise Level |
27 dBA (Max) |
| Air Flow |
69x3 CFM (Max) |
| Air Pressure |
2.87 mm H₂O (Max) |
| Connector |
4 Pin PWM |
| ARGB Connector |
3 Pin 5V |
| Bearing Type |
S-FDB V2 Bearing |
Backed by a 6 year Thermalright warranty.
