The CableMod Basics Universal 12V-2x6 Variant A PCI-e cable features a 16-pin Microfit PCI-e, StealthSense Technology, 16AWG wiring supporting 600W, and a 90 degree connector providing a cleaner fit. Optimised with Variant A orientation for GPU ports where the latch faces upwards. The CableMod Pro Series 12V-2x6 12VHPWR replacement cables deliver robustness and craftsmanship for builds where only the best will do.
Features
CableMod Basics Universal 12V-2x6 12VHPWR 90° Direct PCI-e Cable
Power the next generation of graphics cards with the CableMod Basics 12V-2x6 90° PCIe Cable. Featuring a 90° 12V-2x6 connector paired with a 16-pin microfit PCIe connector, this high-quality cable is a replacement cable for ATX 3.1 power supplies, and enables these PSUs to power graphics cards with a 12V-2x6 or 12VHPWR power port.
- Made for ATX 3.1 Ready PSUs

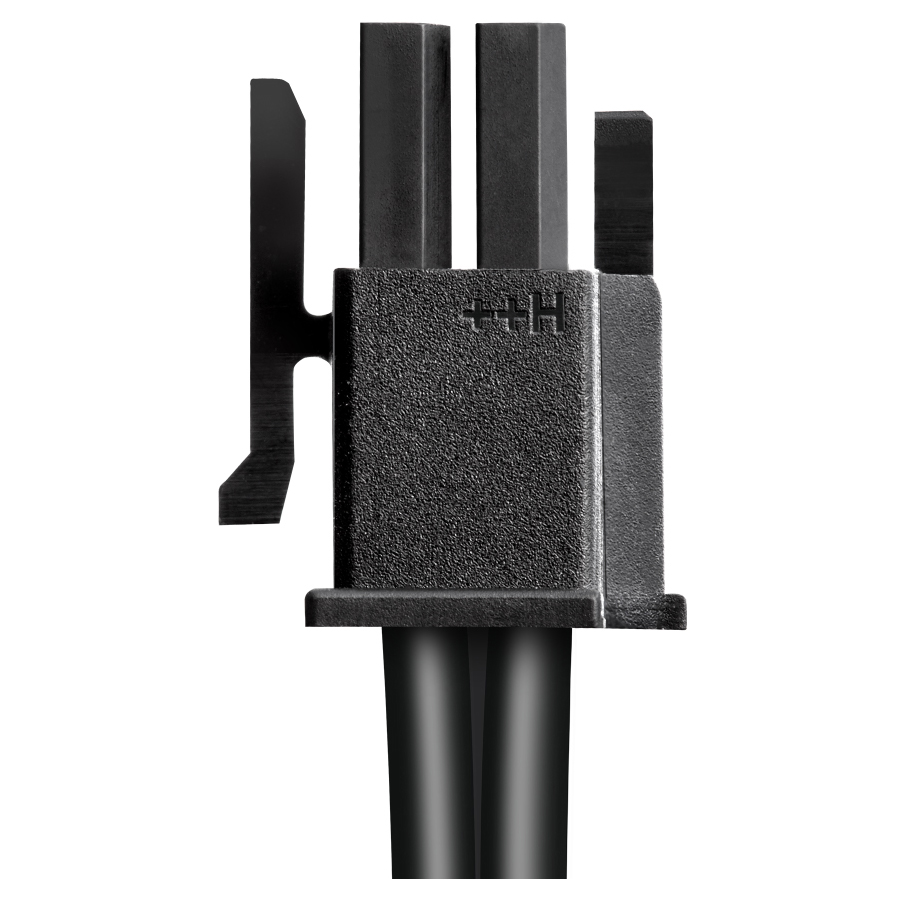

- 90° 16-pin 12V-2x6 to 16-pin Microfit PCIe
- CableMod StealthSense Technology
- Quality 16AWG Wire
- Full Support for 600W
90° – Variant A
The 90° Variant A is designed for GPU ports with the latch facing upwards. This would result in the cable running towards the cooler side of the GPU. If this is installed in a GPU port with the latch facing downwards, the cable will instead run towards the GPU backplate.

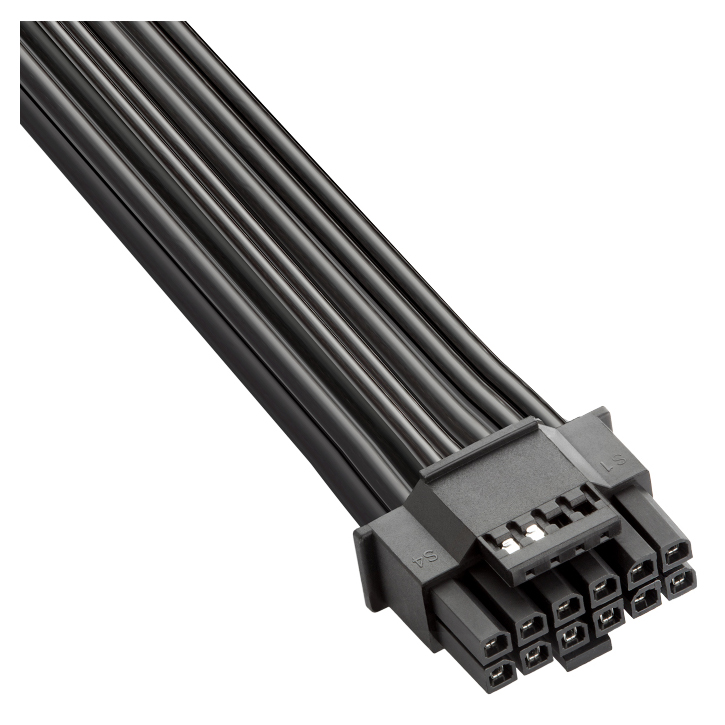

90° 12V-2x6 Connector with StealthSense Technology
patent-pending StealthSense Technology utilises a new hidden bridge inside the 90° 12V-2x6 connector, removing the need for sense wires altogether. No more unsightly “wire loops” used by competitors – you get a cleaner, more aesthetically pleasing cable, making our StealthSense cables the cleanest and most reliable 12V-2x6 cables available today.
16AWG for 600W Power Delivery
The CableMod Basics 12V-2x6 90° PCIe Cable is constructed with quality 16AWG wire to fully support up to 600W of power delivery, enabling you to power your graphics card without worrying about blue screens or system crashes.
Softer Wire Jackets and Fully Crimped Terminals
Each wire utilises fully crimped terminals for the most reliable construction, and softer PVC wire jackets means less stress on each terminal when wires are bent. This cable also uses precision moulded connectors to ensure compatibility and a secure fit with today’s 12V-2x6 GPUs.
Important Notes
- Please note that this product has strict compatibility requirements
- Using this product with unsupported hardware may result in system damage
- Do NOT use with any makes or models not listed in our compatibility list below
- This cable requires one unoccupied 16-pin PCIe port on your PSU
- Please ensure that this product is fully plugged into the GPU connector before operating
Specifications
| Model Number |
CB-UNV-16PC-RA60K-R-SS |
| Category |
12V-2x6 PCIe Cables |
| Series |
Universal |
| Made For |
Universal |
| Models |
Universal |
| Colour |
Black |
| Variant |
Variant A |
| Weight |
0.19 kg |
| Warranty |
1 Year |
Backed by a 1 year CableMod warranty.
