Corsair iCUE Link XH505i RX 360 Custom Cooling Kit White

CX-9070019-WW | Corsair
$929
ETA: 10/07/26 This item is expected to arrive into our warehouse around 10/07/26.
Buy now, pay later!

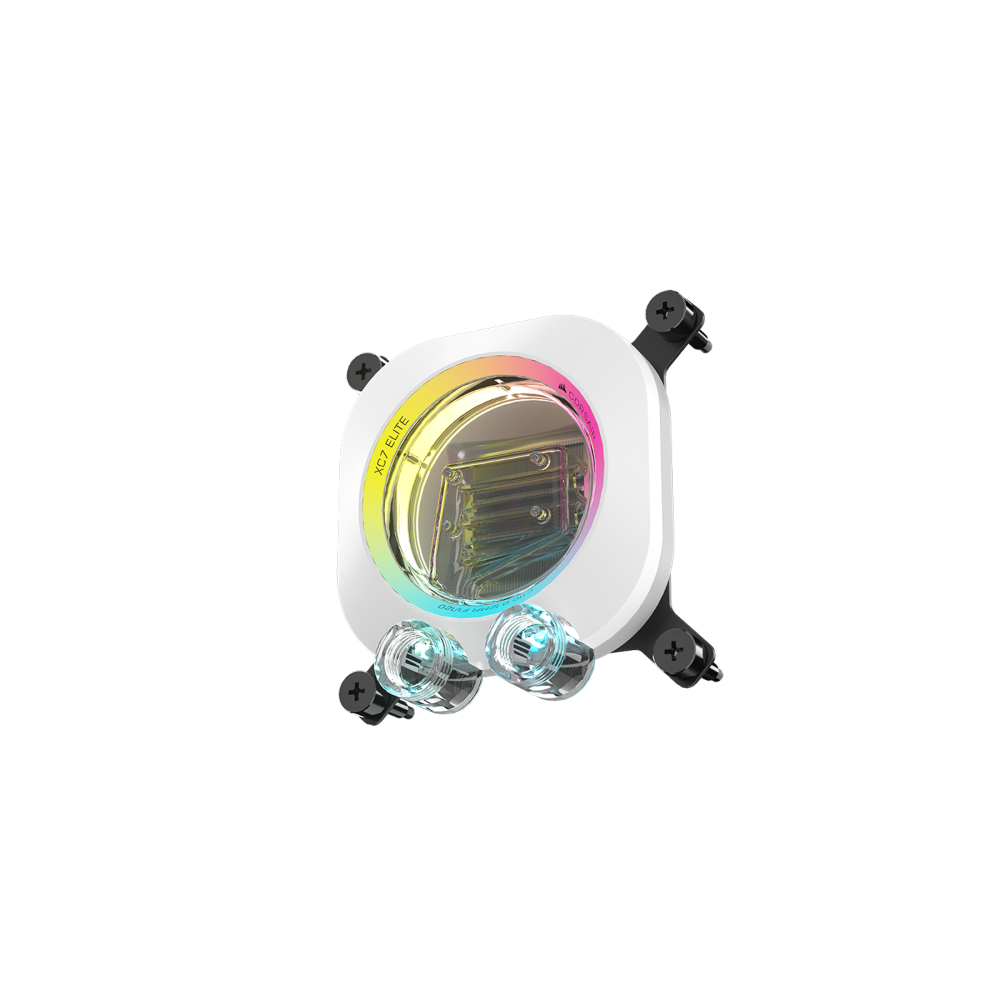

Transform your PC into a masterpiece of cooling and aesthetics with the Corsair iCUE Link XH505i RX 360 Custom Cooling Kit, the ultimate all-in-one solution for enthusiasts and first-time builders. This comprehensive kit revolutionises the building process with the innovative iCUE LINK single-cable ecosystem, dramatically reducing clutter and simplifying connections for a clean, professional look. Unleash superior cooling performance for your CPU with a high-performance XC7 RGB ELITE water block, a powerful FlowDrive Max pump/reservoir combo, and three cutting-edge RX120 RGB fans paired with a 360mm copper radiator. Everything you need is in the box, from crystal-clear hardline tubing and fittings to XL8 coolant, all seamlessly controlled and synchronised through the powerful Corsair iCUE software for stunning dynamic RGB lighting effects and intelligent thermal regulation.



Features


Corsair iCUE Link XH505i RX 360 Custom Cooling Kit White

                Corsair iCUE Link XH505i RX 360 Custom Cooling Kit White Feature 1

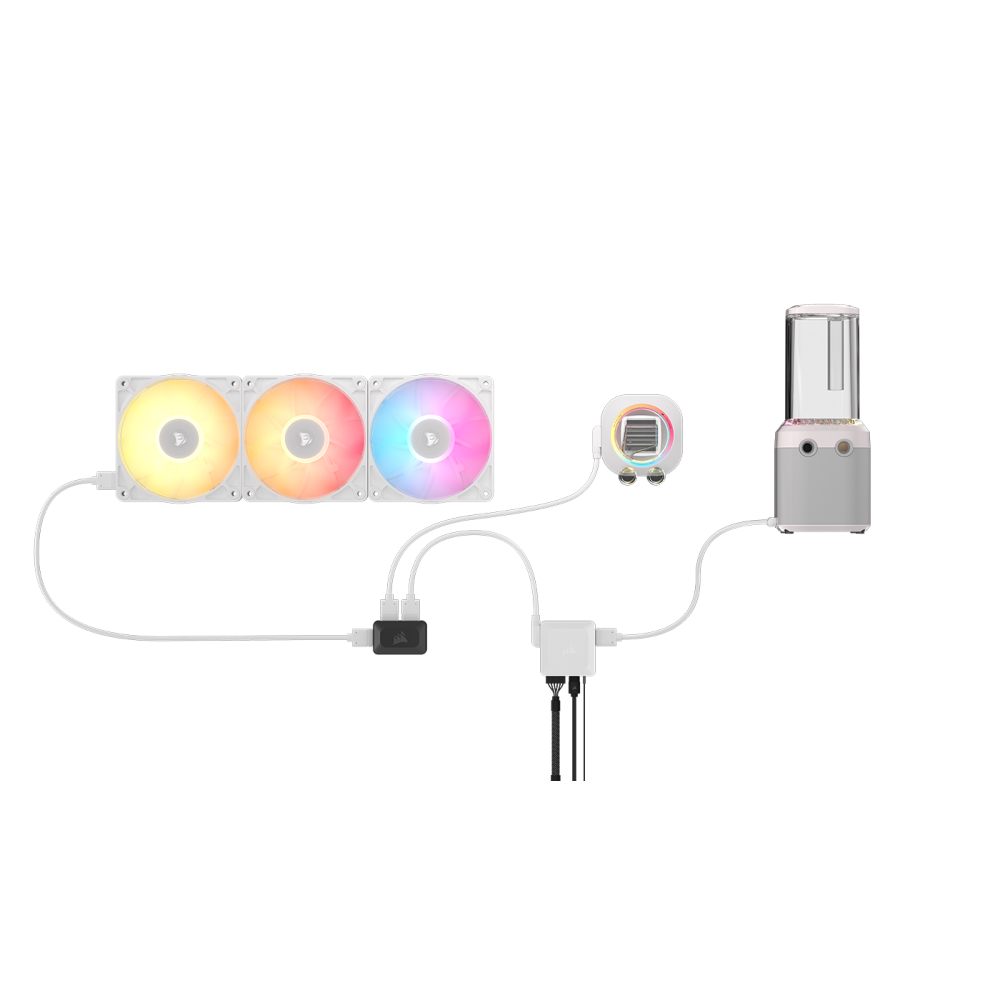

Complete Hardline Cooling, Made Simple

This complete Hydro X Series custom cooling kit includes all the components you need for a high-performance hardline cooling loop, including an XC7 CPU water block, XD6 FlowDrive Max pump, three RX120 RGB fans, a 360mm XR5 radiator, and all the necessary tubing, fittings, and cutting tools. The iCUE LINK ecosystem simplifies the assembly process, making it easier than ever to achieve a stunning hardline loop.

Dynamic RGB Lighting

Equipped with individually addressable RGB LEDs integrated into the CPU water block, pump/reservoir, and cooling fans, this kit gives your PC a striking, personalised look. All lighting is easily controlled and synchronised via CORSAIR iCUE software.

                Corsair iCUE Link XH505i RX 360 Custom Cooling Kit White Feature 2

Low-Noise Custom Cooling

Take full control of your system with CORSAIR iCUE software, which allows you to adjust fan and pump settings, monitor temperatures, and customise RGB lighting. This enables you to fine-tune your cooling performance for silent operation or maximum cooling power, all synchronised with your other iCUE-compatible products.

Specifications


General Data

Model Number CX-9070019-WW
Product Type Custom Cooling Kit
CPU Socket Compatibility Intel 1851 | Intel 1700 | AMD AM5 | AMD AM4
Compatible Materials Only mix with other copper / brass products
Compatible Coolants CORSAIR XL or equivalent
Port Thread G1/4" BSPP
Pump Type FlowDrive Max
Radiator Dimensions 396mm x 120mm x 30mm
Radiator Thickness 30mm
Fan Quantity 3
Max Operating Temperature 60°C coolant temperature
Thermal Material Pre-applied thermal paste
Required Controller For iCUE Support CORSAIR iCUE LINK System Hub
Lighting RGB
Colour White

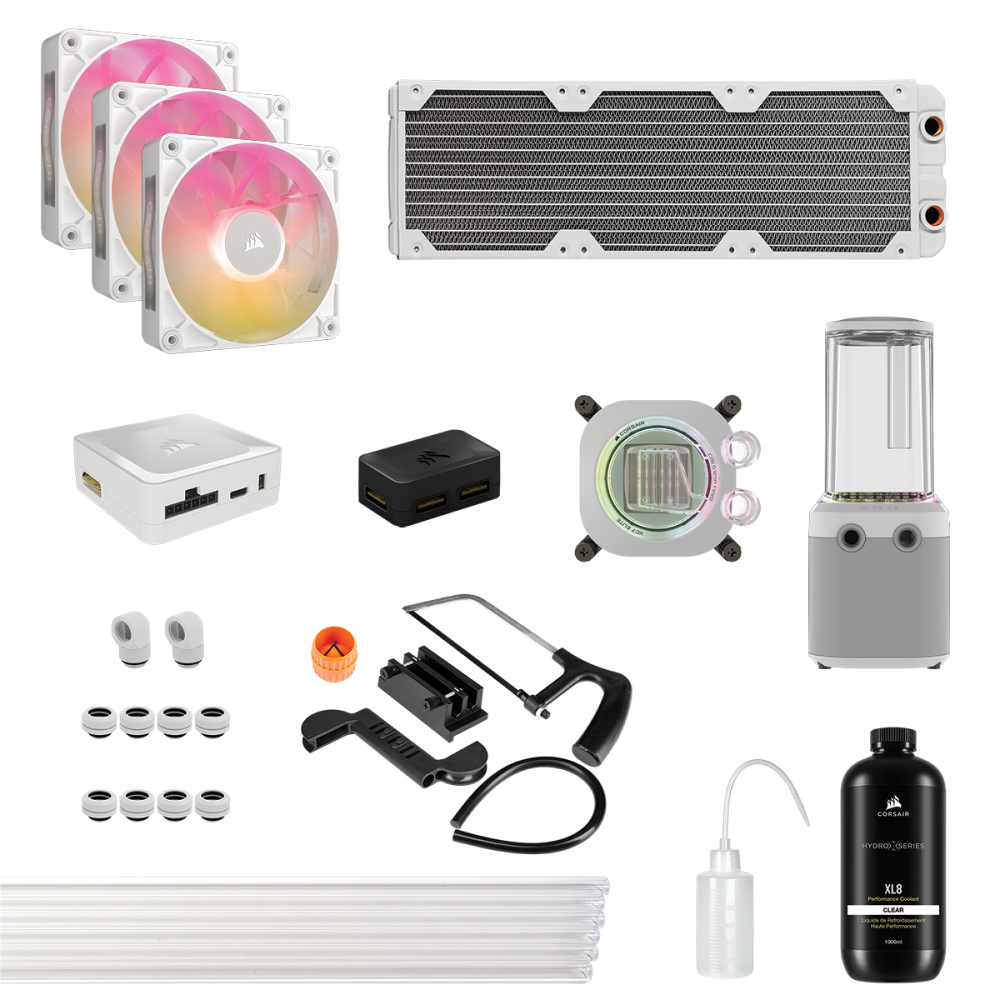

What's Included 1x iCUE LINK XC7 RGB ELITE CPU Block
1x iCUE LINK XD6 RGB Pump reservoir combo
1x XR5 360mm Radiator
3x iCUE LINK RX120 RGB fans
1x iCUE LINK System Hub
1x iCUE LINK 4-Way Splitter
1x XL8 Clear coolant *1l bottle
8x XF Hardline 14mm OD Fitting — Black (2x Four pack)
2x 90° Rotary Adapter — Black (1x Twin pack)
3m XT Hardline 14/10mm OD/ID Tubing (cut into 6x 0,5m length)
1x XT Hardline Bending Toolkit
1x Filling Bottle
Backed by a 2 year Corsair warranty.
