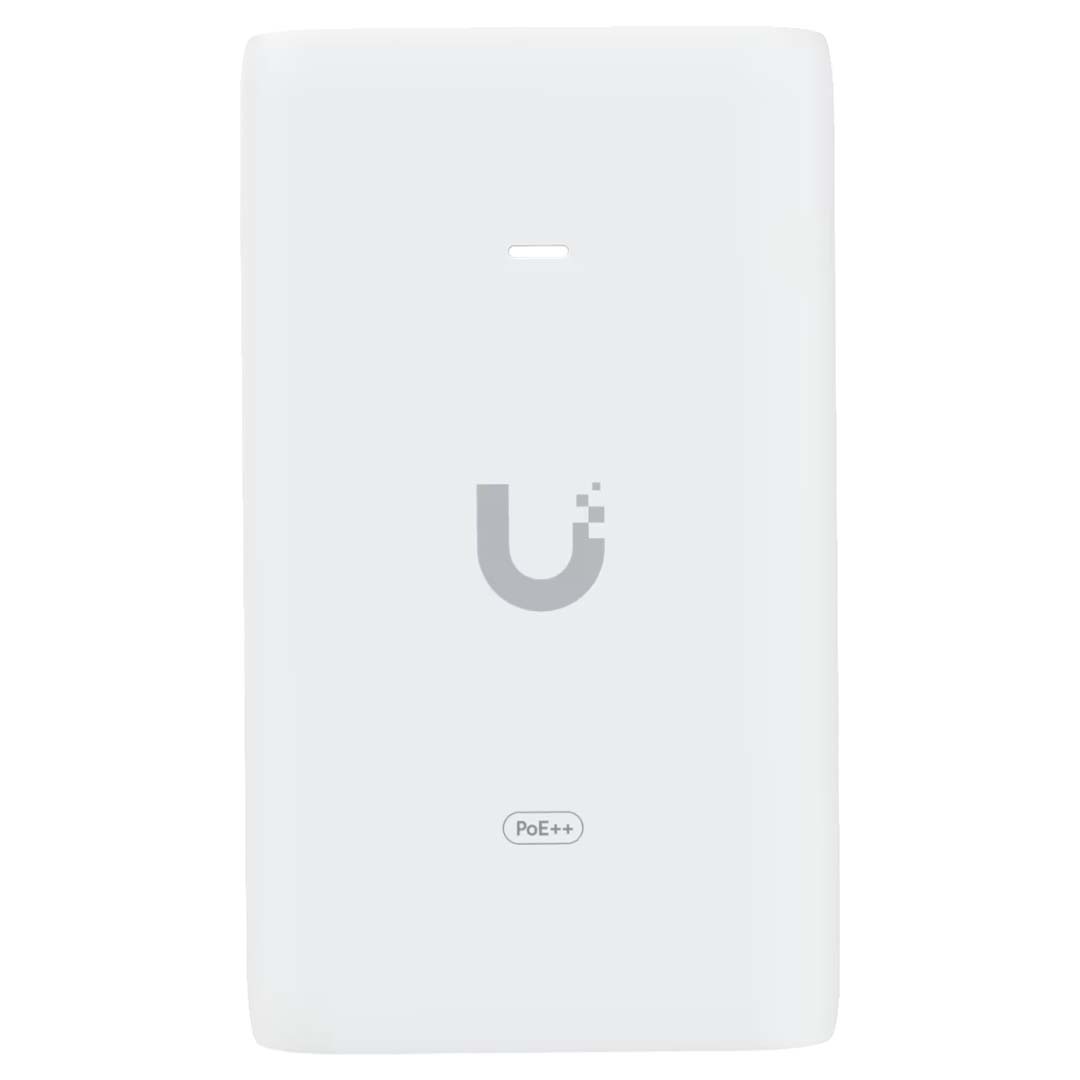

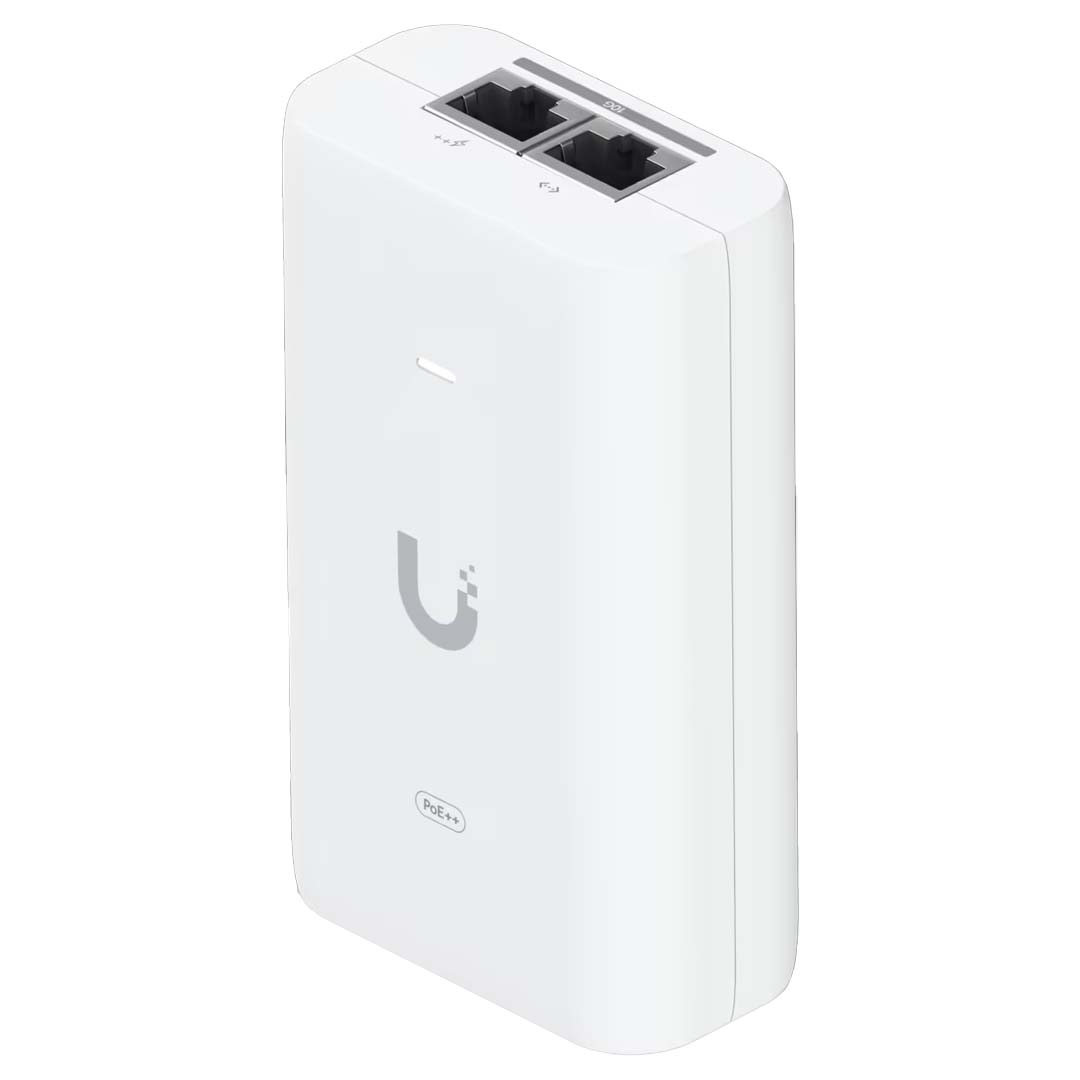

The Ubiquiti UACC-PoE++-10G 10G PoE++ Adapter 60W features a compact injector that provides multi-gigabit (10 GbE) LAN and delivers up to 60 W of PoE++ power (54 V DC @ 1.12 A) to compatible UniFi devices. It includes built-in surge, peak pulse and overcurrent protection, status LED and connects via a single shielded RJ45 port.
Features
10G PoE++ Adaptor (60W)
An Adaptor that can power UniFi PoE++ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.
- Delivers up to 60W of PoE++
- Surge, peak pulse, and overcurrent protection

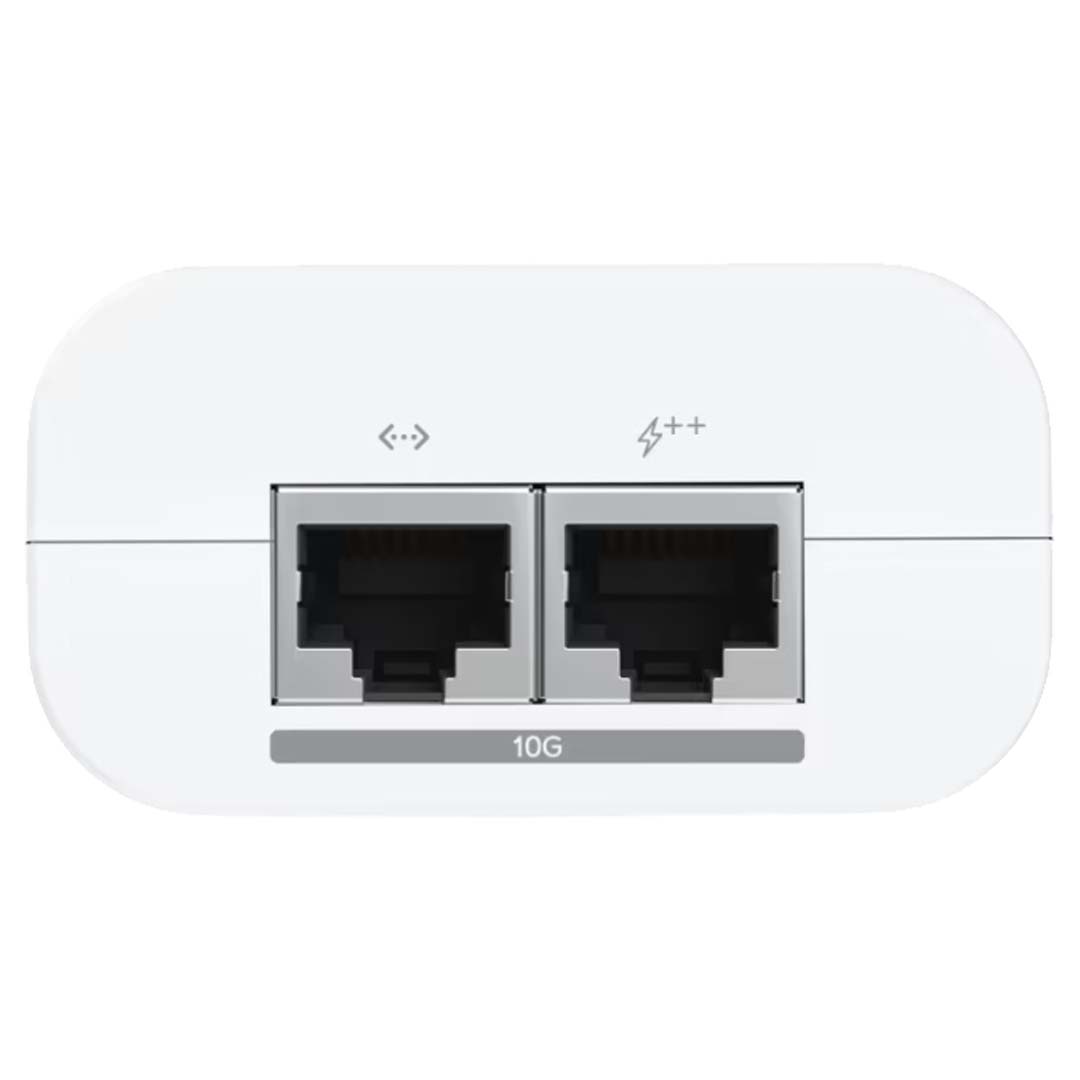

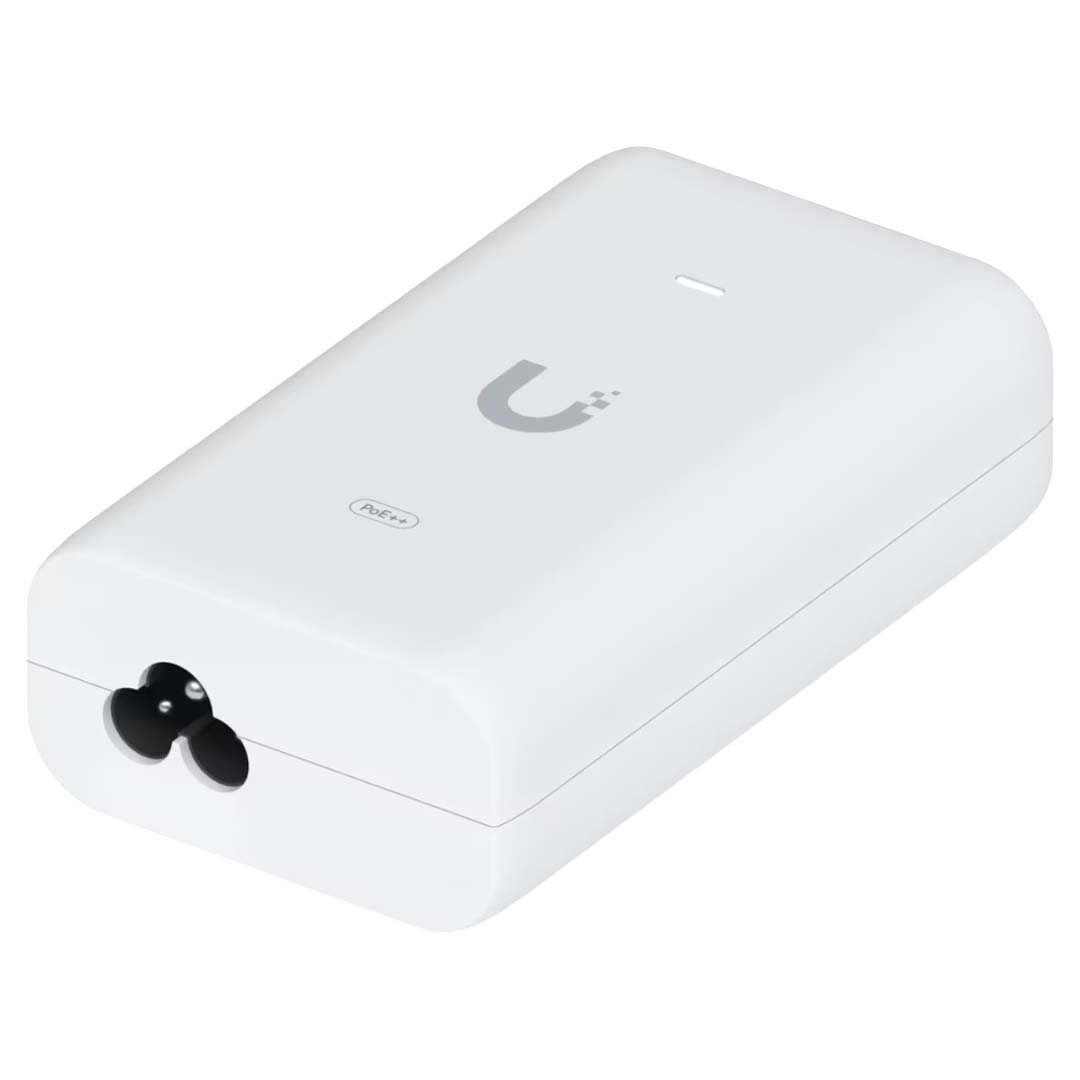

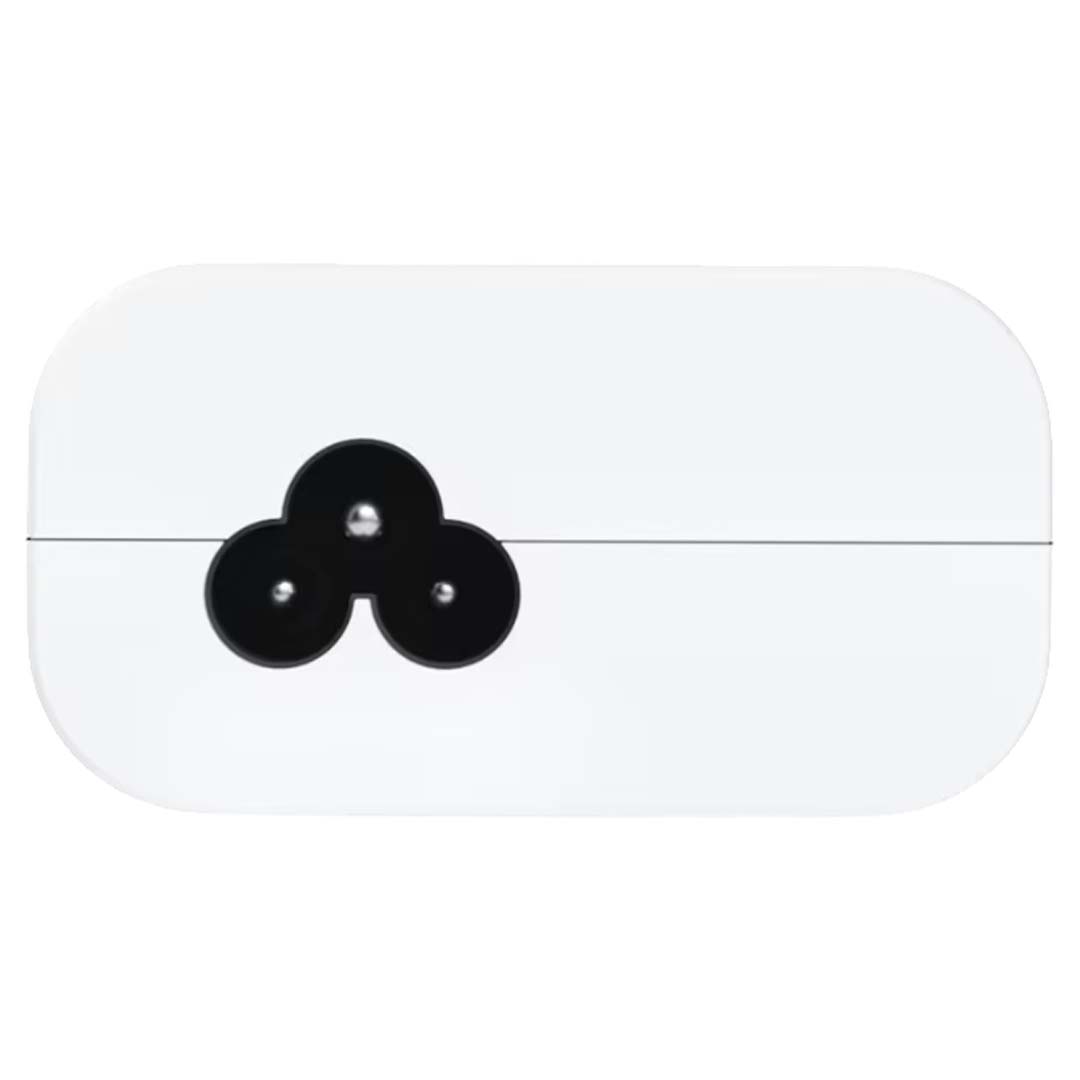

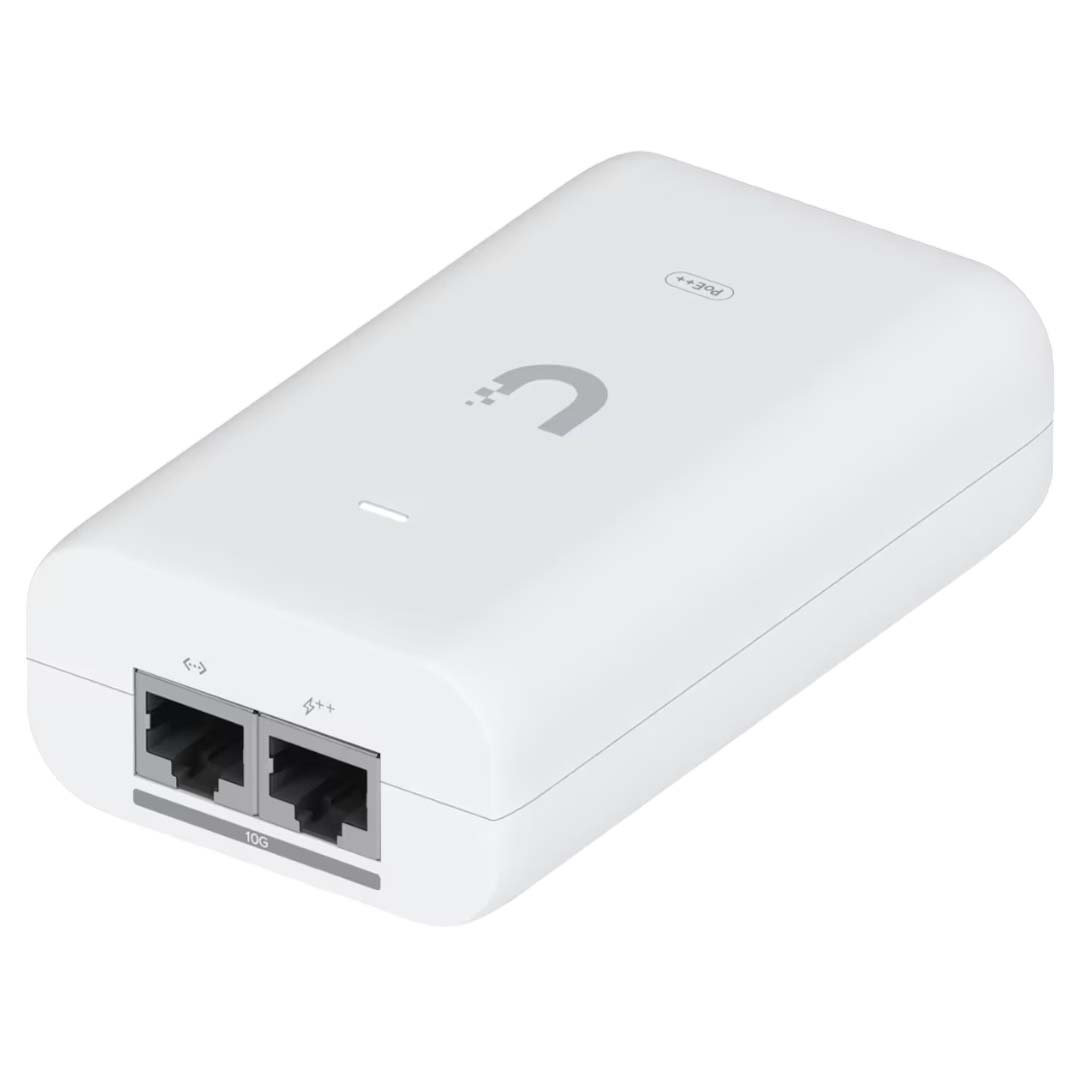

- Contains RJ45 data input, AC cable with earth ground, and PoE++ output
- LED indicator for status monitoring
Compatibility: E7, E7-Campus, E7-Audience, U7-Pro-XGS, U7-Pro-XG
Specifications
| Model Number |
UACC-POE++-10G |
| Dimensions |
106 x 63 x 34 mm (4.2 x 2.5 x 1.3") |
| Weight |
210 g (7.4 oz) |
| Output Voltage |
54 V DC at 1.12 A |
| Rated Voltage |
100—240 V AC at 50/60 Hz |
| Gigabit LAN Port |
Yes |
| 4-pair Powering |
Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
| Clamping Protection |
11 V Data, 60 V power |
| Data In / PoE |
RJ45 Shielded Socket |
| Input Current |
1.5 A Max. |
| Inrush Current |
<150 A peak at 230 V AC |
| Efficiency |
>88% |
| Switching Frequency |
65 kHz |
| Output Ripple |
1% Max. |
| Line Regulation |
≤ 2% |
| Load Regulation |
≤ 5% |
| Max. PoE+ Wattage Per Port by PSE |
60 W |
| Max. Surge Discharge |
1500 A (8/20 μs) power |
| Peak Pulse Current |
36 A (10/1000 μs) data |
| Response Time |
<1 ns |
| Shunt Capacitance |
<5 pF data |
| Surge Protection |
Difference and common mode |
| Ambient Storage Temperature |
-30 to 70°C (-22 to 158° F) |
| Ambient Operating Temperature |
0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity |
10 to 95% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, UL, UKCA, KC, CCC, RoHS |
| Compatibility |
E7, E7-Campus, E7-Audience, U7-Pro-XGS, U7-Pro-XG |
Backed by a 1 year Ubiquiti warranty.
