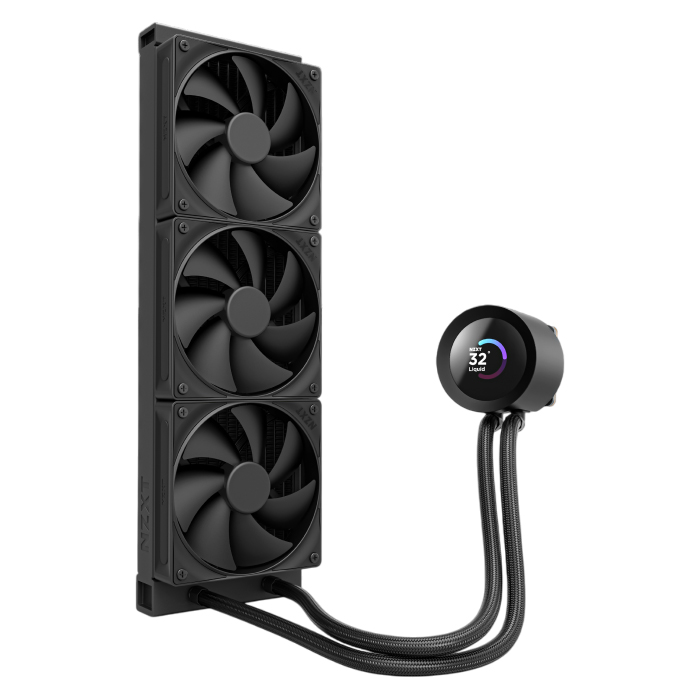

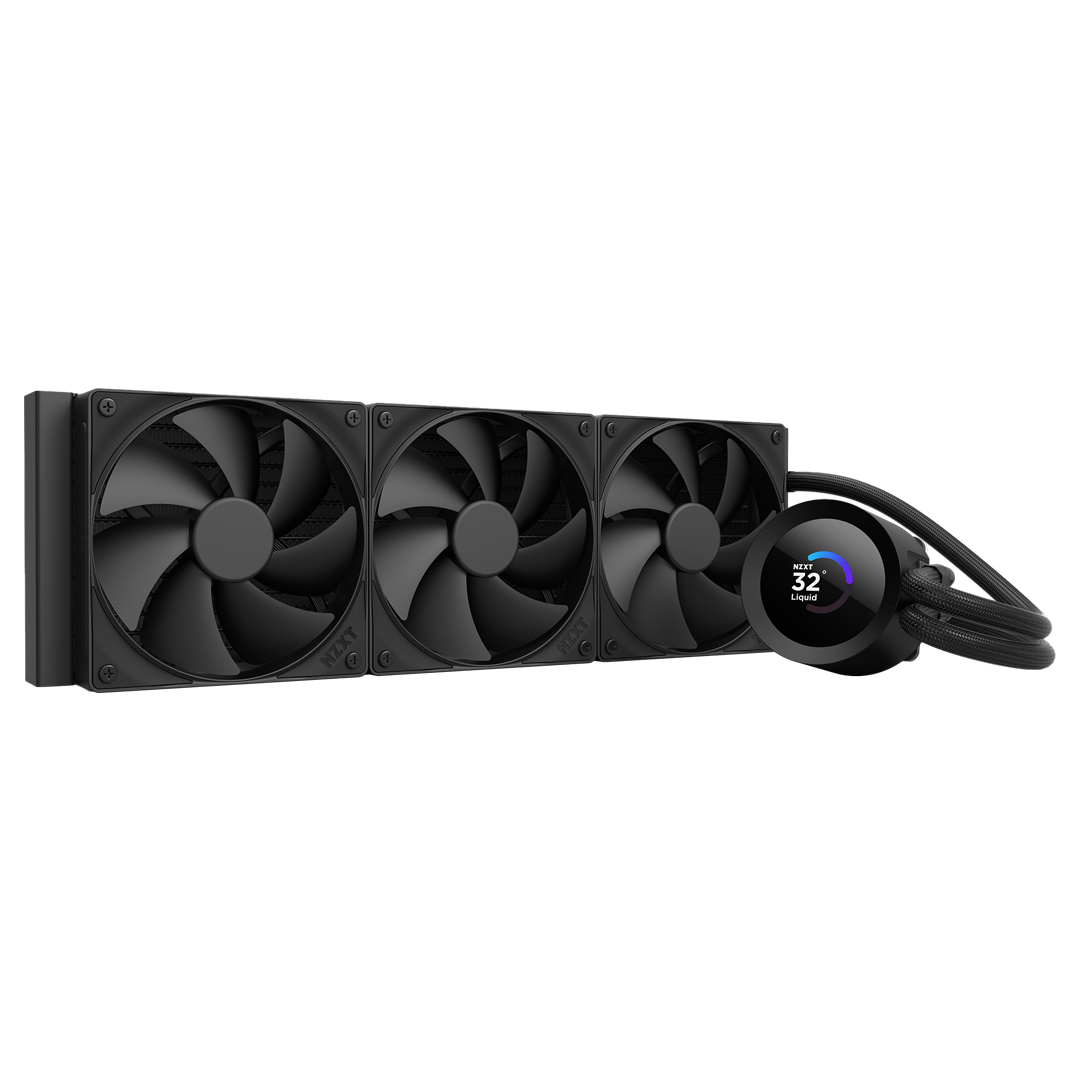

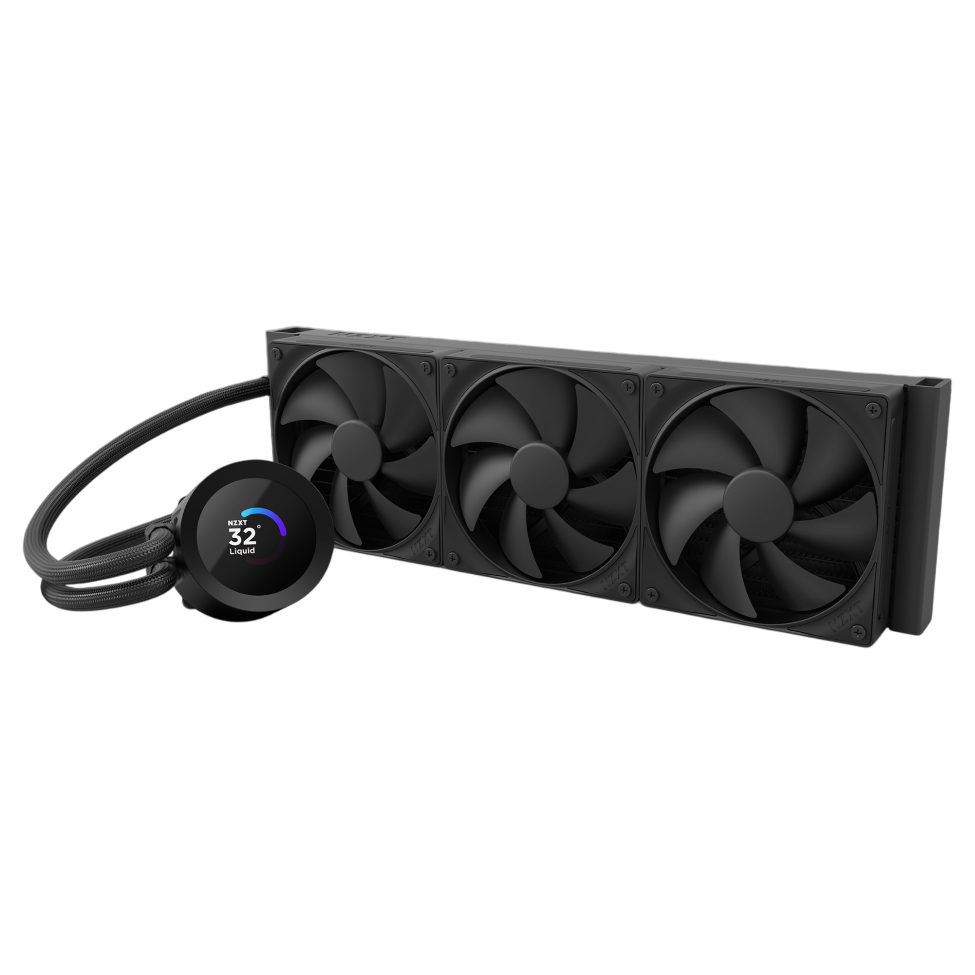

The NZXT Kraken Plus V2 360mm AIO Liquid Cooler with 1.54in LCD Display Black features a custom Turbine pump and triple 120 mm static-pressure fans for efficient CPU cooling with minimal noise. The 1.54 in LCD on the pump displays real-time system stats or custom visuals and installation is streamlined with a single breakout cable and pre-applied thermal paste.
Features
Kraken Plus 360mm AIO Liquid Cooler with 1.54" LCD
Smart Cooling. Bold Display.
The Kraken Plus AIO liquid cooler features the custom-designed NZXT Turbine pump and LCD display for efficient, customisable cooling.
Kraken Plus delivers powerful CPU cooling, a fully customisable LCD, and easy installation — designed for builders who want both performance and personalisation.
- High-Performance Cooling: The NZXT Turbine pump is engineered for high flow and head pressure, delivering efficient, low-noise cooling to keep your CPU performing at its best under heavy workloads.
- Custom LCD Screen: Display real-time system temps, animated GIFs, custom images, or web integrations like Spotify and YouTube on a bright 1.54" square LCD — fully customisable through NZXT CAM software.
- Quiet Airflow: High-static pressure fans move air through the radiator to dissipate heat effectively, while Zero RPM Mode stops the fans completely at low loads for silent operation.
- Easy Installation: Pre-applied thermal paste and a single breakout cable from the pump cap speed up installation and reduce cable clutter.
- Wide Compatibility: Includes tool-free mounting brackets that support the latest AMD® and Intel® CPU sockets, including AM5 and LGA 1851.
- Durable and Reliable: Reinforced rubber tubing with nylon-braided sleeving ensures long-term durability and easy routing during installation.
- Optimised Cold Plate: The split-flow copper cold plate channels coolant to the CPU’s hottest areas for better heat transfer, lower temps, and more consistent thermal performance.
- NZXT CAM Software: Use NZXT CAM to monitor temps, customise the LCD display, and control fan and pump speeds — all through an intuitive, easy-to-use interface.
Powered by Turbine
The NZXT Turbine Pump is engineered for high flow and head pressure, delivering efficient, low-noise cooling that keeps up with demanding workloads.

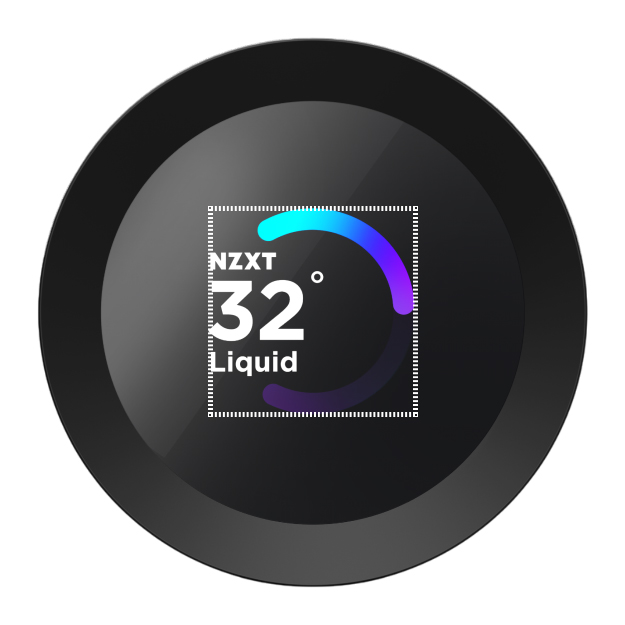

Personalisation on Display
Show real-time temps, custom images, GIFs, and web integrations like Spotify and YouTube — all on a vibrant 1.54-inch square LCD, fully controlled through NZXT CAM.
- 1.54 in Square LCD
- 240x240 Resolution
- 30 Hz Refresh Rate
High Pressure. Low Noise.
Static pressure fans push air through the radiator for effective heat dissipation, while Zero RPM Mode keeps them silent during low loads.
Streamlined Cabling
Integrated fan control in the pump cap and a single breakout cable help reduce clutter and make installation faster.

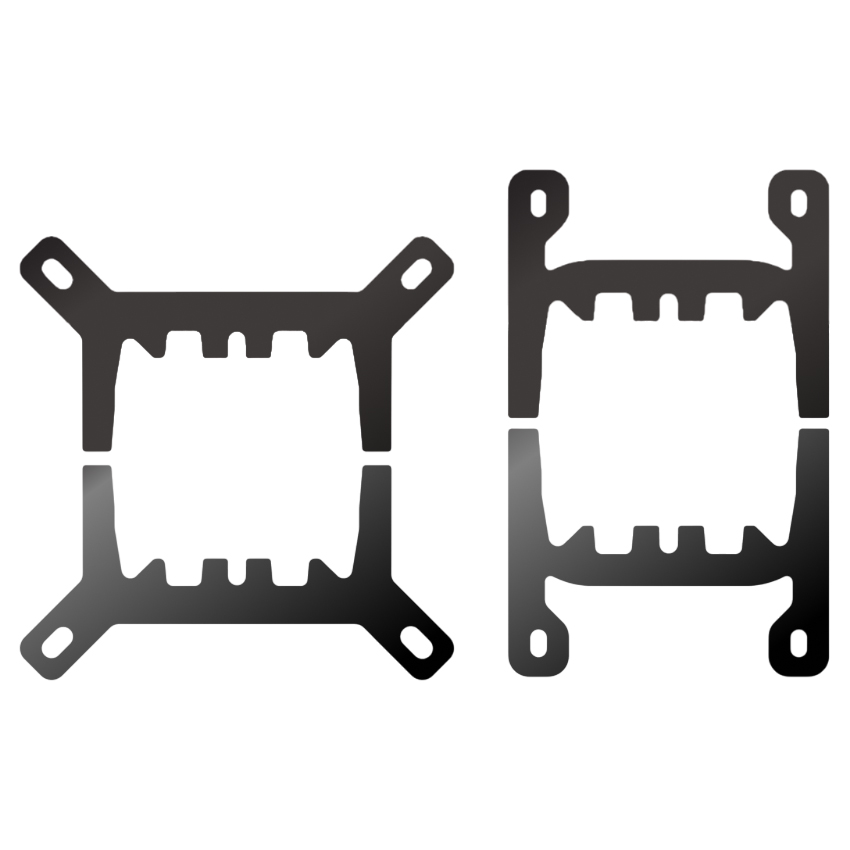

Wide Compatibility
Tool-free mounting brackets support the latest Intel® and AMD® CPU sockets.

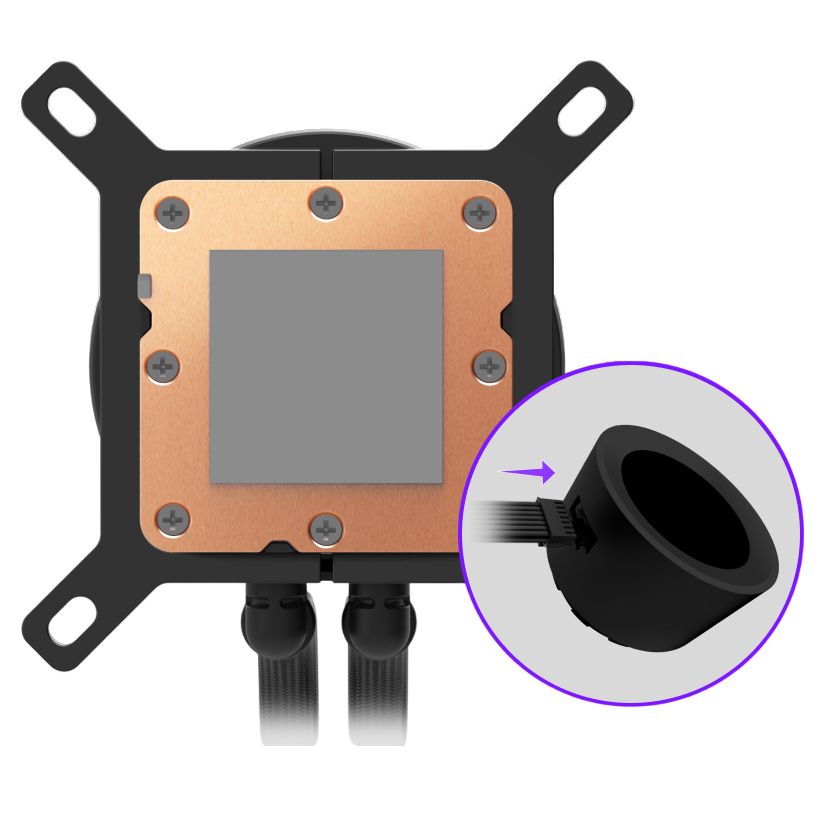

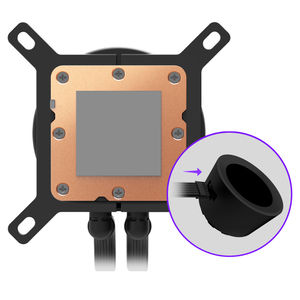

Ready to Install
Pre-applied thermal paste for faster setup and efficient heat transfer.

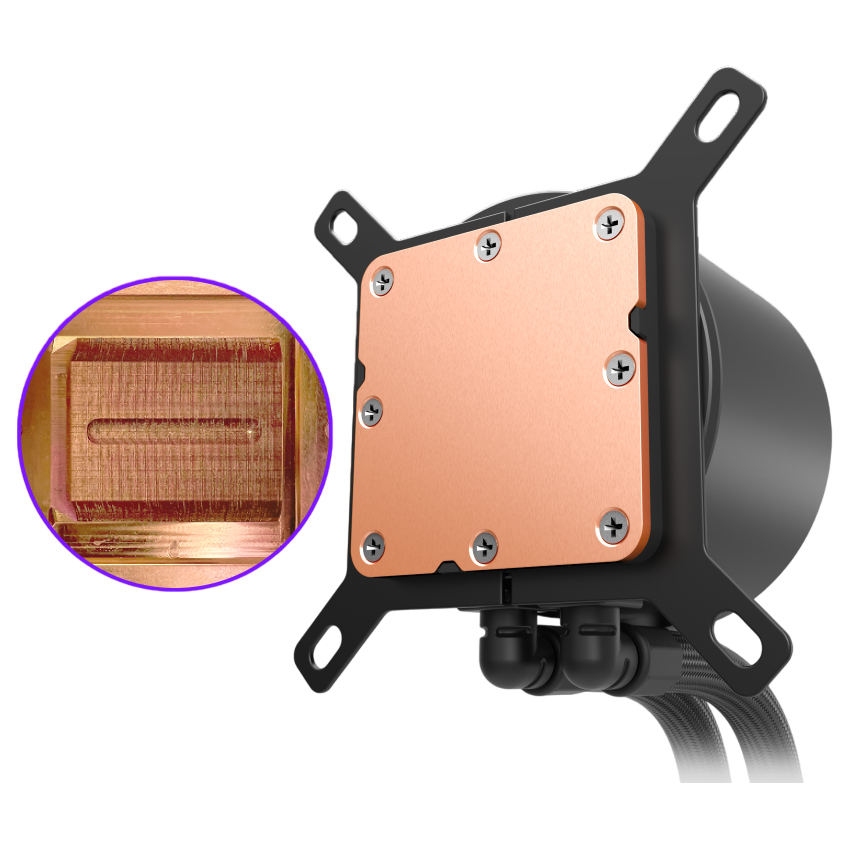

Optimised Cold Plate
Split-flow design channels coolant to the hottest areas for effective cooling.
Specifications
General Data
| Model Number |
RL-KN360-B2 |
| Colour |
Black |
| Warranty |
6 Years |
| What's Included |
AIO cooler
Fans x3
Installation accessories
Breakout cable set
PWM splitter cable |
Display
| Panel Type |
Transmissive TFT, 262K colour |
| Diagonal |
1.54 in / 39.1 mm |
| Resolution |
240 x 240 px |
| Refresh Rate |
30 Hz |
| Brightness |
300 cd/m² |
| Colours |
18-bit |
| Orientation |
Software adjustable |
Pump
| Name |
NZXT Turbine |
| Motor Speed |
1,200 – 2,800 ± 300 RPM |
| Power |
12 V DC, 0.3 A |
Cap
| Diameter |
2.87 in / 72.95 mm |
| Height |
2.2 in / 55.97 mm |
| Housing Material |
Plastic |
Cold Plate
| Dimensions |
56 mm x 56 mm |
| Type |
Split flow |
| Material |
Copper |
Radiator
| Dimensions (L x W x H) |
401 x 120 x 27 mm |
| Material |
Aluminium |
Tubing
| Length |
420 mm |
| Material |
CIIR rubber with Nylon braided sleeve |
Fan
| Model |
F120P Static Pressure Fan |
| Colour |
Black |
| Dimensions |
120 x 120 x 25 mm |
| Quantity |
3 |
| Speed |
500 - 2,000 ± 200 RPM |
| Airflow |
73.47 CFM |
| Static Pressure |
4.50 mm-H2O |
| Noise Level |
30.0 dBA |
| Power Consumption |
12 V DC, 0.18 A, 2.16 W |
| Connector |
4-pin PWM |
| Bearing |
Fluid Dynamic Bearing |
| Lifespan |
60,000 hours |
| Cable Length |
600 mm |
| Materials |
Plastic, rubber, PCB |
Socket Support
| Intel® |
LGA 1851/1700, 1200/115X |
| AMD® |
AM5, AM4 |
CPU Support
| Intel® |
Intel Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron |
| AMD® |
AMD Ryzen 9 / Ryzen 7 / Ryzen 5 / Ryzen 3 |
Backed by a 6 year NZXT warranty.
