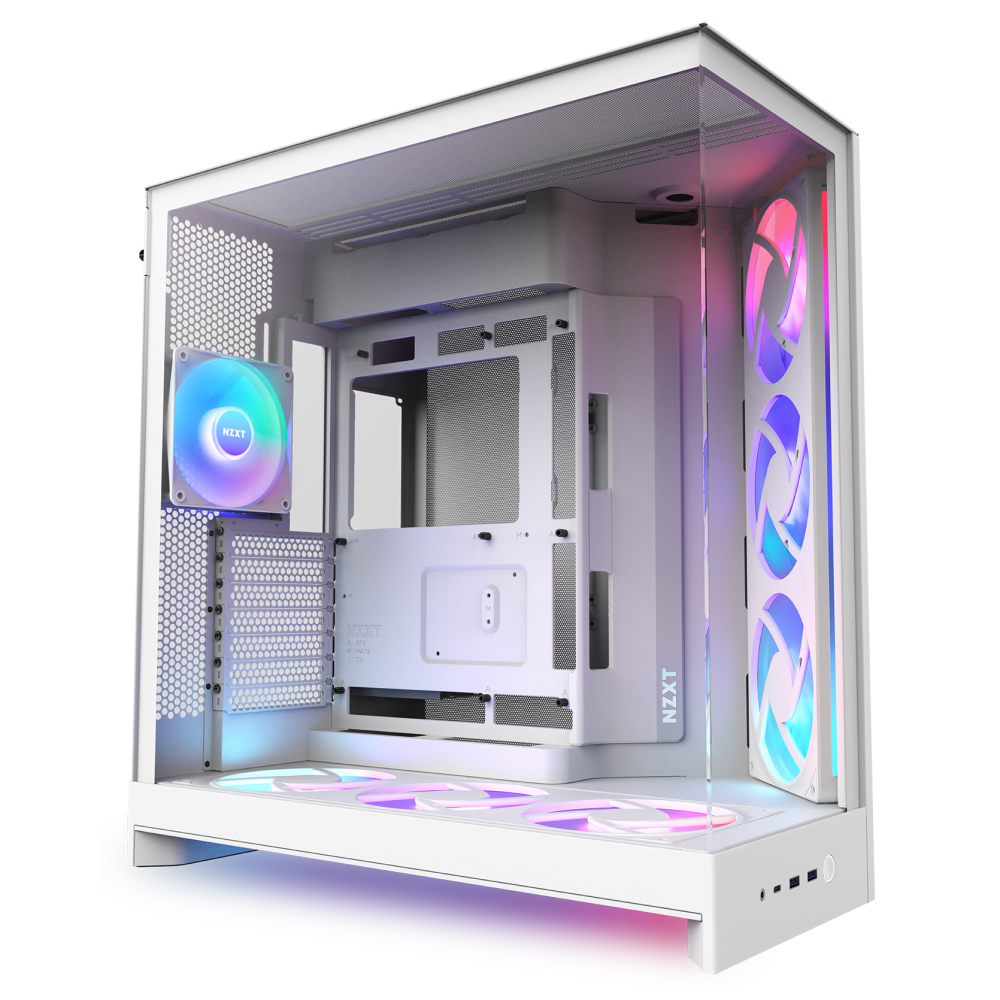

On sale! (normally $429) The H9 Mid Tower Case showcases wraparound glass, a compact dual-chamber design, including 3 x 140mm front-right RGB fans and 1 x 120 mm rear RGB fan, perforated panels for high-performance airflow, and easy cable management. Including capacity for a GPU length up to 459 mm (with <56 mm thickness fans installed at the front-right), and top mounted radiator clearance up to 420mm, all in a white SGCC steel casing.
Features
H9 Flow RGB+ Large Dual-Chamber Mid-Tower ATX Airflow Case with RGB and Control Hub
Built to Flow. Made to Show.
The H9 Flow is a spacious mid-tower ATX case built for high-performance builds, balancing airflow and aesthetics. Its dual-chamber design improves cooling and cable management, while perforated panels, angled fans, and ample fan and radiator support deliver optimal thermal performance.
The H9 Flow is a spacious, dual-chamber case built for high-performance builds, featuring extensive cooling support and wraparound glass panels for an uninterrupted view of your build.
- Dual-Chamber Design: Separates main components from the PSU and drives for improved thermal performance and cable management.
- Optimised Airflow: Perforated steel panels and angled front-right fans ensure efficient cooling for high-performance builds.

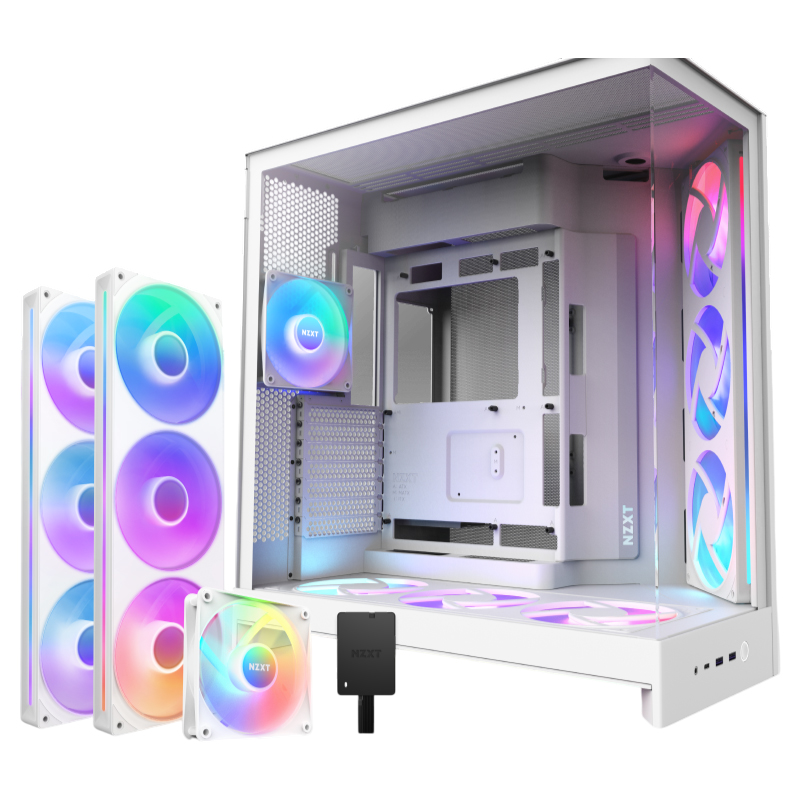

- RGB Ready: Includes two F420 RGB Core single-frame fans, one F120 RGB Core (CV) fan in the rear, and an NZXT Control Hub. CV = Case Version (3-pin DC)
- Ten-Fan Capacity: Supports up to nine 140mm fans across the top, front-right, and bottom, plus one 120mm fan in the rear.
- Panoramic View: Showcase every detail of your build with seamless, wraparound tempered glass panelling.
- Large Radiators & GPUs: Fits up to a 420mm radiator on the top and front-right, with plenty of clearance for high-end graphics cards.
- Easy Cable Management: Extra-wide channels, built-in Velcro straps, and tie-down points make cable routing effortless.
- Back-Connect Ready: Compatible with rear-connecting motherboards like ASUS BTF and MSI Project Zero for a cable-free look.
Optimised Airflow
Angled front-right fans and an airflow-optimised layout keep temps low and performance steady.
Mesh Panels
Ultra-fine, high-airflow mesh panels maximise airflow while filtering dust.
Spacious Dual-Chamber
Separates heat-generating components for improved airflow and a cleaner build.
10-Fan Cooling
Fits up to nine 140 mm fans and one 120 mm rear fan.
Large Radiator Support
Holds up to 420 mm radiators on the top and front-right panels for versatile cooling.
Maximum Graphics
Handles GPUs up to 435 mm, giving plenty of space for top-tier graphics cards.
Back-Connect Ready
Compatible with ASUS BTF and MSI Project Zero motherboards for a cable-free look.

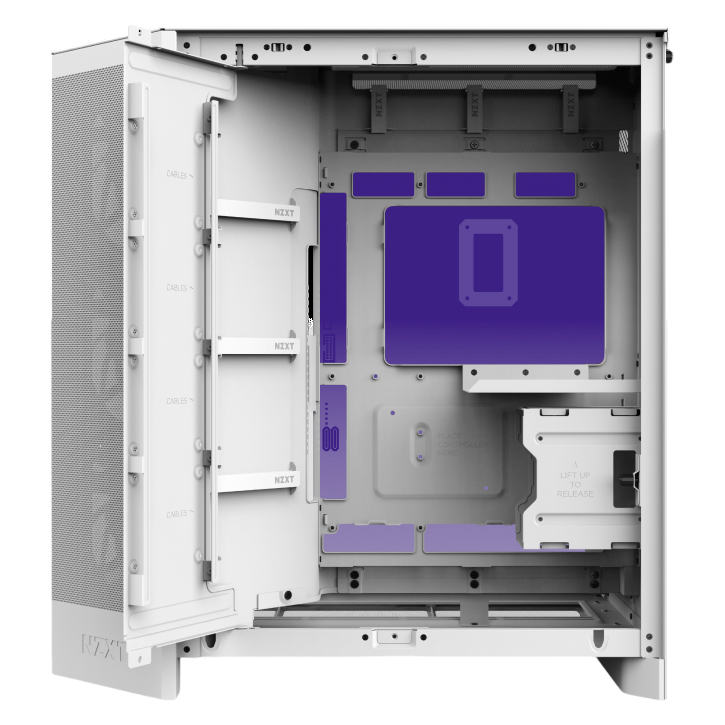

Easy Cable Management
Extra-wide channels, Velcro straps, and tie-down points make cable routing simple.
Specifications
General Data
| Model Number |
CM-H92FW-P1 |
| Colour |
White |
| Enclosure Type |
Mid-tower |
| Motherboard Compatibility |
E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX |
| Rear-Connecting Motherboard Support (BTF, Project Zero) |
Yes (ATX) |
| Materials |
SGCC steel, Clear tempered glass |
| Warranty |
2 years |
| What's Included |
H9 Flow RGB+ x 1
Pre-installed F420 RGB Core x 2
Pre-installed F120 RGB Core (CV) x 1
Installation accessories x 1
User guide x 1 |

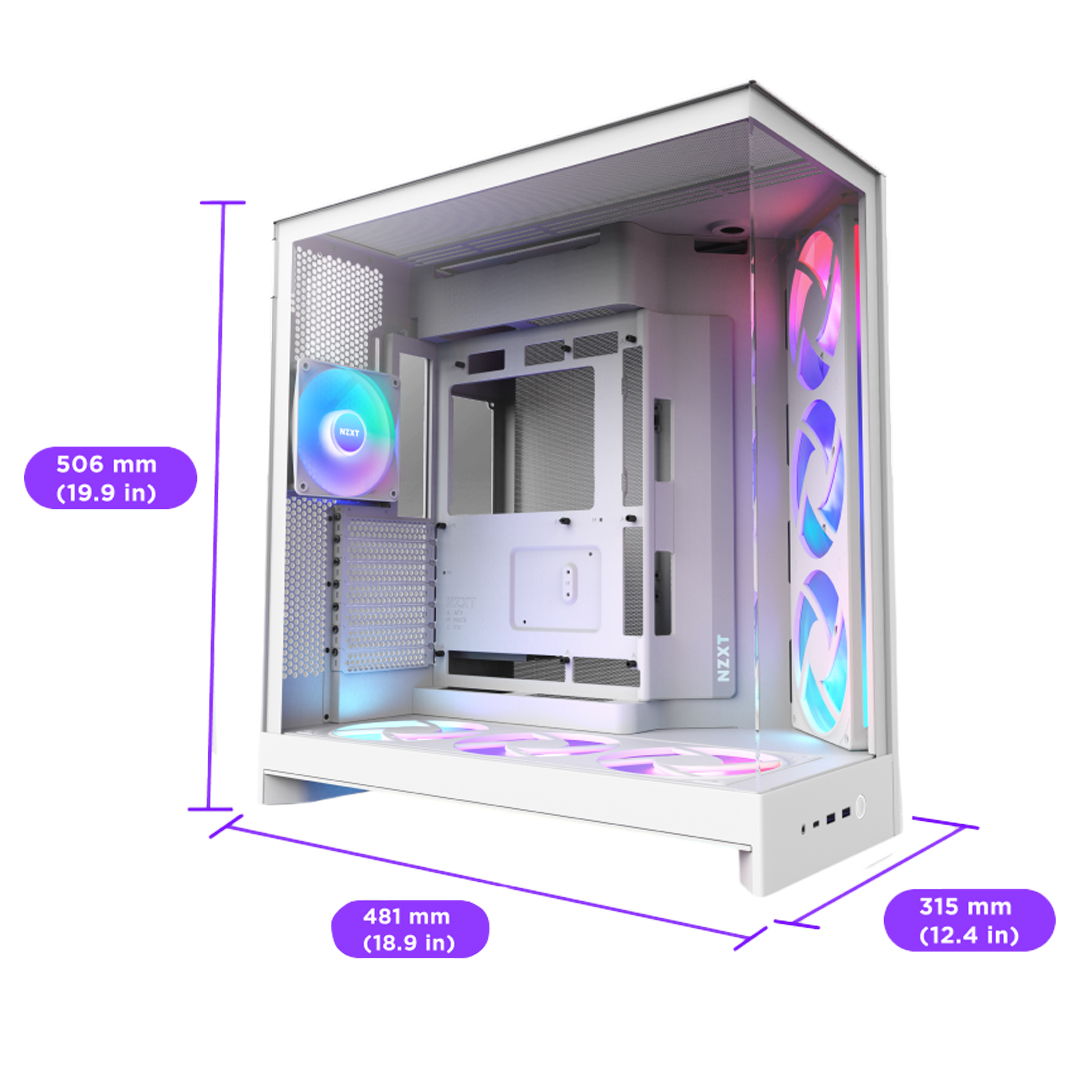

Dimensions
| Height |
506 mm (19.9 in) |
| Width |
315 mm (12.4 in) |
| Depth |
481 mm (18.9 in) |
| Volume |
76.7 L |
| Weight |
13.4 kg (29.54 lb) |
Clearance
| CPU Cooler Height |
165 mm |
| GPU Length |
Up to 459 mm (with <56 mm thickness fans installed at the front-right) Up to 410 mm (with 56 mm thick 420 mm AIO and fans installed at the front-right) |
| PSU Length |
200 mm |
| Top Radiator & Fan Thickness |
Up to 80 mm (360 mm) Up to 62 mm (420 mm) |
Front I/O Ports
| USB 3.2 Type-A |
2 |
| USB 3.2 Gen2x2 Type-C |
1 |
| Headset Jack |
1 |
Expansion Slots
Drive Bays
Fan Support
| Front-Right |
3 x 120 mm / 3 x 140 mm (1 x F420 RGB Core included) |
| Top |
3 x 120 mm / 3 x 140 mm |
| Bottom |
3 x 120 mm / 3 x 140 mm (1 x F420 RGB Core included) |
| Rear |
1 x 120 mm (1 x F120 RGB (CV) included) |
Radiator Support
| Front-Right |
Up to 420 mm |
| Top |
Up to 420 mm |
| Bottom |
Up to 360 mm |
| Rear |
Up to 120 mm |
Fan - F420 RGB Core
| Model |
F420 RGB Core |
| Speed |
2,000 ± 200 RPM |
| Airflow |
98.61 CFM |
| Static Pressure |
3.2 mmH2O |
| Noise |
34.5 dBA |
| Fan Connector |
8-pin |
Fan - F120 RGB Core (CV)
| Model |
F120 RGB Core (CV) |
| Speed |
1,300 ± 130 RPM |
| Airflow |
55.17 CFM |
| Static Pressure |
1.27 mmH2O |
| Noise |
26.1 dBA |
| Fan Connector |
3-pin |
Control Hub
| Fan Channels |
3 x NZXT 8-pin (PWM only) / 1 x NZXT 8-pin (DC+PWM control) / 1 x 4-pin PWM (DC+PWM control) |
| RGB Channels |
4 x NZXT 8-pin / 1 x NZXT RGB |
| Max LED Support |
Each NZXT 8-pin channel supports a maximum of 96 LEDs. NZXT RGB channel supports up to 40 LEDs and up to NZXT 5 devices. |
| System Requirements |
USB 2.0 Internal Header 8-pin PCIe Power |
Backed by a 2 year NZXT warranty.
