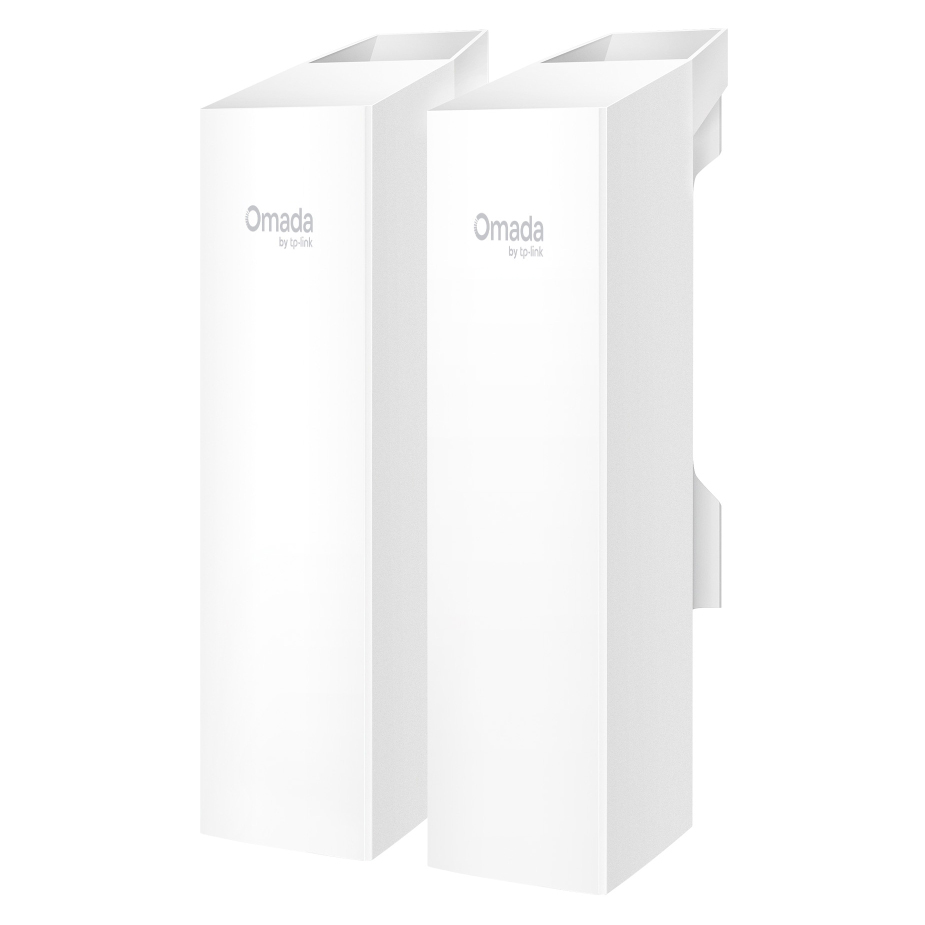

The TP Link EAP100 Bridge KIT Omada 2.4GHz 300Mbps Indoor Outdoor Wireless Bridge features two preconfigured units for point to point links up to 500 metres. Each unit has three Fast Ethernet ports, supports multiple power options including PoE, and has an IP65 weatherproof design with easy management via the Omada app.
Features
Omada 2.4GHz 300Mbps Indoor/Outdoor Wireless Bridge
- Up to 1640 ft (500 m) Wi-Fi transmission (The advertised coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of the performance of the equipped antennas, client limitations, and environmental factors.)
- Equipped with Omada SmartBridging: Our unique design for the most effortless and easy bridge setup ever.
- Plug-and-Play Preconfigured Kit: Preconfigured for instant auto-pairing, the bridges deliver instant connectivity right out of the box. Simply power on and go. Ideal for quick deployments.
- App-Guided Alignment: Visualised App-Guided Alignment for long-distance setups and Instant Speed Testing for installation verification.
- Flexible Power Supply: 802.3af PoE, 24V Passive PoE, and 12V DC (compatible with TP-Link solar power supply systems).
- 3× Fast Ethernet Ports: Connects more cameras and devices without an extra switch. (Non-Omada devices connected to the wired LAN ports will not be Recognised by the Omada controllers, preventing users from viewing their connection status. To address this issue, connect those non-Omada devices to an Omada switch that links to the bridge's wired LAN ports.)
- Built for Tough Outdoor Conditions: Features an IP65 weatherproof enclosure and operating range of -40℉ to +158 ℉. (Protection against lightning and electro-static discharge may be achieved through proper product setup, grounding, and cable shielding. Refer to the instruction manual and consult an IT professional to assist with setting up this product.)
- Remote Monitoring & Management: Choose Standalone mode or Omada SDN mode for remote Centralised management via Web UI or app. (These functions require the use of an Omada controller.)
Seamless Point-to-Point Connections
Enjoy reliable network performance up to 1640 ft (500 m) transmission distance.
Perfect for Surveillance and More
- Elevators
- Construction Sites
- Farms/Orchards/Ranches
- Parking Lots
Plug-and-Play Effortless Installation
App-Guided Alignment for Optimal Performance
Effortless App-Guided Alignment
Instant Speed Testing for Installation Verification at Your Fingertips
Versatile Power & Connectivity for Expanded Surveillance
Robust Outdoor Design for Long-Lasting Reliability
- IP65 Weatherproofing
- 6kV Lightning Protection
- -40 °C-70 °C Working Range
- Wind Resistance
Build Features

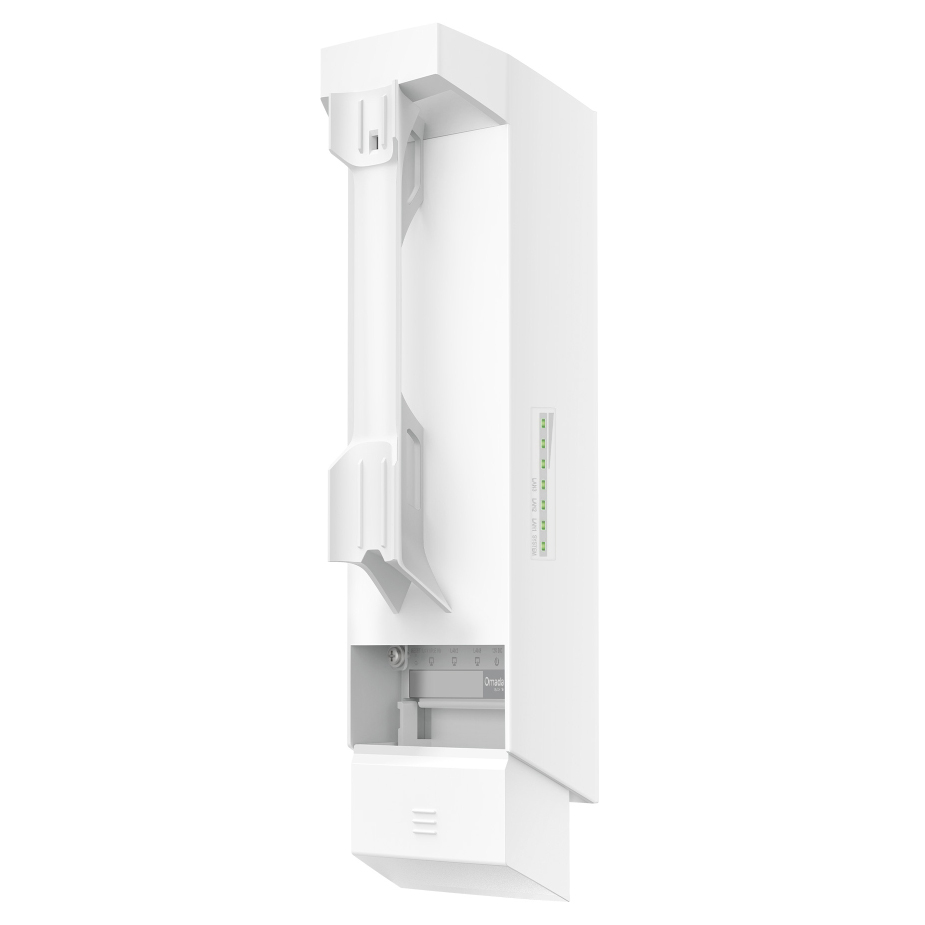

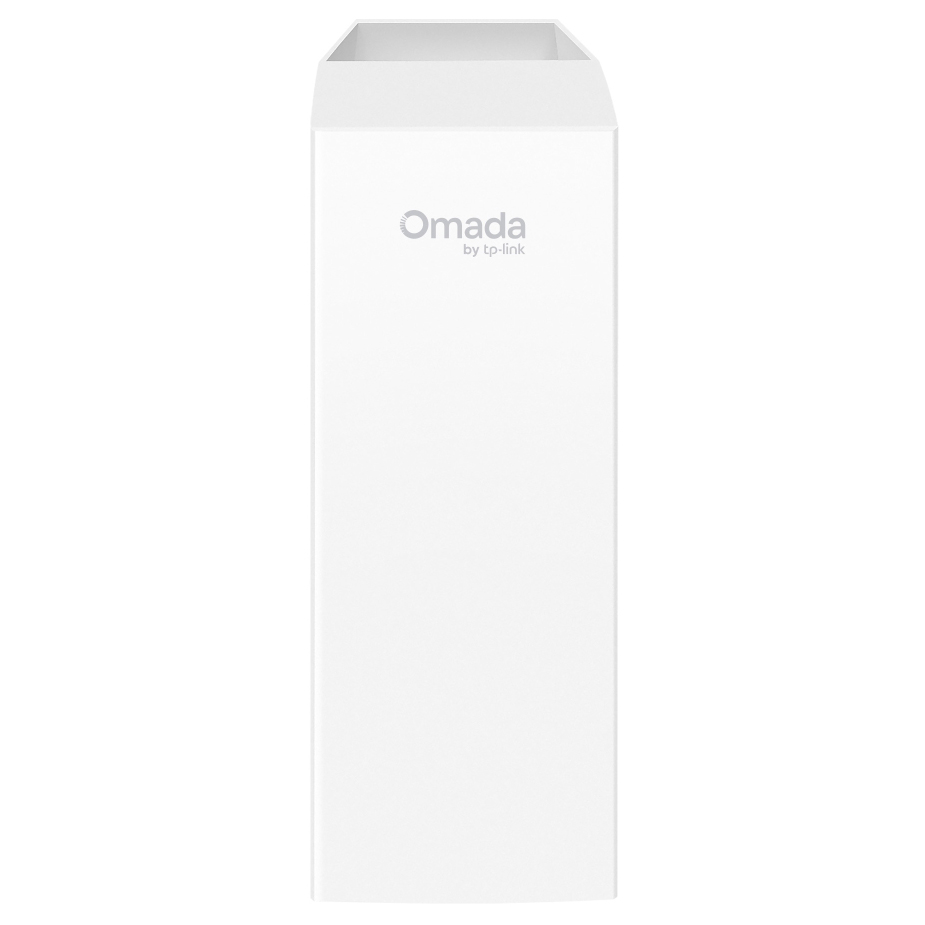

Front & Back View

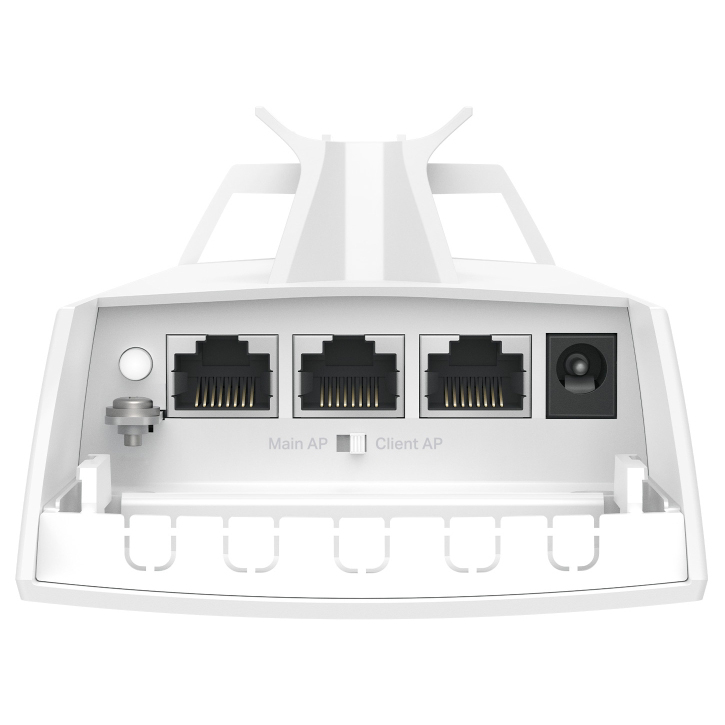

Bottom View
Specifications
General Data
| Model Number |
EAP100-BRIDGE-KIT |
| Certification |
CE, FCC, RoHS |

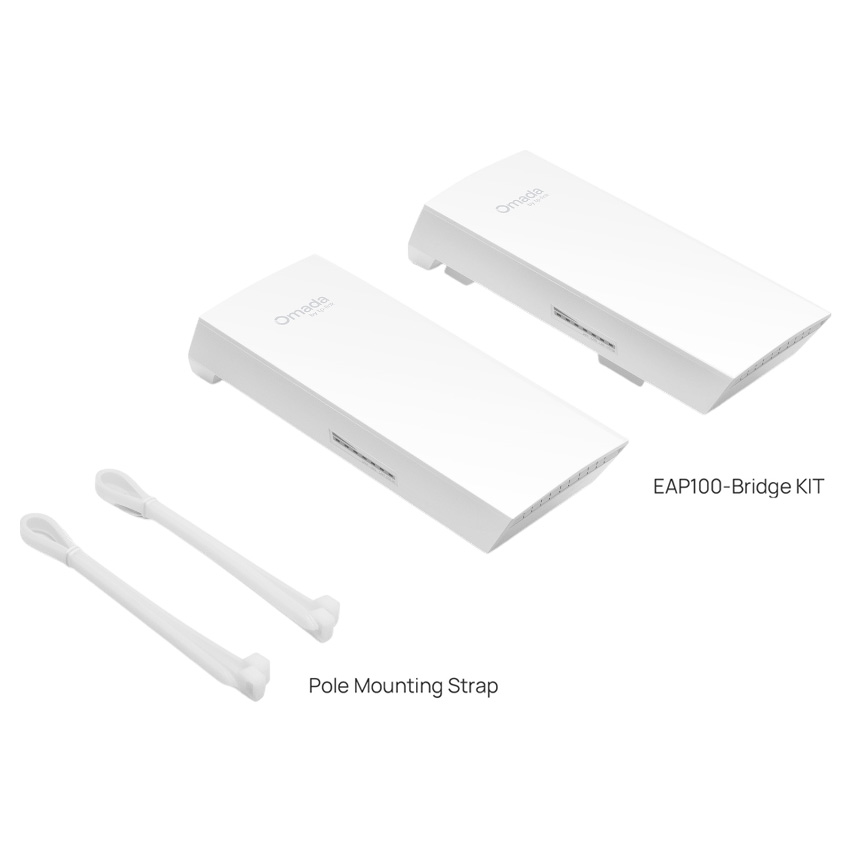

| What's Included |
EAP100-Bridge KIT
Installation Guide
Pole Mounting Kit |
| Environment |
Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);
Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
Operating Humidity: 10%–90% Non-condensing;
Storage Humidity: 5%–90% Non-condensing |
Hardware Features
| Interface |
3x 10/100 Mbps Ethernet Ports |
| Button |
Reset |
| Power Supply |
12V DC / 802.3af PoE / 24V Passive PoE / 48V Passive PoE |
| Max. Power Consumption |
4.8 W |
| Dimensions ( W x D x H ) |
3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm) |
| Antenna |
Internal 2×2 Dual-polarised Directional MIMO Antennas
2.4 GHz: 8.0 dBi
Horizontal:70°, Vertical: 70° |
| Weatherproof Enclosure |
IP65 |
| Mounting |
Pole And Wall Mounting ( Pole Accessories Included) |
Wireless Features
| Coverage |
500 m (0.31 mi) (The advertised coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of the performance of the equipped antennas, client limitations, and environmental factors.) |
| Wireless Standards |
IEEE 802.11b/g/n |
| Frequency |
2.4 GHz |
| Signal Rate |
2.4 GHz: Up To 300 Mbps |
| Wireless Functions |
MIMO: 2.4G 2 × 2 MIMO
Mesh
Beamforming
Channel: 1-11 (US); 1-13 (EU)
Multiple SSIDs:8
Wireless Statistics
Wireless Schedule
Reboot Schedule
RADIUS Accounting
Static IP/Dynamic IP
Rate Limit
Guest Network
Enable/Disable Wireless Radio
Enable/Disable SSID Broadcast |
| Wireless Security |
VLAN
Rogue AP Detection
Maximum Number Of MAC Filter: 4,000
Wireless Encryption |
| Transmission Power |
CE: <20dBm (2.4 GHz, EIRP);
FCC: <22dBm (2.4 GHz) |
Management Features
| Omada App |
Yes |
| Restore & Backup |
Yes |
| Firmware Update Via Web |
Yes |
| NTP |
Yes |
| Centralised Management |
Omada Hardware Controller
Omada Software Controller
Omada App |
| Email Alerts |
Yes |
| LED ON/OFF Control |
Yes |
| SNMP |
Yes |
| System Logging Local/Remote Syslog |
Yes |
| SSH |
Yes |
| Web-based Management |
Yes |
Backed by a 3 year TP-Link warranty.
