On sale! (normally $199) The TP Link IES206G Omada 6 Port Gigabit Industrial Easy Managed Switch features four Gigabit ports, one Gigabit RJ45/SFP combo port and one SFP slot in a rugged IP40 metal case. It supports VLAN, QoS and Omada cloud management, with 6kV surge protection, dual DC power inputs and an operating range from -40 to 75degC.
Promotion Valid: 14/07/2026 - 26/07/2026
Features
Omada 6-Port Gigabit Industrial Easy Managed Switch
- 6× Gigabit Ports (4× RJ45, 1× Combo RJ45/SFP, 1×SFP)
- Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
- Abundant Features: VLAN, QoS, and STP/RSTP
- Centralised Cloud Management via the Web or Omada App (These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of Omada Central (Omada Central Standard or Omada Central Essentials). Go to the Omada Central Standard Product List or Omada Central Essentials Product List to find all the supported models.)
- Durable IP40 Aluminium Casing and DIN-rail / Wall-mount Design
- 9.6~60VDC 1+1 Redundant Power Input
Industrial-Grade Protection Built for Harsh Environments
- -40°C to 75°C Operating Temperature
- 6kV Lightning Protection
- Industrial-Grade IP40 Aluminium Casing
Enhanced Networking Stability and Security
1+1 Redundant Power Input
Equipped with dual power input ports and a wide 9.6-60V DC voltage range, ensuring continuous operation even if one power supply fails.
Real-Time Fault Alarm
Connected to an external alarm, the switch outputs an alarm signal promptly if a port is disconnected or power input is abnormal.
Easy Operation and Maintenance with Omada’s Free Cloud Management
- Easy to Use with Plug-and-Play Design and Simple Configuration
- Free and Easy Centralised Cloud Management via Omada Central Essentials
- Access Logs and Receive Alert Notifications at Any Time
- Intelligent Network Monitoring for Instant Topology Views and Effortless Troubleshooting
Flexible Deployment Options
Diverse Industry Applications
Build Features

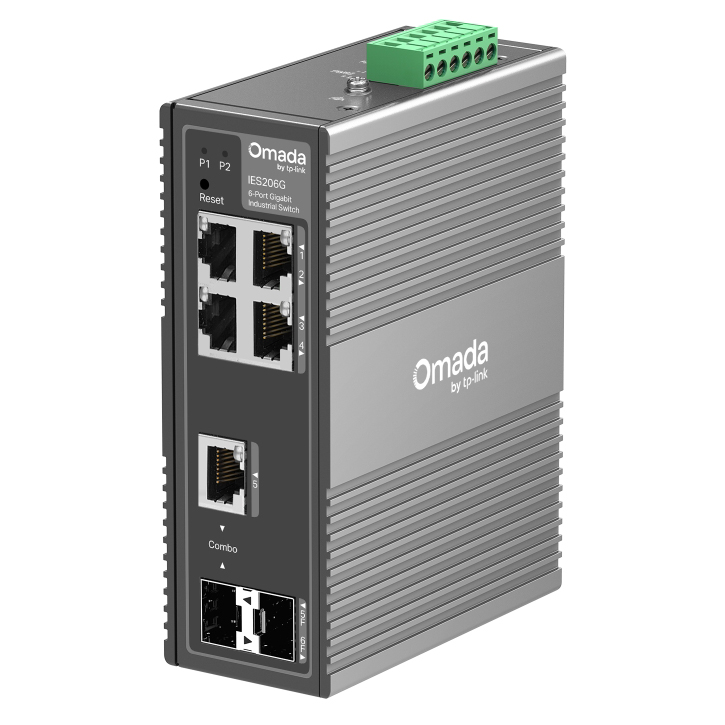

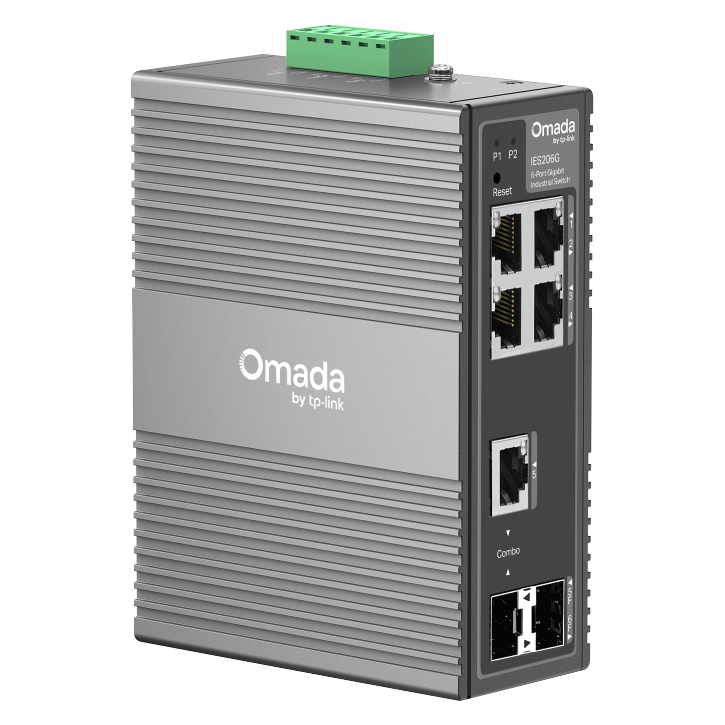

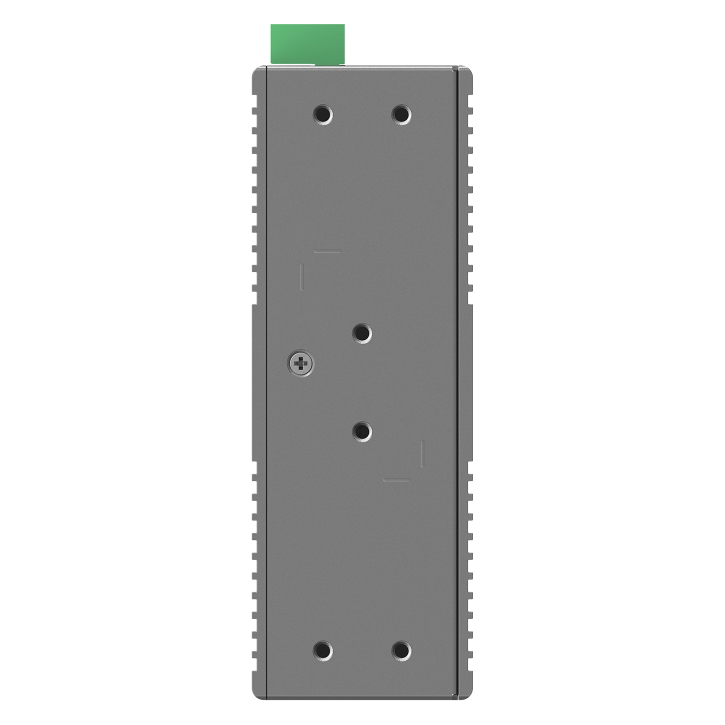

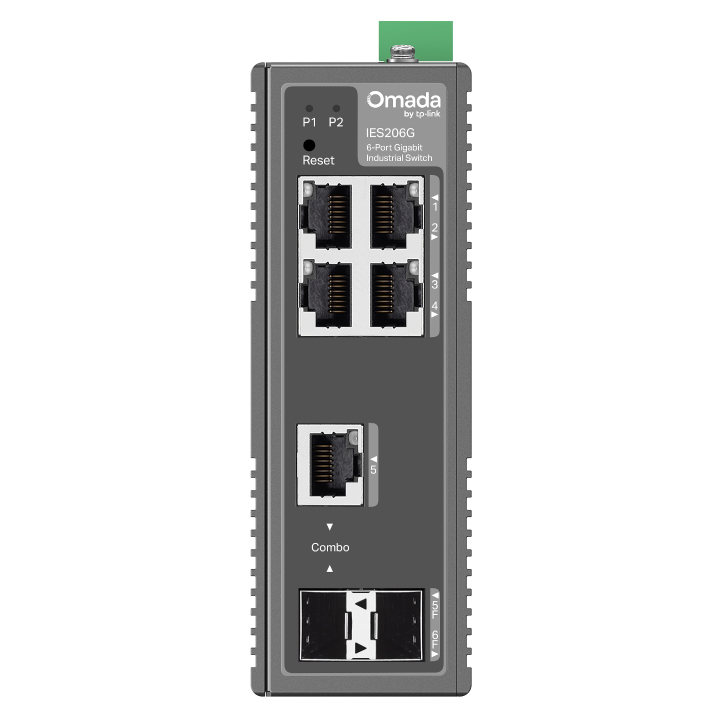

Front & Back View

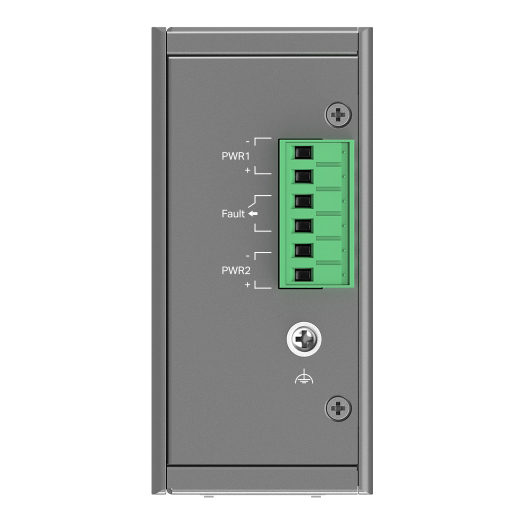

Dimensions & Top View
Specifications
General Data
| Model Number |
IES206G |
| Certification |
FCC, CE, RoHS |

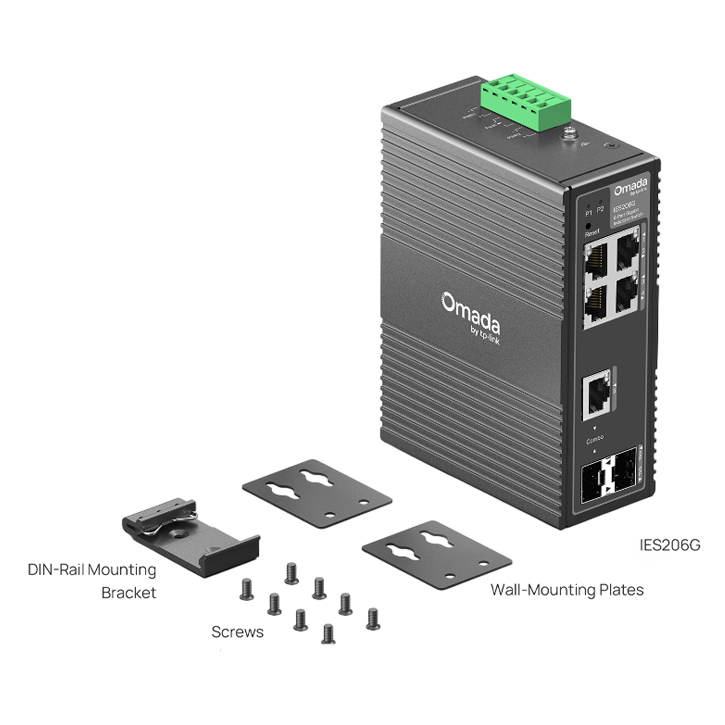

| What's Included |
IES206G
DIN-Rail Mounting Bracket
Wall-Mounting Plates
Installation Guide |
| Environment |
Operating Temperature: -40~75 (-40~167)
Storage Temperature: -40~85 (-40~185)
Operating Humidity: 5%~95% non-condensing
Storage Humidity: 5%~95% non-condensing |
Hardware Features
| Interface |
4x 10/100/1000 Mbps RJ45 Ports
1x Gigabit SFP/RJ45 Combo Slot
1x Gigabit SFP Slot
Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity |
Fanless |
| Installation |
DIN-rail mounting
Wall mounting |
| Power Supply |
9.6-60V 1+1 Redundant DC Power Input |
| Dimensions ( W x D x H ) |
5.1 x 3.7 x 1.8 in (129 x 95 x 45 mm) |
| Surge Protection |
±6 kV in common mode for Ethernet ports
±4 kV in common mode for DC power input ports |
Performance
| Switching Capacity |
12 Gbps |
| Packet Forwarding Rate |
8.93 Mpps |
| MAC Address Table |
8K |
| Packet Buffer Memory |
4 Mbit |
| Jumbo Frame |
15 KB |
Software Features
| Quality of Service |
802.1p DSCP Priority
8 Priority Queues
Priority Schedule Mode
WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control
Port-Based Rate Limit
Storm Control
Multiple Control Modes (kbps/pps)
Broadcast/Multicast/Unknown-Unicast Control |
| L2 Features |
Link Aggregation
Static Link Aggregation
Up to 2 aggregation groups and up to 4 ports per group
Loopback Detection
Flow Control
802.3x Flow Control
Mirroring
Port Mirroring
One-to-One
Many-to-One
Ingress/Egress/Both
Port Statistics
Port Mirror Status
Traffic Statistics
802.1ab LLDP
Spanning Tree
STP (802.1d)
RSTP (802.1w) |
| L2 Multicast |
IGMP Snooping
IGMP v1/v2/v3 Snooping
Fast Leave |
| VLAN |
MTU VLAN
Port-Based VLAN
802.1Q Tag VLAN
Max 32 VLAN Groups
4K VID |
| Transmission Method |
Store-And-Forward |
Management Features
| Omada App |
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralised Management |
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller |
| Cloud Access |
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning |
Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features |
Web-based GUI
DHCP Client
Cable Diagnostics
Digital Diagnostic Monitoring (DDM)
Automatic Device Discovery (These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of Omada Central (Omada Central Standard or Omada Central Essentials). Go to the Omada Central Standard Product List or Omada Central Essentials Product List to find all the supported models.)
Batch Configuration (These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of Omada Central (Omada Central Standard or Omada Central Essentials). Go to the Omada Central Standard Product List or Omada Central Essentials Product List to find all the supported models.)
Batch Firmware Upgrading (These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of Omada Central (Omada Central Standard or Omada Central Essentials). Go to the Omada Central Standard Product List or Omada Central Essentials Product List to find all the supported models.)
Unified Configuration (These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of Omada Central (Omada Central Standard or Omada Central Essentials). Go to the Omada Central Standard Product List or Omada Central Essentials Product List to find all the supported models.) |
Backed by a 5 year TP-Link warranty.
