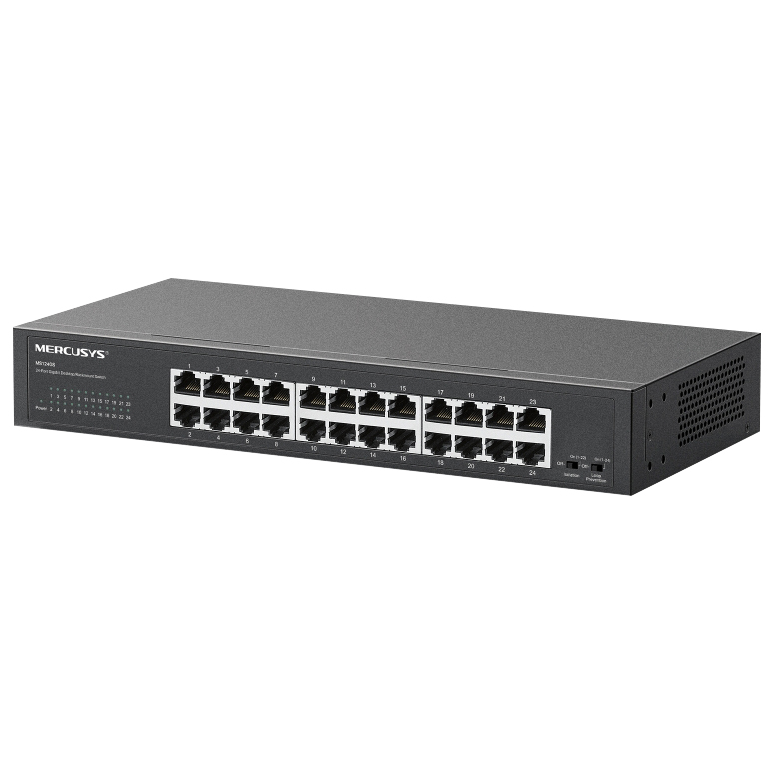

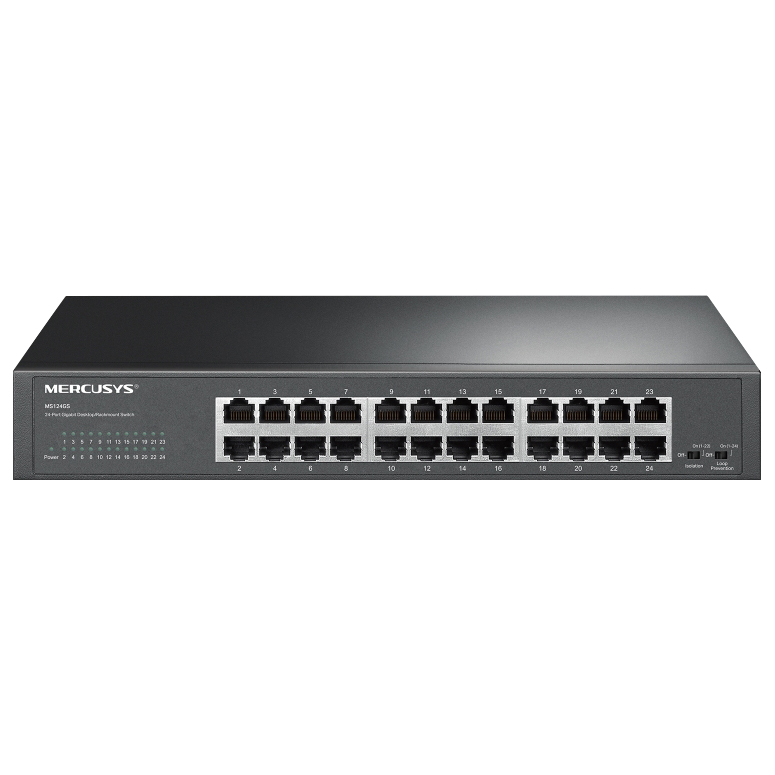

The Mercusys MS124GS 24 Port Gigabit Switch features 24 full Gigabit RJ45 ports with Auto-Negotiation and Auto-MDI/MDIX for fast plug-and-play wired connections. It includes features like Loop Prevention to avoid network disruptions, Isolation Mode for one-click client traffic separation and a rugged metal case for effective heat dissipation.
Features
24-Port Gigabit Desktop/Rackmount Switch
Quickly expand your wired network with twenty-four 10/100/1000 Mbps Ethernet ports—10 times faster than regular 10/100 Mbps Ethernet ports. MS124GS offers flexible connectivity and is fully compatible with 4K UHD TVs, computers, printers, IP cameras, game consoles, and more.
- Full Gigabit Ports: 24× 10/100/1000 Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
- Plug and Play: Simple to use and saves time and effort
- Isolation Mode: Isolation Mode allows one-click client traffic separation for higher security and performance
- Loop Prevention: Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping
- Durable Metal Casing: Allows for efficient heat dissipation and long network life
Specifications
General Data
| Model Number |
MS124GS |
| Certifications |
CE, RoHS |
| Environment |
Operating Temperature: 0@C to 40@C (32@F to 104@F)
Storage Temperature: -40@C to 70@C (-40@F to 158@F)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing |
Software
| Transfer Method |
Store and Forward |
| Advanced Features |
802.3X Flow Control, 802.1P/DSCP QoS, Loop Prevention, Isolation |
Hardware
| Dimensions (W x D x H) |
294 x 140 x 44mm (11.6 x 5.5 x 1.7 in) |
| Interfaces |
24x10/100/1000Mbps RJ45 Ports, Auto-Negotiation, Auto MDI/MDIX |
| External Power Supply |
100-240VAC, 50/60Hz |
| Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p |
| Switching Capacity |
48 Gbps |
| LED |
Power, Link/Act, 1000Mbps |
| Mac Address Table |
8K |
Backed by a 5 year Mercusys warranty.
