The TP Link SG5428XMPP Omada 24 Port Gigabit Stackable Lite L3 Managed PoE Plus Plus Switch with 4 x 10G Slots features 24 gigabit ports with 8 PoE Plus Plus ports up to 90W each and 16 PoE Plus ports up to 30W each, for a total 500W PoE budget. It includes four 10Gb SFP Plus slots for high speed uplinks or stacking, supports Layer 3 routing, and can be managed through Omada SDN, web, CLI, SNMP or RMON.
Features
Omada 24-Port Gigabit Stackable Lite L3 Managed PoE++ Switch with 4x 10G Slots
- 8x Gigabit 802.3af/at/bt PoE++ ports (Max 90W per port)
- 16x Gigabit 802.3af/at PoE+ ports (Max 30W per port)
- 4x 10 Gbps SFP+ slots
- Up to 500W total PoE budget (Only one 10G RJ45 SFP+ module can be inserted at a time.)
- Fast PoE and Perpetual PoE
- Physical stacking up to 4 units for built-in redundancy and performance
- L3 features: RIP, OSPF, Static Routing, and DHCP Server/Relay
- Security strategies: ACL, Port Security, DoS Defend, 802.1X
- ERPS supports rapid protection and recovery in a ring topology
- Centralised cloud management via the Omada SDN controller
- Standalone management via web, CLI, SNMP, and RMON
What this Product Does
Omada SG5428XMPP is a dependable entry-level L3 managed PoE++ switch tailored for the access layer, featuring L3 routing, fast 10 Gbps wired speeds, and stacking options. It boasts a 500W PoE budget, (Only one 10G RJ45 SFP+ module can be inserted at a time.) 24x gigabit RJ45 ports (8x PoE++, 16x PoE+), 4x 10 Gbps SFP+ slots, physical stacking ability, and centralised management. Integrated with strong security and extensive management features, the SG5428XMPP offers a reliable networking solution for SMEs, and ISPs.
IEEE 802.3af/at/bt-Compliant Power Over Ethernet
8x IEEE 802.3af/at/bt-compliant and 16x IEEE 802.3af/at-compliant PoE ports supply up to 500W total power to 802.3af, 802.3at, and 802.3bt devices. (Only one 10G RJ45 SFP+ module can be inserted at a time.) Set up wireless access points, surveillance cameras, IP phones, and other PoE devices quickly and easily, without the hassle and cost of installing power cabling. Perpetual PoE ensures an uninterrupted power supply to connected devices even during switch reboots. Additionally, the switch retains PoE power settings across reboots, thanks to fast PoE functionality.
High-Speed Connectivity and Powerful Stacking
24x gigabit RJ45 ports and 4x 10 Gbps SFP+ slots provide up to 128 Gbps switching capacity per unit. Up to 4 units of physical stacking empower the networking structure with built-in redundancy and performance.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, DHCP Server, and DHCP Relay are supported.
Highly Available
ERPS (Ethernet Ring Protection Switching) ensures rapid protection and recovery in ring topologies, which is essential for maintaining network uptime in medium business environments.
Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.
Omada SDN
Integration into the Omada system brings centralised cloud management and a series of management features such as Zero-Touch Provisioning (ZTP). (These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.) The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralised cloud management—all controlled from a single interface.
Apart from the ability to be centrally managed via the web or the Omada app, SG5428XMPP is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
Build Features

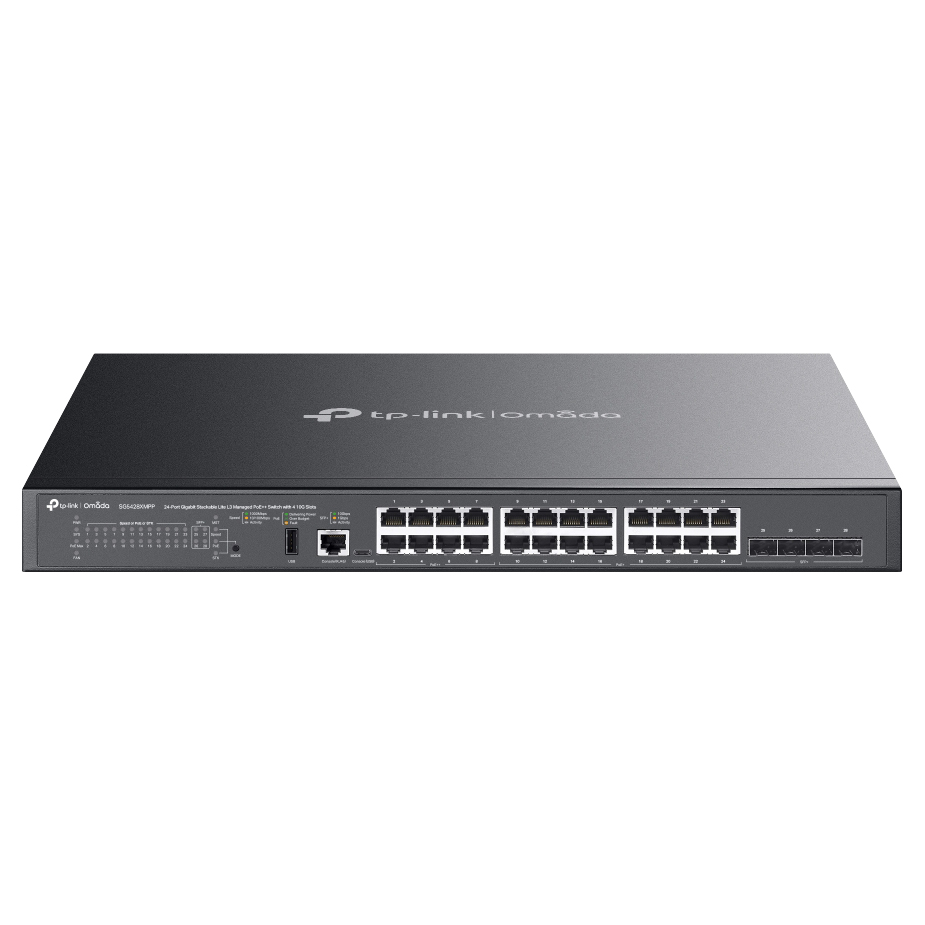

Front View

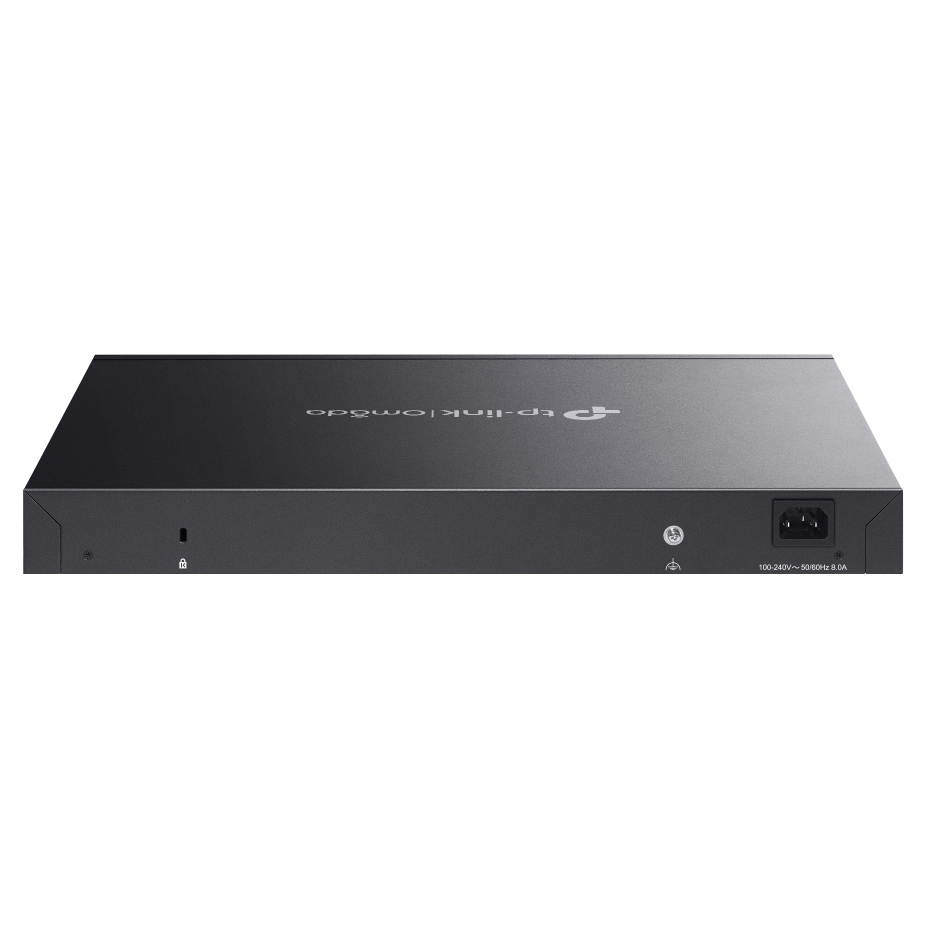

Back View
Dimensions
Backed by a 5 year TP-Link warranty.
