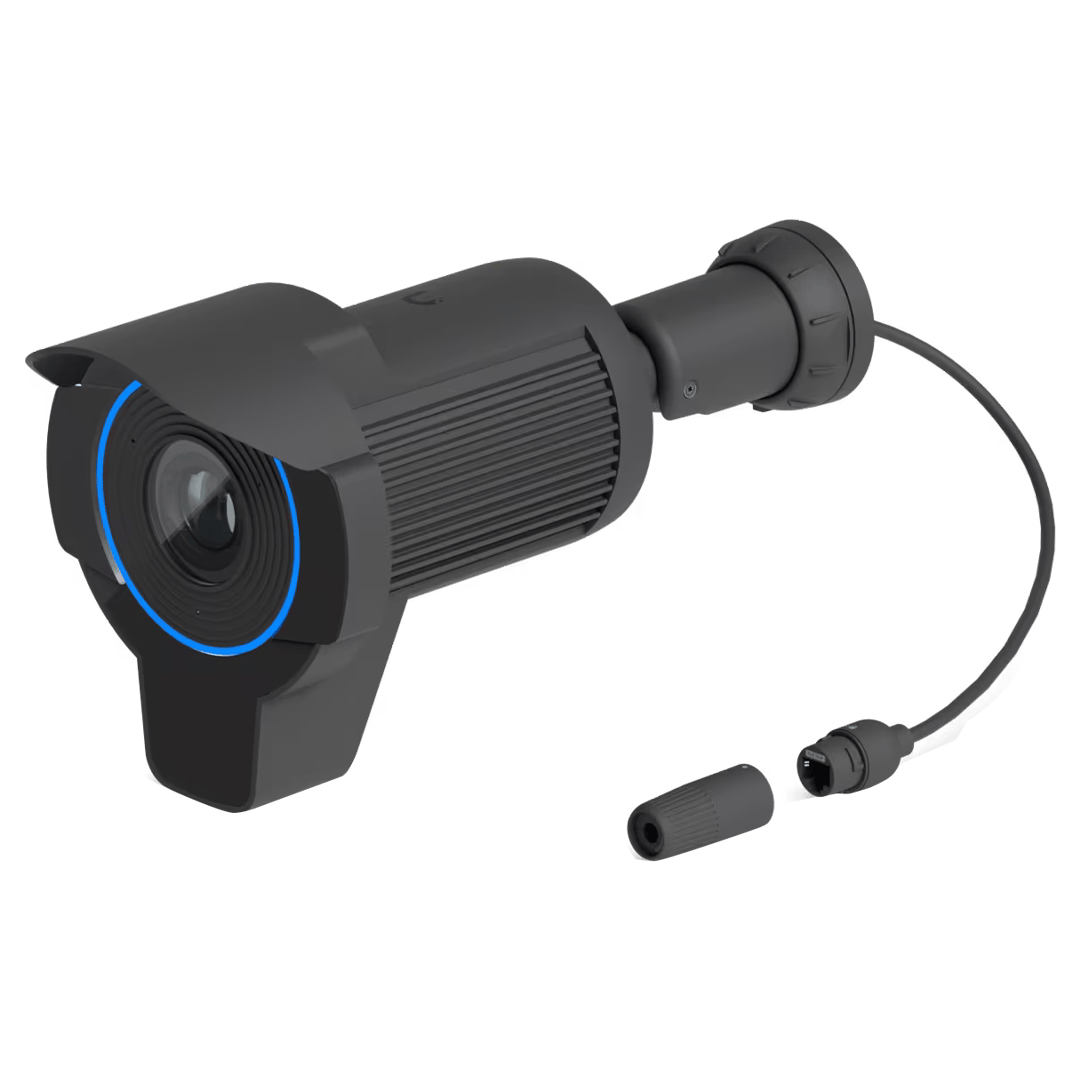

The Ubiquiti UniFi Protect Specialised 4K Camera is the UVC-AI-LPR-B, designed specifically for license plate recognition (LPR). It features a 4K resolution with 3x optical zoom and long-range IR night vision, optimised for capturing license plates on vehicles moving up to 90 km/h. This camera is ideal for applications such as parking lot monitoring, gated community access and tolling systems.
Features
Ubiquiti UniFi Protect Specialised 4K Camera
Specialised 4K camera with 3x optical zoom and long-range IR night vision optimised for Recognising license plates on vehicles moving up to 90 km/h.
LPR Setup Guide
Note: The AI-LPR is optimised to exclusively capture reflective or non-reflective license plates at night. Install additional cameras to capture other vehicle details in dark conditions
Deployment
Build Features

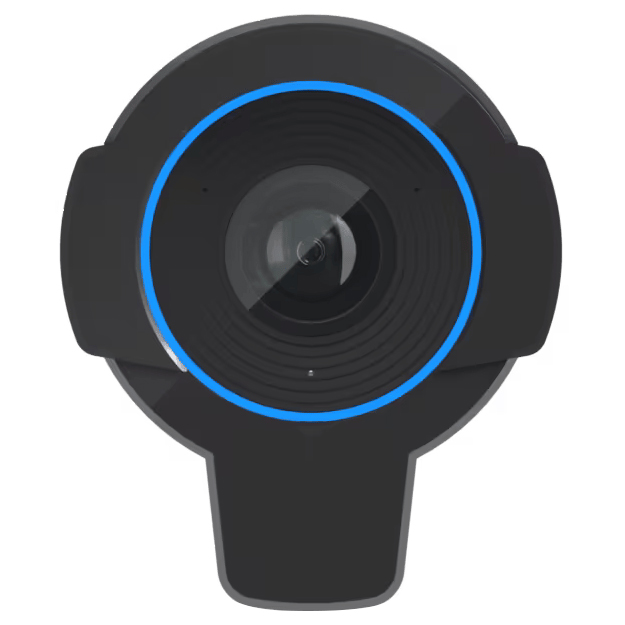

Front View

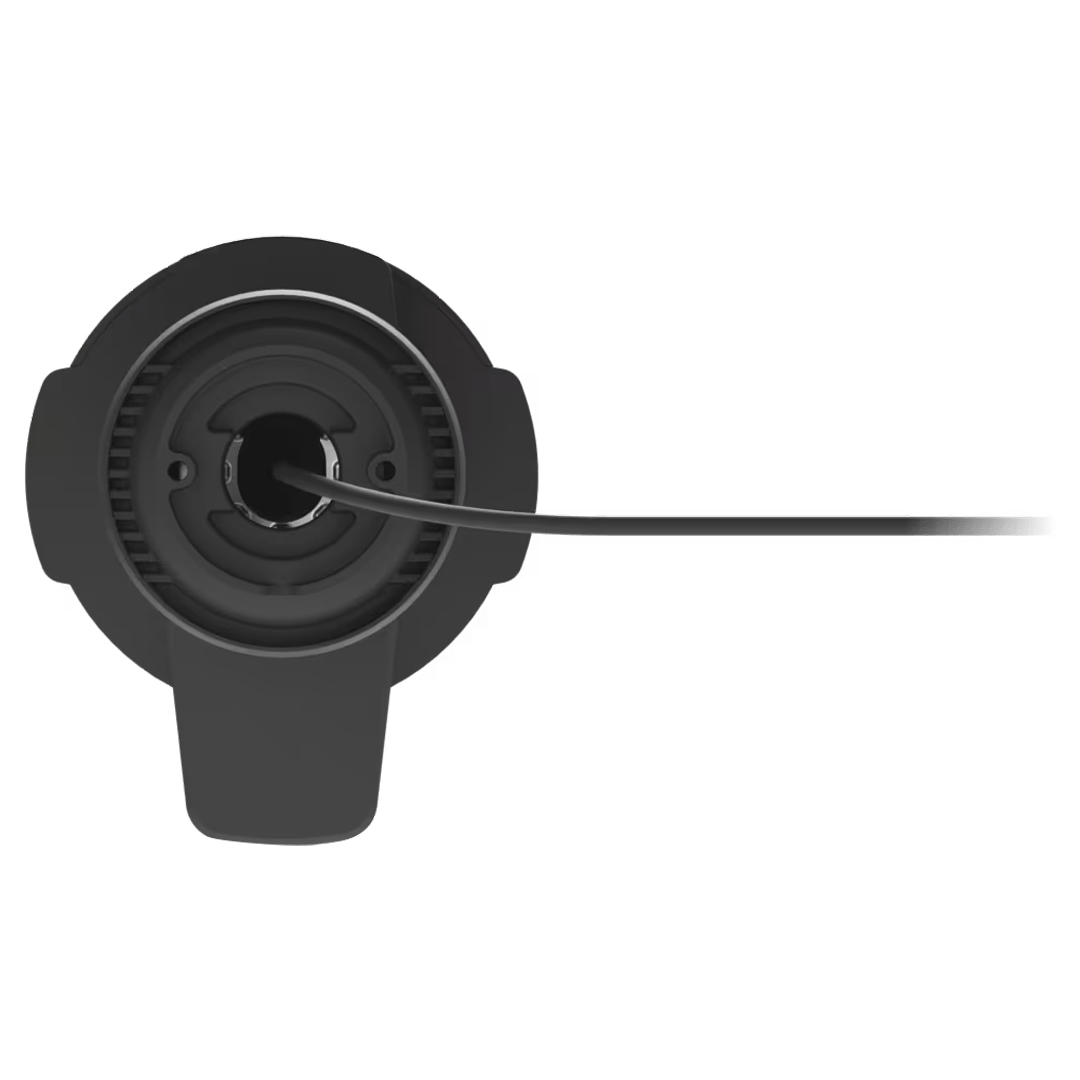

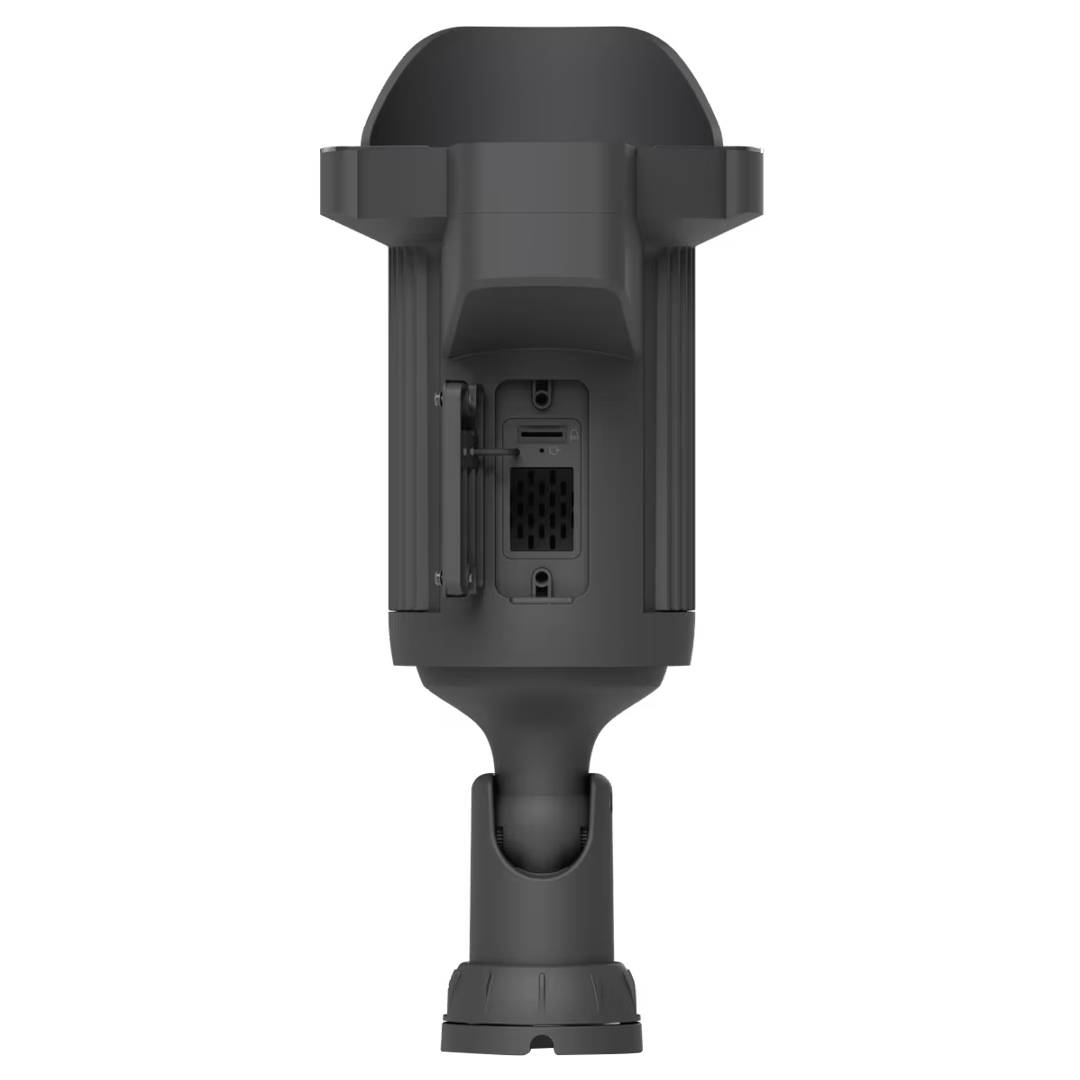

Back View

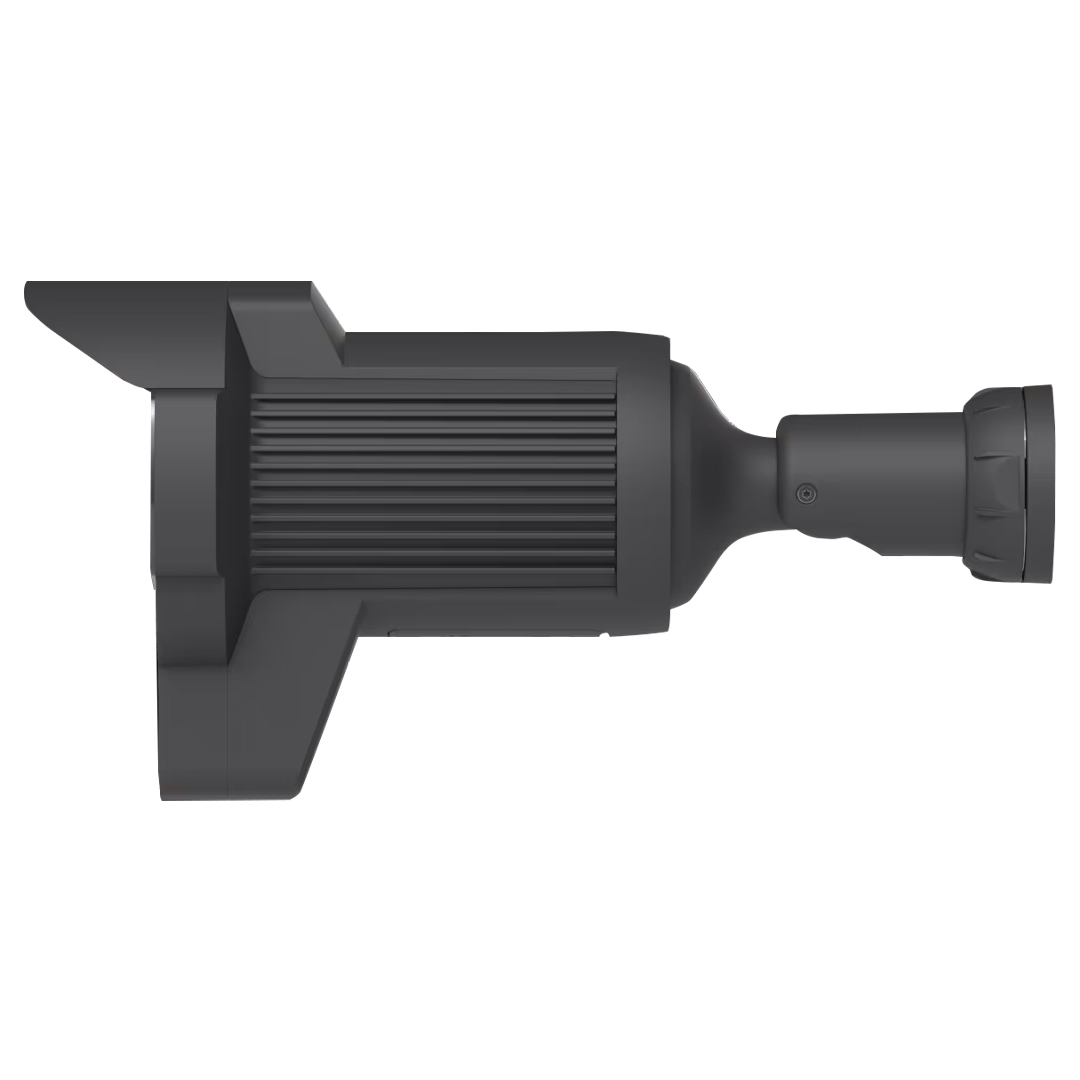

Side View
Specifications
General Data
| Model Number |
UVC-AI-LPR |
| Dimensions |
130 x 151.4 x 302.9 mm (5.1 x 6 x 11.9") |
| IR Night Vision |
15 m (50 ft) |
| Zoom Mode |
3x Optical |
| license Plate Recognition |
Yes (Optimised for night time and high vehicle speeds) |
| Smart Detections (People, Vehicles, Animals) |
Yes |
| Resolution |
4K |
| Field of View |
Wide: H 109.9°, V 60°, D 127.7°
Tele: H 35°, V 19.8°, D 40° |
| Audio |
Microphone |
| Weatherproofing |
IP66 |
| Tamper Resistance |
IK04 |
| Mounting |
Wall, ceiling, pole mount (Included)
Junction box, angled base (Optional) |
Performance
| Networking Interface |
GbE RJ45 port |
| Video |
Image Settings
Colour, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| Max. Frame Rate |
30 FPS |
| Resolution |
8MP 3840 x 2160 (16:9) |
| Optics |
Sensor
1/1.8" 8MP
Lens
F 4.1–12.3 mm; ƒ/1.53–ƒ/3.3
IR Capture Distance
15 m (50 ft)
LPR Night Mode
LPR optimisation filter (Capture reflective and non reflective plates at night) |
Hardware
| Max. Power Consumption |
25.5 W |
| Supported Voltage Range |
42.5 – 57 V DC |
| Power Method |
PoE+ |
| Processor |
Quad-core Arm® Cortex®-A53 based chip |
| Pole Mount Diameter |
1.5–2" (38–50 mm) (Metal strap torque: 6Nm) |
| Weight |
1.5 kg (3.3 lb) |
| Enclosure Material |
Aluminium alloy, polycarbonate |
| Mount Material |
Aluminium Alloy |
| Expansion Slot |
Micro SD memory card (Requires a memory card with at least 64GB of storage) |
| Button |
(1) Factory-reset |
| Cable |
Cable Connector Type
RJ45
Cable Diameter
4.5 mm (0.2")
Cable Length
30 cm (1 ft)
Jacket Material
Thermoplastic elastomer
Jacket Enclosure Dimensions
Ø20 x 70.6 mm (0.8 x 2.8")
Jacket Enclosure Material
Thermoplastic elastomer, polycarbonate, silicone rubber |
| Ambient Operating Temperature |
-20 to 50° C (-4 to 122° F) |
| Ambient Operating Humidity |
10 to 90% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC |
Backed by a 1 year Ubiquiti warranty.
