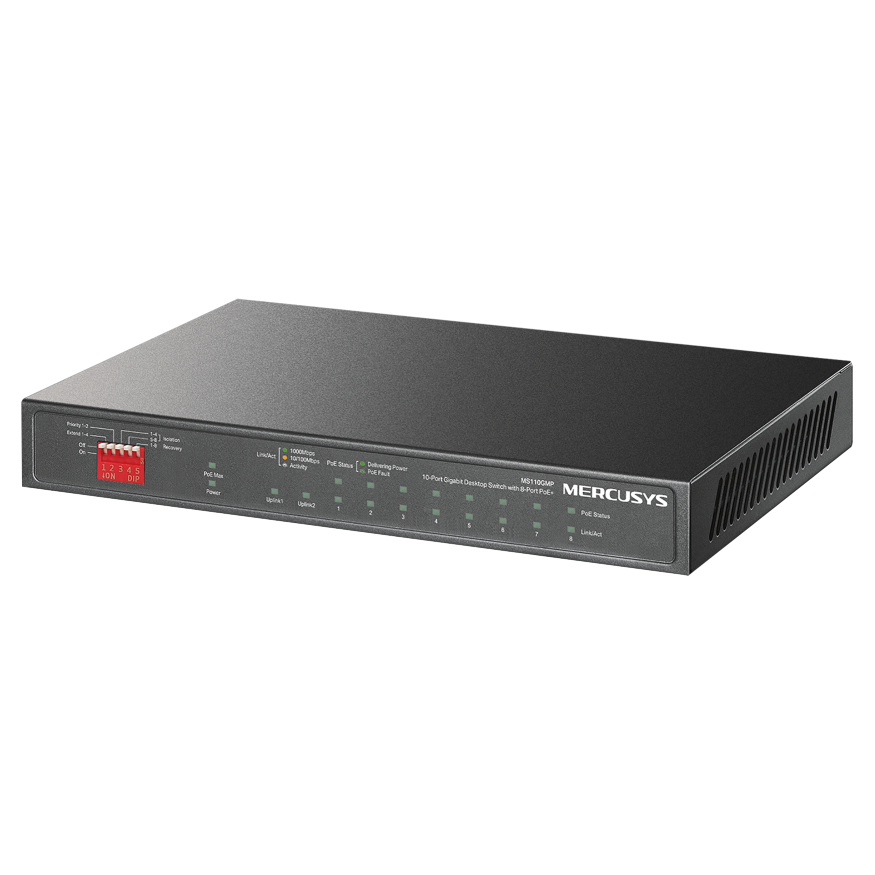

The Mercusys MS110GMP 10 Port Gigabit Desktop Switch with 8 Port PoE Plus features eight PoE Plus ports and two uplink ports, providing up to 111W total power and 30W per port to run devices such as IP cameras and access points. It supports extend mode for up to 250m range, priority and isolation modes, and PoE auto recovery in a compact fanless metal design.
Features
10-Port Gigabit Desktop Switch with 8-Port PoE+
As a 10-port gigabit desktop switch with 8 PoE+ ports, MS110GMP is ideal for a wide range of applications, such as surveillance for offices, dormitories, and small businesses.
- 8× Gigabit PoE+ ports, and 2× Gigabit Uplink Ports
- 8× PoE+ ports transfer data and power via a single cable with a total power budget of 111 W (PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.)
- Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
- Up to 250 m data and power transmission range under Extend Mode (The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.)
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
- Plug and play with no configuration required
- Fanless design reduces power consumption and works silently in its location
Specifications
General Data
| Model Number |
MS110GMP |
| Certifications |
FCC, CE, RoHS |
| What's Included |
MS110GMP
Power Adaptor
Installation Guide |
| Environment |
Operating Temperature: -10~40 (14~104)
Storage Temperature: -40–70 (-40–158 )
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing |
| Packet Forwarding Rate |
14.88 Mpps |
Hardware
| Dimensions |
8.2 x 4.9 x 1.0 in (209 x 126 x 26 mm) |
| PoE Ports |
RJ45 Ports
Standard: 802.3 af/at compliant
PoE Ports: Ports 1–8
Power Supply: 111 W |
| Interfaces |
8x 10/100/1000 Mbps PoE+ Ports
2x 1000 Mbps RJ45 Ports
AUTO Negotiation
AUTO MDI/MDIX |
| Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m) |
| External Power Supply |
External Power Adaptor (Output: 54VDC / 2.22A) |
| Fan Quantity |
Fanless |
| Physical Security Lock |
Yes |
| Jumbo Frame |
16 KB |
| Switching Capacity |
20 Gbps |
| MAC Address Table |
4K |
| Max Power Consumption |
7.37 W (220V / 50Hz with no PD connected)
129.4 W (220V / 50Hz with 111 W PD connected) |
| Max Heat Dissipation |
25.13 BTU/h (220V / 50Hz with no PD connected)
441.25 BTU/h (220V / 50Hz with 111 W PD connected) |
Software
| Transfer Method |
Store-And-Forward |
| Advanced Features |
Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)
Priority Mode Button (Ports 1–2)
Isolation Mode Button (Ports 1–4 / 5-8)
PoE Auto Recovery (Ports 1-8)
MAC Address Auto-Learning and Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode |
Backed by 5 year Mecusys warranty.
