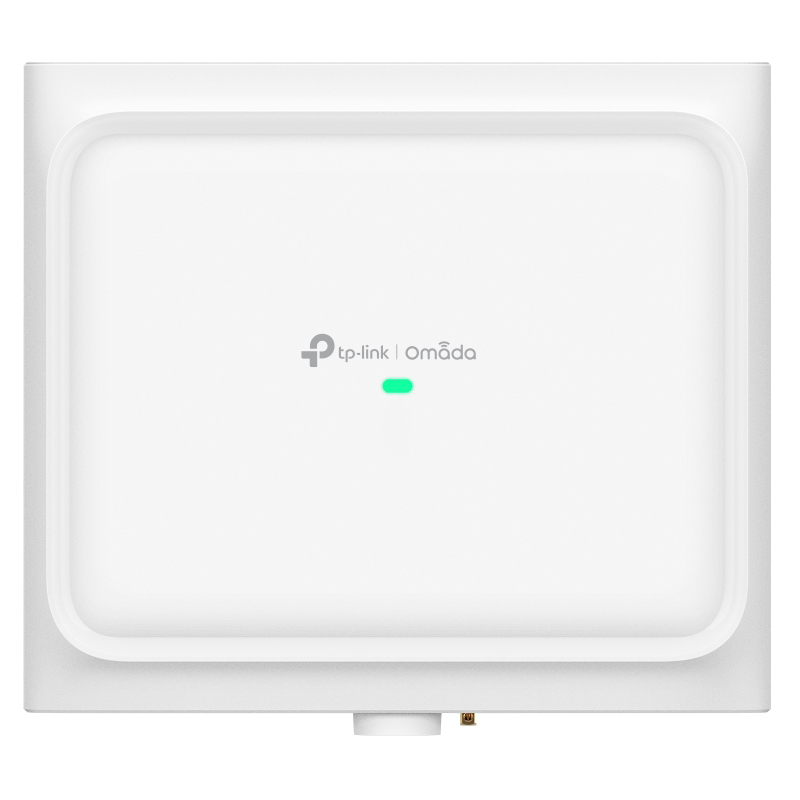

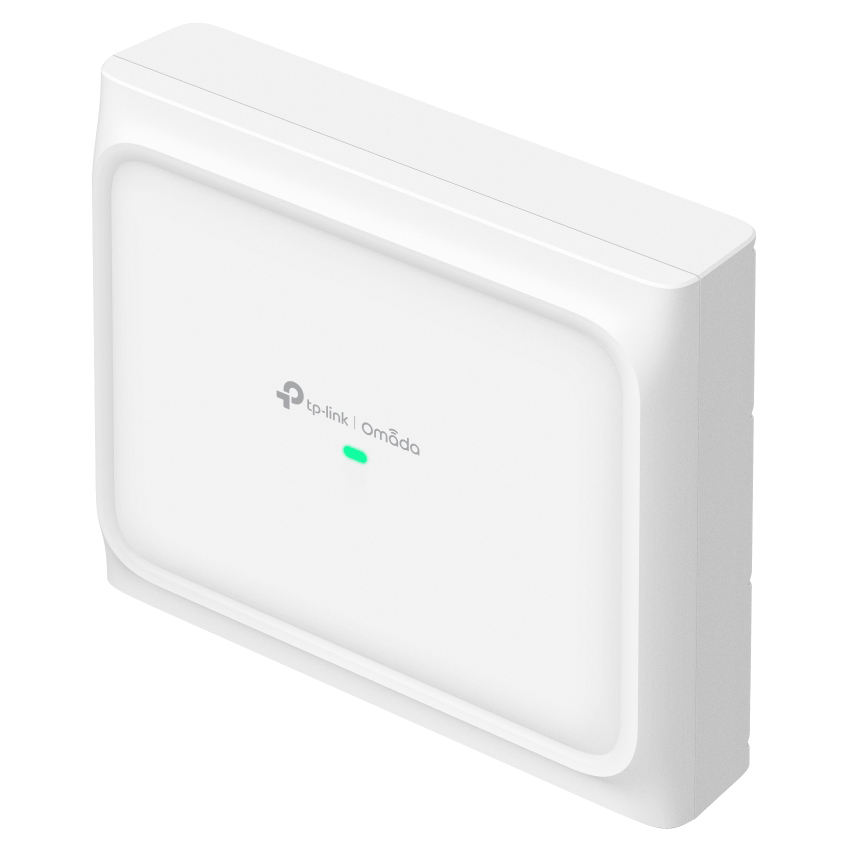

The TP Link EAP772 Outdoor Omada Tri Band BE9300 WiFi 7 Access Point features rugged IP68 sealed housing that can withstand rain, dust and submersion, making it ideal for demanding outdoor installations. It delivers tri band WiFi 7 speeds up to 9.3Gbps across 2.4GHz, 5GHz and 6GHz bands, covering up to 300 square metres with omnidirectional antennas and supporting Multi Link Operation and 320MHz channels. It includes one 2.5GbE PoE Plus port for power and data delivery, centralised mesh management via Omada and seamless roaming for mobile clients.
Features
Omada Tri-Band Omnidirectional BE9300 Indoor/Outdoor Wi-Fi 7 Access Point
- Tri-Band Six-Stream Outdoor Wi-Fi 7: Up to 9.3 Gbps. (Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 320 MHz bandwidth on the 6 GHz band and 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for Wi-Fi 6 routers. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.)
- 6 GHz Band Unlocked by AFC: AFC enables 6 GHz band outdoor uses. (Learn more details about AFC technology and regions that support AFC)
- True Tri-Band Omnidirectional coverage: 300 m2 (3,200ft2) recommended coverage (coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.)
- Professional Hardware Design: Industry-Leading IP68-Rated, 1× 2.5G PoE+ port, 2.4 GHz dual-polarised antennas.
- Easy and Quick Setup: Wall/pole mounting; Omada SDN for one-click setup
- Advanced Features: Centralised management, mesh, and seamless roaming. (Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada controllers. Go to the Omada Mesh Product List to find all the models supported by Omada mesh technology and refer to the User Guides of Omada controllers for configuration methods.)
- IP68 Weatherproof Enclosure
- Centralised Management via App or Web
- 380+ Connected Devices
Next-Gen Tri-Band Wi-Fi 7: Speed Like Never Before
- 320 MHz Bandwidth
- Multi-Link Operation (MLO)
- 4K-QAM
- Multi-RU
- Puncturing
Tri-Band Omnidirectional coverage, 6 GHz Unlocked by AFC
Unlock the cleaner 6 GHz outdoors—powered by AFC , the EAP772-Outdoor eliminates congestion and delivers tri-band omnidirectional coverage (2.4 GHz, 5 GHz, and 6 GHz). 300 m2 (3,200ft2) recommended coverage brings silky-smooth outdoor networking. (Learn more details about AFC technology and regions that support AFC)
Perfect for Outbuilding Wi-Fi coverage
Professional Hardware Design

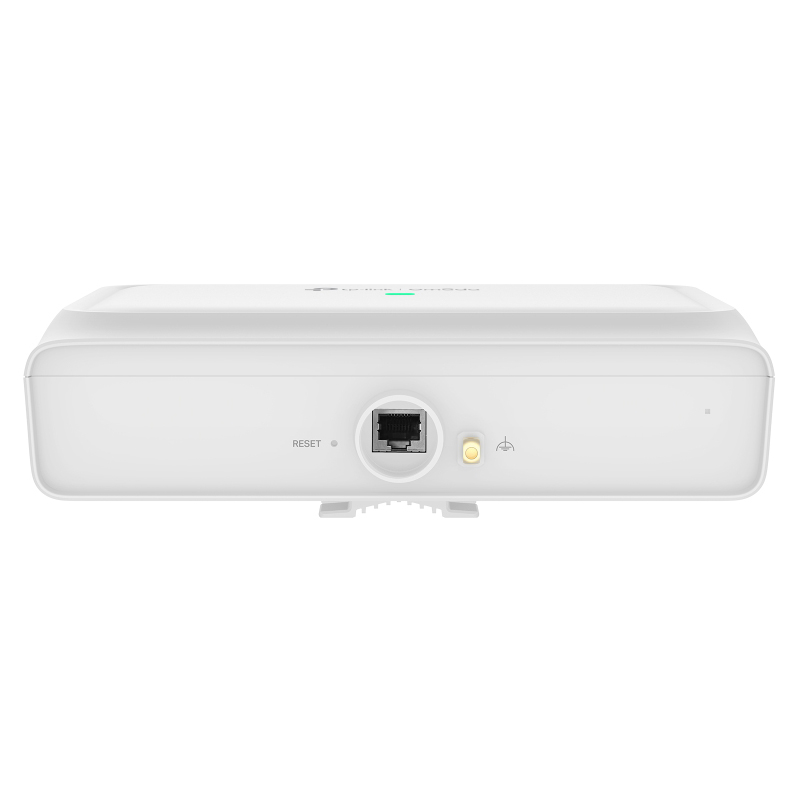

The EAP772-Outdoor features 1×2.5G PoE+ RJ45 port, providing high throughput for applications such as smooth live streaming and 4K video. Additionally, its dual-polarised antennas in 2.4 GHz band offer better anti-interference capability.
Industry-Leading IP68 Weatherproof Design
The fully sealed EAP772-Outdoor is completely dustproof and can be submerged in water up to 1.5 meters deep for up to 1 hour, exceeding the IP67 standard. It withstands even the harshest outdoor environments.
Seamless Connectivity with Mesh and Roaming
Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
Easy and Quick Setup

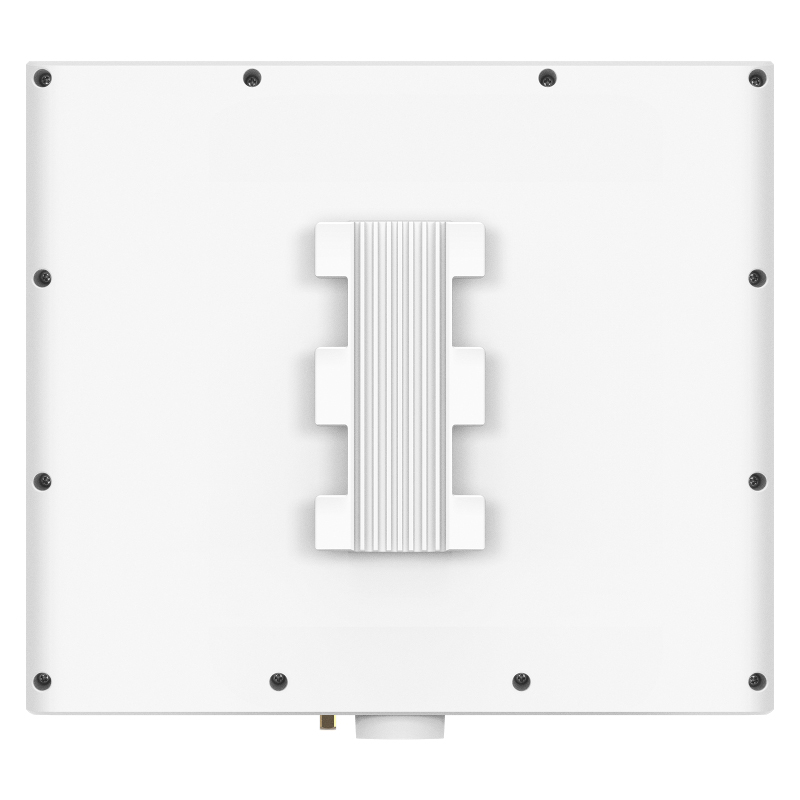

Easy Installation through Wall and Pole Mount
Works with Omada SDN for One-Click Setup
Omada SDN allows users to quickly set up the EAP772-Outdoor through automatic device identification and one-click adoption.
Empowering Businesses with Reliable Omada SDN Solutions
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralised cloud management for a highly scalable network.
Specifications
General Data
| Model Number |
EAP772-OUTDOOR |
| Certification |
CE, FCC, RoHS |

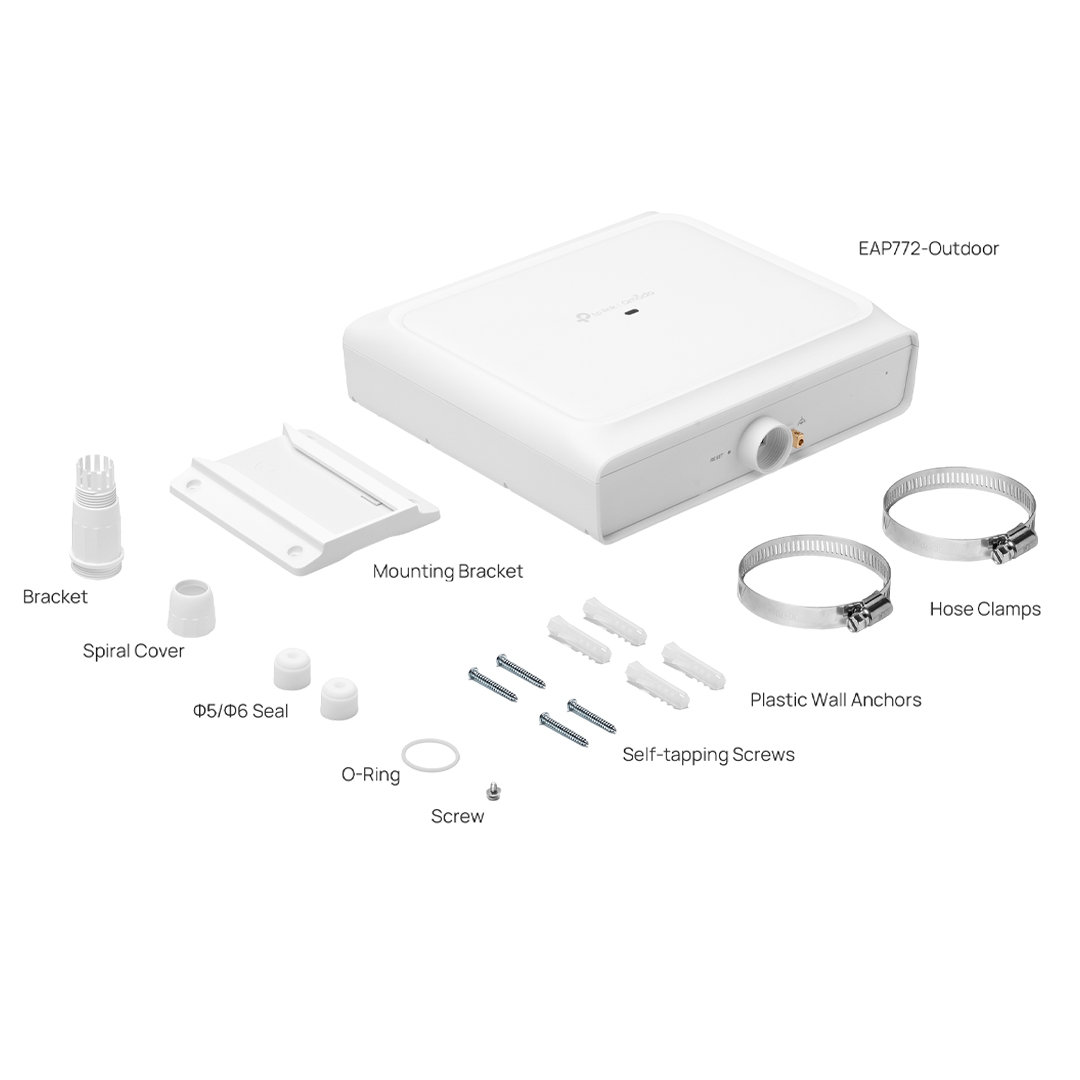

| Package Content |
Access Point EAP772-Outdoor
Waterproof Kit
Mounting Kits
Installation Guide |
| System Requirements |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment |
Operating Temperature: -30 - 70 (-22 - 158 )
Storage Temperature: -40 - 70 (-40 - 158 )
Operating Humidity: 10 - 90% RH non-condensing
Storage Humidity: 5 - 90% RH non-condensing |
Hardware Features
| Interface |
1x 2.5G Ethernet (RJ-45) Port (Support 802.3at PoE) |
| Button |
Reset |
| Power Supply |
802.3at PoE |
| Max. Power Consumption |
21.5 W (for PoE) |
| Dimensions ( W x D x H ) |
9.1 x 8.2 x 2.8 in (230 x 207.5 x 69.7 mm) |
| Antenna |
2.4 GHz: 2x 4 dBi
5 GHz: 2x 6 dBi
6 GHz: 2x 6 dBi |
| GNSS |
L1 (1575.42 MHz) receiver, supporting GPS, Galileo, GLONASS, and BeiDou signals
Receive sensitivity: -164dBm (tracking)
GPS antennas: Integrated 3dBi omnidirectional antennas |
| Bluetooth |
BLE 5.2 |
| Weatherproof Enclosure |
IP68 |
| Mounting |
Pole/Wall Mounting (Kits included) |
Wireless Features
| coverage |
300 m2 (3,200ft2) Recommended Omnidirectional coverage |
| Concurrent Clients |
380+ ( The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.) |
| Wireless Standards |
IEEE 802.11be/ax/ac/n/g/b/a |
| Frequency |
2.4 GHz, 5 GHz, 6 GHz |
| Signal Rate |
688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz) + 5765 Mbps (6 GHz) (Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 320 MHz bandwidth on the 6 GHz band and 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for Wi-Fi 6 routers. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.) |
| Wireless Functions |
4k-QAM
OFDMA
Multiple SSIDs: 24 (8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS (WMM)
MU-MIMO
MLO
320MHz
Omada Mesh (Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada controllers. Go to the Omada Mesh Product List to find all the models supported by Omada mesh technology and refer to the User Guides of Omada controllers for configuration methods.)
Seamless Roaming(802.11k/v/r) (Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada controllers. Go to the Omada Mesh Product List to find all the models supported by Omada mesh technology and refer to the User Guides of Omada controllers for configuration methods.)
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Static IP/Dynamic lP |
| Wireless Security |
Captive Portal Authentication (Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada controllers. Go to the Omada Mesh Product List to find all the models supported by Omada mesh technology and refer to the User Guides of Omada controllers for configuration methods.)
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE |
| Transmission Power |
CE:
Indoor Mode: < 20 dBm (2.4 GHz, EIRP);, < 23 dBm (5 GHz, band 1 & band 2, ElRP), < 28 dBm (5 GHz, band 3, EIRP); <23dBm (6 GHz, EIRP)
Outdoor Mode: < 20 dBm (2.4 GHz, EIRP); < 28 dBm (5 GHz, band 3, EIRP)
FCC:
Indoor Mode: < 25 dBm (2.4 GHz); < 25 dBm (5 GHz); < 25 dBm (6 GHz)
Outdoor Mode:< 25 dBm (2.4 GHz); < 25 dBm (5 GHz); < 25 dBm (6 GHz) |
Management Features
| Omada App |
Yes |
| Centralised Management |
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller |
| Cloud Access |
Yes. Require the use of an Omada controller. |
| Email Alerts |
Yes |
| Management MAC Access Control |
Yes |
| SNMP |
v1, v2c |
| System Logging Local/Remote Syslog |
Yes |
| SSH |
Yes |
| Web-Based Management |
Yes |
| L3 Management |
Yes |
| Multi-Site Management |
Yes |
| Management VLAN |
Yes |
| Zero-Touch Provisioning |
Yes. Requiring the use of Omada Cloud-Based Controller |
Backed by a 3 year TP-Link warranty.
