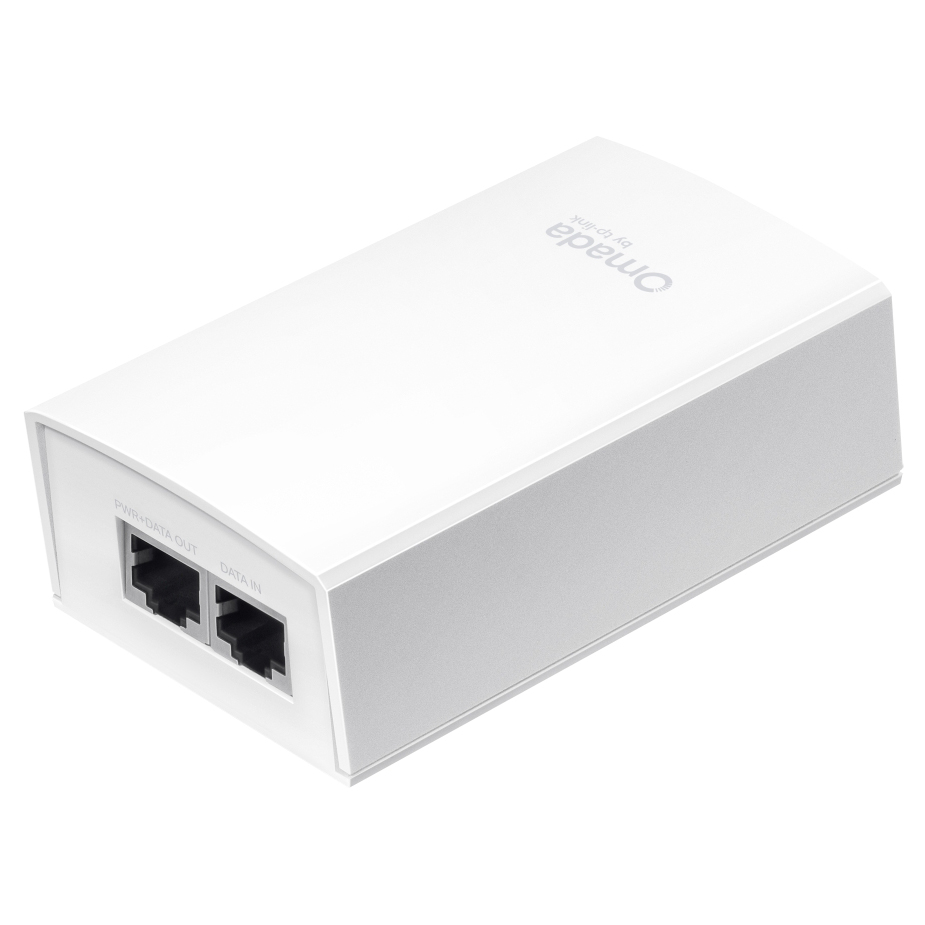

The TP Link POE5430G M2 Omada 2.5G Passive PoE Adapter features a compact design that delivers up to 2.5Gbps data and 54V passive PoE power up to 30W through a single Ethernet cable. It has a wall mount form factor with LED power indication, auto power detection and supports multiple network speeds for easy installation with compatible devices.
Features
Omada 2.5G Passive PoE Adaptor
The passive PoE Adaptor POE5430G-M2 can be used to simultaneously supply power and transmit data to a passive PoE device.
- 54V passive PoE supported
- Convenient wall-mount design
- Auto-determine the necessary power requirements
- 2.5Gbps/1000Mbps/100Mbps/10Mbps speed support
- Plug-and-Play, requires no configuration
- Maximum power up to 30W
Specifications
General Data
| Model Number |
POE5430G-M2 |
| Certification |
CE, FCC, BSMI, UL, KC |
| What's Included |
POE5430G-M2
Power Cord
Installation Guide |
| Environment |
Operating Temperature: -5℃ ~ 40℃ (23℉ ~ 104℉)
Storage Temperature: -40℃ ~ 70℃ (-40℉ ~ 158℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing |
Hardware

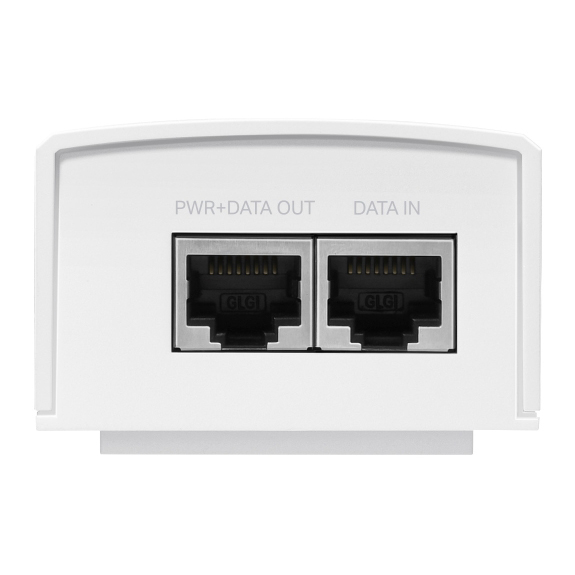

| Interface |
10/100/1000/2500 Mbps Auto-Negotiation RJ45 DATA IN port
10/100/1000/2500 Mbps Auto-Negotiation RJ45 PWR+DATA OUT port |

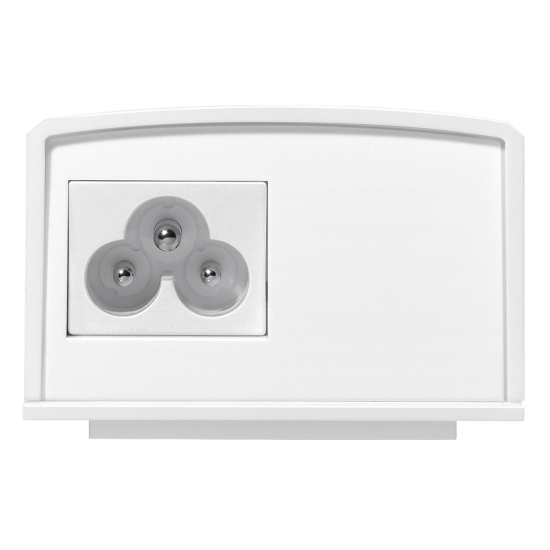

| Power Supply |
54V/0.56A |

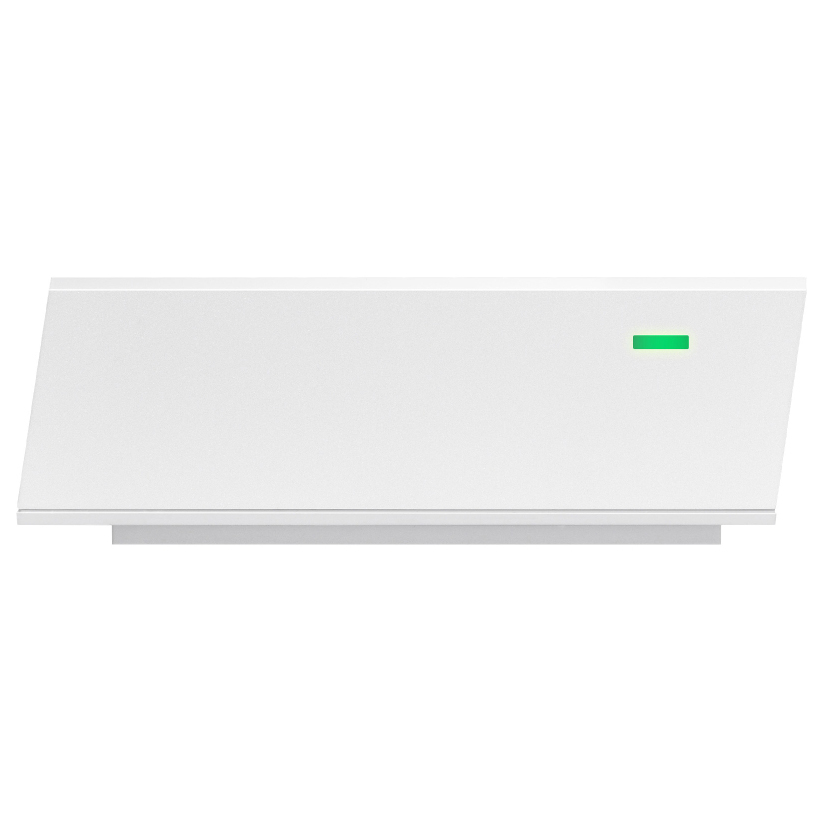

| LED |
PWR |
| Dimensions ( W x D x H ) |
4.33 x 2.24 x 1.42 in（110 x 57 x 36 mm ） |
Backed by a 3 year TP-Link warranty.
