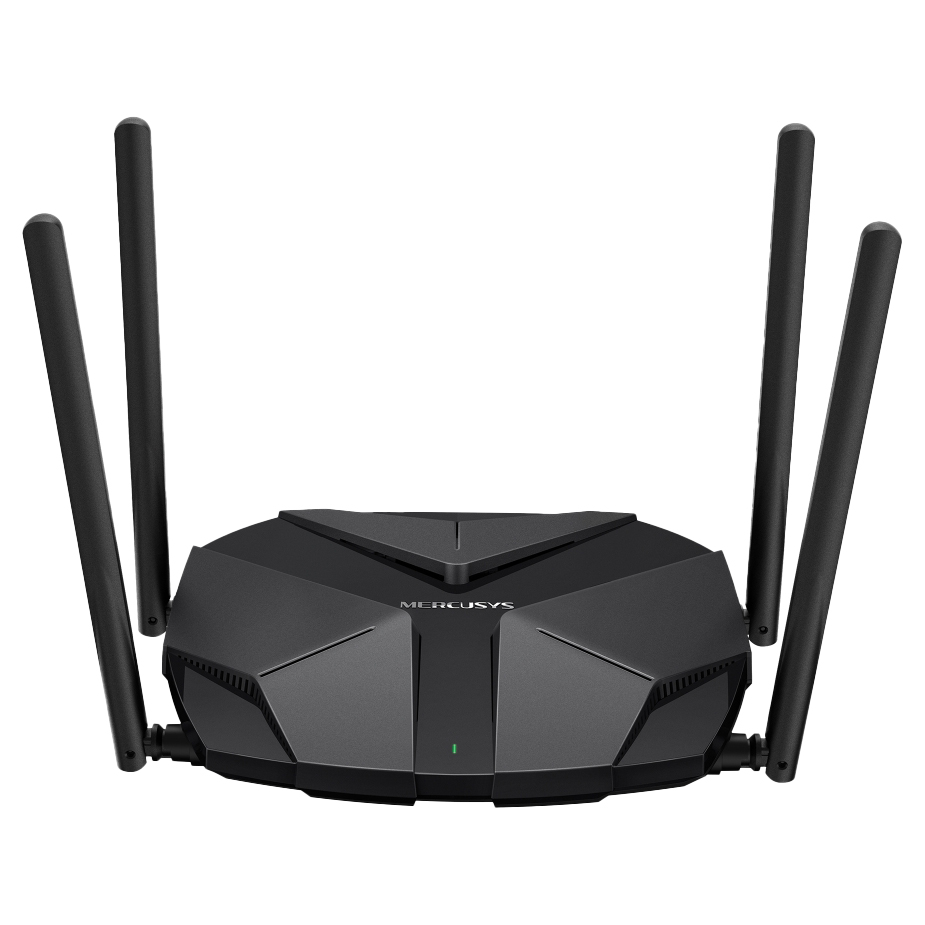

The Mercusys MR85X AX3000 Dual-Band WiFi 6 Router features dual-band Wi-Fi 6 with combined speeds up to 3 Gb/s (574 Mb/s on 2.4 GHz + 2402 Mb/s on 5 GHz) thanks to OFDMA, MU-MIMO, 160 MHz channel width, BSS Coloring and Target Wake Time for fast and efficient multi-device connectivity. It includes a 2.5 Gbps multi-gig WAN port, three Gigabit LAN ports, four high-gain beamforming antennas, WPA3 security and Smart Connect to optimise performance and coverage throughout the home.
Features
AX3000 Dual-Band Wi-Fi 6 Router
Faster, Smarter, Stronger Revolutionise Your WiFi with WiFi 6
- Optimal WiFi 6 Speeds - Optimal WiFi 6 speeds reaching up to 3 Gbps for faster browsing, streamings, and downloading, all at the same time.
- 2.5 Gbps Multi-Gig Port - Break through the 1G bottleneck and drive your devices to peak performance.
- More Devices, More Fun - Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.
- WiFi That Goes Farther - 4x multi-directional antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
- Overall Security Protection - The latest WPA3 provides improved WiFi security
- Gigabit Wired Connections - Make full use of your internet access and transfer data at dizzying speeds for peak performance
- Eco-Friendly Power Saving - Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions
- Less WiFi Interference - Minimises the interference from Neighbouring signals to improve transmission efficiency with BSS Colouring
- Smart Connect - Intelligently chooses the best available band for each device
- WiFi that Goes Farther High-Gain Antennas with Beamforming
- Compatible with EasyMesh For a Smooth Whole Home Mesh WiFi Network
WiFi 6 – The Future is Lagless
Less Interference
Reduce the Interference from Your Neighbours’ WiFi
Interference from nearby wireless networks may cause issues with your signal, especially when you live in an apartment or close to your Neighbours. MR85X supports BSS Colouring to mark the data frames from different APs. This helps minimise the signal interference from your Neighbours to improve transmission efficiency. (Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and number of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location. feature availability may be required.)
- BSS Colouring Working - Less Signal Interference
- Without BSS Colouring - More Signal Interference
Energy Efficient
Eco-Friendly Power Saving
Target Wake Time reduces power consumption for your mobile and IoT devices during data transmissions to extend your devices’ battery life. (Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and number of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location. feature availability may be required.)
Connect 4x More Devices, All Simultaneously
Streaming or gaming on multiple devices brings more fun without dragging down performance. MR85X supports OFDMA and MU-MIMO (Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and number of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location. feature availability may be required.) to power up your WiFi by allowing multiple clients to transmit at the same time. This delivers 4x greater network capacity and efficiency in traffic-dense environments. (The 802.11ax white paper defines Standardised modifications to both the IEEE 802.11 physical layers (PHY) and the IEEE 802.11 Medium Access Control (MAC) layer as enabling at least one mode of operation capable of supporting improvement of at least four times the average throughput per station (measured at the MAC data service access point) in a dense deployment scenario. △Use of WPA3 requires clients to also support WPA3.)
- WiFi 5 OFDM - Wastes bandwidth
- WiFi 6 OFDMA - Makes full use of your bandwidth
Faster Speeds
Gigabit WiFi Connectivity, Always Up-to-Date
Doubling the bandwidth with 160 MHz channels, (Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and number of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location. feature availability may be required.) MR85X unlocks the limits of the previous channel width and provides next-level speeds for your devices. With WiFi 6 speeds up to 3 Gbps, (Use of 802.11ax (Wi-Fi 6) and features including OFDMA, MU-MIMO, 1024-QAM, BSS Colour, and Target Wake Time requires clients to also support the corresponding features. Actual power reduction by Target Wake Time may vary as a result of network conditions, client limitations, and environmental factors. This router may not support all the mandatory features as ratified in Draft 3.0 of IEEE 802.11AX specifications. Further software upgrades for feature availability may be required.) finish large-file downloads in minutes and experience stunning 4K streaming without lag.
- 1200 Mbps - 80 MHz, 2x2 WiFi 5 Router
- 3000 Mbps - 160 MHz, 2x2 WiFi 6 MR85X
Multi-Gigabit WAN Connection
The 2.5 Gbps WAN port makes full use of gigabit speeds from your local ISP. Break through the 1G bottleneck and drive your devices to peak performance.
- Multi-Gig Internet Access
- Gigabit Wired Connection / Wireless Connection
More Targeted Signals that Penetrate Walls
Four external high-gain antennas armed with integrated signal amplifiers provide strong WiFi signals that reach farther. Beamforming detects your connected devices and concentrates wireless signal strength towards them, making your connections more stable.
Connect More WiFi Devices with OFDMA and MU-MIMO
MR85X showcases unparalleled multi-device connectivity, effortlessly managing all your online demands. From family entertainment to professional conferences, it guarantees a seamless network experience for everyone, ushering in a new era of smart living and efficient remote work.
Smart Connect Assigns Devices to the Best Band Automatically
Smart Connect allows each of MR85X's wireless bands to use the same wireless settings. MR85X balances network demand and assigns your devices to the band with the best signal and speed. This keeps your devices always running optimally when you walk around your home.
- 2.4 GHz Stronger Penetration
- 5 GHz Faster Speed
Cover Your Whole Home with EasyMesh
MR85X is compatible with EasyMesh, enabling you to set up a whole home mesh network with one WiFi name and password with any other APs that support EasyMesh from multiple vendors. Enjoy flexible, scalable, and seamless mesh WiFi throughout your home!
- Flexible WiFi Range Expansion
- Works with Different Vendors
- Seamless WiFi Connections
The Latest WPA3 Protects Your Personal Network
The latest security standard, WPA3, offers improved comprehensive WiFi protection to defend your devices and private information against brute-force attacks.
Protects Against Brute-Force Attacks
Delivers robust protection even when you are using a weak password
Advanced Forward Secrecy
Prevents data from being snooped even if a cracker compromises a session’s secret keys
Unbreakable 128-Bit Encryption
Creates an active defence against security threats and intruders
Flexible Multi-Mode Functionality
Router Mode
Creates a wireless network for all your WiFi devices
Access Point Mode
Extends a wired network and makes it wireless
Protect Your Kids When They’re Online
Easily manage your kids’ online time and content to create a healthy online environment for all.
Create User Profiles
Create a profile for each family member you would like to manage. Assign devices to the profile to set access controls and time limits for them.
Online Time Limits
Set daily limits on how long your kids spend online and prevent them from accessing the internet on their devices while doing homework or after bedtime.
Block Inappropriate Websites
Simply set a blacklist to block inappropriate sites for your children.
Pause Internet Connection
Suspend family members’ internet connections to take a break from the virtual world to enjoy some family time.
Easy Setup and Management via the MERCUSYS App
Without needing technical knowledge or reading installation instructions in advance, just follow the on-screen directions with the MERCUSYS app to set up your router in minutes. The MERCUSYS app helps you set and manage your WiFi at home or away through your iOS or Android devices.
Rigorous Testing for High-Quality Products
- UES Stability Test: ≥ 1500 hours Performance tested in high-density device environments.
- Power ON/OFF Test: ≥ 10,000 test cycles Validated across three scenarios for reliable operation.
- Extreme Environment Test: ≥ 7200 hours Continuous operation under harsh conditions.
- Vibration Test: ≥ 100 cycles Assessed with multiple devices to ensure durability.
- Drop Test: ≥ 30 cycles Dropped from 80 cm onto concrete for impact resistance.
- Memory Stress Test: ≥ 900,000 cycles Rigorous consecutive memory read/write testing.
* All data is based on MERCUSYS lab testing.
Backed by a 2 year Mercusys warranty.
