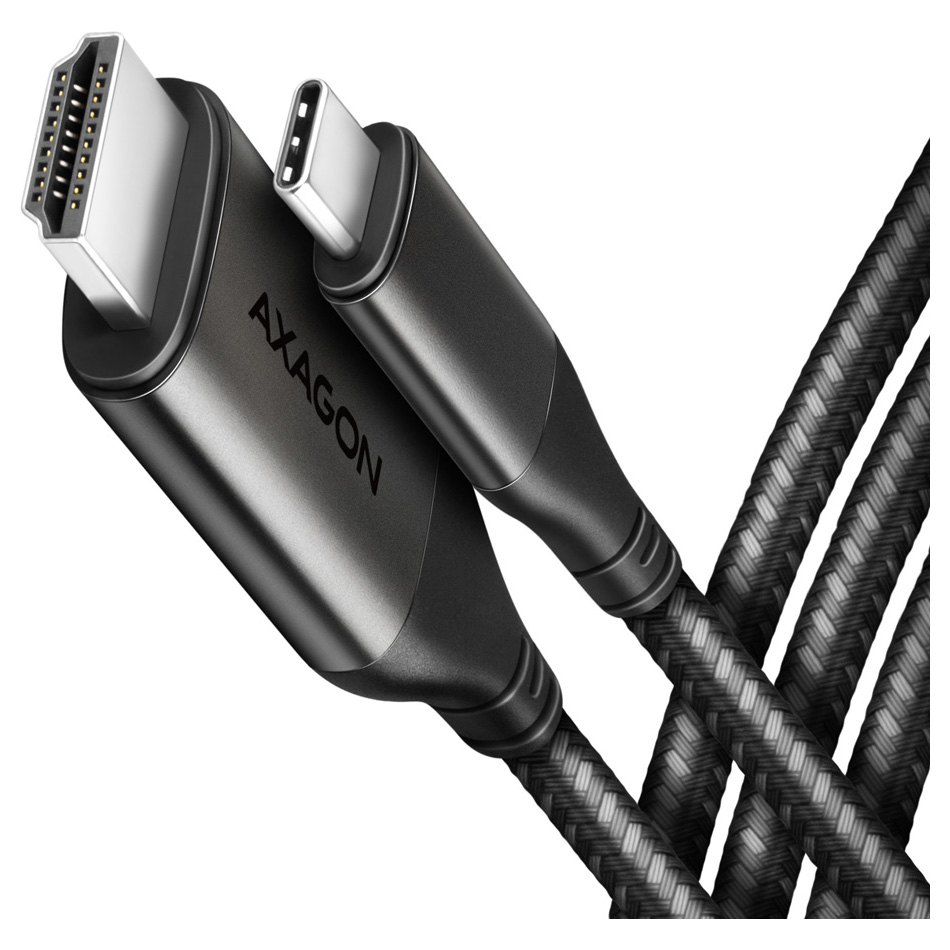

(Special Price! Reduced to clear, was $25!) The Axagon RVC-HI2MC USB-C to HDMI 2.0a Cable 1.8 m features an active hardware converter built into the cable that enables seamless video and audio output from USB-C with DisplayPort Alt Mode to an HDMI display at up to 4K @ 60 Hz with HDR10 support. Its durable nickel- and gold-plated aluminium-alloy connectors and braided nylon sheath ensure reliable signal transmission and long-lasting portability.
Features
RVC-HI2MC USB-C > HDMI 2.0a Cable 1.8 m
Active converter for connecting HDMI display devices to USB-C output. Support 4K/60Hz and HDR 10 bit.
Modern USB-C > HDMI active cable - Adaptor AXAGON RVC-HI2MC for connecting a HDMI monitor/TV/projector to a notebook or phone using USB-C connector.
A hardware converter ensures quality image up to 4K/60Hz Ultra HD resolution without any installation. Popular gaming resolution WQHD 2560 x 1440 at 60, 120 and 144 Hz or FullHD 1920 x 1080 at 60, 120, 144 and 240 Hz are also supported. Thanks to HDR (high dynamic range) support, you can enjoy a significantly expanded range of colours and contrasts without restrictions.
Durable cable is equipped with solid metal ends, connectors with a nickel-plated surface and gold-plated contacts. The final strength of the cable is provided by the nylon braid. The bonus is a practical strip for easy packing of the cable. Video and audio transfer from a computer, laptop, phone or Apple MacBook will now be easy.
Compact dimensions provide the possibility to use the cable in insufficient space. The converter dimensions are almost identical to the standard cable connectors. You have an ideal solution - you don't need a cable and converter, with this active cable everything is integrated into one compact unit.
The cable is only oneway, i.e. USB-C to HDMI, not otherwise. A USB-C port with DisplayPort Alternate Mode (DP Alt Mode) support of a device with Thunderbolt 3/4 port is required for the Adaptor to function properly.
- Supported modes: mirroring the desktop (default setting),extension of the primary monitor area.
- HPD (Hot-Plug-Detect) support - communication sequence controlling the connection/disconnection of the device while running,
- Support up to 8-channel sound - 96 kHz at 24 bits,
- HDR (High dynamic range, 10 bit support) support - realistic reproduction of light and dark details.
- Compliant with USB Type-C Cable and Connector Specification Revision 1.1 specification,
- Compliant with VESA DisplayPort Alt Mode on USB Type-C Standard Version 1.0 specification,
- Compliant with USB Device Class Definition for Billboard Devices Revision 1.0 specification.
- Compliant with HDMI Specification 2.1a 4K/60Hz HDR10 specification (before HDMI 2.0a).
- TMDS (Transition Minimised Differential Signalling) support - transfer of auxiliary image, sound and additional data.
- HDCP 2.2 (High-bandwidth Digital Content Protection) support - a mechanism used to protect the digital contents.
- Support of power saving modes with spinning down controlled by a source device (PC) and a viewing device (monitor/TV).
- Power supply via USB-C – no external power is needed.
- Dimensions of converter body 48 x 21 x 10 mm,
- Total cable length incl. connector 180 cm,
Input
- USB-C
- USB type C (M) male connector
Output
- HDMI 2.1a 4K/60Hz HDR10 (before HDMI 2.0a)
- HDMI (M) male connector
Specifications
General Data
| Model Number |
AXAGON-RVC-HI2MC |
| HDR |
10 |
| Max. Resolution |
4096 x 2160 @60Hz DCI 4K |
| Display Modes |
Mirroring / extending the primary monitor area |
| Sound Transmission |
Yes |
| Automatic Installation |
Yes |
| Energy Saving |
Yes (computer- and display-controlled sleeping) |
| Hot Plug Detect |
Yes (HPD - connecting / disconnecting device when running) |
| Plug And Play |
Yes |
| Hot Plug |
Yes |
| Indication |
No |
| Dimensions |
60 x 21 x 10 mm |
| Weight |
70 g |
| Power Supply On The Bus |
Yes (USB bus power) |
| What's Included |
USB-C > HDMI cable length 1.8m
Multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA |
| Supported Resolutions |
Max. 4096 x 2160 (19:10) @60Hz DCI 4K
3840 x 2160 (16:9) @60Hz UHD-1 4K (UHDTV)
3840 x 1600 (21:9) UW 4K (Ultrawide 1600p)
3840 x 1200 (32:10) 29:9 4K (Super ultrawide 1200p)
3840 x 1080 (32:9) 32:9 4K (Super ultrawide 1080p)
3440 x 1440 (21:9) UWQHD (Ultrawide 1440p)
2560 x 2048 (5:4) QSXGA
2560 x 1920 (4:3)
2560 x 1600 (16:10) WQXGA
2560 x 1440 (16:9) @60, 120 a 144Hz QHD
2560 x 1080 (21:9) UWFHD (Ultrawide 1080p)
2048 x 1536 (4:3) QXGA
2048 x 1152 (16:9) QWXGA
1920 x 1440 (4:3)
1920 x 1200 (16:10) WUXGA
1920 x 1080 (16:9) @60, 100, 120, 144 a 240Hz Full HD/1080p
1856 x 1392 (4:3)
1792 x 1344 (4:3)
1680 x 1050 (16:10) WSXGA+
1600 x 1200 (4:3) UXGA
1600 x 900 (16:9) HD+
1536 x 864 (16:9)
1440 x 900 (16:10) WXGA+
1400 x 1050 (4:3) SXGA+
1366 x 768 (16:9) HD
1360 x 768 (16:9) HD
1280 x 1024 (5:4) SXGA
1280 x 960 (4:3) SXGA-
1280 x 800 (16:10) WXGA
1280 x 768 (5:3) WXGA
1280 x 720 (16:9) HD/WXGA/720p
1280 x 600
1152 x 864 (4:3) XGA+
1024 x 768 (4:3) XGA
800 x 600 (4:3) SVGA
* The adjustable resolution and frequencies depend on monitor/TV/projector and graphics Adaptor parameters |
Input
| Interface |
USB-C (DisplayPort Alternate Mode) |
| Connector |
USB Type C male (on the cable) |
| Cable |
1.8 m, permanently connected |
Output
| Interface |
HDMI v2.1a |
| Connector |
HDMI (F) female |
OS Support
| MS Windows |
11 / 10 / 8.1 / 8 / 7 (all 32- and 64-bit versions) |
| Mac OS |
Yes |
| Android |
Yes |
| Chrome |
Yes |
Backed by a 2 year Axagon warranty.
