The Axagon PCEU-43RS 4-Port SuperSpeed USB 3.2 Gen 1 PCI-E Card features four external USB-A SuperSpeed ports wired over a PCI-Express x1 interface to deliver up to 5 Gbps per port. Powered via the PCIe bus with optional SATA power input, it utilises a Renesas chipset with UASP and full Plug-and-Play support to enable efficient transfers and compatibility with multiple devices.
Features
PCEU-43RS PCIe Controller 4x SuperSpeed USB

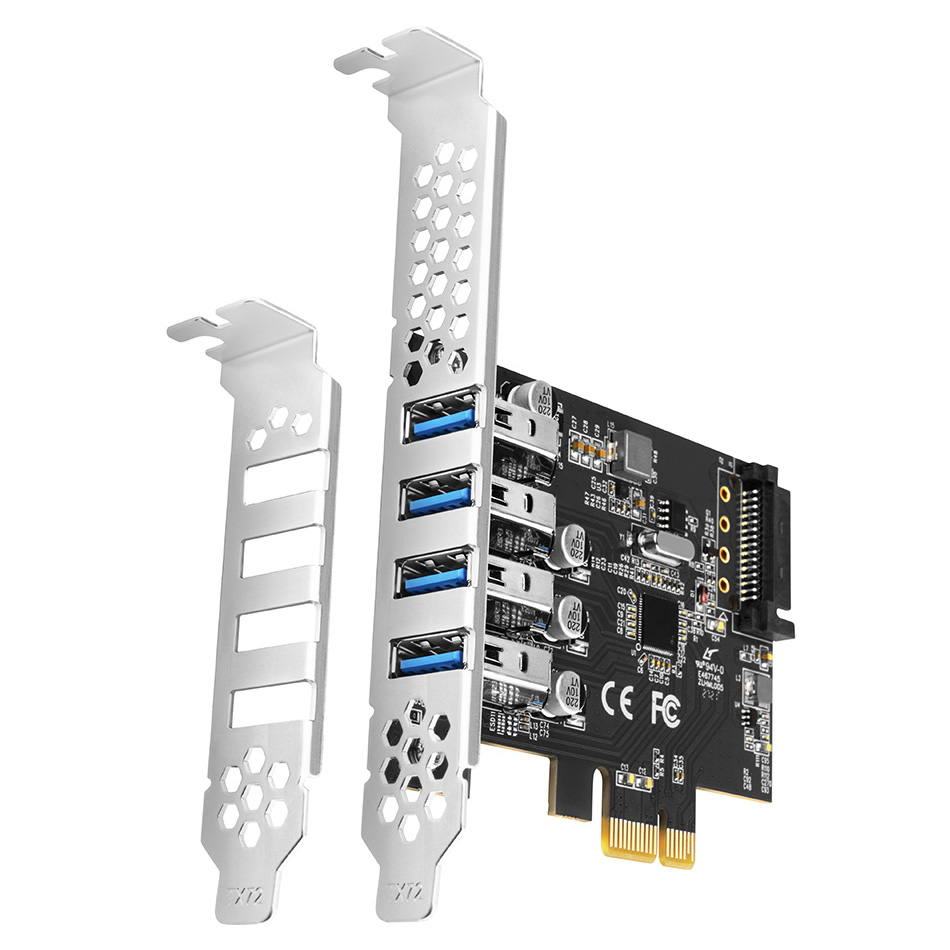

PCI-Express card with four external USB 3.2 Gen1 ports with dual power. Renesas chipset. Standard & Low profile.
AXAGON PCEU-43RS PCI-Express card adds four external USB 3.2 Gen 1 ports to your desktop computer. The card is designed for fast data transfers at speeds up to 5 Gb/s.
All four SuperSpeed USB ports are taken out to the bracket. The dual power supply of the controller enables standard power supply of the controller and connected USB peripherals via the PCI-Express bus as well as optional power supply from the PC power supply via the SATA power connector.
The USB controller is equipped with a renowned Renesas company chipset with proven seamless compatibility, high performance and UASP support.
Low profile bracket is included in the package for mounting the Adaptor into low profile cases.
- Full Plug and Play support.
- Supports concurrent activity of SuperSpeed USB, USB 2.0 and USB 1.1 devices.
- Compliant with the final official xHCI specification revision 1.0 by USB-IF.
- Supports UASP (USB Attached SCSI) for faster data transmission in Windows 8 and later.
- Fully supports Hot Plug connecting and disconnecting of USB devices while running.
- Standard power supply for the controller and connected USB peripherals via the PCI-Express bus.
- In this power supply mode, the PCIe controller can handle up to three magnetic 2.5" external discs simultaneously.
- Optional power supply from PC source via SATA power connector.
- Renesas μPD720201 chipset is used.
Input
- PCI-Express 2.0 interface, compatible with PCI-Express 1.0a / 1.1 / 2.1 / 3.0.
- Number of lines: 1-Lane (x1), compatible with x1 / x4 / x8 / x16 PCIe slots.
- A bandwidth of 1-Lane PCI-Express 2.0 bus is 5 Gb/s.
Output
- 4x external USB 3.2 Gen 1 port with USB type A-F connectors.
- SuperSpeed USB - USB 3.2 Gen 1 interface (before USB 3.1 Gen 1 / USB 3.0).
- Compatible with USB 3.2 Gen 2, backward compatible with USB 2.0 a USB 1.1.
- Supports transmission rates 5000 / 480 / 12 / 1.5 Mb/s (super / high / full / low speed).
- When connected to a PCI-Express bus version 1.0, theor. transmission rate max. 2500 Mb/s.
Specifications
General Data
| Model Number |
AXAGON-PCEU-43RS |
| Standard Profile |
Yes |
| Low Profile |
Yes |
| Chipset |
μPD720201 |
| Power Supply On The Bus |
Yes (recommended) |
| Power Supply From A PC Source |
Ano (15pin power SATA) |
| UASP |
Yes (Win 8 and higher) |
| Automatic Installation |
Yes (from Win 8 and Server 2012) |
| Plug And Play |
Yes |
| Hot Plug |
Yes |
| What's Included |
PCI-Express controller with a standard bracket
Low-profile bracket
Multilingual guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA |
Input
| Interface |
PCI-Express 2.0 |
| Number Of Lines |
1-Lane (x1) |
| Rate |
5 Gbit/s |
| Compatibility |
PCI-Express 1.0a / 1.1 / 2.0 / 2.1 / 3.0
x1 / x4 / x8 / x16 PCIe slot |
Output
| Interface |
USB 3.2 Gen 1 / USB 3.0 / USB 2.0 / USB 1.1 |
| Rate |
5000 / 480 / 12 / 1.5 Mbit/s (super / high / full / low speed) |
| Number Of Ports |
4 |
| Connector |
4x USB Type A female |
| Total Permeability |
5 Gbit/s |
OS Support
| MS Windows |
11 / 10 / 8.1 / 8 / 7 / Vista / XP (all 32- and 64-bit versions) |
| MS Windows Server |
2022 / 2019 / 2016 / 2012 / 2008 / 2003 (all 32- and 64-bit versions) |
| Linux |
Kernel 2.6.31 and higher |
Backed by a 2 year Axagon warranty.
