The Ubiquiti UniFi U7 Pro XGS is a powerful WiFi 7 access point with tri-band support and ultra-fast 10 GbE speeds. It handles over 500 connected devices and includes smart scanning to reduce interference. Ideal for high-demand spaces, it's easy to mount on ceilings or walls.
Features
U7 Pro XGS
Deployment
Build Features

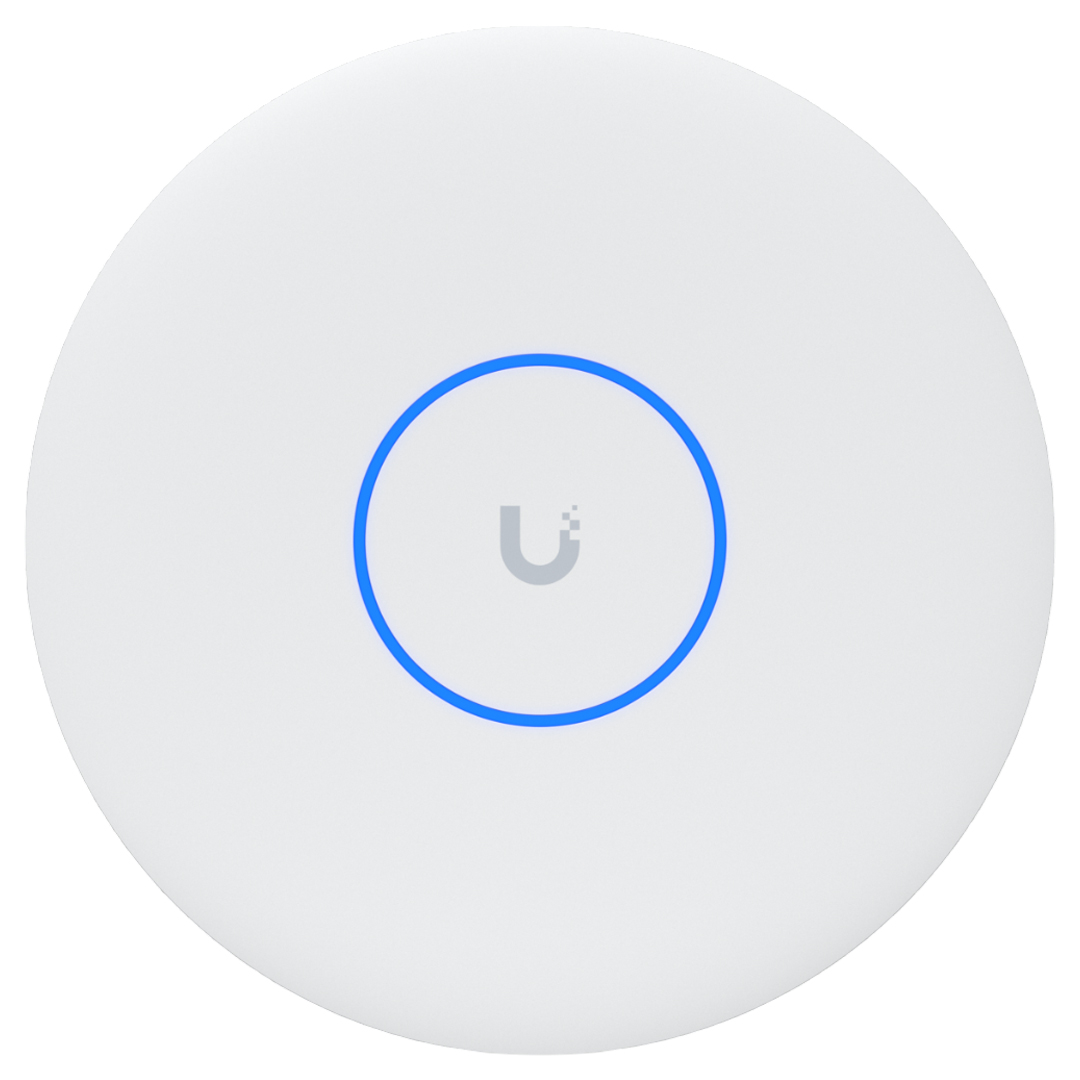

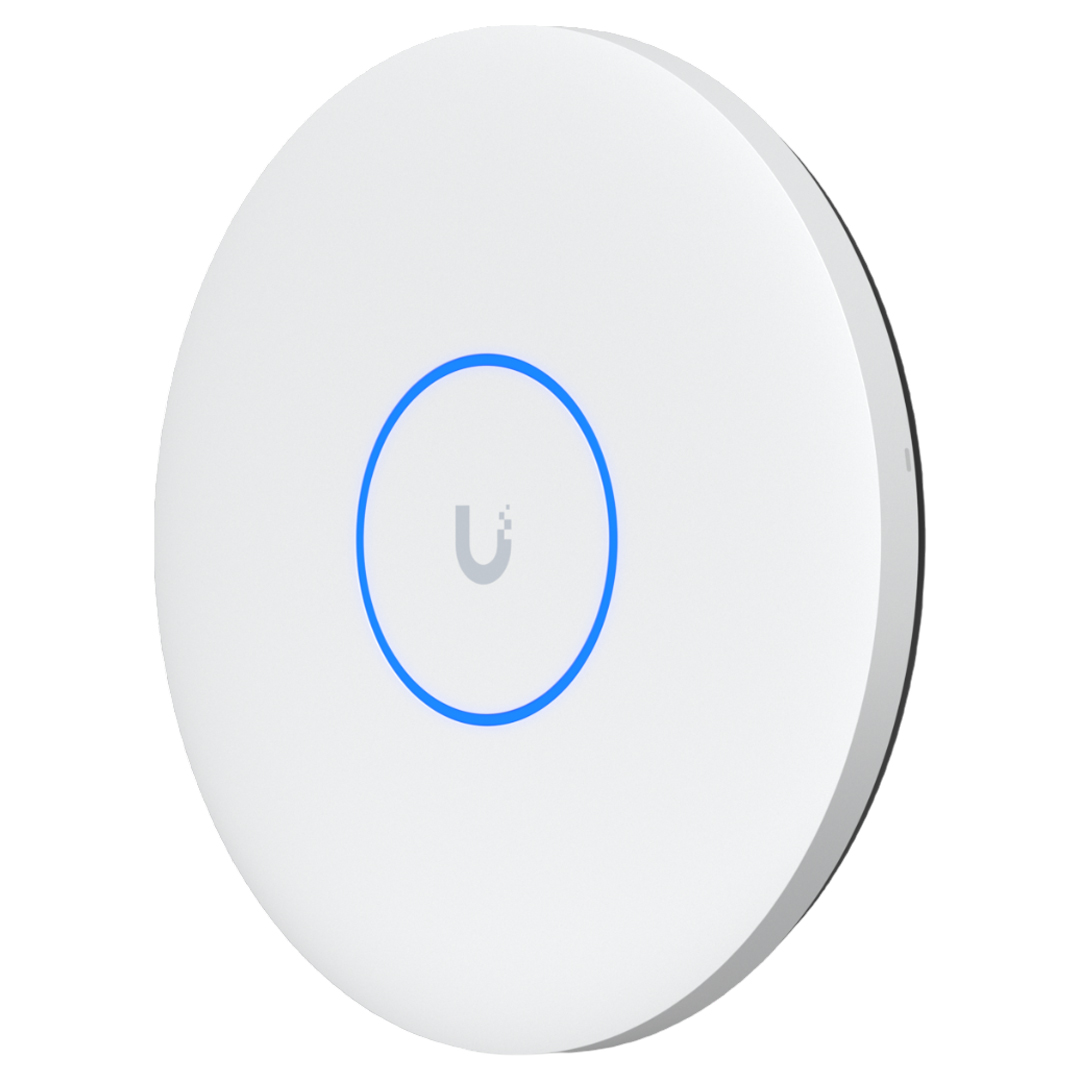

Front View

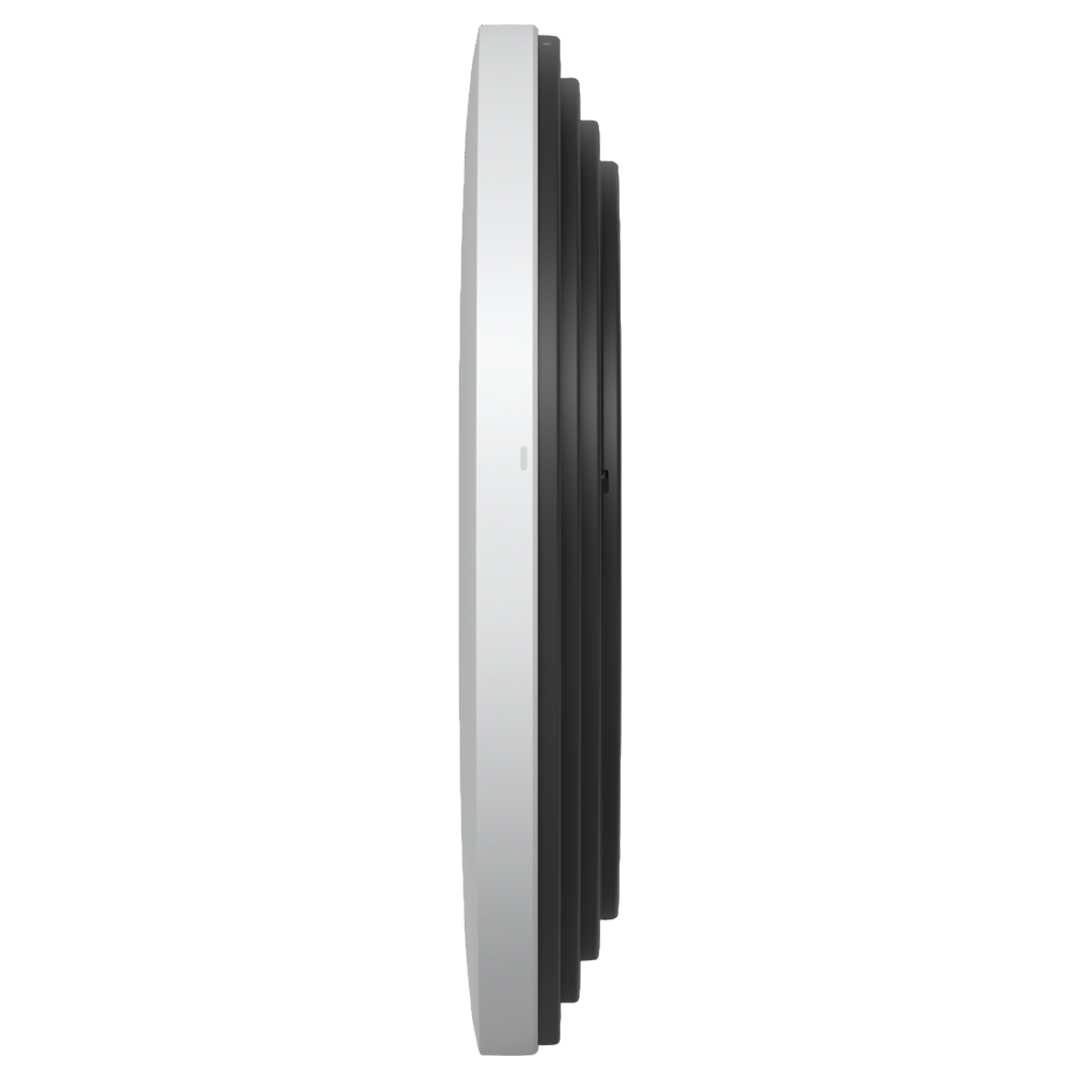

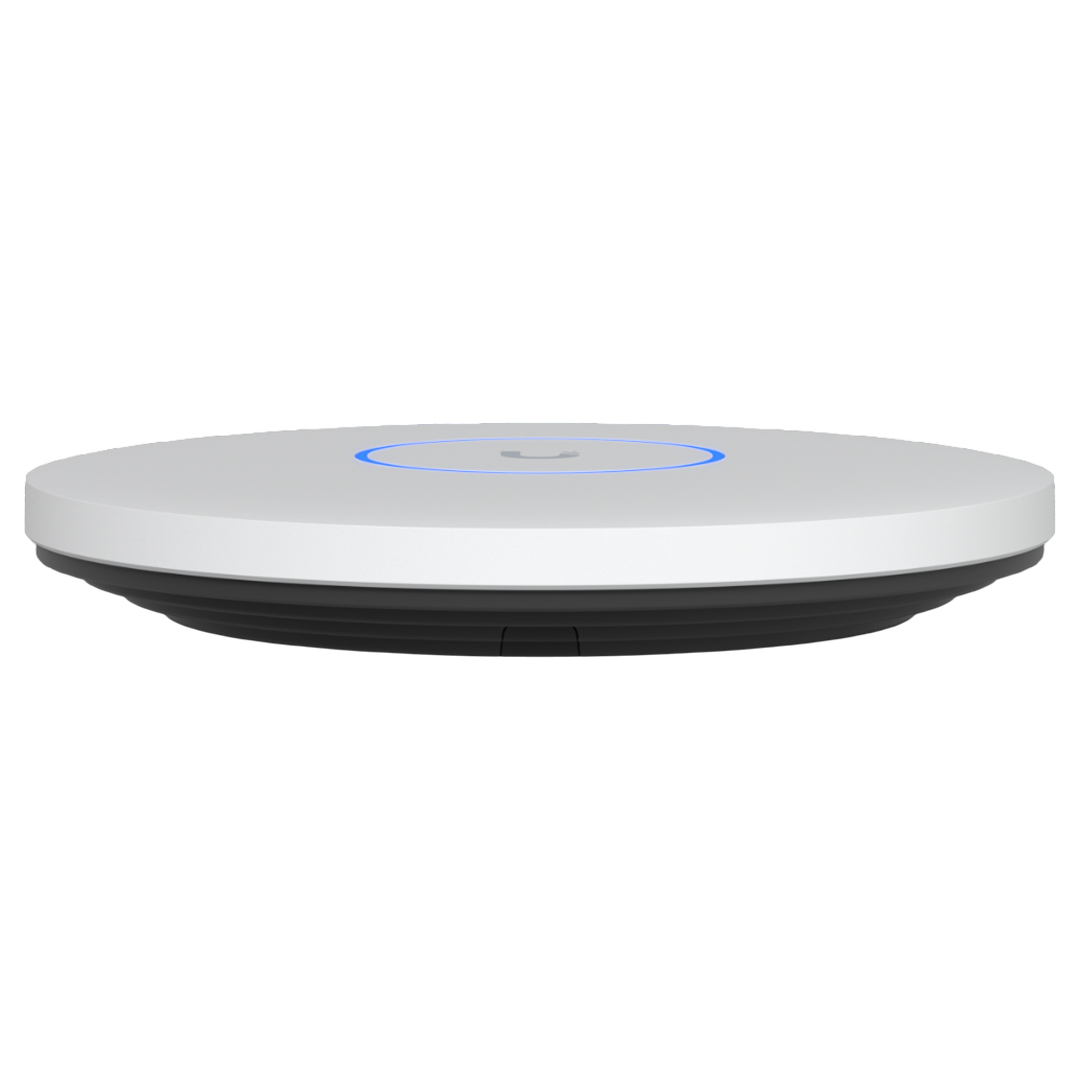

Side View

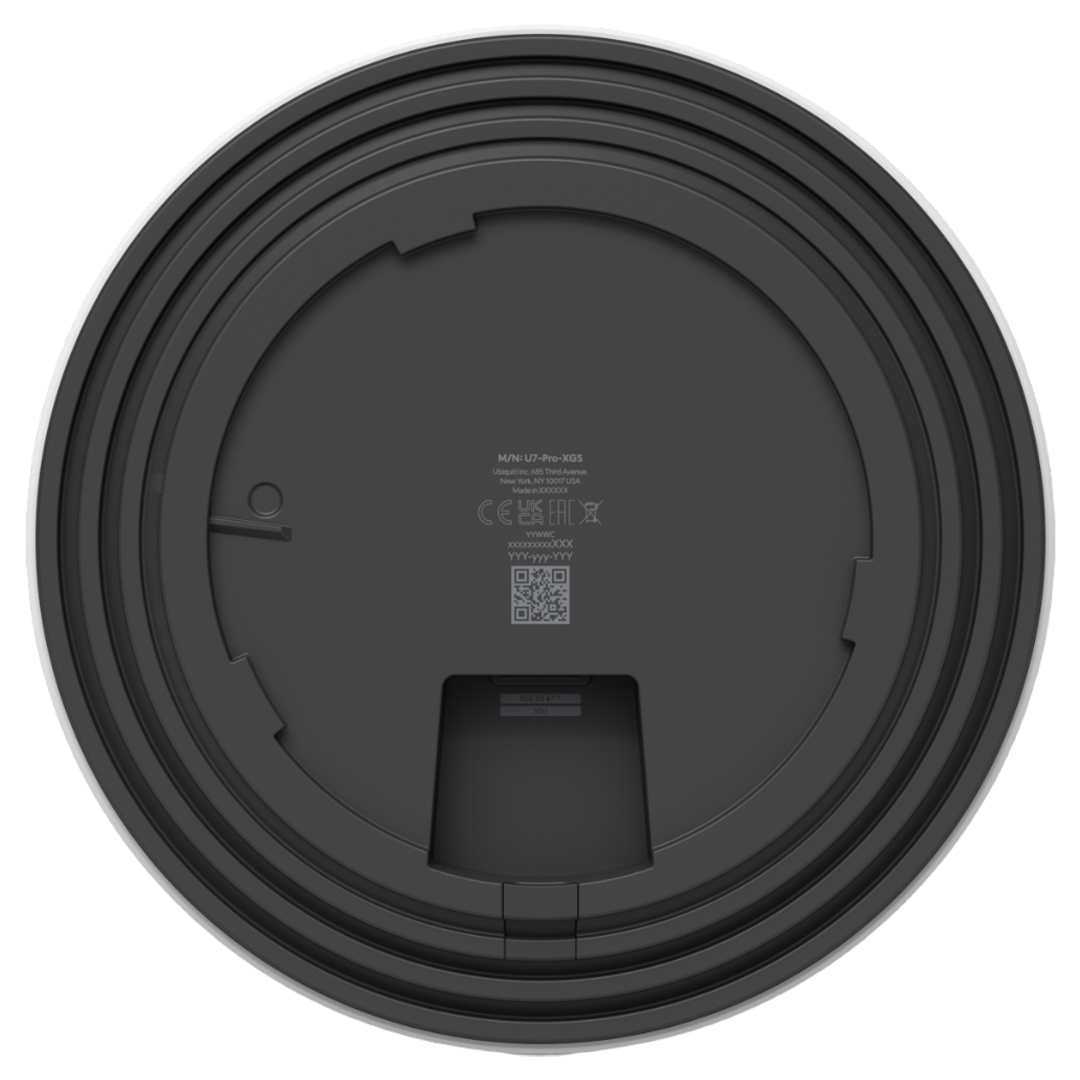

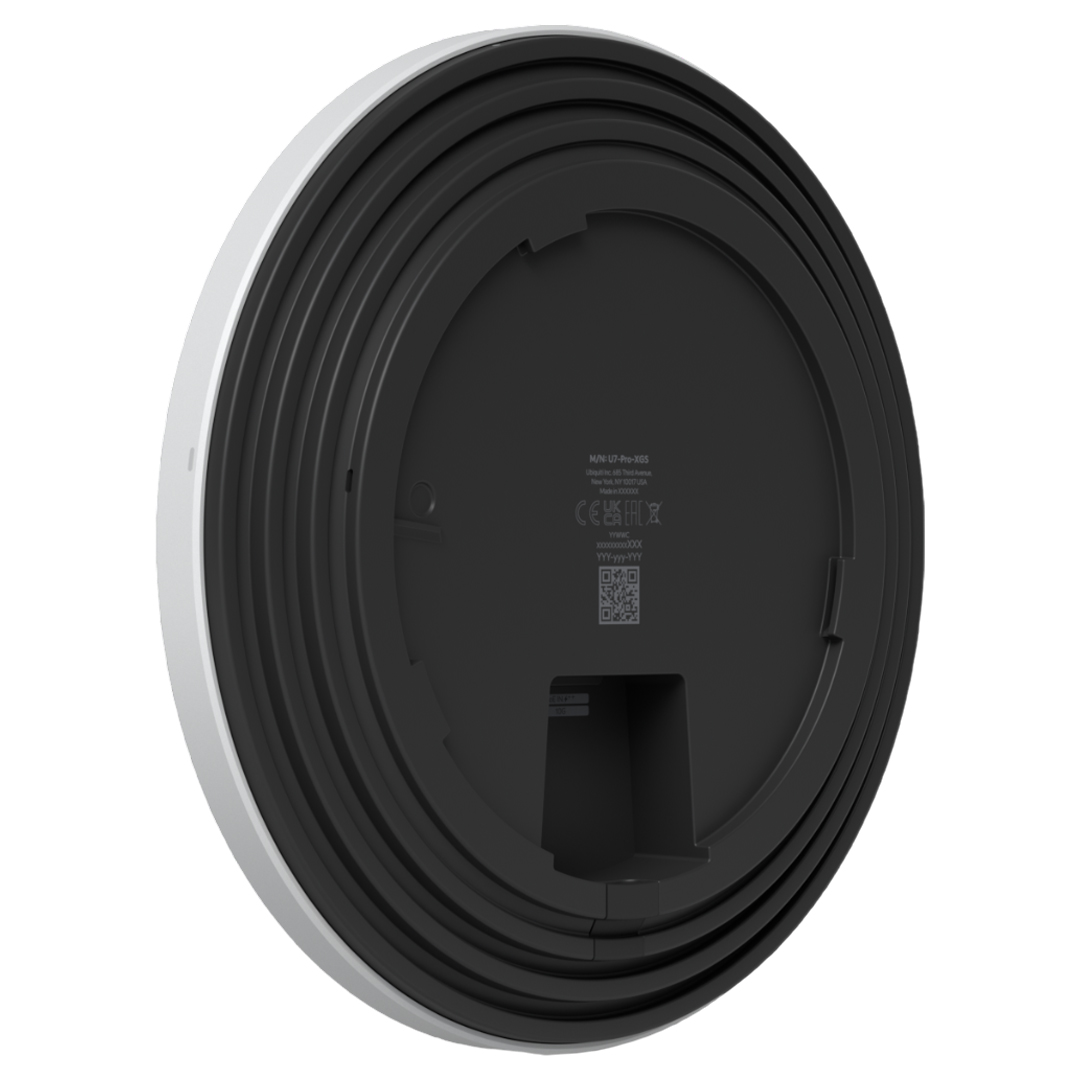

Back View
Specifications
General Data
| Model Number |
U7-Pro-XGS |
| Colour |
White |
| Dimensions |
Ø215 x 32.5 mm (Ø8.5 x 1.3") |
| WiFi Standard |
WiFi 7 |
| Spatial Streams |
8 |
| Coverage Area |
160 m² (1,750 ft²) |
| Max. Client Count |
500+ |
| Uplink |
10 GbE |

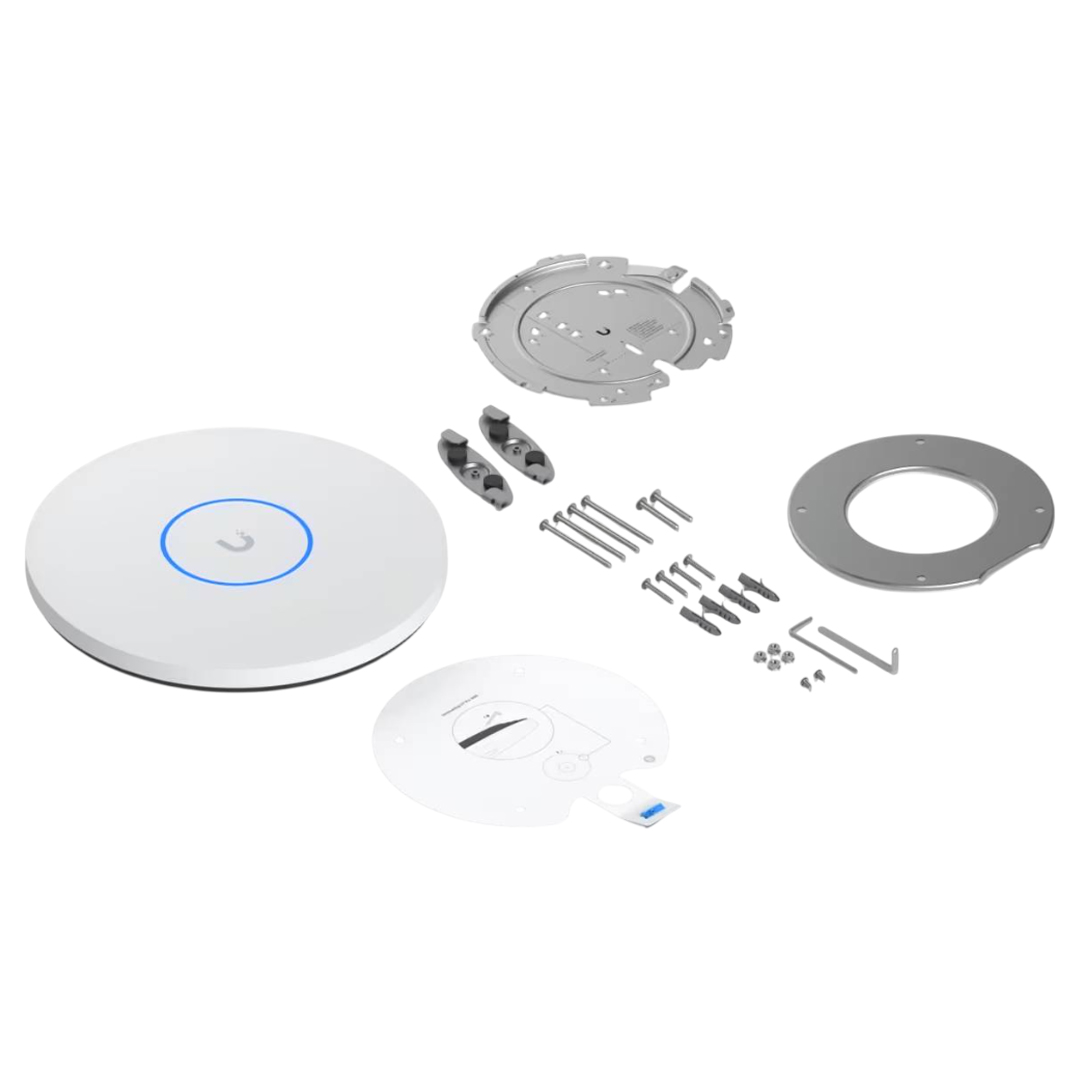

| Mounting |
Ceiling, Wall (Lite Mount Included) |
| Power Method |
PoE++ |
| Wireless Meshing |
Yes |
| Band Steering |
Yes |
| 802.11v BSS Transition Management |
Yes |
| 802.11r Fast Roaming |
Yes |
| 802.11k Radio Resource Management (RRM) |
Yes |
| Zero-Wait DFS |
Yes |
| Advanced Radio Management |
Yes |
| Real-Time Spectral Analysis |
Yes |
| Passpoint (Hotspot 2.0) |
Yes |
| Captive Hotspot Portal |
Custom Branding Landing Page: Yes
Voucher Authentication: Yes
Payment-Based Authentication: Yes
External Portal Server Support: Yes
Password Authentication: Yes
Guest Network Isolation: Yes |
| Private Pre-Shared Key (PPSK) |
Yes |
| WiFi Speed Limiting |
Yes |
| Client Device Isolation |
Yes |
| WiFi Schedules |
Yes |
| RADIUS over TLS (RadSec) |
Yes |
| Dynamic RADIUS-Assigned VLAN |
Yes |
Performance
| MIMO |
6 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 4 x 4 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate |
6 GHz: 5.8 Gbps (BW320)
5 GHz: 8.6 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40) |
| Antenna Gain |
6 GHz: 6 dBi
5 GHz: 6 dBi
2.4 GHz: 4 dBi |
| Max. TX Power |
6 GHz: 24 dBm
5 GHz: 29 dBm
2.4 GHz: 23 dBm |
| Max. BSSIDs |
8 per Radio |
| Supported Data Rates |
802.11be (WiFi 7): 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320), 5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n: 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
Hardware
| Max. Power Consumption |
29W |
| Supported Voltage Range |
42.5—57V DC |
| Networking Interface |
(1) 10 GbE RJ45 port |
| Weight |
800 g (1.8 lb) |
| Management |
Ethernet |
| Enclosure Material |
UV-stabilised polycarbonate, aluminium alloy |
| Mount Material |
Stainless steel (SUS304), galvanised steel (SGCC) |
| LEDs |
System: White/Blue |
| Channel Bandwidth |
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC |
| Ambient Operating Temperature |
-30 to 40° C (-22 to 104° F) |
| Ambient Operating Humidity |
5 to 95% noncondensing |
Software
| Application Requirements |
UniFi Network: Version 9.0.114 and later |
Backed by a 1 year Ubiquiti warranty.
