The ASUS TUF Gaming B650‑E Plus WiFi is a robust ATX motherboard for AMD Ryzen 7000–9000 CPUs, offering DDR5 support, PCIe 5.0 for GPUs and M.2 storage, plus Wi‑Fi 6E and 2.5 Gb Ethernet for fast connectivity. It features a durable 12+2+1 power delivery system with military-grade components, extensive cooling, USB 20 Gbps Type‑C, and ASUS reliability features like BIOS FlashBack and Q‑Release.
Warning: This product contains a button battery
- If swallowed, a lithium battery can cause severe or fatal injuries with 2 hours.
- Keep batteries out of reach of children.
- If you think batteries may have been swallowed or placed inside any of the body, seek immediate medical attention.
|
Features

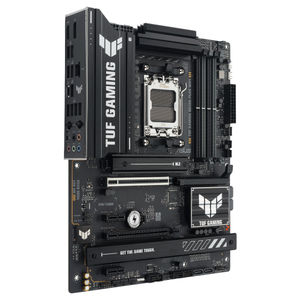

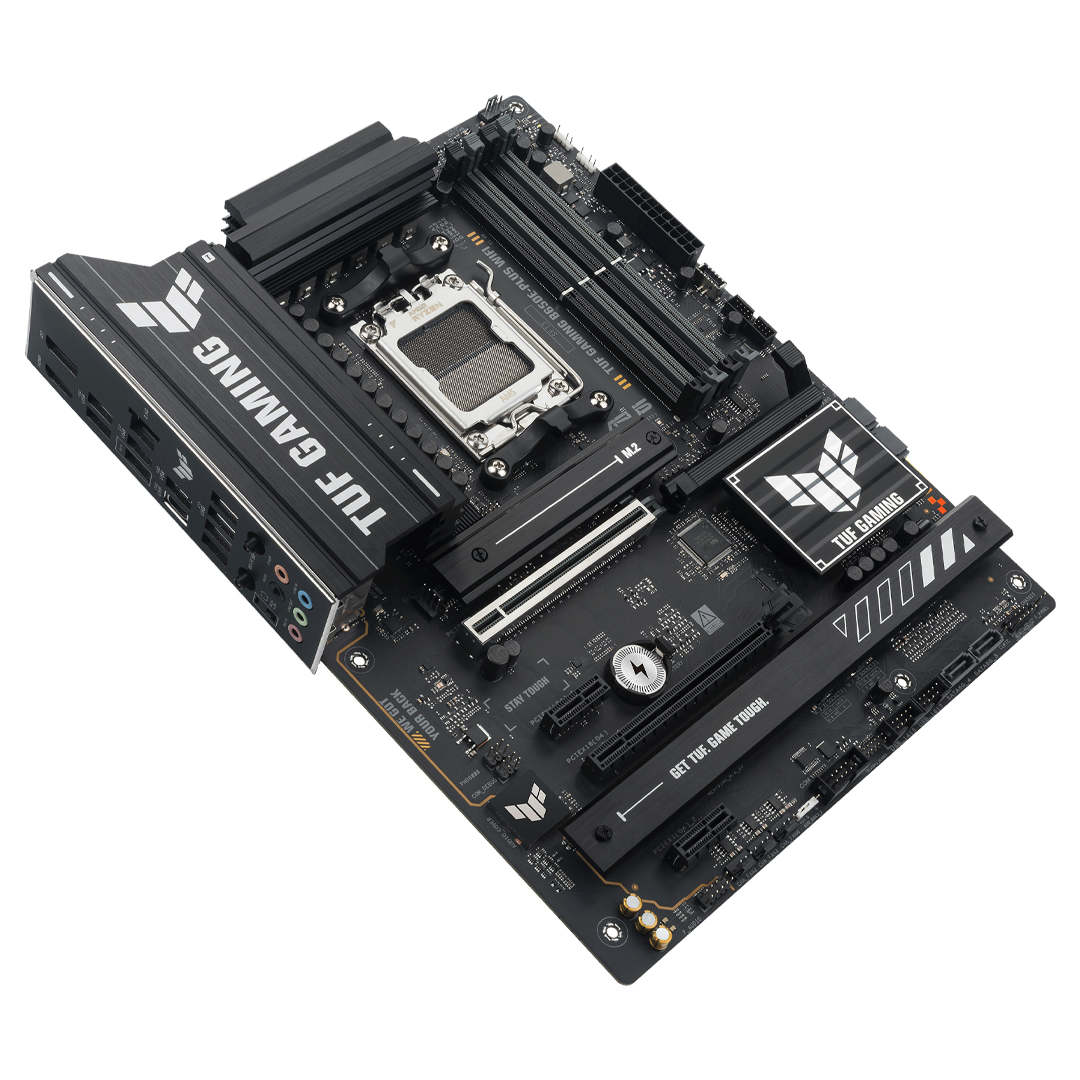

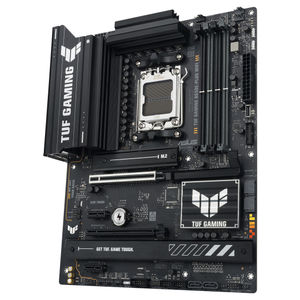

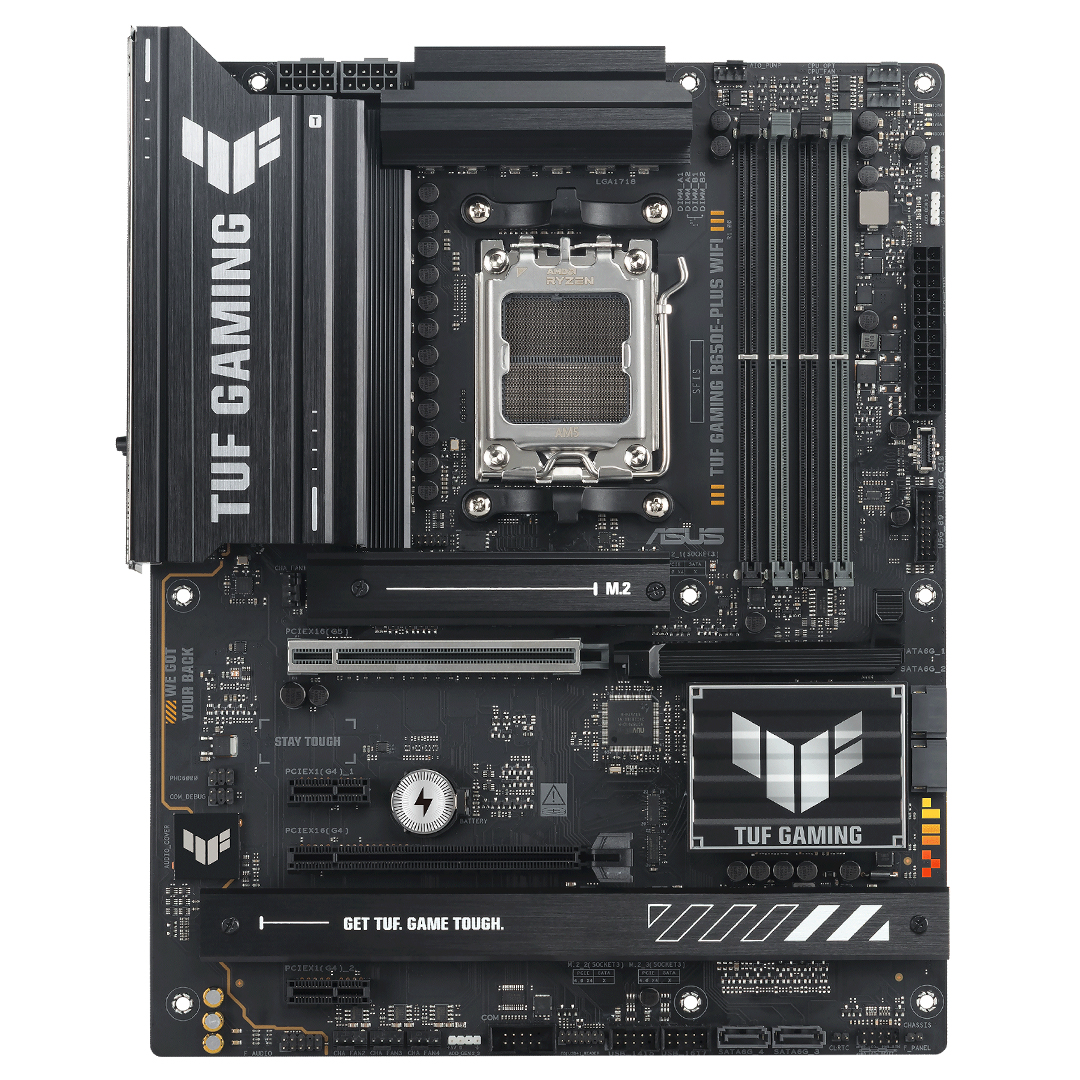

TUF Gaming B650E-Plus WiFi
ASUS TUF GAMING B650E-PLUS WIFI takes all the essential elements of the latest AM5 Socket for AMD Ryzen™ Desktop Processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series. This platform delivers the power and connectivity that advanced AI PC applications demand.
- 12(80A)+2(80A)+1(80A) power stages with enlarged VRM heatsinks
- PCIe® 5.0 for graphics cards and M.2 storage
- DDR5 memory module support
- USB 20Gbps Type-C®and a front-panel USB 10Gbps Type-C®header
- 2.5 Gb Ethernet
- WiFi 6E
- Two-Way AI Noise Cancellation
Spec Overview
- HDMI™
- DisplayPort
- 2 x USB 10Gbps
- Realtek 2.5Gb
- 2 x USB 2.0
- 1 x USB 10Gbps
- 1 x USB 20Gbps Type-C®
- 4 x USB 2.0
- Wi-Fi 6E
- BIOS FlashBack™
- 7.1-ch Audio
- 1 x PCIe 5.0 x16 @CPU
ASUS SafeSlot
- 1 x PCIe 4.0 x16 (max. @x4) @PCH
- 2 x PCIe 4.0 x1 @PCH
- Realtek 7.1-ch Audio CODEC Exclusive DTS Audio Processing
Audio Shielding
Premium audio capacitors
Dedicated audio PCB layers
Audio cover
- ProCool Connectors
- 3 x Addressable Gen 2 RGB headers
- 12(80A)+2(80A)+1(80A) Power Stages
- DDR5
- Dual Channel
- AEMP
- 1 x Front USB 10Gbps Type-C®
- 1 x Front USB 5Gbps Header
- 1 x M.2 2280 PCIe 5.0 x 4
- 1 x M.2 22110 PCIe 4.0 x 4
- 1 x M.2 2280 PCIe 4.0 x 4
- 4 x SATA 6Gb/s Ports
- AMD B650 Chipset
Intelligent Control
Comprehensive controls form the foundation of the ASUS TUF GAMING series. The TUF GAMING B650E motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximise productivity.
PBO Enhancement
CPU Performance Boost
AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD‘s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.
Advanced Mode
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
Search Function
Quickly and easily find the option or setting you need.
ASUS User Profile
Transfer configuration settings between different BIOS versions, or share them with friends.
EZ Mode
Quick and Simple Setup
EZ mode displays vital settings and stats, and it offers guided wizards, drag-and-drop functionality, and one-click application of important settings - all to help you get your rig up and running in no time.
Intuitive Graphical Fan Control
Fine-tune individual fan settings simply by dragging a curve with the mouse.
Aura On/Off Mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.
Armoury Crate
The ASUS-exclusive Armoury Crate centralises easy control of supported gaming products. A single intuitive interface lets you customise RGB lighting for all compatible devices and link them to Aura Sync for unified illumination. It also offers information and control for a select and growing hardware ecosystem, with input device settings, Fan Xpert 4 and Two-Way AI Noise Cancellation. Armoury Crate even features product registration, and a news section to stay in touch with the gaming community.
- Hardware Information
- Fan Xpert 4
- Two-Way AI Noise Cancellation
- Aura Sync
- Driver & Manual Download
- Account Management
Rock-Solid Performance
With upgraded power delivery and comprehensive cooling options to fuel AMD's latest CPUs, plus support for faster memory and storage, TUF GAMING B650E motherboards are the perfect foundation for your next high-core-count AMD battle rig.
Power Design
Driver and MOSFET
12(80A)+2(80A)+1(80A)
12(80A)+2(80A)+1(80A) power stages are rated to handle up to 80 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible AMD processors.
8+8 Pin ProCool Power Connectors
Compared to traditional power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.
- Enhanced Solid Pin - 10A - Up to 42% Improvements
*The theoretical value is for reference only.
System Stability
TUF Components
TUF Chokes
Certified military-grade TUF chokes deliver rock-solid power to the CPU, improving system stability.
TUF Capacitors
The TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X-longer lifespan than standard motherboard capacitors.
- 52 % Temperature
- 2.5 x Lifespan
Controller
Digi+ VRM
The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimised for ultra-smooth and ultra-clean power delivery to the CPU at all times.
Memory & Storage
DRAM Overclocking Performance
Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With TUF GAMING B650E motherboards, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.
For entry-level modules without EXPO™ memory support, we’ve got your back.
ASUS Enhanced Memory Profile (AEMP)
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimised frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.
DDR5 Dominance
For those who want to fly past stock DDR5 speeds, TUF GAMING B650E motherboards are primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO™) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.
PCIe® 5.0 M.2
PCIe 5.0 Support
TUF GAMING B650E motherboards also feature one PCIe 5.0 M.2 slot to enjoy the fastest data transfers of up to 128 Gbps (Actual transmission speed will be lower than theoretical maximum speed.), and all M.2 slots support for NVMe RAID configurations to take advantage of the latest available speeds.
- PCIe 5.0x4 - 128 Bandwidth (Gbps)
Cooling
Cooler By Design
1. Enlarged VRM Heatsink
The extensive surface area of this heatsink covers the VRMs and chokes to improve heat dissipation.
2. Optimised M.2 Heatsink Design
All M.2 slots have dedicated heatsinks, keeping M.2 SSDs at optimal operating temperatures to ensure consistent performance and reliability.
Comprehensive Fan Controls
TUF GAMING B650E motherboards feature comprehensive fan controls that can be configured via Fan Xpert 4 utility in Armoury Crate or the award-winning ASUS UEFI BIOS.
Multiple Temperature Source
Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or via the UEFI.
AIO Water-Cooling
An integrated AiO system enables full control of PWM or DC water pumps, making it perfect for custom or self-contained cooling setups.
Smart Fan Protection
A dedicated integrated circuit protects each fan header from excess heat and electrical currents.
4-Pin PWM/DC Fan
All onboard chassis fan headers support auto-detection of PWM or DC fans.
Connectivity
TUF GAMING B650E motherboards reach new heights of performance potential with the latest version of PCI Express, while an arsenal of USB ports includes two Type-C® connections, and Thunderbolt™ (USB4®) expands compatibility and bandwidth even further.
USB 20Gbps Type-C
USB 3.2 Gen 2x2 Type-C®
Extensive USB support ensures connections to a wide array of external devices. This TUF GAMING motherboard includes a USB 3.2 Gen 2x2 Type-C port on the rear I/O panel that delivers transfer speeds of up to 20 Gbps.
PCIe 5.0
The latest AMD processors bring PCIe 5.0 support to the market. PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks.
- PCIe 5.0 x 16 - 512 Aggregate Bandwidth (Gbps)
Front USB 10Gbps Type-C®
Front USB3.2 Gen 2 Type-C®
A full complement of USB ports support high-end rigs loaded with peripherals, including a front-panel USB 3.2 Gen 2 Type-C® connector that provides data transfer speeds of up to 10 Gbps.
USB4® Support
TUF GAMING B650E motherboards feature USB4® support via a Thunderbolt™ (USB4®) header. With an ASUS add-on card (ASUS add-on card is sold separately.), TUF GAMING motherboards can enable bi-directional speeds of up to 40 Gbps on a single cable, while providing power to fast-charge device. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to dual displays with 4K resolution.
- Thunderbolt™ (USB4®) - 40 Gbps
Easy PC DIY
The TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 4, hardware info, Two-Way AI Noise Cancellation, RGB options and peripheral settings. This platform has intuitive tools to build and optimise dream rigs.
TUF Gaming Alliance
Build with Confidence
TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.
TUF Protection
SafeSlot & SafeDIMM
SafeSlot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protect memory modules on select ASUS motherboards, empowering you to insert your modules with speed, accuracy and confidence.
ESD Guards
ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge — greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV. Surface-mounted TVS diodes in a dual in-line package help protect your PC from voltage spikes.
USB Connectors
Additional on-circuit ESD transient-voltage-suppression.
TUF LANGuard
TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.
- 2.5x Higher Surge Tolerance Line to Ground - 15KV
*ESD result is undertaken by individual LANGuard
Stainless Steel Back I/O Panel
TUF GAMING motherboards have a corrosion-resistant stainless steel back I/O panel bonded with chromium oxide to provide a lifespan that’s three times longer than traditional panels. With this protective feature, TUF GAMING motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.
- 3 x Longer Lifespan
- 72 hr Salt Fog Testing
Easy Configuration
M.2 Q-Latch
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD, neatly eliminating the need for screws.
Removable Captive Screws
Specialised M.2 slot screws reduce the risk of dropping or losing a screw somewhere in your case during M.2 heatsink removal.
Q-LED
The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components ― CPU, RAM, graphics card, storage devices ― are functioning normally during startup.
Immersive Gaming
TUF GAMING B650E motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalise your gaming atmosphere.
Networking
WiFi 6E
Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. It delivers ultrafast wireless networking speeds and improved capacity, as well as better performance in dense wireless environments. (WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi.)
MyASUS
MyASUS offers a variety of support features to help you contact customer service, troubleshoot issues and optimise product performance. You can also use MyASUS to enable the WiFi SmartConnect function to automatically connect to the wireless router with the best signal.
2.5 Gb Ethernet
2.5 Gb on-board Ethernet kicks your LAN connection up a notch with a bandwidth improvement of up to 2.5X. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.
Two-Way AI Noise Cancellation
This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone (An audio splitter (3.5 mm audio jack Y-cable) is necessary when using a 3.5 mm headset.) and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are removed so you can hear and be heard with perfect clarity while gaming or during calls.
- 500M Deep-Learning Database
- Audio Input/output
- High Fidelity
- Minimal Performance Impact
Audio
Realtek 7.1 Surround Sound
The unique audio codec designed in close collaboration with Realtek for TUF GAMING B650E motherboards features an unprecedented 108 dB signal-to-noise ratio for the stereo line out and a 103dB SNR for the line in, providing pristine audio quality.
Better Audio Effects
DTS Audio Processing
DTS® Audio Processing enhances gaming headset and speaker audio experiences by reducing distortion and by providing deeper bass, so games, movies and music sound better. It also allows you to customise audio settings.
- Music Mode
- Movie Mode
- Game Mode
- Custom Audio
Lighting
Addressable Gen 2 RGB Header
Three addressable Gen 2 RGB headers will support up to 500 LEDs on Gen 2 RGB devices, empowering Aura Sync to automatically tailor lighting effects across your whole system. The new headers also offer full backward compatibility with existing Aura Sync gear.
This Changes Everything
From this New Platform, You Can See the Future
Build your next rig with an AMD Ryzen™ 7000 Series processor and ASUS TUF GAMING motherboards to experience advanced performance. With up to 16 “Zen 4” cores and 32 threads, boost clocks of up to 5.7GHz, and 80MB cache, the AMD Ryzen™ 7000 Series keeps you ahead of the game. (Max boost for AMD Ryzen processors is the maximum frequency achievable by a single core on the processor running a bursty single-threaded workload. Max boost will vary based on several factors, including, but not limited to: thermal paste; system cooling; motherboard design and BIOS; the latest AMD chipset driver; and the latest OS updates. GD-150)
You’ll also gain access to new features for gamers with AMD Socket AM5, from the speed of DDR5 memory to the increased bandwidth of PCIe® 5.0. AMD Ryzen™ 7000 Series processors and AMD socket AM5 motherboards are unlocked for overclocking to personalise your experience. Gain even more performance when you overclock your DDR5 memory with AMD EXPO™ technology. (Overclocking and/or undervolting AMD processors and memory, including without limitation, altering clock frequencies / multipliers or memory timing / voltage, to operate outside of AMD’s published specifications will void any applicable AMD product warranty, even when enabled via AMD hardware and/or software. This may also void warranties offered by the system manufacturer or retailer. Users assume all risks and liabilities that may arise out of overclocking and/or undervolting AMD processors, including, without limitation, failure of or damage to hardware, reduced system performance and/or data loss, corruption or vulnerability. GD-106)
Backed by a 3 year Asus warranty.
