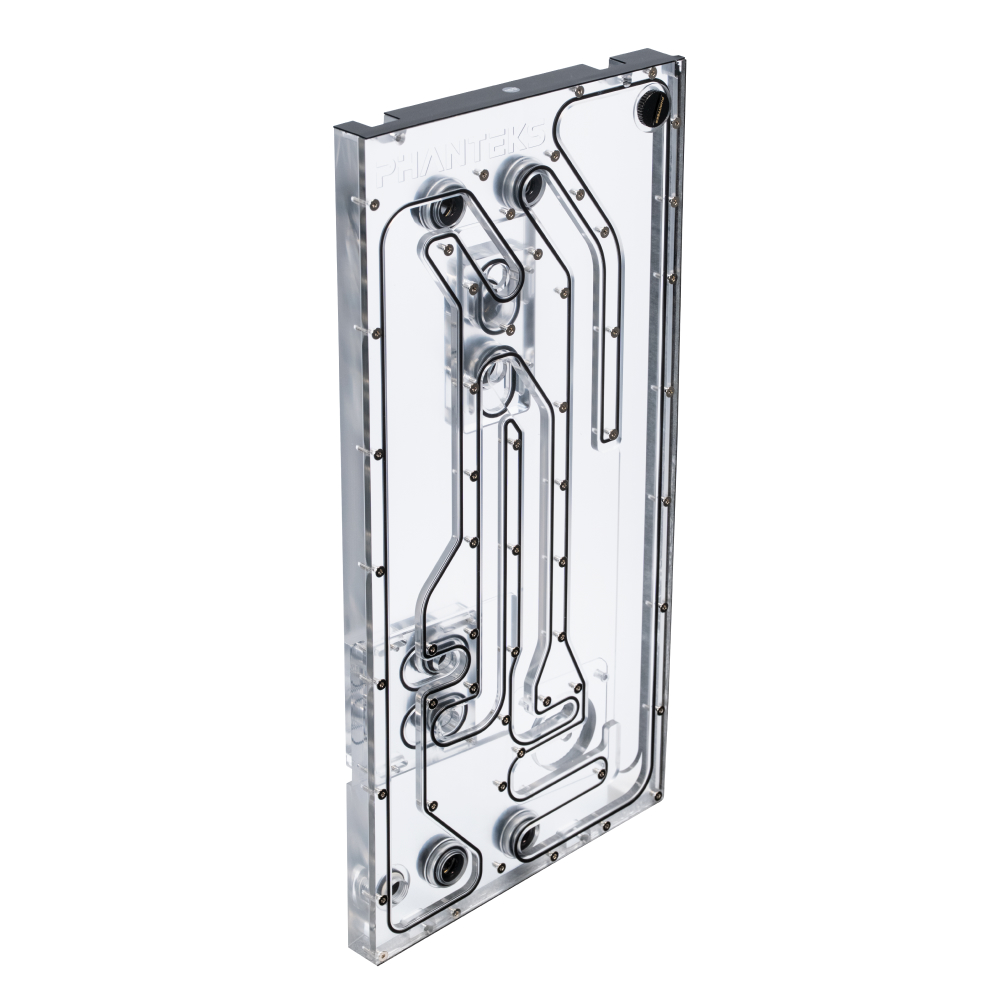

The Phanteks Glacier EZ-Fit NV5 Acrylic Distribution Plate is a premium custom water cooling solution designed exclusively for the Phanteks NV5 chassis, built for the powerful DDC pump with dual radiator support, and adjustable CPU and GPU ports for perfect loop alignment. Pre-installed 16mm EZ-Fit push-in fittings ensure compatibility with both hard and soft tubing, while integrated D-RGB lighting adds stunning visual effects to elevate any build. Crafted from high-quality acrylic for durability and clarity, this distro plate combines performance, precision, and aesthetics to transform your PC into a showcase of engineering excellence.
Features
Phanteks Glacier EZ-Fit Distribution Plate for NV5 with Integrated 16mm EZ-Fit fitting
Custom NV5 compatibility
Specifically designed for the Phanteks NV5 chassis, the Glacier EZ-Fit NV5 Acrylic Distro Plate ensures a seamless fit and maximum performance in your custom water cooling loop.
Efficient cooling performance

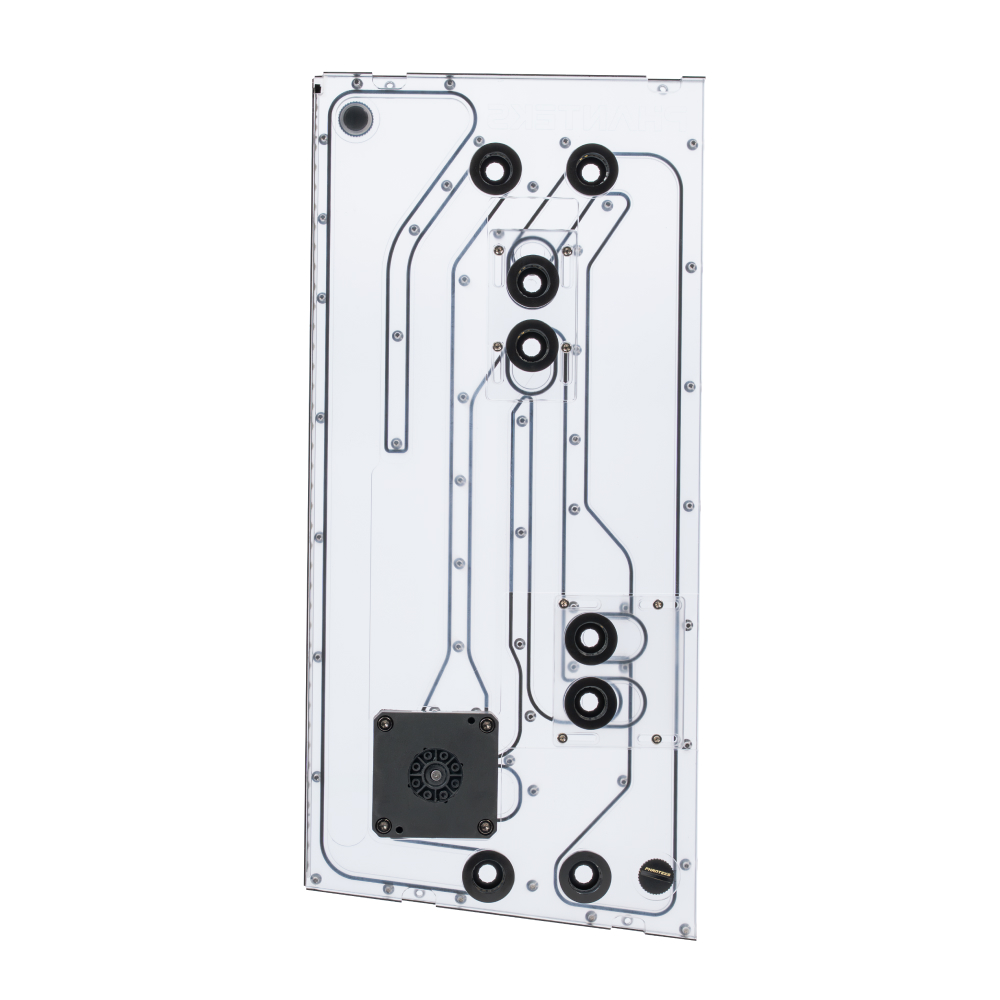

Built to support a powerful DDC pump, this distribution plate delivers efficient cooling for both CPU and GPU with dual radiator support for advanced thermal management.
Perfect loop alignment
Features adjustable CPU and GPU ports that allow for precise alignment, making installation and tubing runs clean and efficient.
Integrated EZ-Fit fittings
Comes pre-installed with 16mm EZ-Fit push-in fittings, compatible with both hard and soft tubing, simplifying the setup process without compromising reliability.

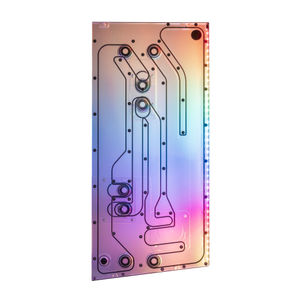

Dynamic D-RGB lighting
Integrated D-RGB lighting enhances your build with vibrant illumination, turning your system into a showcase of performance and style.
Specifications
General Data
| Product Name |
Glacier EZ-Fit NV5-DISTRO |
| Model Number |
PH-GEF_DIS-NV5 |
| Description |
Glacier EZ-Fit DIS-NV5, Distro Plate for NV5 |
| Color |
Black |
| Dimensions (W x H x D) |
194.8 x 429.3 x 49.75 mm |
| Product Type |
Chassis specific distro plate |
| Materials |
Cast Acrylic, Aluminum Mounting Hooks, Brass Fitting, ABS Fitting inserts |
| Chassis Support List |
Phanteks NV Series NV5 |

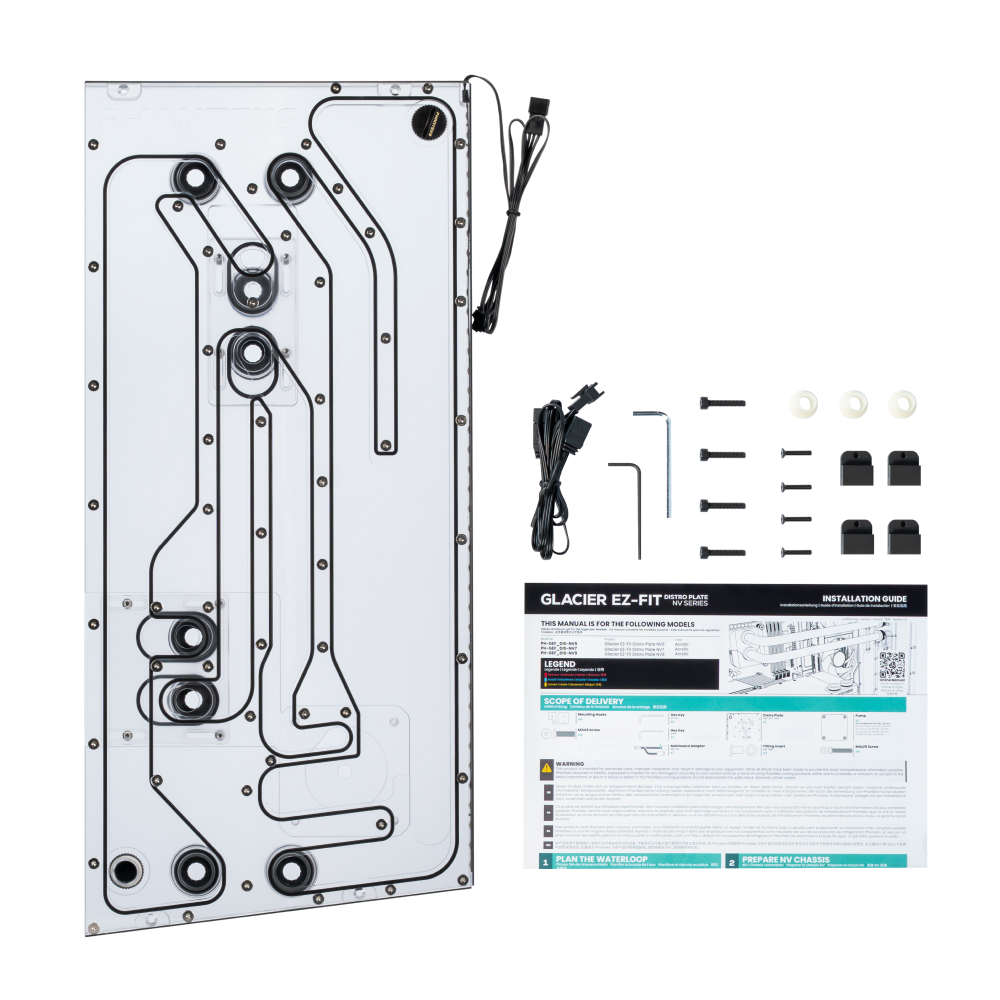

| What's Included |
1x DIS-NV5 Distro Plate
8x Push-in Fitting (Pre-installed)
2x G1/4 Brass Stop Fitting (Pre-installed)
1x D-RGB Cable (Pre-installed)
4x M3x16 Mounting Screws
1x M4x25 Pump Screw
4x Anodized Aluminum Mounting Hooks
1x 2mm Allen Key, 1x 2.5mm Allen Key
3x ABS Fitting Insert
1x Installation Guide |
Ports & Fittings
| Inlet Ports |
4x M24 |
| Outlet Ports |
4x M24 |
| Fill Port |
1x G1/4 |
| Drain Port |
1x G1/4 |
| Fittings |
8x M24 EZ-Fit 16mm Fittings, Pre-installed |
| Plugs |
2x G1/4 Brass Plug Fitting, Pre-installed |
| Hard Tube Support |
16 +/- 0.1mm OD, HI-PMMA, PMMA, Acrylic, PETG, Glass |
| Soft Tube Support |
16 +/- 0.1mm OD, 10 +/- 0.1mm ID, PVC |
Lighting
| LED Type |
Digital-RGB LED strip hard board (+5V, data, empty, Ground) |
| LED strip length |
390mm |
| Number of LEDs |
39pcs |
| Input Voltage |
+5V |
| Current |
Max 0.96A |
| Wattage |
Max 4.8W |
Backed by a 2 year Phanteks warranty.
