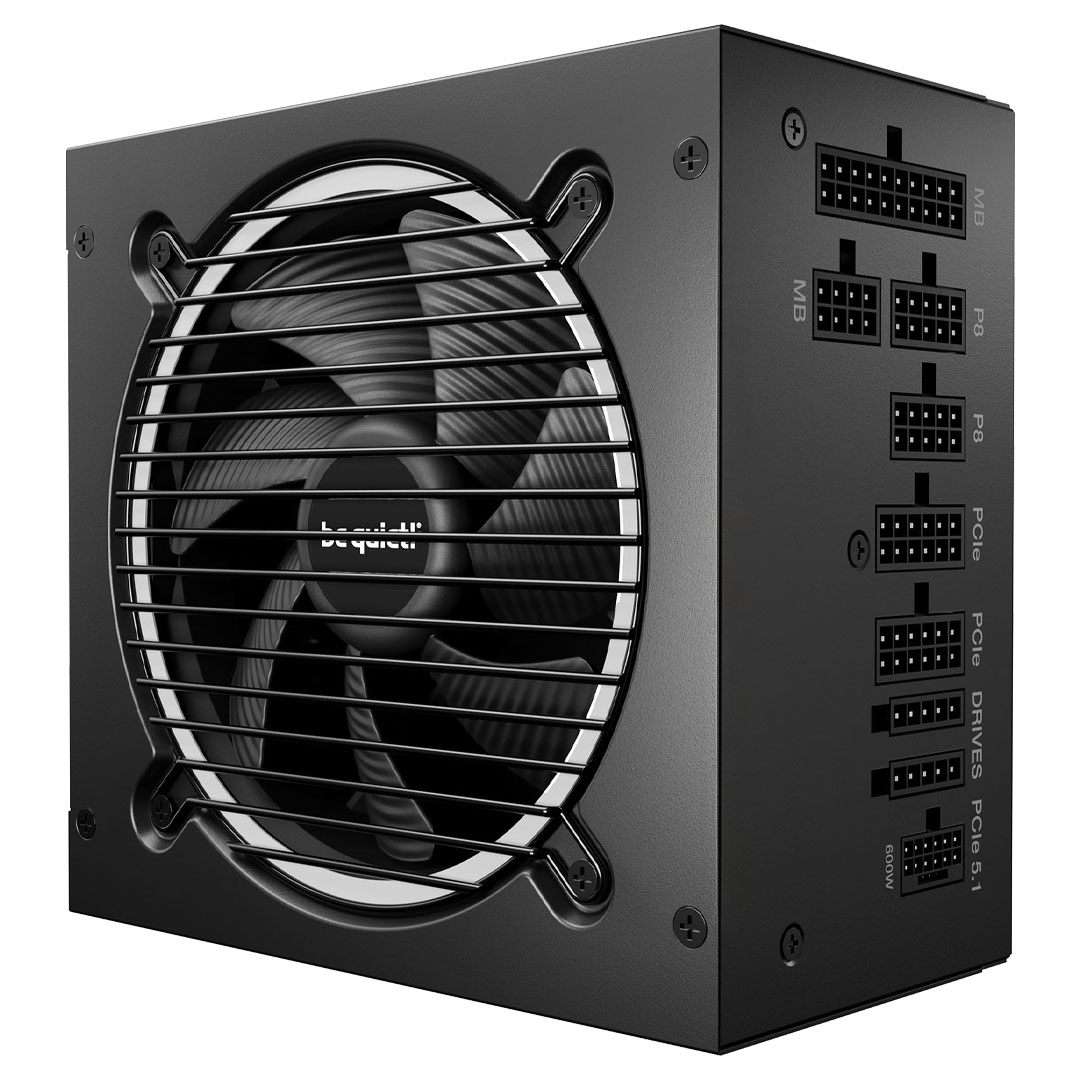

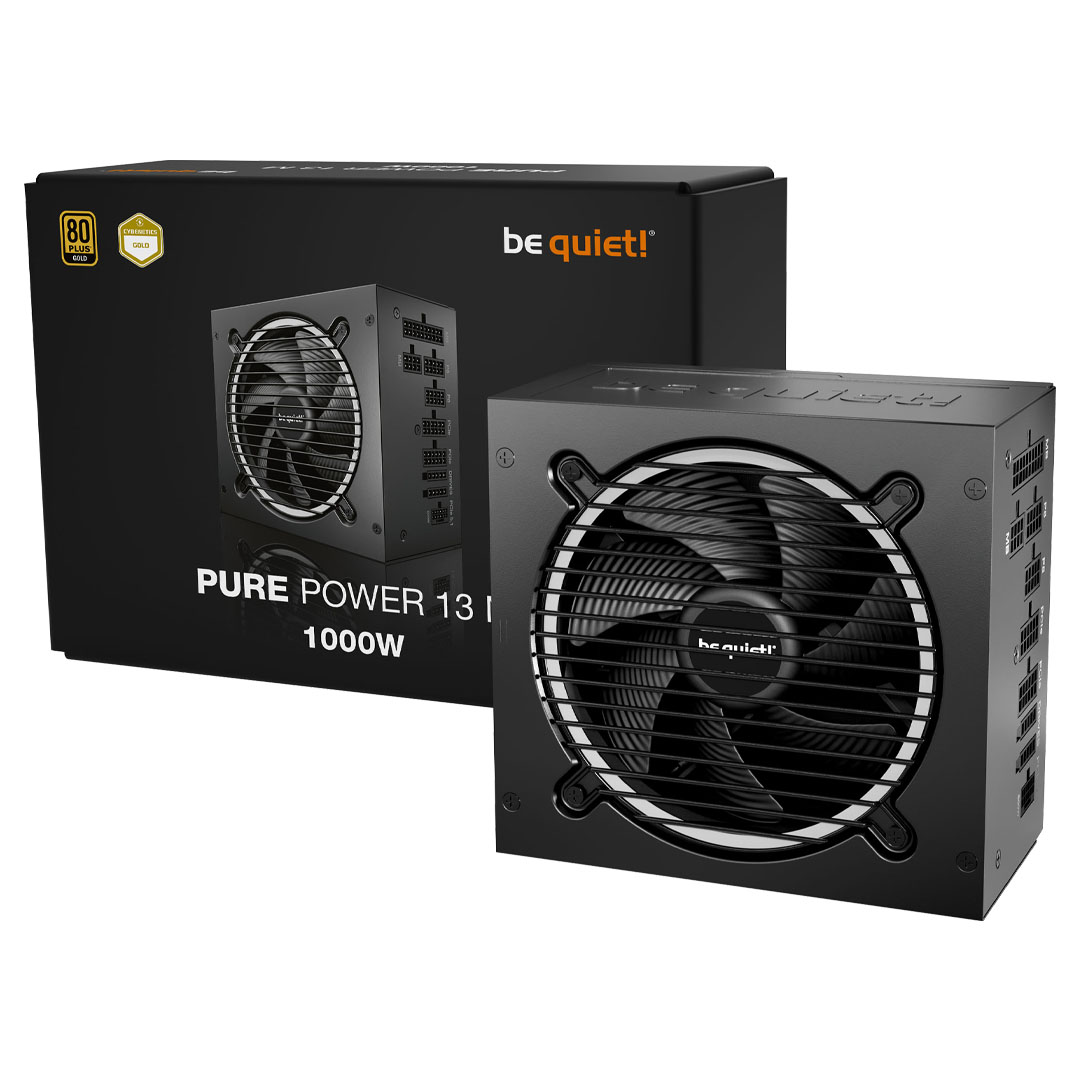

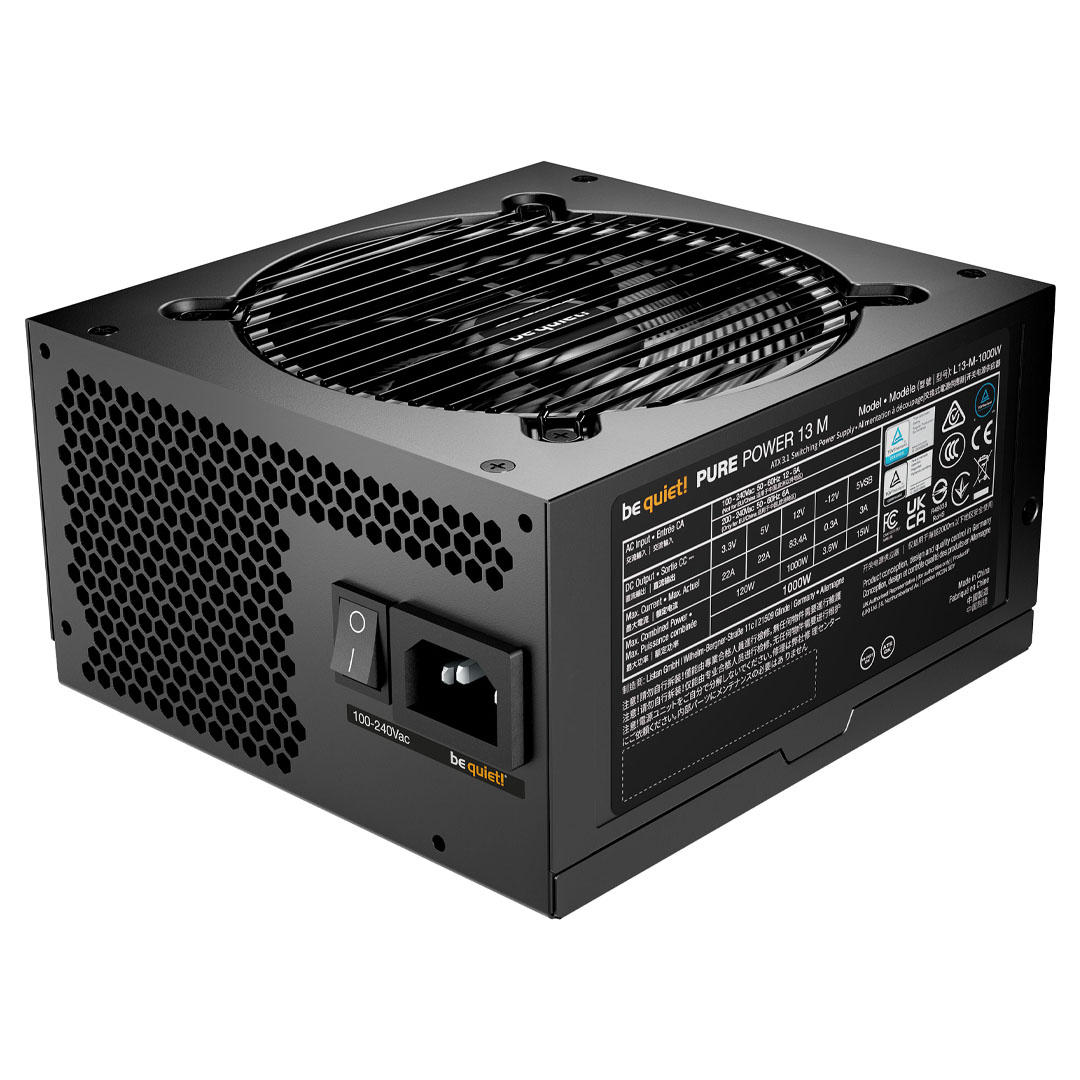

Be Quiet! Pure Power 13 M 1000W Power Supply

BP028AU | be quiet!
$219
In stock
Order within 3h 7m 27s for same day dispatch!
Buy now, pay later!
The be quiet! Pure Power 13 M 1000W is a reliable and efficient power supply unit designed for quiet systems. It offers 80 PLUS Gold efficiency, ensuring reduced energy consumption. The PSU features semi-passive operation, allowing the fan to remain off under low loads for silent performance. It is ATX 3.1 compliant and comes with a 12V 2x6 connector for next-gen PCIe 5.1 graphics cards, along with two PCIe 6+2 connectors for current graphics cards. With its modular cables and compact design, the Pure Power 13 M 1000W provides both efficiency and flexibility for your PC build.



Features


Pure Power 13 M 1000W

Exceptional Quiet, Superior Features

Pure Power 13 M 1000W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Pure Power 13 M 1000W offers the best combination of features with outstanding compatibility.

  • 80 PLUS® Gold efficiency (up to 94.4%)
  • ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
  • Exceptionally silent semi-passive 120mm be quiet! fan
  • Semi-passive construction for quiet and energy-saving operation
  • LLC technology for advanced stability and voltage regulation
  • One massive high-performance 12V-rail
  • One PCIe 5.1 12V-2x6 600W and 4 PCIe 6+2 connectors for overclocked high-end GPUs

Be Quiet! Pure Power 13 M 550W Power Supply Feature 1

80 PLUS® Gold Certified

Very High Operating Efficiency

Pure Power 13 M 1000W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 94.4%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 13 M 1000W is always the correct choice for quiet systems and gaming PCs!

Be Quiet! Pure Power 13 M 550W Power Supply Feature 2

Future-Proof Your System

Fulfils All ATX 3.1 Specifications

Pure Power 13 M 1000W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and 4 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.

Be Quiet! Pure Power 13 M 550W Power Supply Feature 3

The New Standard of Power

For Massive Transient Loads

Pure Power 13 M offers 1000W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Pure Power 13 M 1000W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.

Be Quiet! Pure Power 13 M 550W Power Supply Feature 4

Semi-Passive Zero-RPM Cooling

Enjoy the Silence

While under low load, the fan turns off completely until its services are needed again for more demanding operations. This feature, combined with the reliable be quiet! fan and its airflow-optimised fan blades, make Pure Power 13 M 1000W exceptionally silent in all load scenarios.

Be Quiet! Pure Power 13 M 550W Power Supply Feature 5

High-Class Technologies

Rock-Solid Stability

With its LLC topology Pure Power 13 M 1000W provides best-in-class voltage regulation and efficiency. That makes it perfect for building very quiet systems or upgrading gaming and media creation PCs.

Be Quiet! Pure Power 13 M 550W Power Supply Feature 6

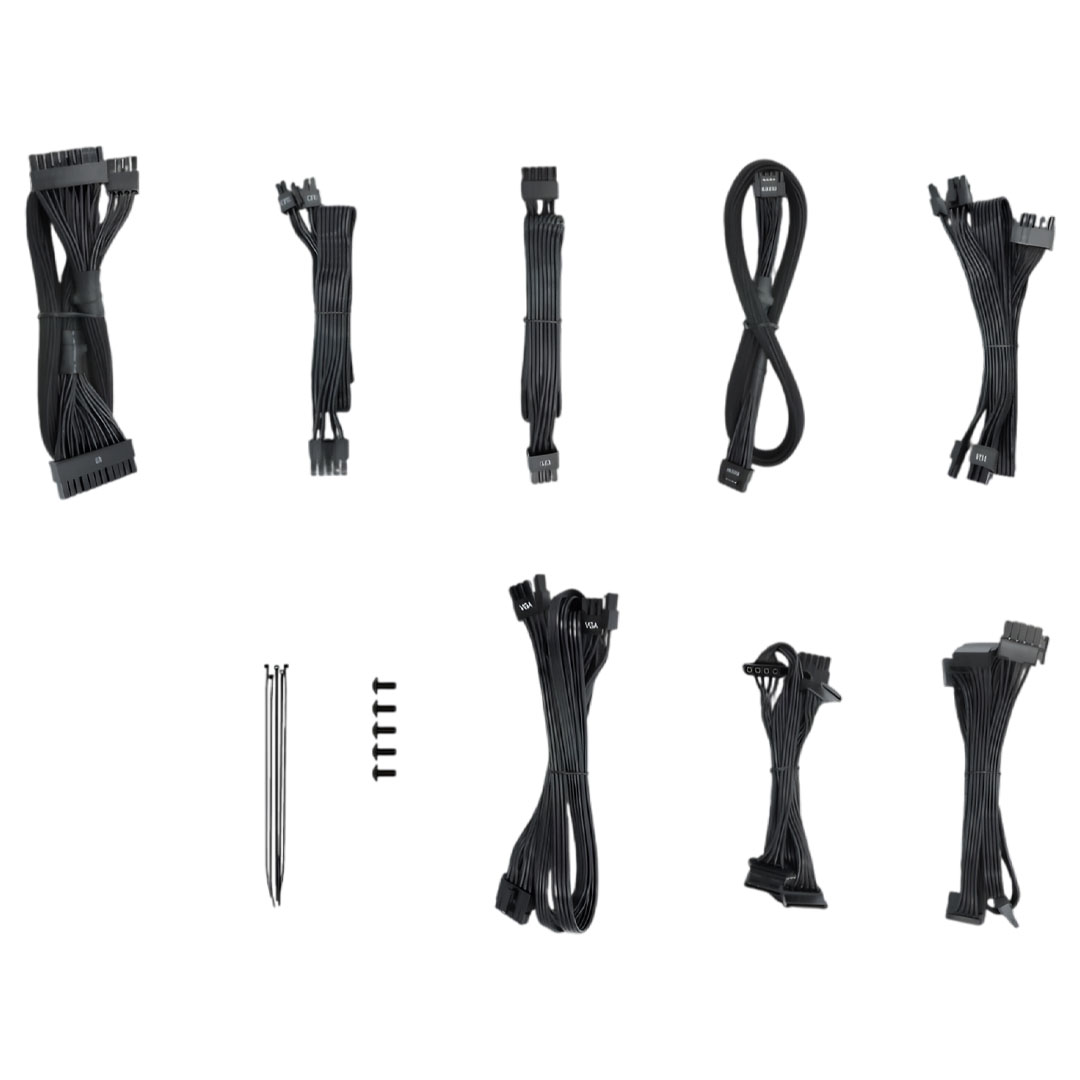

Modular Cables

Utmost Convenience and Compatibility

Thanks to their modularity, all unnecessary cables in the system are left out. Pure Power 13 M 1000W simplifies cable management and routing for a tidy-looking system. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures inside the case.

Specifications


General Data

Model Number BP028AU
Model Pure Power 13 M | 1000W
Continuous Power (W) 1000
Peak Power (W) 1000
Form Factor Version 3.1
Form Factor EPS 12V Version 2.92
Topology LLC + SR + DC/DC
Voltage (Vac) 100 - 240
Frequency (Hz) 50 - 60
Input Current (A) 12 / 6
Power Factor at 100% Load >0.98
Modern Standby Yes
Power Consumption in Standby (W) <0.1
Average Life Time (h / 25°C) >100,000
Operating Temperature Up to (°C) 40

Efficiency

80 PLUS Certification Gold
Efficiency (%) at 230V, 2% Load 72.6
Efficiency (%) at 230V, 10% Load 91.2
Efficiency (%) at 230V, 20% Load 93.9
Efficiency (%) at 230V, 50% Load 94.4
Efficiency (%) at 230V, 100% Load 92.5

Fan and Cooling Technology

Fan Silence-optimised be quiet! fan
Fan Size (mm) 120
Bearing Technology Rifle
Motor Technology 4-pole fan motor
Max. Fan Speed (rpm) 2000
dB(A) at 20% Load 13.6
dB(A) at 50% Load 14.1
dB(A) at 100% Load 30.3

Output

12V Single Rail Operation Yes
+3.3V (A) 22
+5V (A) 22
+12V1 (A) 83.4
-12V (A) 0.3
+5Vsb (A) 3
Max. Combined Power 12V (W) 1000
Max. Combined Power 12VHPWR (W) 600
Max. Combined Power 3.3V + 5V (W) 120
Hold-Up Time at 100% Load (ms) 21.09
Hold-Up Time at 80% Load (ms) 28.62
Power Good Signal (ms) 100 - 150

Cables and Connectors

Modular Cables Yes
Sleeved Cables Yes
Flat Cables Yes
Maximum Cable Length (cm) 95
Cable Length to Motherboard (cm) 55
No. of Cables 8
ATX-Motherboard (20+4-Pin) 1
P4+4 (CPU) 1
P8 (CPU) 1
12V-2x6 Cables 1
PCI-e 6+2-Pin (GPU) 4
SATA 6
PATA 2

Protection

OTP (Over Temperature Protection) Yes
OCP (Over Current Protection) Yes
OPP (Over Power Protection) Yes
SCP (Short Circuit Protection) Yes
OVP (Over Voltage Protection) Yes
UVP (Under Voltage Protection) Yes
SIP (Surge & Inrush Protection) Yes

Safety Certification

BSMI Yes
CB Yes
CCC Yes
CE Yes
cTUVus Yes
CU Yes
FCC Yes
RCM Yes
TÜV Yes
UKCA Yes

Environmental Directives

Energy Star 8.0
ErP Yes
WEEE Yes
RoHS Yes

Scope of Delivery

Screws Yes
Cable Ties Yes
User Manual Languages CN, DE, EN, ES, FR, JP, PL, RU, TW

Casing

Dimensions without Cable (L x W x H), (mm) 160 x 150 x 86
Weight (kg) 2.64
Colour Black

Service

Warranty (Years) 10
International Hotline / Free of Charge Yes / DE, FR
Backed by a 10 year be quiet warranty.
