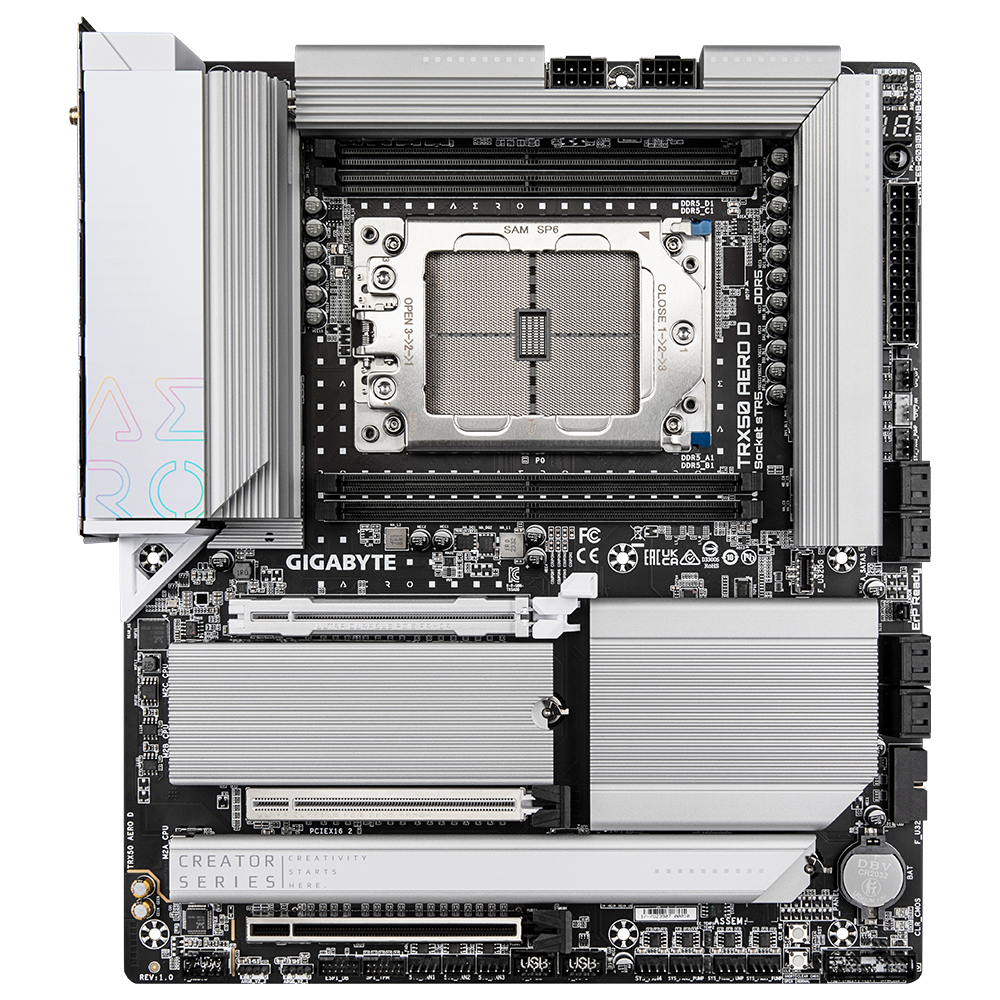

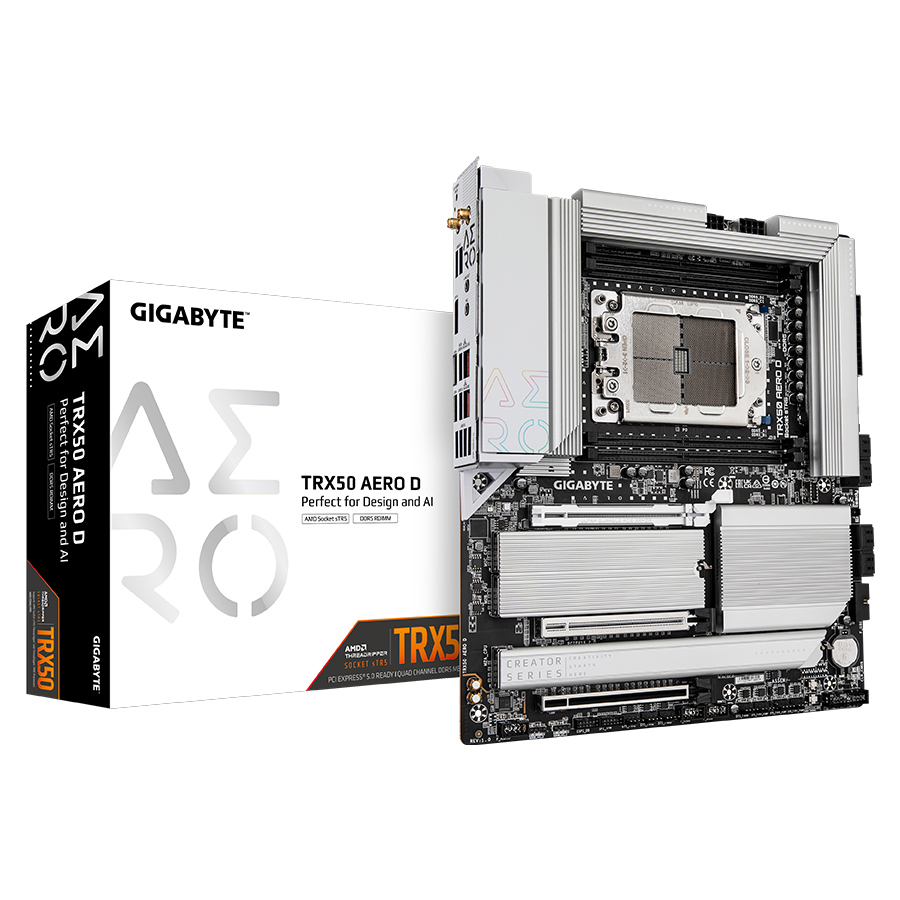

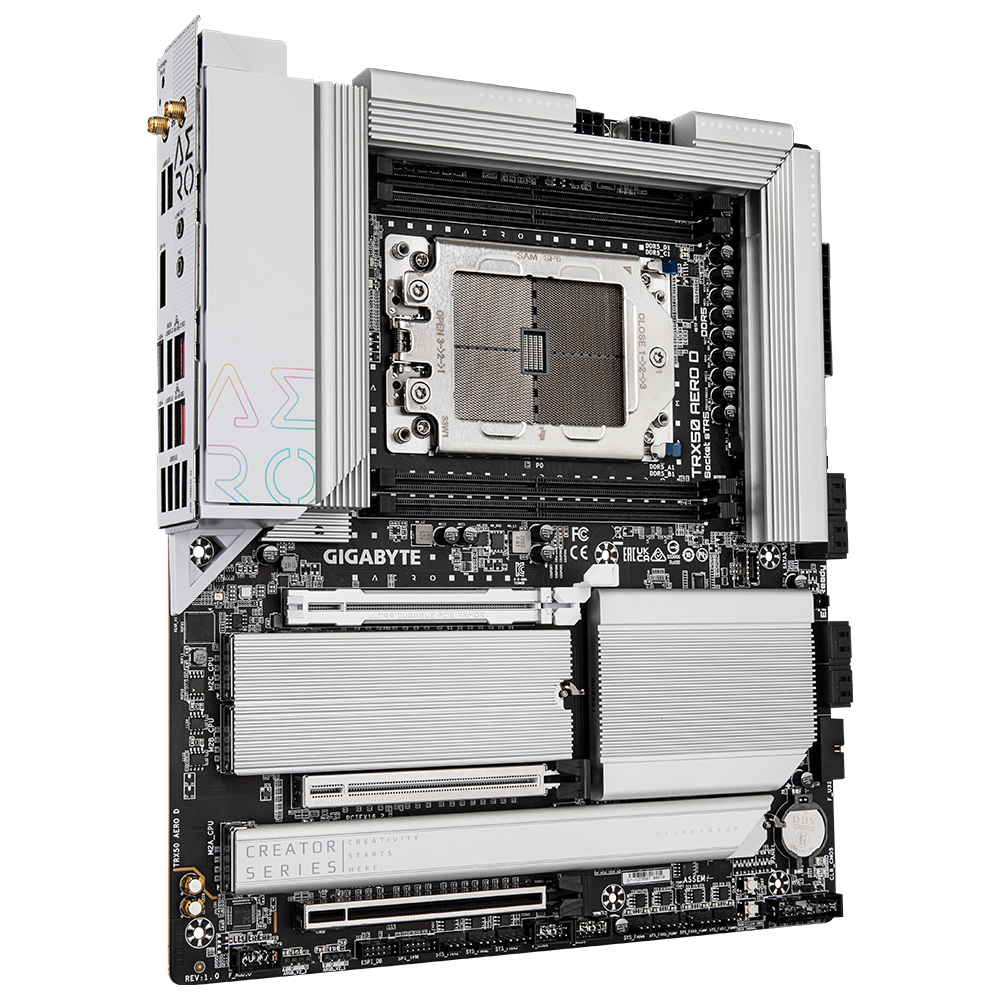

The Gigabyte TRX50 Aero D is an E-ATX motherboard designed for AMD Ryzen Threadripper series processors, featuring a 16+8+4 phase digital VRM for stable power delivery and quad-channel DDR5 R-DIMM support up to 1TB. It offers extensive connectivity with dual USB Type-C ports, WiFi 7, 10GbE and 2.5GbE LAN, four M.2 slots and three PCIe x16 slots, making it ideal for high-end content creation and AI workloads.
Warning: This product contains a button battery
- If swallowed, a lithium battery can cause severe or fatal injuries with 2 hours.
- Keep batteries out of reach of children.
- If you think batteries may have been swallowed or placed inside any of the body, seek immediate medical attention.
|
Features
TRX50 Aero D AI Era Motherboard (Rev. 1.0)
HEDT motherboard designed for AI, content creation scientific computing.
- Supports AMD Ryzen™ Threadripper™ PRO 7000 series/ Ryzen™ Threadripper™ 7000 series Processors
- Breakthrough Performance：16+8+4 Phases Digital VRM Solution
- Quad Channel DDR5：4*SMD R-DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- Reinforced Overall Thermal：VRM Thermal Armour Advanced & M.2 Thermal Guard
- Ultimate Scalability: 3*PCIe x16 slots for Multi-GPU and 4*PCIe x4 M.2 slots
- Next-gen Connectivity: Dual USB4® Type-C ports
- Blazing Fast Networks: 10GbE + 2.5 GbE Dual LAN and Wi-Fi 7
- PCIe UD Slot X：PCIe 5.0 x16 slot with 10X strength for graphics card
- EZ-Latch Click：M.2 heatsinks with screwless design
- EZ-Latch Plus：M.2 slots with quick release design
- Hi-Fi Audio with DTS:X® Ultra：ALC4080+ALC897 CODEC
- UC BIOS：User-Centred intuitive UX with Quick Access function
Performance
- 16+8+4 Phases Digital VRM
108A Smart Power Stage
12 Layer PCB
PCIe 5.0 Ready Low Loss PCB
2X Copper PCB
- Full-length PCIe slots
1 x PCIe 5.0 x16 with PCIe UD Slot X
1 x PCIe 5.0 x16 Slot
1 x PCIe 4.0 x16 Slot
- UD Power Connector
24 pin ATX with UD Solid Pin
8+8 pin CPU with UD Solid Pin
- 4 x DDR5 R-DIMMs, Quad Channel with Memory UD Slot
- Supports AMD Ryzen™ Threadripper™ PRO 7000 series/ Ryzen™ Threadripper™ 7000 series Processors
- 4 x M.2 Slots with Thermal Guard
3 x M.2 Gen 5 M.2 UD Slots
1 x M.2 Gen 4 M.2 Slot
Thermal
- VRM Thermal Armour Advanced
8 mm Heatpipe
7 W/mk Thermal Pad
Integrated IO Shield
- M.2 Thermal Guard

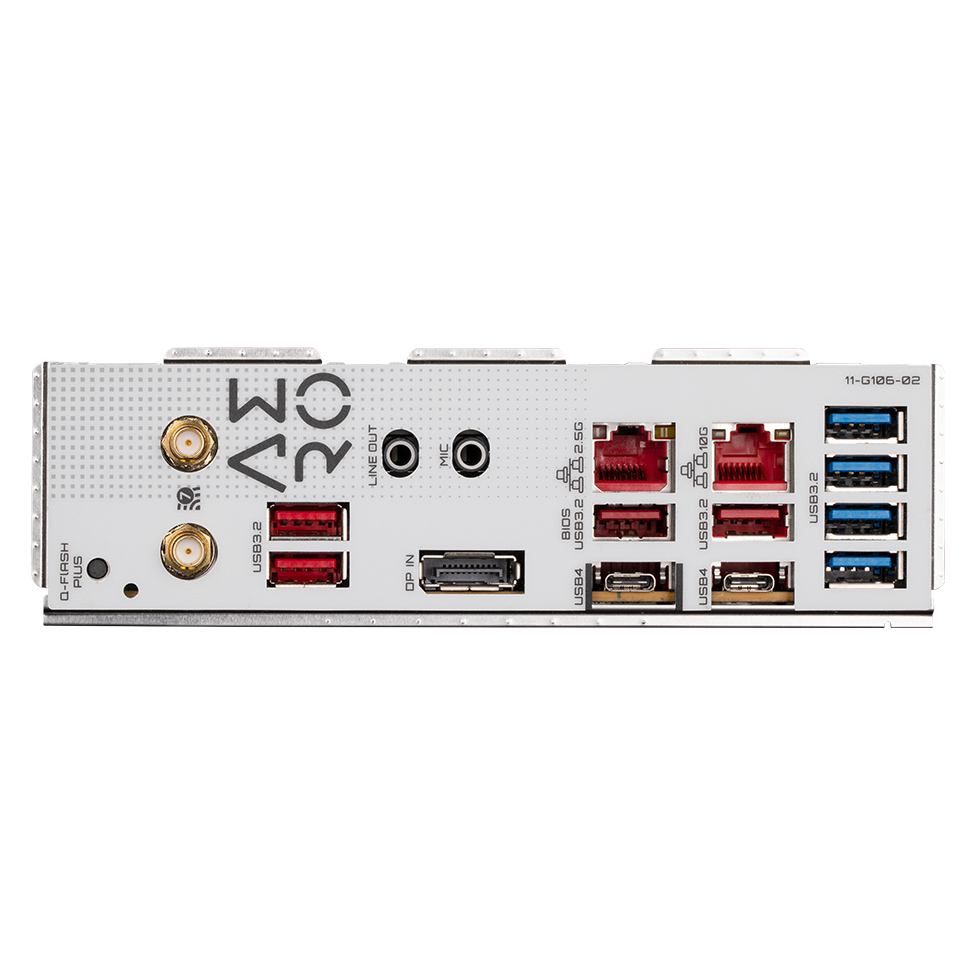

Connectivity
- Q-FLASH Plus button
- Wi-Fi 7 with Ultra-high gain Antenna
- 4 x USB 3.2 Gen 2
- DisplayPort Input
- 2.5 GbE LAN
- USB4® USB Type-C® (DisplayPort Output)
- USB4® USB Type-C®
- 10 GbE LAN
- 4 x USB 3.2 Gen 1
- RGB Fusion
3 x Addressable LED Header
1 x RGB LED Header
- Front USB-C® 20Gb/s
- Experience enchanting audio thrill
Realtek ALC4080 + ALC897
Audiophile Grade Capacitors
DIY Friendly
- M.2 EZ-Latch Click & M.2 EZ-Latch Plus
- PCIe EZ-Latch
- Multi-Key Button
VRM
Breakthrough Performance, More Possibility
Revolutionary Power Design
The TRX50 AERO D motherboard is designed for content creators, enthusiasts, and AI professionals. Equipped with the all-digital 16+8+4 phases power design of the Infineon multiphase PWM controller, the TRX50 AERO D unleashes exceptional performance of the new generation AMD Ryzen™ Threadripper™ CPU, while providing the best stability under heavy workloads and committing the most powerful HEDT platform to builders.
Digital VRM Design
Ensures stable high-power delivery for exceptional performance.
16 VCORE Phases 108A SPS
To unleash the full potential of multi-core CPU performance.
8 SOC Phase SPS + DrMOS
For CPU integrated GPU performance and memory control.
4 MISC Phases 108A SPS
Provide stable power for CPU-connected PCIe lanes.
Advanced Thermal
With enlarged full metal thermal design, TRX50 AERO D motherboard brings you exceptional performance while keep the system cool and solid.
VRM Thermal Armour Advanced
These solid heatsinks are forged to keep your system cool.
High coverage MOSFETs and integrated moulded heatsinks improve thermal efficiency by enhancing airflow and heat exchange.
- Real One-piece Build
- Multi-Cut Design
- 4x Large Surface
4X Large Surface
The surface area has been increased up to 4X larger compared to traditional heatsinks, resulting in improved heat dissipation from the MOSFETs.
Real One-Piece Build
The TRUE single-piece heatsink offers superior cooling performance compared to competitors' multi-piece designs, thanks to its one-piece construction and larger surface area.
Multi-Cut Design
With its Multi-Cut Design, this heatsink includes multiple channels and inlets to enhance airflow, resulting in improved heat transfer performance.
8mm Heatpipe
8mm Mega-Heatpipe with refined manufacturing minimises the gap between the heatpipe and heatsink, ensuring efficient MOSFET heat transfer and enhancing thermal performance.
7 W/mK Thermal Pad
Optimise hardware performance with advanced 7 W/mK thermal pad for efficient heat dissipation.
M.2 Thermal Guard
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Smart Fan6
Cool. Quiet. Customised.
Ensures optimal cooling and quiet operation for your gaming PC, with support for PWM/DC fans and pumps, customisable settings, and intuitive temperature monitoring.
High Current Support
Each fan header supports PWM and DC fans and Water Cooling Pump, and up to 24W (12V x 2A) with Over-Current Protection.
Precision Control
Multiple temperature/fan speed control points for precise fan curve.
Dual Curve Mode
Slope/Stair dual mode for different user scenarios.
Fan Stop
Fan can stop completely below users' specified temperature point.
Noise Detection
Monitor device noise levels in real time using accurate sound pressure measurement and privacy-respecting Noise Detection cable, allowing you to adjust fan speeds accordingly for optimal noise control.
Smart Fan 6 BIOS UI
Enhance Fan Curve UI
Enhance fan curve control with an expanded number of control points, from 5 to 7, and a larger fan speed graph, enabling users to have more precise and effortless control over fan curve settings.
Slope/Stair Dual Graph Mode
Switch between Slope and Stair modes to adapt to various user scenarios. Slope mode provides a linear fan speed curve, while Stair mode maintains a constant fan speed within specified temperature intervals.
Manual Input
For advanced users, manual input of fan speeds is available for fine-tuning and precise control over the cooling system.
EZ Tuning
Simplify the process with EZ Tuning by setting 4 points on a rough temperature/fan speed scale. Smart Fan 6 will quickly generate a fan curve based on these points.
Fan Curve Profile
Save your customised fan curve profile in the BIOS ROM, ensuring it remains intact even after BIOS updates.
Memory
Leading DDR5 Performance
Maximum Capacity
TRX50 AERO D supports the max. memory capacity of DDR5 RDIMM up to 1TB, which brings crucial advantage when running high-demand computing like video editing, 3D rendering, high-resolution content creation, simulation, AI training, and etc..
- DDR5 Overclocking Up to 7800 MT/s
DDR5
BIOS Engineering
Feature-rich BIOS functions that enable easy access to the best-in-class DDR5 performance.
DDR5 Auto Booster
One click to boost native DDR5-4800 to 5000.
High Bandwidth
One click to increase DDR5 bandwidth.
Low Latency
One click to shorten DDR5 latency.
AMD EXPO™/ Intel® XMP 3.0 User Profile
Optimises memory settings and achieve the best performance for the system.
BIOS Optimisations
Maximise DDR5 Performance with Your Memory Settings
AMD EXPO™/ Intel® XMP 3.0 User Profile empowers you to optimise your memory settings and commit the leading DDR5 performance up to 7800MT/s.
SPD Re-Defined or Retrieve from Database
Users can define two empty SPD profiles and transfer them to another computer.
Performance Simulation
Simulate memory performance quickly by inputting clock and timing parameters.
Save/Load Profile
Save and load memory profiles for online sharing.
Boost Non-Overclockable DDR5 Memory Frequency
Increase the frequency of non-overclockable DDR5 memory.
Ultimate Scalability
Brings you the future-proofing capability.
- Triple PCIe x 16 slots for Multi-GPU
- Triple slot width design
- 4X M.2 slots with EZ-latch Click
Triple PCIe x 16 Slots for Multi-GPU
TRX50 AERO D features three PCIe 5.0/ 4.0 x16 slots to deliver premium graphics performance for superior rendering capabilities, more immersive gaming experience, and AI trainings.
Triple Slot Width Design
The Tripple slot width design of PCIex16 slot enables users to install huge high-end graphics cards on motherboards without any hassles.
4X M.2 Slots
With four onboard PCIe 5.0/ 4.0 M.2 slots, TRX50 AERO D is perfect for creators, enthusiasts, AI operation to RAID multiple NVMe devices for demanding workloads
Back Drilling for Both PCIe and M.2 Slot
Enhances signal integrity in both PCIe and M.2 slot designs by reducing signal reflections and timing issues, thereby improving system performance and reliability.
Mega Connectivity
- Dual USB4 Type-C
- Wi-Fi 7
- Ultra-high Gain Antenna
- Dual LAN 10G+2.5G
- True Hi-Fi Music
Dual USB4 Type-C
The latest USB4 Type-C dual ports provide significantly faster data transfer speeds up to 40 Gbps of each, which is particularly beneficial to video editing, large file transfers, and data-intensive tasks.
Wi-Fi 7 Brings You the Ultimate VR Experience
Wi-Fi 7 provides significant benefits to the realm of virtual reality (VR). With its high bandwidth and low latency capabilities, Wi-Fi 7 ensures a smooth and immersive VR experience.
320/160 MHz Channels
Wi-Fi 7 supports up to 320 MHz channels, providing a significant increase in bandwidth for faster data rates.
Multi-Link Operation
With MLO(Multi-Link Operation) technology, you can allocate the 2.4GHz band for streaming and the 5/6GHz band for gaming, resulting in a higher quality network experience with fewer interruptions.
4K-QAM
With 4K-QAM technology, Wi-Fi 7 improves data throughput, resulting in faster file transfers and seamless streaming.
Deterministic Low Latency
Deterministic low latency ensures minimal delays, making it ideal for real-time applications like video conferencing and online gaming.
GIGABYTE Ultra-High Gain Antenna
Experience enhanced signal strength with the GIGABYTE Ultra-high gain Antenna, which incorporates a smart antenna function to optimise Wi-Fi signal transmission.
- Direction signal Up to 5dBi
- Omnidirectional signal Up to 4dBi
- Magnetic Base
Dual LAN 10G+2.5G
The Dual LAN design of 10GbE+2.5 GbE LAN is perfectly designed for content creation, media centres, workstations, and AI operation. Besides providing ultra-fast network speed, the dual LAN design can ensure constant network availability, load balancing, and smoother high-resolution video streaming.
True Hi-Fi Music
Paired with Realtek's latest ALC4080 Codec, playback for surround sound audio and DSD enabled music are easier than ever.
DTS :X® Ultra
Recreates an authentic, spatially accurate 3D audio experience for gaming over any headphones or speakers. Supports channel-based, scene based and object-based audio. Provides out-of-the-box calibration for a range of headphones and speakers. Provides post-processing enhancements and device level tuning for DTS® codecs. DTS Sound Unbound* leverage Microsoft Spatial, enabling the most believable, 3D audio experience for games. Immersion through DTS Headphone:X means in the sonic landscape, stationary and moving sounds can be heard from above, below or around the listener. Sounds pass around the listener with amazing externalisation and accurate localisation.
*DTS Sound Unbound needs the latest Windows fixes in the Windows 10, please upgrade your Windows 10 OS to Win10 Build 18898 or later versions.
DIY-Friendly
Build Effortless
Building your own PC is meant to be joyful and effortless. TRX50 AERO D, the most DIY-friendly ever.
EZ-Latch Designs
Effortless mechanisms that enable easy installations of components.
M.2 EZ-Latch Click
Screwless installation for M.2 heatsink.
M.2 EZ-Latch Plus
Screwless installation for M.2 SSDs.
PCIe EZ-Latch
Easy detachment for graphics cards.
Quick Control Elements
Reset. Update. Convenient.
Multi-Key
A multi-function reset button that can be reconfigured to other function in BIOS for different user scenarios.
RGB Switch
Turn off all lighting effect on motherboard.
Direct-to-BIOS
Boot into BIOS menu directly without pressing any keyboard button.
Safe Mode
Boot into BIOS safe mode to change specific option without losing other BIOS settings.
Q-FLASH PLUS
Update the BIOS easily without installing the CPU, memory and graphics card.
Step 1
Plug 24pin & 8pin power supply cable on motherboard.
Step 2
Download motherboard BIOS file and rename to "gigabyte.bin", save to USB flashdrive, and plug USB flashdrive into Q-FLASH PLUS USB port.
Step 3
Press Q-FLASH PLUS button, and motherboard will start updating BIOS automatically.
Ultra Durable™
Get EverythingUD
GIGABYTE Ultra Durable™ Technology represents highest standards to provide a platform for gamers that is not only powerful but also durable and reliable. TRX50 AERO D motherboard is built to last longer and stand stronger.
PCIe UD Slot X
The latest PCIe UD Slot X offers unprecedented strength, providing enhanced protection for your graphics card.
10X Load-Bearing Capacity
Featuring a seamless, one-piece design that is screwed onto a dedicated backplate, the PCIe UD Slot X provides 10 times the load-bearing strength.
Inner Lining Rubber Strip
This rubber strip safeguards your graphics card's PCB from potential scratches.
Zinc Alloy
The use of zinc alloy ensures effective electromagnetic shielding for high-speed signals.
M.2 UD Slot PG5
The one-piece, stainless-steel shielding design reinforces the M.2 Slots, and maximises signal integrity.
- 1.3X stronger in X-Axis Strength Test
- 1.5X stronger in Y-Axis Strength Test
- Reduced Signal Degradation with SMD Technology
UD Power Connector
The unique design provides better conductivity for power and better dissipation for the heat generated from it.
Solid Pins
Provides superior conductivity & signal transmission, reducing metal loss from repeated plugging.
Customisation
Elevating Performance Together
TRX50 AERO D signifies dedication to BIOS optimisation. Through community partnership, we're making next-gen performance more user-friendly.
UC BIOS
Redesigned as user-centred and provides intuitive performance tweakers.
Redesigned UI and UX
An intuitive operation interface with an aesthetically pleasing design.
Quick Access
Customisable option slots for effortless access in Easy Mode.
Enhanced Intuitive UX
GIGABYTE User-Centred(UC) BIOS has enhanced the BIOS UX to provide users with an optimised experience featuring an intuitive operation interface and an aesthetically pleasing design.
Quick Access Function
GIGABYTE UC BIOS' Quick Access function selects several practical preset options from ADVANCE MODE and places them in EASY MODE for effortless access without switching or searching.
HWiNFO Exclusive Partnership
Introduces innovative features for computer enthusiasts and professionals.
Default AORUS skin
When running HWiNFO on a GIGABYTE motherboard, a unique, AORUS-themed skin will be automatically applied as default that is available in bright or dark mode. This AORUS skin can also be manually applied on non-GIGABYTE motherboards.
*AORUS skin auto-applies when detecting a GIGABYTE motherboard.
Memory Timings Monitor
As a result of the great efforts of expert developers from GIGABYTE and HWiNFO, this advanced readout application shows the most detailed memory timing settings ever, and help users monitor their memory performance and gain valuable insights.
Detailed BIOS Information
GIGABYTE motherboard users can now check out the detailed BIOS information in real time via HWiNFO, such as status of toggles or tweakers, and the BIOS versions. No more reboot for BIOS check!
GIGABYTE Control Center
A unified software platform across a variety of GIGABYTE products.
RGB Fusion
Customise the RGB lighting on the motherboard or devices that connect to it.
Showcase Your Style
Unleash your creativity with GCC's customisable lighting effects for your motherboard. Personalise your system with stunning visuals that reflect your individuality and style.
Note: The depicted lighting effects are for demonstration purposes only, and the actual lighting effects may vary depending on the model.
Supercharge Your Lighting Options
Addressable RGB LED headers allow you to customise each LED individually (for ARGB GEN2 devices), and you can easily accomplish this using GCC.
*The information provided is for reference; please prioritise your specific setup and specifications.
- 1x RGB LED header
- 3x ARGB LED headers
Easy Overclocking, Game On
Get into the game faster with AMD EXPO™ technology. (AMD's product warranty does not cover damages caused by overclocking or undervolting outside of AMD's published specifications, even when these are enabled via AMD hardware and/or software. GD-26 02022 Advanced Micro Devices, Inc. All rights reserved. AMD. the AMD Arrow logo, Ryzen, EXPO, and combinations thereof, are trademarks of Advanced Micro Devices, Inc.)
Backed by a 3 year Gigabyte warranty.
