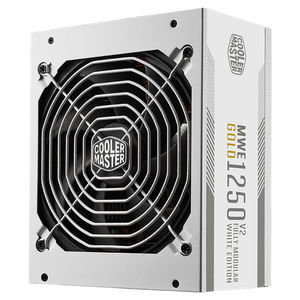

Cooler Master MWE Gold V2 ATX3.1 1250W Power Supply White

MPE-C501-AFCAG-3EGAU | Cooler Master
$269
In stock
Buy now, pay later!
The Cooler Master MWE Gold 1250 V2 White Edition is a 1250W fully modular power supply that meets the ATX 3.1 standard, offering 80 Plus Gold efficiency for reliable performance. It features a quiet 140mm fluid-dynamic bearing fan with zero-RPM mode for silent operation under low loads, high-quality Japanese capacitors, and a durable 12V-2x6 cable supporting high end GPUs. This PSU is backed by a 10-year warranty, ensuring long-term reliability.

Features


MWE Gold 1250 V2 ATX 3.1 White Edition

ATX 3.1 Fully Modular 80 PLUS Gold Certified ATX Power Supply Unit

  • 80 PLUS Gold Efficiency
  • High-quality Japanese capacitors
  • 140mm Silent Fan
  • High Temperature Resilience
  • Fully Modular Cabling
  • 10 Year Warranty

Cooler Master MWE 1250W Gold Modular ATX3.1 Power Supply White Edition Feature 1

Connect the Future, Connect ATX 3.1

Cooler Master MWE 1250W Gold Modular ATX3.1 Power Supply White Edition Feature 2

100% ATX 3.1 Compatible

Cooler Master took the initiative and continuously developing our first ATX 3.1 Power Supply lineup. Compliant with ATX 3.1 standard and 12V-2x6 connectors, the MWE Gold 1250 V2 ATX 3.1 can fully support the peak power drawn by the 40 series RTX graphic cards and whole system.

80 PLUS Gold Certified

Efficiency has always been one of the most important factors for users when choosing their power supply unit. While there are a range of efficiency options, 80 PLUS Gold has been the ideal choice for the last several years and continues to be seen as the standard for much of the world. The MWE Gold 1250 V2 ATX 3.1 features 80 PLUS Gold certification, guaranteeing 90% efficiency at typical load.

Cooler Master MWE 1250W Gold Modular ATX3.1 Power Supply White Edition Feature 3

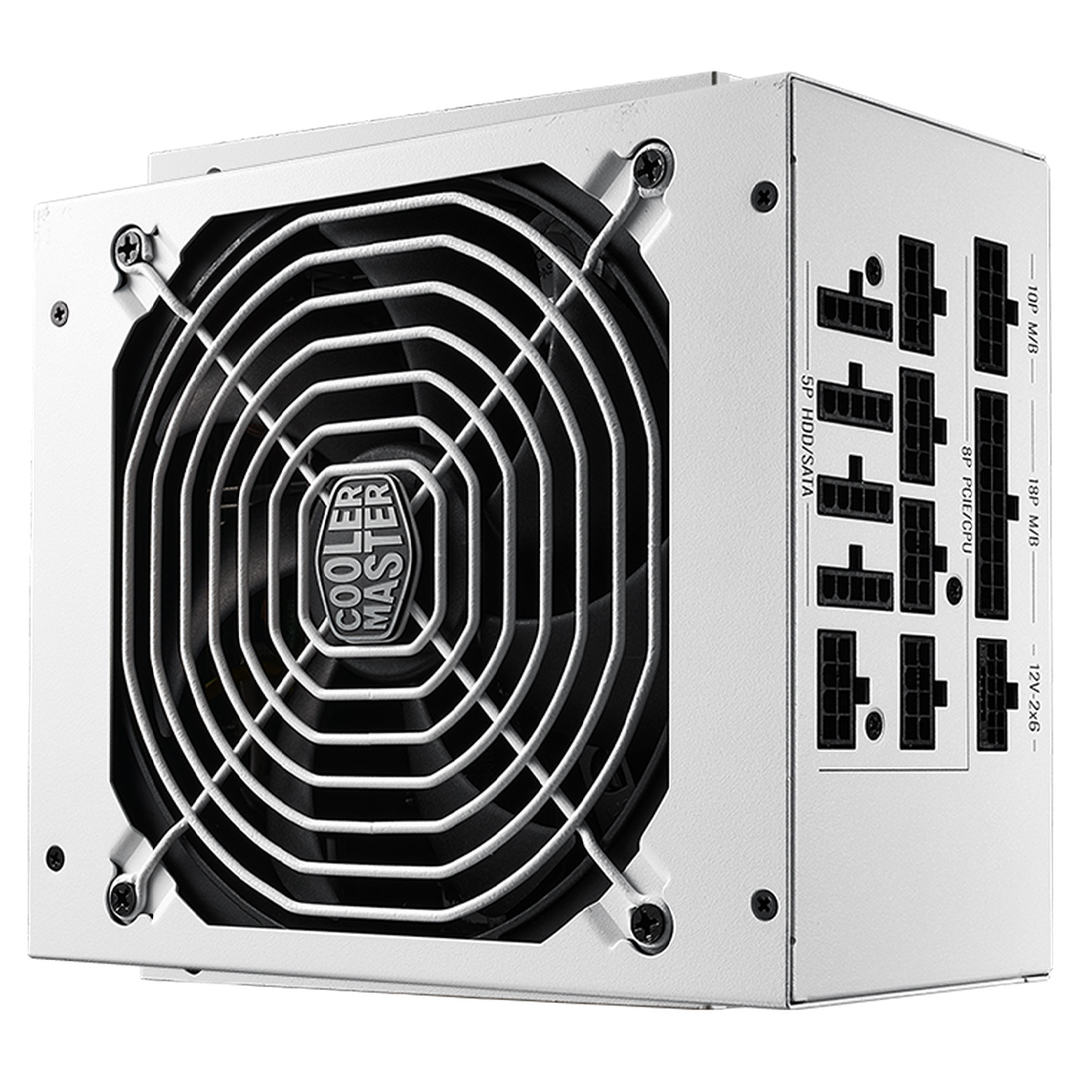

Quiet Cooling

The MWE Gold 1250 V2 ATX 3.1 has been optimised with an 140mm fan along with an advanced fluid-dynamic bearing (FDB) delivers quiet and effective cooling with a long lifespan. With Smart Thermal Control System (STCM), the fan will not spin until at 40% of rated output power to reduce noise.

*The fan curve is tested under ambient temperature of 25 degrees Celsius and core temperature is related to load.

Cooler Master MWE 1250W Gold Modular ATX3.1 Power Supply White Edition Feature 4

Industrial-Grade Temperature Resilience

The MWE Gold 1250 V2 ATX 3.1 has improved to operate safely at up to 50 degrees Celsius ambient for high-end computer, overclocking and other high intensity applications. Such a high threshold greatly enhances the performance of your PSU and your system.

Cooler Master MWE 1250W Gold Modular ATX3.1 Power Supply White Edition Feature 5

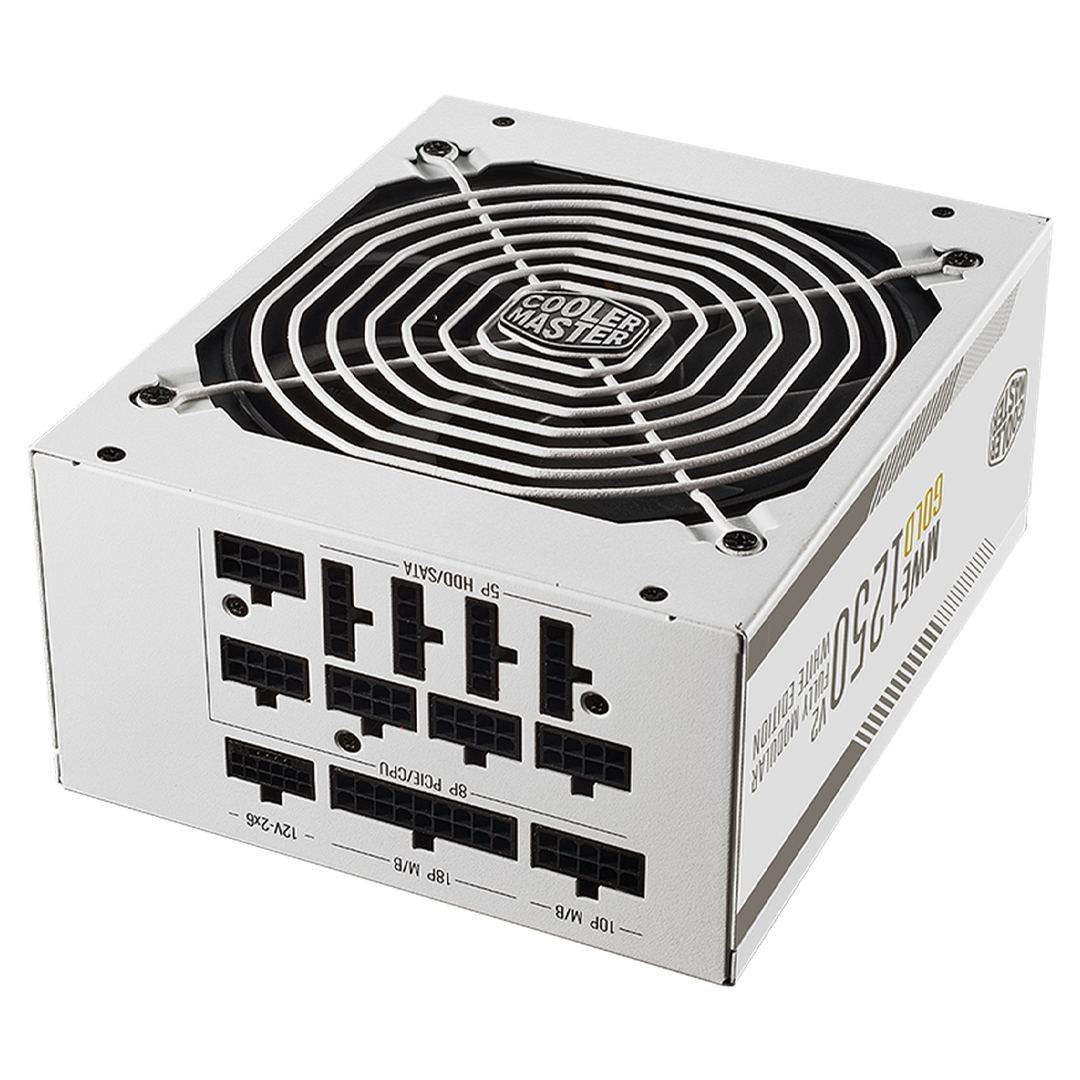

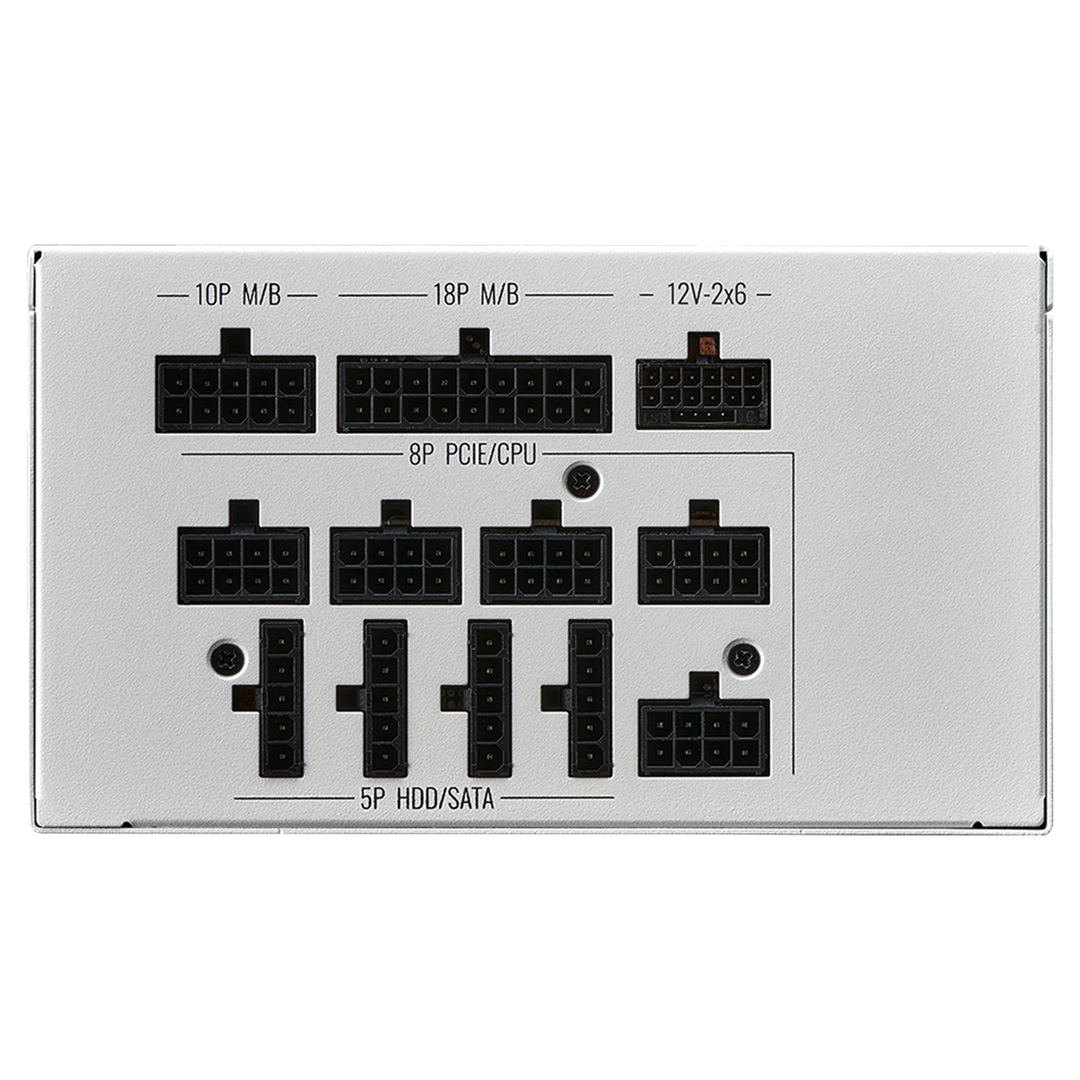

Fully Modular Cabling

The fully modular version of the MWE Gold 1250 V2 ATX 3.1 comes with a set of flat black cables that can be customised to each user's individual needs. It's designed for easy cable management that each system only needs to include the cables required. This unused space within the chassis allows for reduced clutter, better airflow and aesthetic, thereby improving your system's overall cooling.

PSU Calculator

Need help choosing the right power supply for your system? Try out our easy to use, comprehensive PSU calculator.

Accurately determine the power supply requirements for your PC build. Input your components to get precise wattage recommendations, ensuring optimal performance and stability. Simplify your hardware planning with our user-friendly tool.

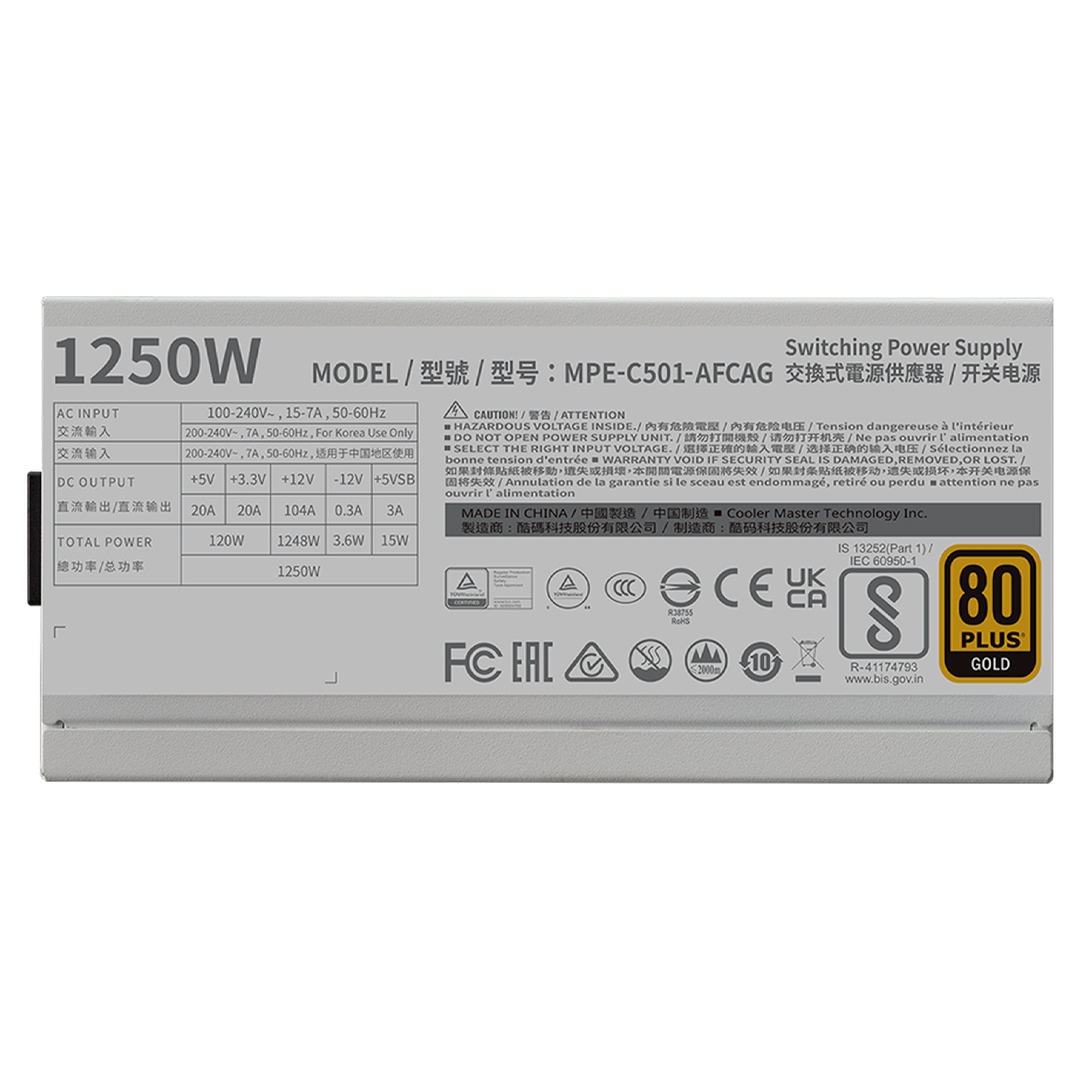

Specifications


Model Number MPE-C501-AFCAG-3EGAU
ATX Version ATX Rev. 3.1
PFC Active PFC
Input Voltage 100 - 240 V
Input Current 15 - 7 A
Input Frequency 50 - 60 Hz
Dimensions (L x W x H) 180 x 150 x 86 mm
Fan Size 140 mm
Fan Bearing Two Ball Bearing
Efficiency ≥90% @ Typical Load
80 PLUS Rating 80 PLUS Gold
ErP 2014 Lot 3 Yes
Operating Temperature 0 - 50°C
Power Good Signal 100 - 150 ms
Hold Up Time ≥16 ms at 100% Load
MTBF >100,000 Hours
Protections OVP / OPP / SCP / OCP / UVP / OTP / Inrush Protection
Regulatory TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, BIS
ATX 24 Pin Connectors 1
EPS 4+4 Pin Connectors 1
EPS 8 Pin Connector 1
SATA Connectors 12
Peripheral 4 Pin Connectors 4
PCI - e 6+2 Pin Connectors 3
12 V - 2 x 6 Connectors 1
Series MWE Gold Series
Category Above 750 W
Modular Fully Modular
80 Plus Efficiency Gold
Form Factor ATX
Watts 1250 W
Warranty 10 Years
Backed by a 10 year warranty.
