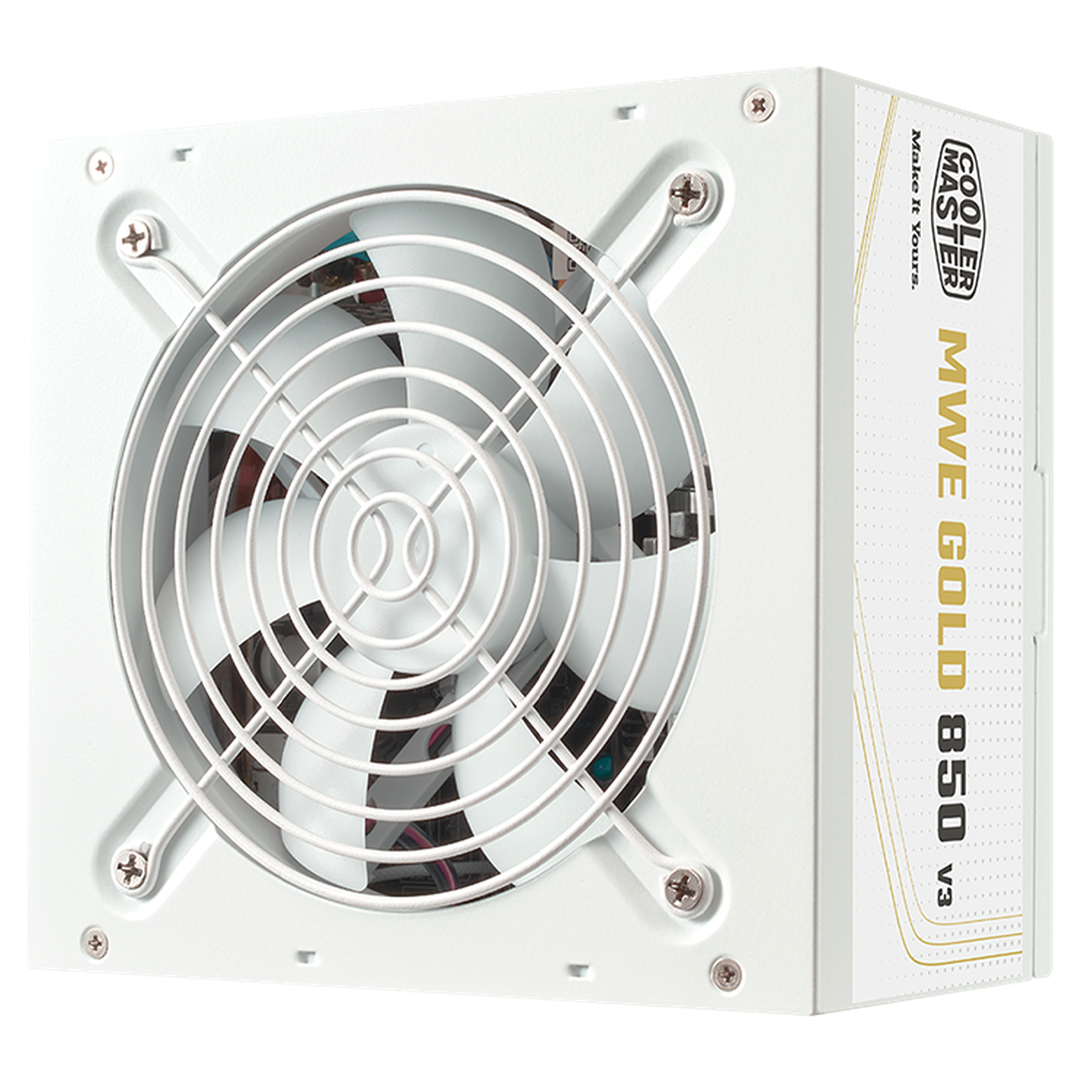

The Cooler Master MWE Gold 850 V3 is an 850W power supply that meets the ATX 3.1 standard, offering 80 Plus Gold efficiency for reliable performance. It features premium braided sleeved cables for easy installation, a quiet 120mm fan, and a durable 12V-2x6 cable supporting up to 450W for modern GPUs.
Features
MWE Gold 850 V3 ATX 3.1 White Edition Non-Modular Series
Level Up Your Power
Cooler Master presents the MWE Gold V3 ATX 3.1 Ready featuring high power, ultra-silent performance with exceptional efficiency and reliability.
- ATX 3.1 support
- A durable 12V-2x6 native cable
- High temperature resilience
- DC-to-DC technology
- 2 EPS Connectors
- 5-year warranty
ATX 3.1 Support & a Durable 12V-2x6 Native Cable
The ATX 3.1-compliant power supply supports 200% Times the peak power, making it ideal for next generation series GPUs to easily meet the demands of future high-performance graphics cards. Includes 180-degree 12+4pin (12V-2x6) cable that can support the maximum power consumption of 450W for mainstream graphics cards.
Certified Efficiency
The MWE Gold V3 ATX 3.1 is certified to achieve more than 90% efficiency at typical loads.
Quiet HDB Fan
A hydrodynamic bearing fan delivers long-lasting quiet and effective cooling.
Premium Braided EPS Connectors
Two 4-pin EPS connectors are included for universal compatibility with current-gen motherboards. The cables feature premium braided sleeving for enhanced durability, flexibility, and a clean, professional look.
Specifications
| Model Number |
MPE-8506-ACAG-GAU |
| ATX Version |
ATX 12 V Ver. 3.1 |
| PFC |
Active PFC |
| Input Voltage |
100 - 24 0V |
| Input Current |
10 - 6 A (850/750 W), 10 - 5 A (650 W), 8 - 4 A (550 W) |
| Input Frequency |
50 - 60 Hz |
| Dimensions (L x W x H) |
140 x 150 x 86 mm |
| Fan Size |
120 mm |
| Fan Bearing |
HDB |
| Fan Speed |
2400 RPM (850/750/650 W), 1800 RPM (550 W) |
| Efficiency |
≥90% @ Typical Load |
| 80 PLUS Rating |
80 PLUS Gold |
| ErP 2014 Lot 3 |
Yes |
| Operating Temperature |
0 - 40°C |
| Power Good Signal |
100 - 150 ms |
| Hold Up Time |
≥16 ms at 80% Load |
| MTBF |
>100,000 Hours (850/750 W), >100,000 Hours @ 25℃ambient (650/550 W) |
| Protections |
UVP / OVP / OPP / OTP / SCP / OCP |
| Regulatory |
cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.) |
| ATX 24 Pin Connectors |
1 |
| EPS 8 Pin / 4+4 Pin Connectors |
2 |
| PCI - e 6+2 Pin Connectors |
4 (850/750/650 W), 2 (550 W) |
| SATA Connectors |
6 |
| Peripheral 4 Pin Connectors |
3 |
| 12 V - 2x6 (12+4 Pin) Connectors |
1 (850/750 W) |
| Series |
MWE Gold Series |
| Modular |
Non Modular |
| Form Factor |
ATX |
| 80 Plus Efficiency |
Gold |
| Warranty |
5 Years |
Backed by a 5 year Cooler Master warranty.
