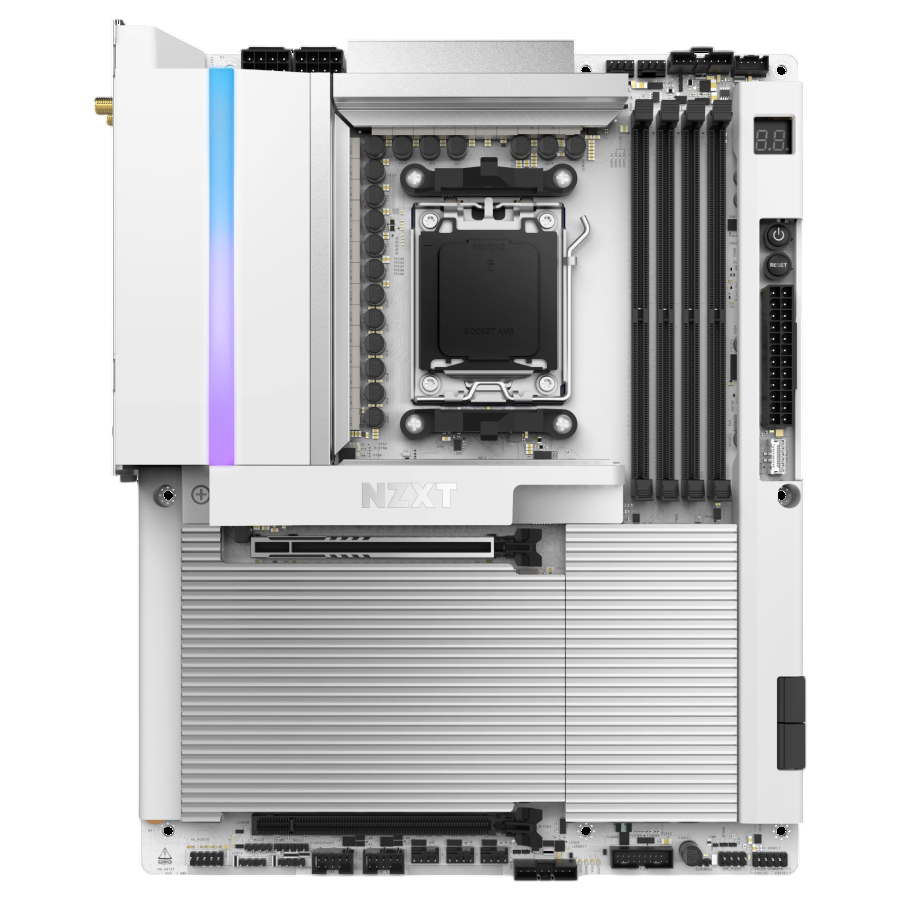

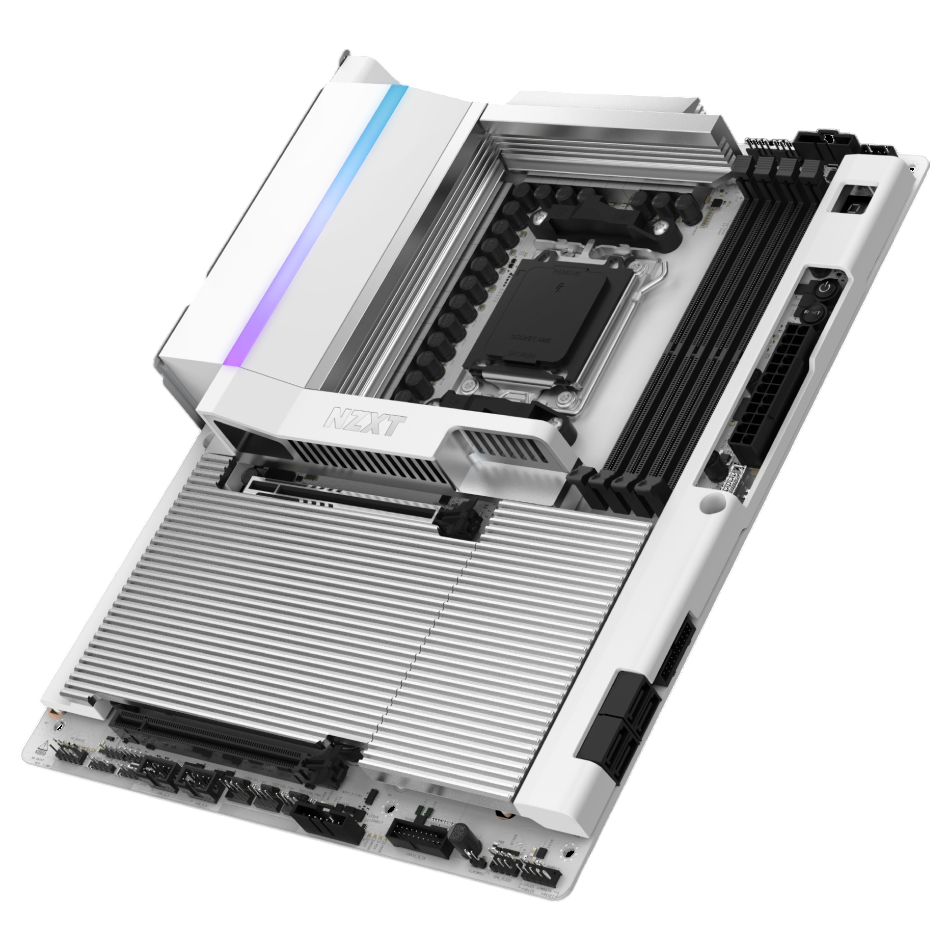

The NZXT N9 X870E WiFi 7 white motherboard supports AMD 7000, 8000 and 9000 Series processors, features up to 4 x DDR5 memory slots, PCIe 5.0, 4 x SATA ports (6Gb/s), 12 x rear USB ports, Realtek 5.0G LAN, Wi-Fi 7, and Bluetooth 5.4 support. Designed with a sleek metal cover in an ATX form factor.
Warning: This product contains a button battery
- If swallowed, a lithium battery can cause severe or fatal injuries with 2 hours.
- Keep batteries out of reach of children.
- If you think batteries may have been swallowed or placed inside any of the body, seek immediate medical attention.
|
Features
N9 X870E
AMD® X870E ATX Gaming Wi-Fi 7 Motherboard with Full Cover & RGB
The N9 X870E delivers cutting-edge performance in a sleek design, making it an ideal foundation for modern AMD® gaming PCs. Built for the latest AMD® Ryzen™ processors, it features overclocking-ready power, optimised thermals, and PCIe 5.0 support, plus high-speed Wi-Fi 7, 5GbE, and USB 4 connectivity. The full-metal cover with subtle RGB lighting adds a touch of sophistication to any build.
- AMD® AM5 Socket: Ready for AMD® Ryzen™ 9000, 8000, and 7000 series desktop processors.
- Superior Power: A robust 20+2+1 power phase design with 110A SPS and an 8-layer, low-loss 2-oz copper PCB ensure exceptional stability and overclocking potential.
- Advanced Cooling: Stay cool under pressure with a VRM heatsink array with thermal pads, dual PWM fans, and fins, plus dedicated heatsinks and thermal pads for all M.2 slots.
- PCIe® 5.0 Expansion: One PCIe® 5.0 x16 slot for next-gen GPUs and one PCIe® 3.0 x16 slot for additional high-speed expansion cards.
- DDR5 Memory: Four dual-channel DIMM slots support DDR5 RAM speeds of 8000+ MT/s, delivering faster multitasking and improved system responsiveness.
- High-Speed Storage: Four M.2 slots, including one PCIe® 5.0 and three PCIe® 4.0, deliver ultra-fast storage speeds and load times—all with quick-release latches.
- Next-Gen Connectivity: USB 4 (40 Gbps), Wi-Fi 7, and 5GbE deliver blazing-fast data transfers and ultra-low latency networking.

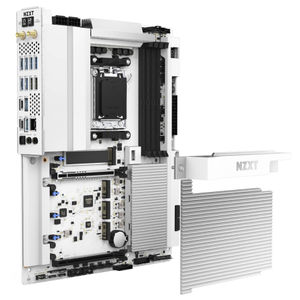

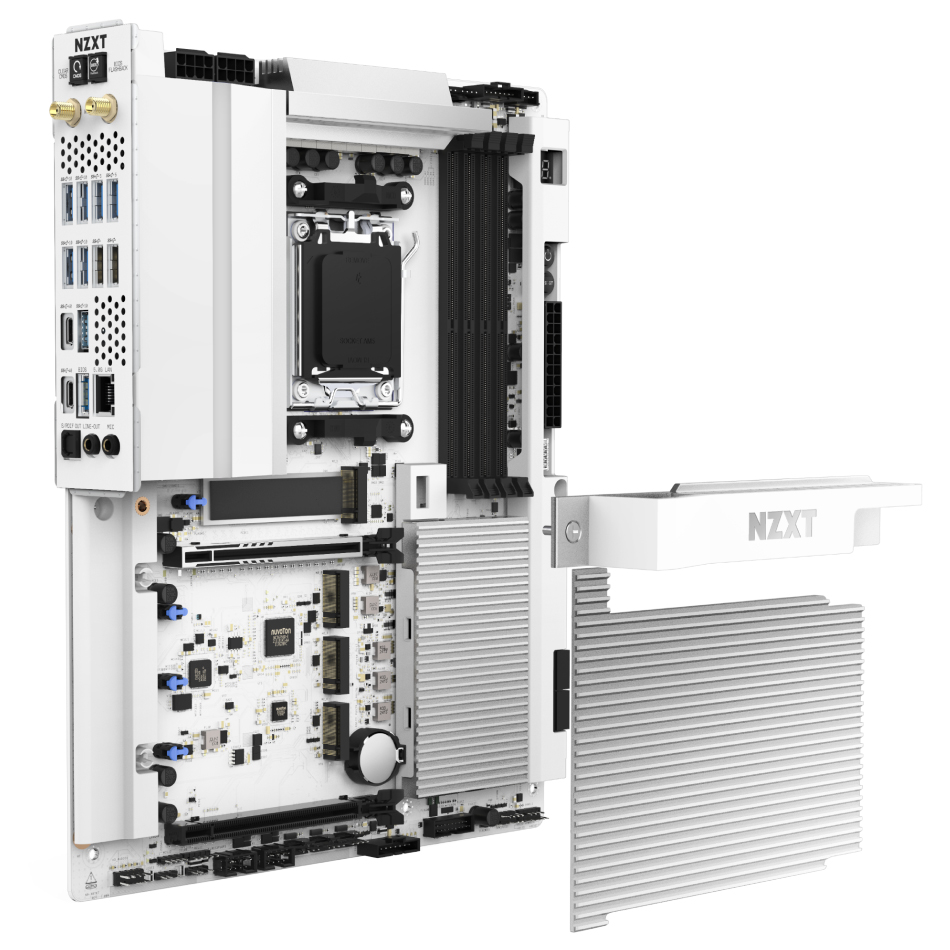

- Sleek & Stylish: A premium full-metal cover conceals the PCB for a clean, modern aesthetic, enhanced by onboard customisable RGB lighting.
Important: BIOS & Driver Updates Required
Update your BIOS and drivers for compatibility, stability, and peak performance.
- BIOS: Version 3.20 or later is required for the AMD® Ryzen™ 7 9800X3D. While your system will boot, update immediately to prevent memory-related issues. You can check your BIOS version in NZXT CAM.
- Drivers: Keep your chipset and system drivers updated for optimal performance and stability.
Specifications
General Data
| Model Number |
N9-X87XT-W1 |
| Colour |
White |
| CPU |
AMD Socket AM5 for AMD® Ryzen™ 9000, 8000, and 7000 series processors |
| Chipset |
AMD® X870E |
| LAN |
Realtek® 5.0G LAN |
| Audio |
Realtek® ALC4082 Audio Codec |
| Operating System |
Windows® 11 / 10 64-bit |
| Form Factor |
ATX |
| Warranty |
3 years |
| Inside the Box |
N9 X870E Motherboard
SATA cables (2 x 90°, 2 x 180°) x 4
Wireless antenna x 2
Manual
NZXT 8-pin splitter |
Memory
| DIMM Slots |
4 x DDR5 only |
| Memory Architecture |
Dual-Channel |
| Extreme Memory Profile (XMP) |
Supported |
| EXTended Profiles for Overclocking (EXPO) |
Supported |
| OC Frequency |
Please refer to Memory QVL on NZXT’s website (www.nzxt.com) for more information. |
Expansion Slots
| PCIe 5.0 x16 Slot (PCIEX16_1) |
1 |
| PCIe 3.0 x16 Slot (PCIEX16_2) |
1 (x 2 mode) |
| M.2 Socket (Key E) |
1 (Type 2230 Wi-Fi / BT PCIe Wi-Fi module) |
Storage
| M.2_1 |
Type 2280 (PCIe 5.0 x 4 mode) |
| M.2_2 |
Type 2280 (PCIe 4.0 x 4 mode) |
| M.2_3 |
Type 2280 (PCIe 4.0 x 4 mode) |
| M.2_4 |
Type 2280 (PCIe 4.0 x 4 mode) |
| SATA 6Gb/s Ports |
4 |
Wireless
| Tri-Band Wi-Fi 7 |
Supported |
| Bluetooth |
v5.4 |

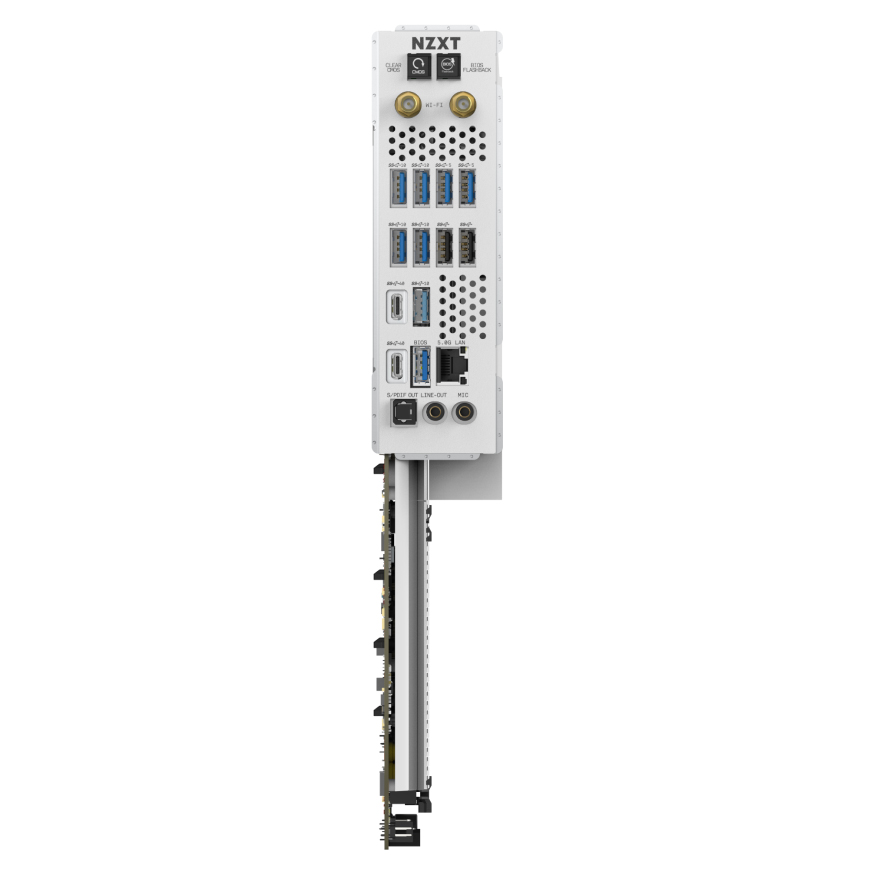

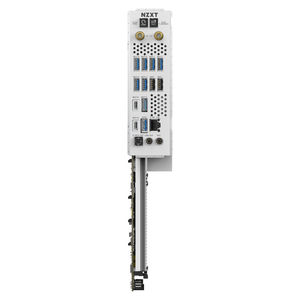

Rear I/O
| Wireless Antenna SMA Connectors |
2 |
| USB 4 Ports |
2 |
| USB 3.2 Gen 2 Ports |
5 |
| USB 3.2 Gen 1 Type-A® Ports |
3 |
| USB 2.0 Port |
2 |
| Clear CMOS Button |
1 |
| LAN (RJ45) Port |
1 |
| Audio Jacks |
2 |
| Optical S/PDIF Out Port |
1 |
Internal I/O
| 24-Pin ATX Power Connector |
1 |
| 8-Pin ATX 12V Power Connector |
2 |
| 4-Pin CPU_FAN Connector |
1 |
| 4-Pin AIO_PUMP Connector |
1 |
| 4-Pin SYS_FAN Connectors |
3 |
| NZXT RGB LED Connector |
1 |
| 5V ARGB LED Connectors |
2 |
| NZXT 8-Pin PWM Connectors |
2 |
| USB 2.0 Header |
2 (Up to 4 USB 2.0 ports) |
| USB 3.2 Gen1 Header |
2 (Up to 4 USB 3.2 Gen 1 ports) |
| USB 3.2 Gen2x2 Front Panel Header |
1 (For USB Type-C) |
| Front Panel Audio Connector |
1 |
| Power Button |
1 |
| Reset Button |
1 |
| Post LEDs |
1 |
| Digital Debug LED |
1 |
Backed by a 3 year NZXT warranty.
