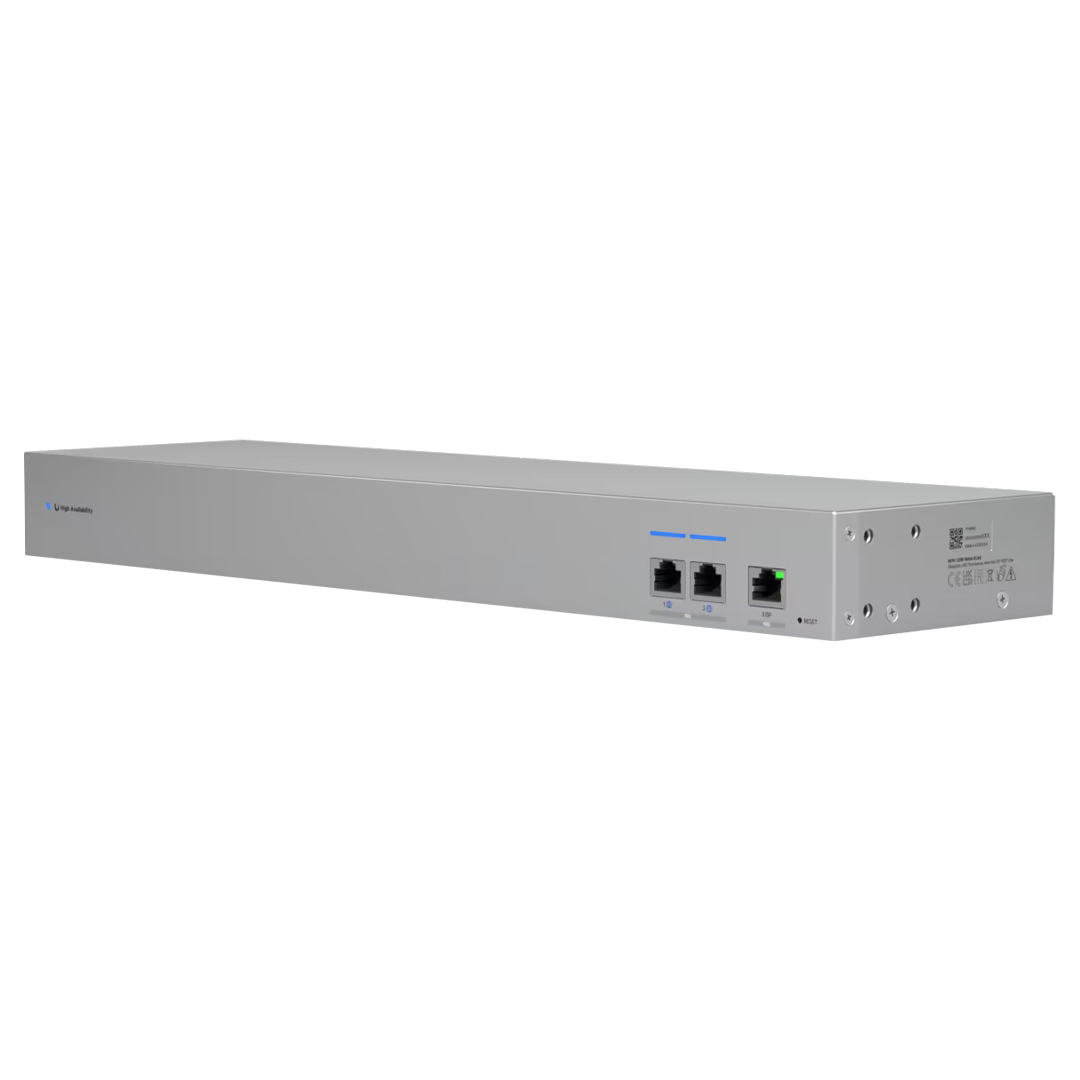

The Ubiquiti Unifi WAN 10Gbe RJ45 Switch is a compact rackmountable solution featuring three 10G RJ45 ports, one Gigabit RJ45 port, and dual AC power inputs for redundancy. With a 20 Gbps switching capacity, 15 Mpps forwarding rate, and UniFi network integration, it's built for reliability and minimal power draw.
Features
Ubiquiti Unifi WAN 10Gbe RJ45 Switch
10 GbE WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ISP.
Note: Use an additional USW-WAN-RJ45 switch for deployments with multiple ISPs.
Deployment
Build Features
Dimensions
Front View
Back View
Specifications
General Data
| Model Number |
USW-WAN-RJ45 |
| Dimensions |
442.4 x 120 x 43.7 mm (17.4 x 4.72 x 1.7") |
| Port Layout |
1 GbE RJ45: 1 (1G/100M/10M)
10 GbE RJ45: 3 (10G/5G/2.5G/1G/100M) |
| Redundancy |
(2) AC inputs |
| Form Factor |
Rack mount (1U) |
| Application Requirements |
UniFi Network: Version 9.1.120 and later |
Performance
| Switching Capacity |
20 Gbps |
| Total Non-Blocking Throughput |
10 Gbps |
| Forwarding Rate |
15 Mpps |
Hardware
| Max. Power Consumption |
18 W |
| Power Method |
(2) Universal input, 100—240 V AC, 50/60 Hz |
| Power Input Method |
AC input |
| Power Supply |
(2) AC/DC, internal, 36 W |
| Supported Voltage Range |
100—240 V AC |
| Management |
Ethernet |
| Weight |
Without mounting brackets: 2.3 kg (5.1 lb)
With mounting brackets: 2.4 kg (5.3 lb) |
| Enclosure Material |
SGCC steel |
| Mount Material |
SGCC steel |
| ESD/EMP Protection |
Air: ± 16 kV, contact: ± 10 kV |
| Ambient Operating Temperature |
-5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity |
10 to 90% noncondensing |
| LEDs |
Ethernet: Yes
System: Yes |
| Certifications |
CE, FCC, IC |
| NDAA Compliant |
Yes |
Backed by a 1 year Ubiquiti warranty.
