The Ubiquiti Unifi 10G 2 Port SFP+ WAN Switch is a compact rackmount solution featuring three 10G SFP+ ports, one Gigabit RJ45 port, and dual AC power inputs for redundancy. With a 20 Gbps switching capacity, 15 Mpps forwarding rate, and UniFi Network integration, it's built for reliability and minimal power draw.
Features
Ubiquiti Unifi 10G 2 Port SFP+ WAN Switch
10G SFP+ WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ISP.
Note: Use an additional USW-WAN switch for deployments with multiple ISPs.
Deployment
Build Features
Dimensions

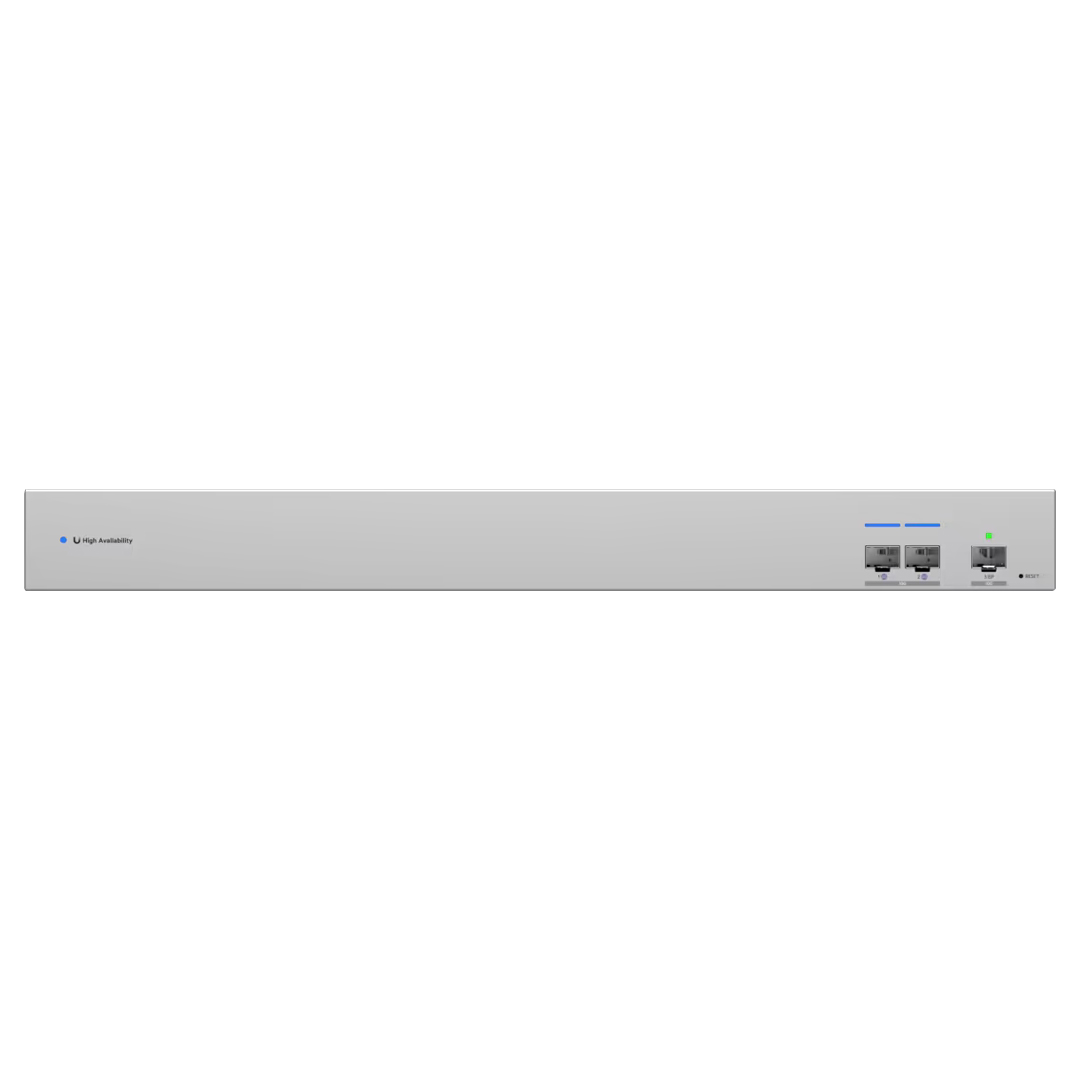

Front View

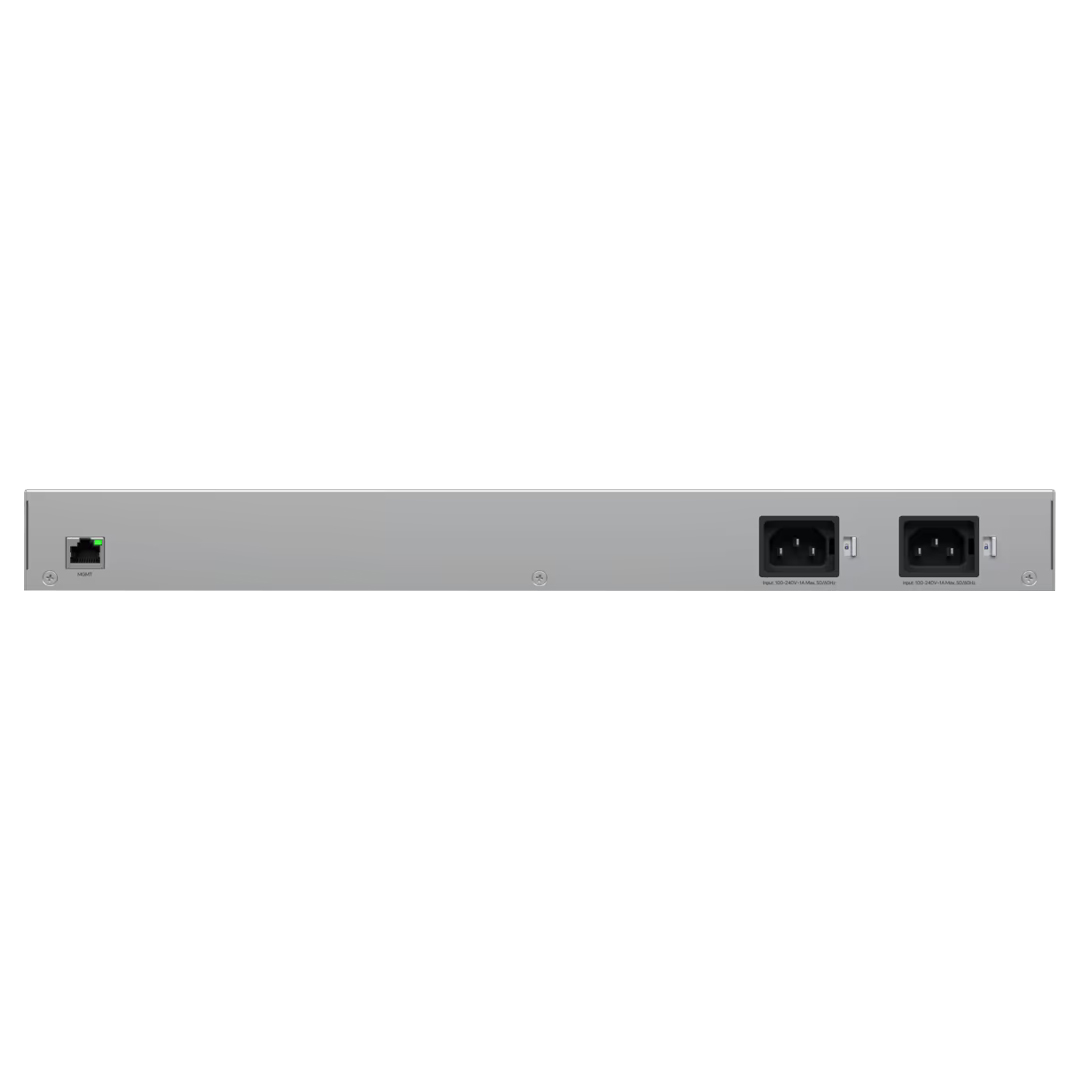

Back View
Specifications
General Data
| Model Number |
USW-WAN |
| Dimensions |
442.4 x 120 x 43.7 mm (17.4 x 4.72 x 1.7") |
| Port Layout |
1 GbE RJ45: 1 (1G/100M/10M)
10G SFP+: 3 (10G/1G) |
| Redundancy |
(2) AC inputs |
| Form Factor |
Rack mount (1U) |
| Application Requirements |
UniFi Network: Version 9.1.119 and later |
Performance
| Switching Capacity |
20 Gbps |
| Total Non-Blocking Throughput |
10 Gbps |
| Forwarding Rate |
15 Mpps |
Hardware
| Max. Power Consumption |
13 W |
| Power Method |
(2) Universal input, 100—240 V AC, 50/60 Hz |
| Power Input Method |
AC input |
| Power Supply |
(2) AC/DC, internal, 36 W |
| Supported Voltage Range |
100—240 V AC |
| Management |
Ethernet |
| Weight |
Without mounting brackets: 2.2 kg (4.85 lb)
With mounting brackets: 2.3 kg (5.1 lb) |
| Enclosure Material |
SGCC steel |
| Mount Material |
SGCC steel |
| ESD/EMP Protection |
Air: ± 16 kV, contact: ± 22 kV |
| Ambient Operating Temperature |
-5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity |
10 to 90% noncondensing |
| LEDs |
Ethernet: Yes
SFP+: Yes
System: Yes |
| Certifications |
CE, FCC, IC |
| NDAA Compliant |
Yes |
Backed by a 1 year Ubiquiti warranty.
