Ubiquiti UniFi Pro XG 8 Port Layer 3 PoE Switch

USW-PRO-XG-8-POE | Ubiquiti
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
$999
Stock at Supplier We do not have this item in our warehouse, but stock is either already on its way or is generally available from the supplier.
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns
The Ubiquiti UniFi Pro XG 8 Port Layer 3 PoE Switch delivers high performance networking with eight PoE++ RJ45 ports, two 10G SFP+ uplinks, and a total PoE budget of 155W. Designed for advanced Layer 3 functionality, it features a 200 Gbps switching capacity, 149 Mpps forwarding rate, and support for over 1,000 VLANs, making it ideal for enterprise, or high through-put environments.

Features

Ubiquiti UniFi Pro XG 8 Port Layer 3 PoE Switch

Ubiquiti UniFi Pro XG 8 Port Layer 3 PoE Switch Feature 1

Deployment

Build Features

Ubiquiti UniFi Pro XG 8 Port Layer 3 PoE Switch Feature 2

Dimensions

Ubiquiti UniFi Pro XG 8 Port Layer 3 PoE Switch Feature 3

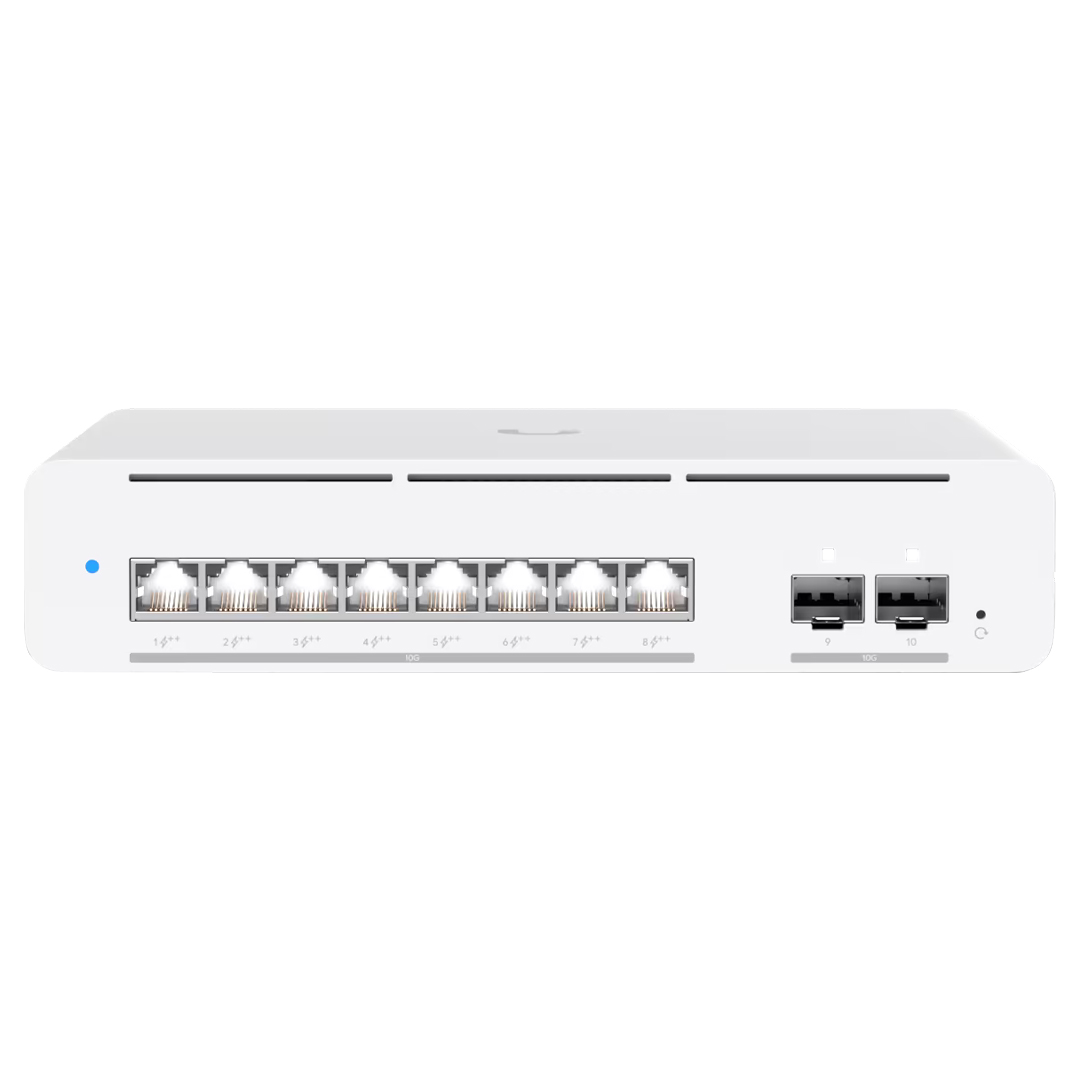

Front View

Ubiquiti UniFi Pro XG 8 Port Layer 3 PoE Switch Feature 4

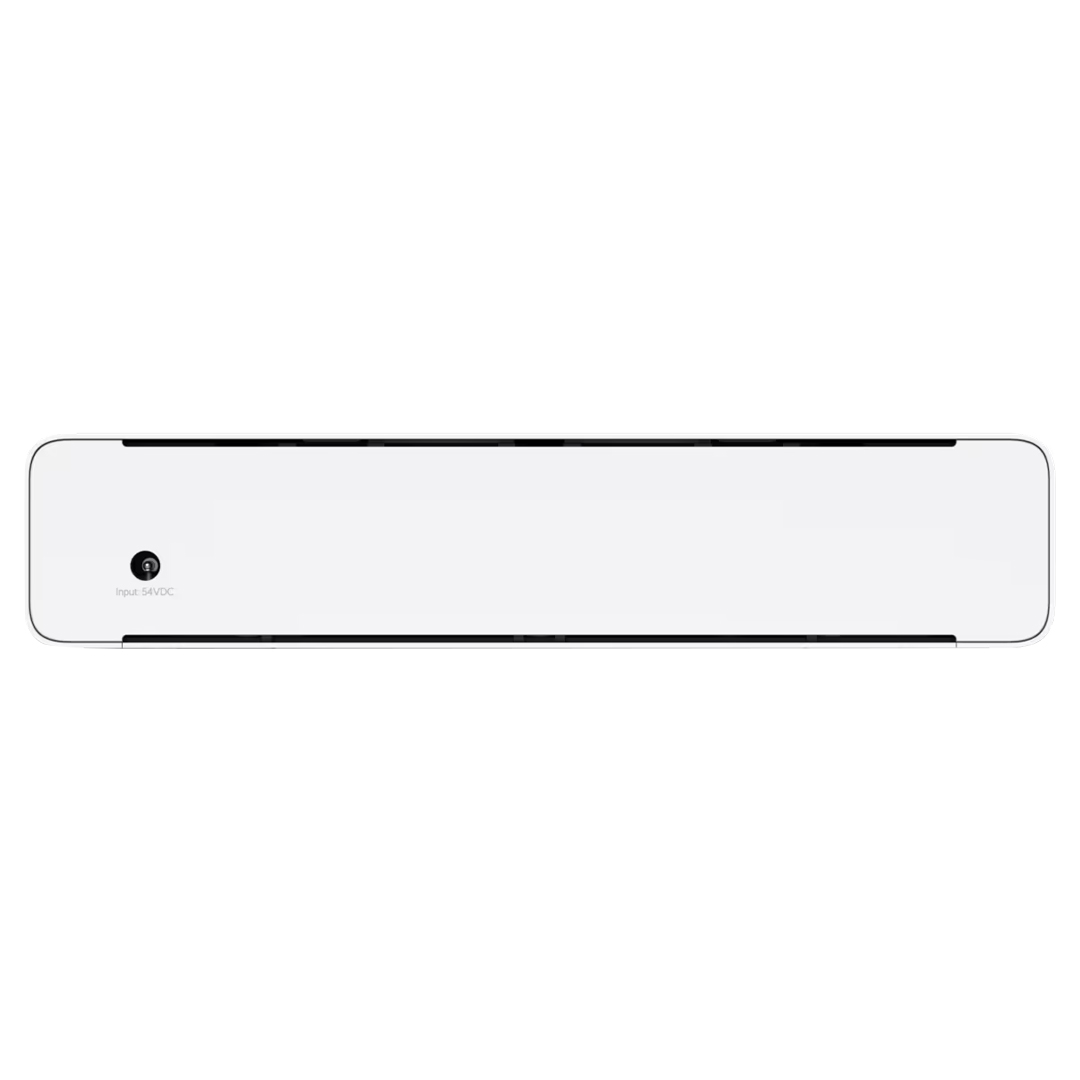

Back View

Specifications

General Data

Model Number USW-Pro-XG-8-PoE
Dimensions 210.4 x 173.8 x 43.7 mm (8.28 x 6.84 x 1.7")
Port Layout 10 GbE RJ45: 8 (All PoE++) (10G/5G/2.5G/1G/100M)
10G SFP+: 2 (10G/1G)
Max. PoE Output Up to PoE++
Total PoE Availability 155 W
Layer 3 Yes
Form Factor Compact desktop, wall
Etherlighting™ Yes
Application Requirements UniFi Network: Version 9.0.114 and later

Performance

Switching Capacity 200 Gbps
Total Non-Blocking Throughput 100 Gbps
Forwarding Rate 149 Mpps
Supported VLANs 1,000
MAC Address Table Size 32,000
L3 Table Size ARP Entries: 12,000
IPv4 Routes: 12,000
Packet Buffer Size 2 MB
Access Lists IPv4: 128
MAC: 128

Layer 3 Features

DHCP Server (Local Networks) Yes
DHCP Relay Yes
Inter-VLAN Routing (Local Networks) Yes
Static Routing (Local Networks) Yes

Layer 2 Features

LACP Port Aggregation Yes
STP & RSTP Yes
QoS (DSCP) Yes
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) Yes
Advanced IGMP Configuration (Querier, Fast Leave, Router Port) Yes
IGMP Snooping Yes
802.1X Control Yes
MAC-Based ACLs & Device Isolation Yes
DHCP Snooping & Guarding Yes
Egress Rate Limit Yes
Flow Control Yes
Storm Control Yes
Multicast & Broadcast Rate Limiting Yes
MAC Address Blocking Yes
IP-Based ACLs & Network Isolation Yes
MAC-Based Port Restriction Yes
Port Isolation Yes
Port Mirroring Yes
Jumbo Frames Yes
LLDP-MED Yes
Voice VLAN Yes
Loop Protection Yes

Hardware

PoE Ports PoE++: 8
Max. PoE Wattage Per Port by PSE PoE: 15.4 W
PoE+: 30 W
PoE++: 60 W
Max. Power Consumption 61 W (Excluding PoE output)
220 W (Including PoE output)
Power Method AC/DC Adaptor (included)
Power Input Method DC input
Power Supply AC/DC, external, 210 W
Supported Voltage Range 50—57 V DC
Management Ethernet
AR
Weight 1.6 kg (3.5 lb)
Enclosure Material SGCC steel
Mount Material Polycarbonate
ESD/EMP Protection Air: ± 30 kV, contact: ± 30 kV
Ambient Operating Temperature -5 to 45° C (23 to 113° F)
Ambient Operating Humidity 10 to 90% noncondensing
Etherlighting™ Ethernet: Yes
SFP+: Yes
LEDs System: Yes
NDAA Compliant Yes
Certifications CE, FCC, IC

Backed by a 1 year Ubiquiti warranty.
