The Ubiquiti UniFi Device Bridge delivers high-speed wireless connectivity with WiFi 5 support, and data rates up to 866.7 Mbps. Featuring both internal and external antennas, a compact wall-mountable design, and simple setup via WiFi management, it's ideal for linking network devices where cabling is impractical.
Features

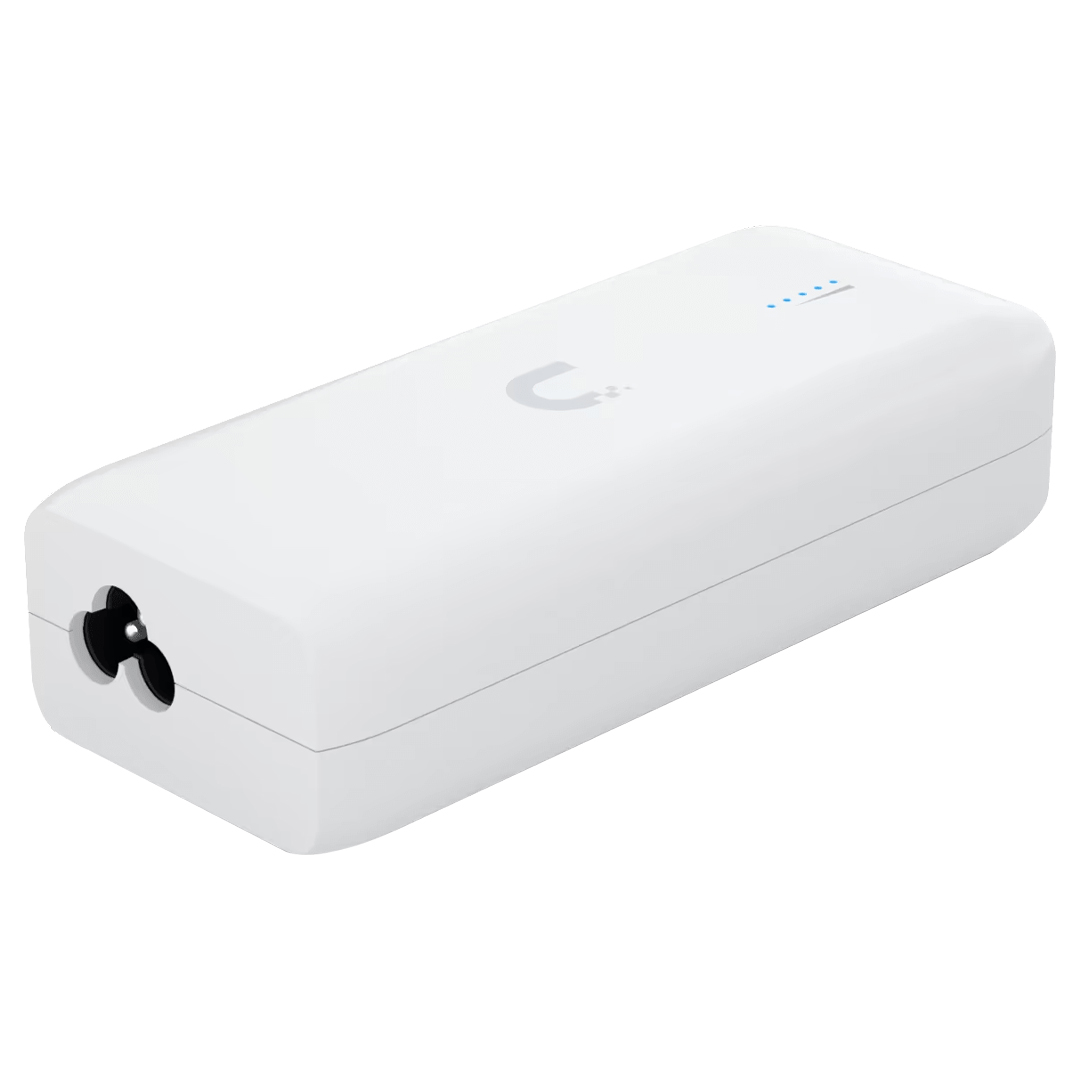

Ubiquiti UniFi Device Bridge
Plug-and-play, wireless bridging PoE Adaptor with integrated UniFi WiFi Auto-Link.
Note. UniFi Consoles and APs must have the latest software updates installed.
Deployment
Build Features

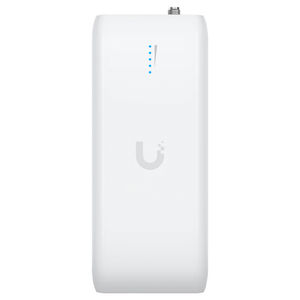

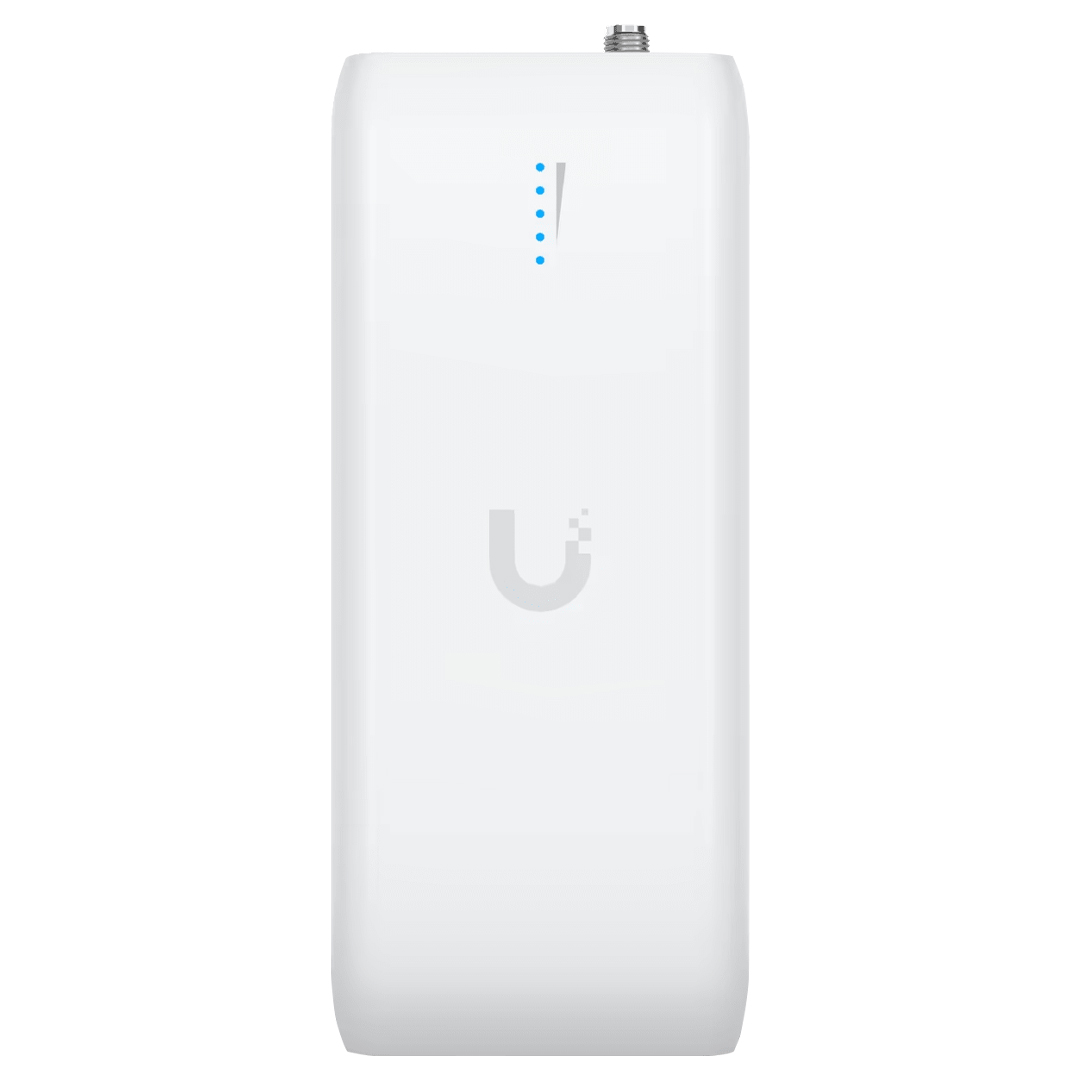

Front View

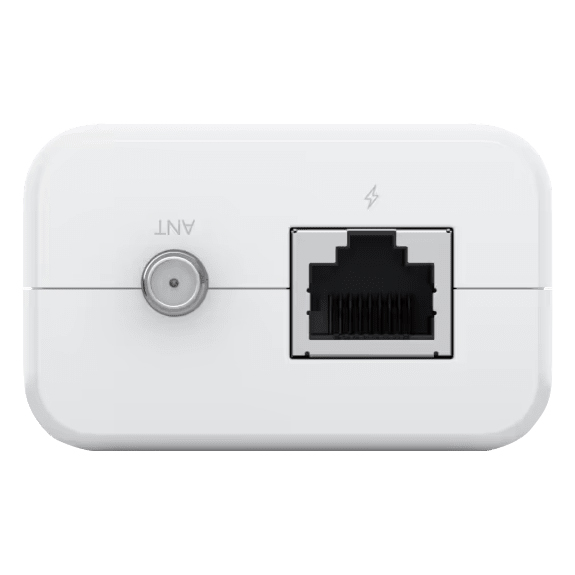

Top View

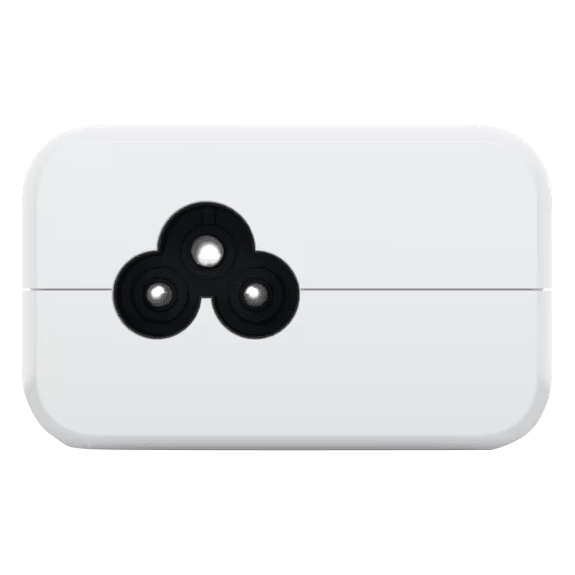

Bottom View
Specifications
General Data
| Model Number |
UDB |
| Dimensions |
130 x 55 x 34 mm (5.1 x 2.2 x 1.3") |
| WiFi Standard |
WiFi 5 |
| Spatial Streams |
2 |
| Mounting Locations |
Wall, table |
| Mounting |
Wall (Included) |
| Power Method |
100—240 V AC, 0.45 A Max., 50/60 Hz |
Performance
| MIMO |
5 GHz: 2 x 2 |
| Max. Data Rate |
5 GHz: 866.7 Mbps (BW80) |
| Antenna Gain |
5 GHz
Internal: 5 dBi
External omni: 4 dBi, 360° x 30° |
| Max. TX Power |
5 GHz: 21 dBm |
| Supported Data Rates |
802.11ac (WiFi 5)
6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Security |
WPA2 AES |
Hardware
| Max. Power Consumption |
25 W (AC input)
10 W (Excluding PoE output) |
| Supported Voltage Range |
100—240 V AC |
| Networking Interface |
(1) GbE RJ45 port |
| Antennas |
(1) Internal antenna
(1) RP-SMA connector for external omni-antenna |
| Management |
WiFi |
| Channel Bandwidth |
20/40/80 (MHz) |
| Weight |
200 g (7.1 oz) |
| Enclosure Material |
Polycarbonate |
| Mount Material |
Polycarbonate |
| Button |
(1) Factory-reset |
| LEDs |
System
(4) Blue: signal
(1) White/blue: indicator |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC |
| Operating Frequency |
US/CA:
U-NII-1 5150 - 5250 MHz
U-NII-2A 5250 - 5350 MHz
U-NII-2C 5470 - 5725 MHz
U-NII-3 5725 - 5850 MHz
For worldwide, it depends on the regulatory region
Worldwide: 5150 - 5875 MHz |
| Ambient Operating Temperature |
-10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity |
5 to 95% noncondensing |
Backed by a 1 year Ubiquiti warranty.
