Ubiquiti G3 Access Intercom

UA-G3-INTERCOM | Ubiquiti
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
$709
Check back later!
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns
The Ubiquiti G3 Access Intercom combines secure access control with smart connectivity, featuring a 7" touchscreen display, a built-in HD camera, and support for NFC cards, keyfobs, PIN codes, Apple/Google Wallet, and mobile unlock. Designed for both indoor and outdoor use, it's IP65-rated, NDAA compliant, and PoE-powered.

Features

Ubiquiti G3 Access Intercom Feature 1

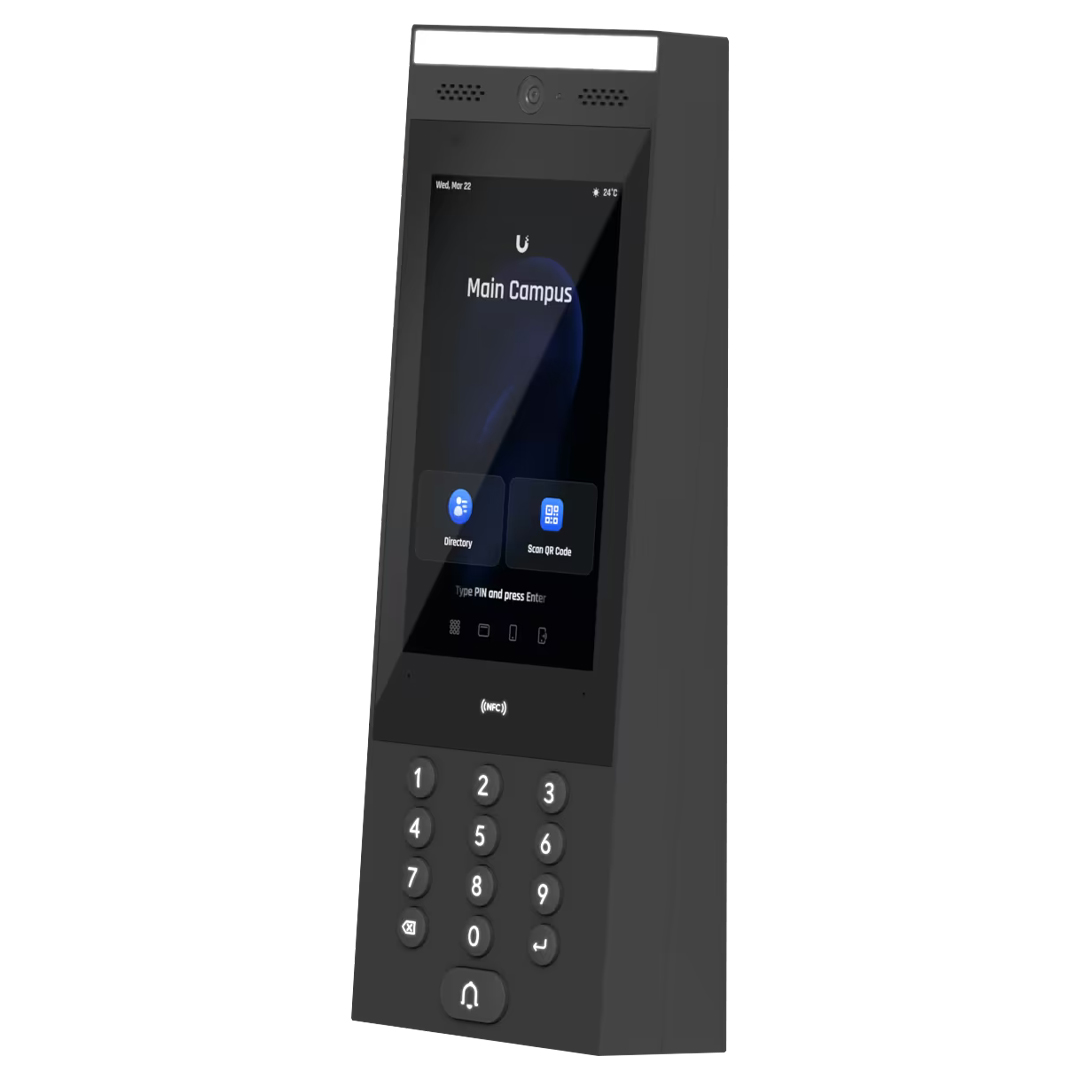

Ubiquiti G3 Access Intercom

Indoor/outdoor intercom terminal for managing residential and commercial building entry requests with Touch Pass support.

Ubiquiti G3 Access Intercom Feature 2

Deployment

Build Features

Ubiquiti G3 Access Intercom Feature 3

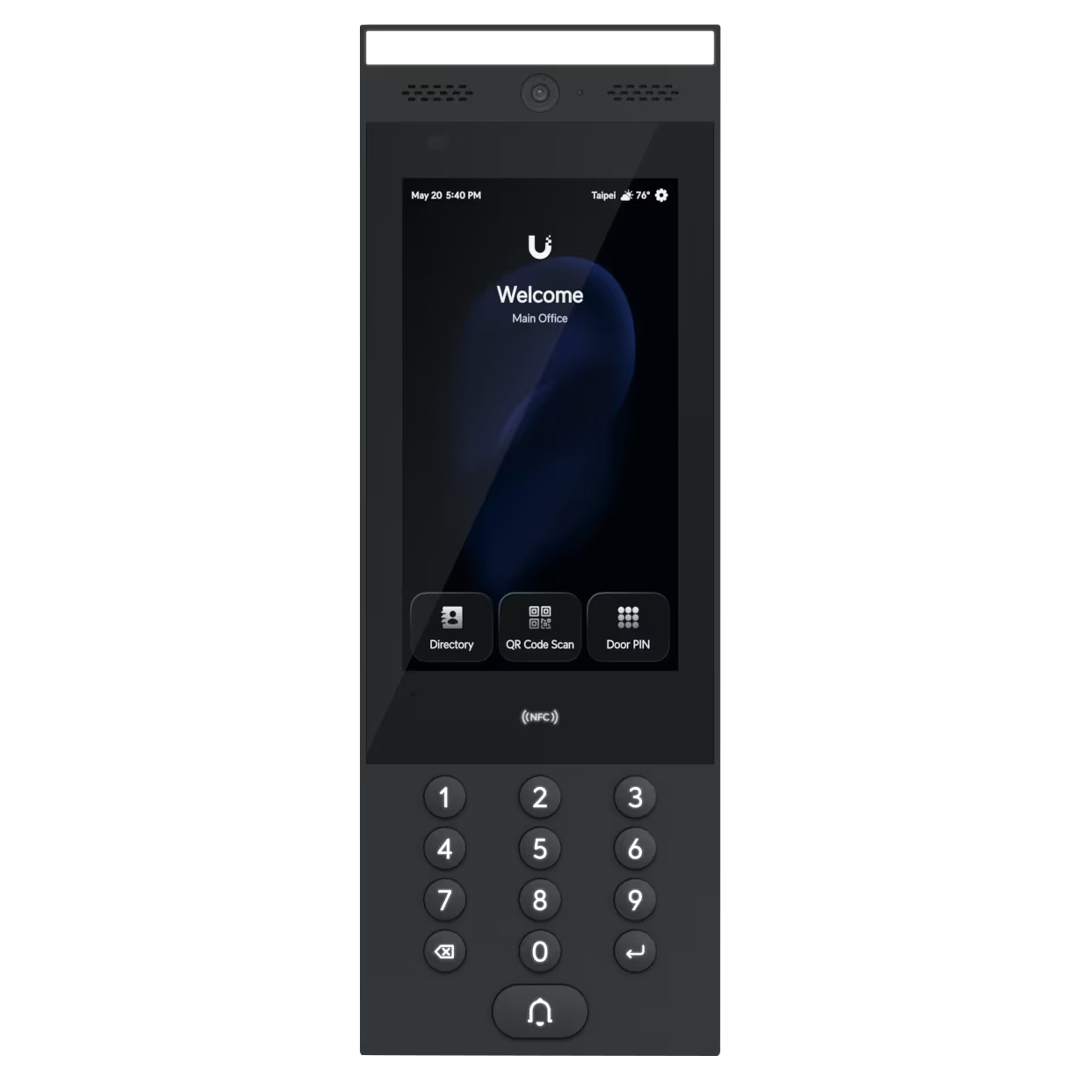

Front View

Ubiquiti G3 Access Intercom Feature 4

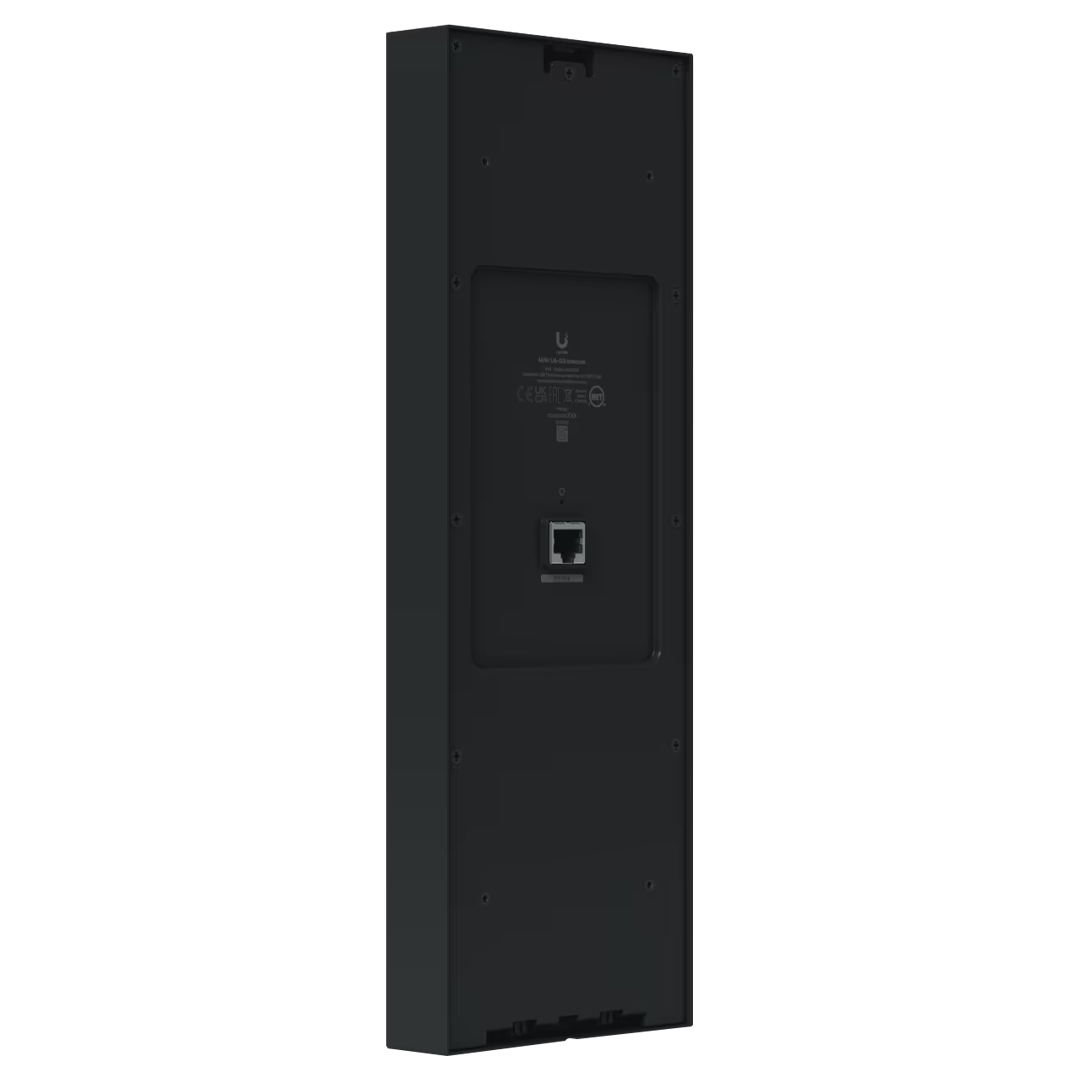

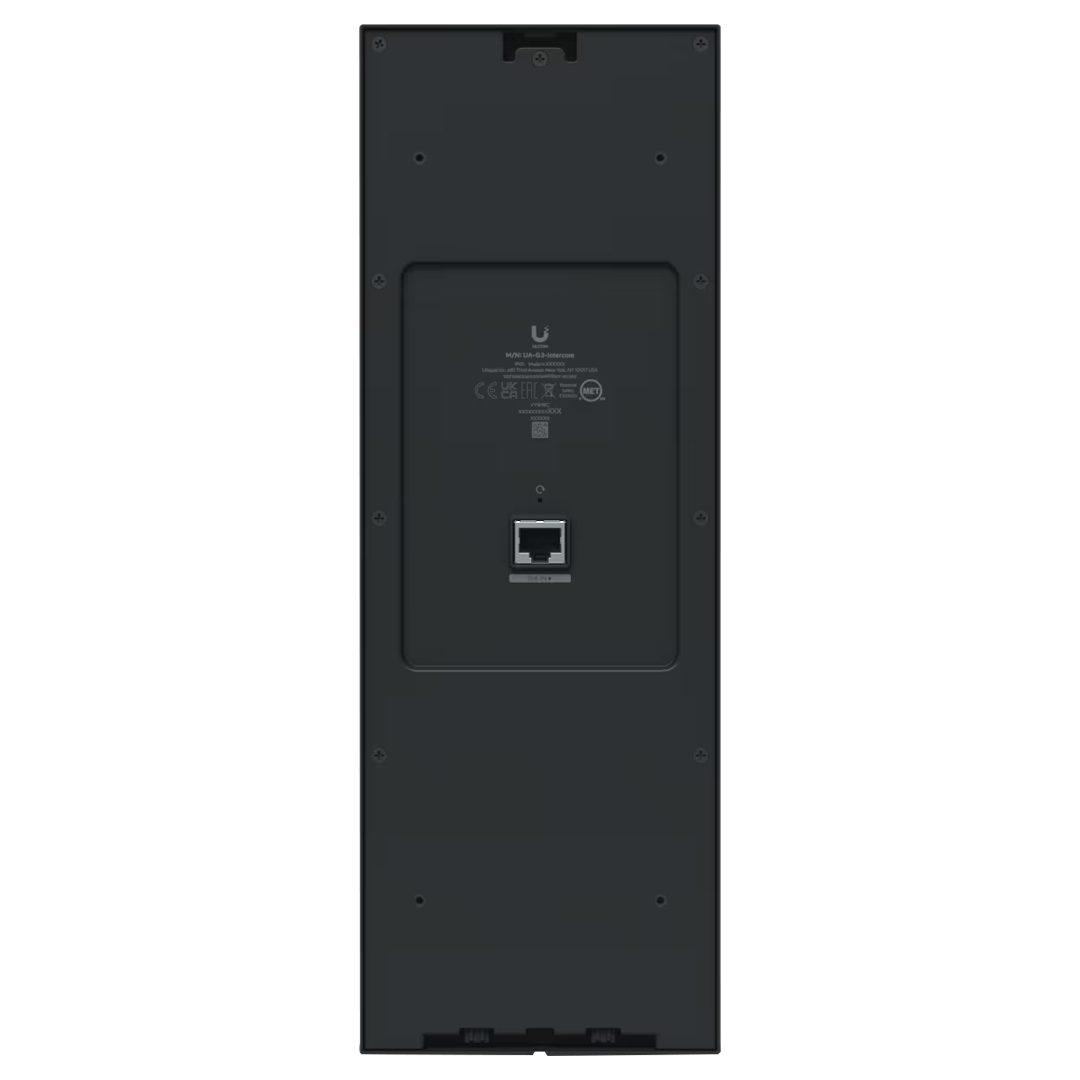

Back View

Ubiquiti G3 Access Intercom Feature 5

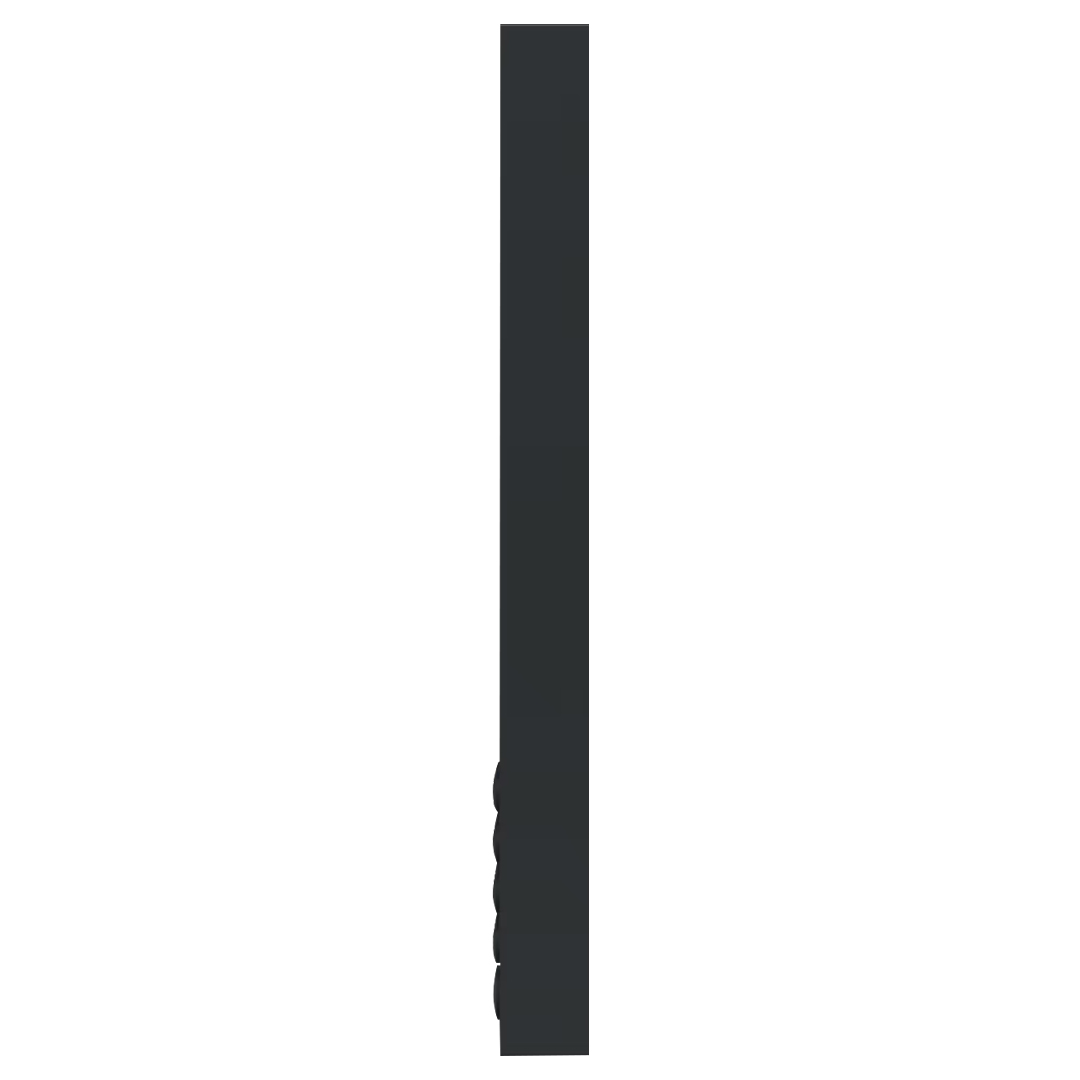

Side View

Specifications

General Data

Model Number UA-G3-Intercom
Dimensions 324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1")
Integrated Camera View Angle: H: 79.4°, V: 97.5°, D: 118.2°
NFC Card & Keyfob Access Yes
PIN Access Yes
Apple/Google Wallet Yes
Mobile Unlock Yes
Two-Way Intercom & Doorbell Access Yes
NDAA Compliant Yes
UL 294 Level Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
Weatherproofing IP65
Management Application Access

Mechanical

Weight Device: 965 g (2.1 lb)
Bracket: 445 g (1 lb)
Enclosure Material Aluminium alloy, UV-stabilised polycarbonate, glass
Mount Material Powder-coated stainless steel

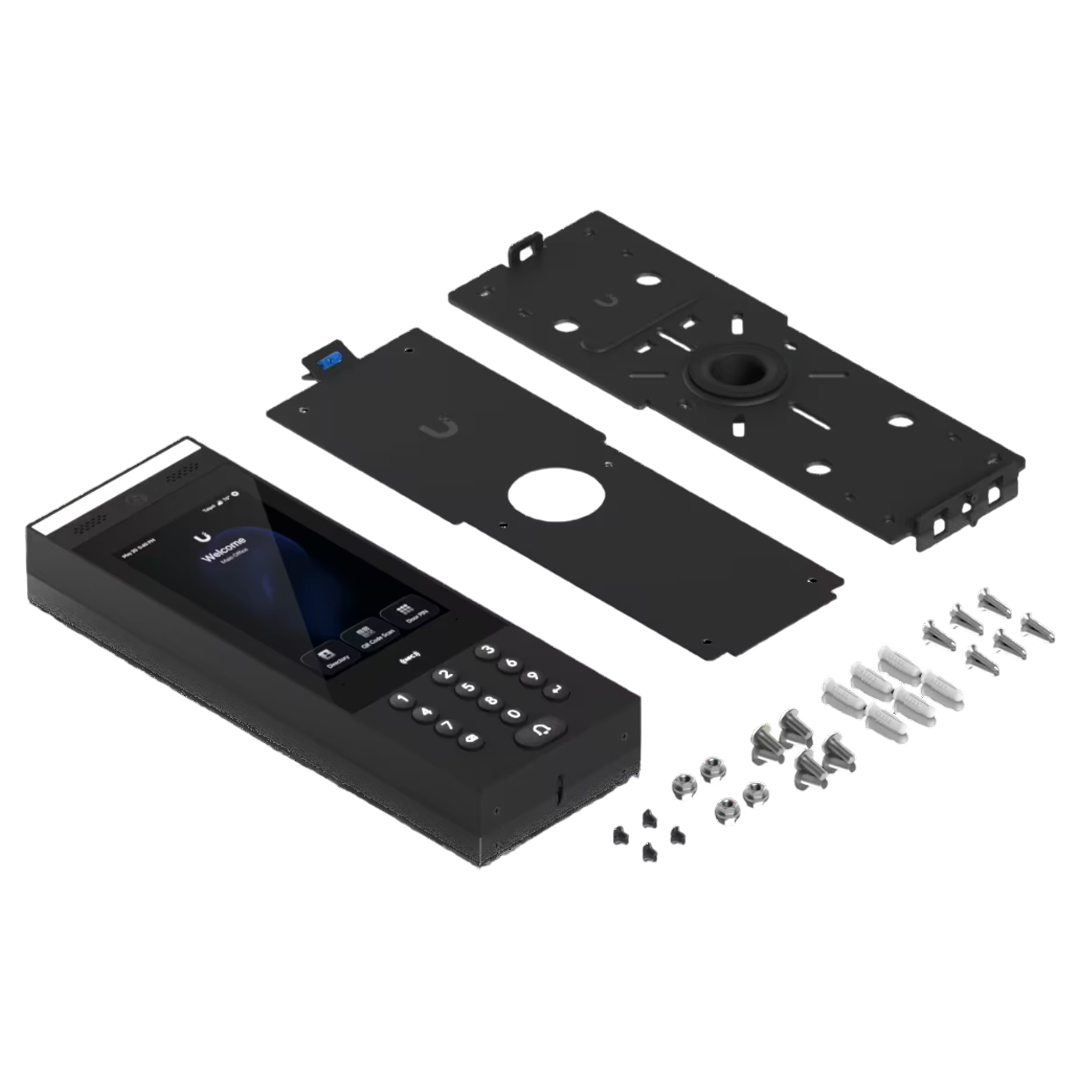

Mounting Wall mount, Adaptor to the gooseneck pedestal (Included)
Surface angle, flush mount, sunshield kit (Optional)

Hardware

Indoor and Outdoor Use Yes
Ambient Operating Temperature Device: -30 to 60° C (-22 to 140° F)
Display: -25 to 60° C (-13 to 140° F)
The display will turn off when the ambient temperature is above/below the display operation temperature, but other functions will remain functional.
Ambient Operating Humidity 5 to 90% noncondensing
Networking Interface (1) GbE RJ45 port
Connectivity BLE 4.2
NFC
Power Method PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption 13 W
Supported Voltage Range 48 V DC
Sensors Proximity sensor
ALS sensor
Display 177 mm (7") diagonal
Touch Screen Technology Capacitive multi-touch
Display Luminance Max. 1000 nits (Typical)
Screen Orientation Portrait
Resolution 1024 x 600 px
Microphone Yes
Speaker (1) 2 W
NFC Frequency 13.56 MHz
NFC Read Range < 30 mm (1.18'')
NFC Technology ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa™ (ID only)
NFC Forum tags T1T, T2T, T3T, T4T and T5T
ECP 2.0
LEDs Amber
Buttons (1) Factory-reset
PoE Cabling Requirements Cat 5e cabling is the minimum performance category recommended. The performance category utilised should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm2 ) for patch cords; 24 AWG (0.21 mm2 ) for horizontal or riser cable.
UL 294 Statement Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade Grade assignment: I
Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document Number, and Issue Date and/or Revision Level UA-G3-Intercom, V01
Backed by a 1 year Ubiquiti warranty.
