Ubiquiti UniFi U7 Pro XG Wireless Access Point WiFi 7

U7-PRO-XG-B | Ubiquiti
$399
Stock at Supplier We do not have this item in our warehouse, but stock is either already on its way or is generally available from the supplier.
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns
The Ubiquiti UniFi U7 Pro XG Wireless Access Point features WiFi 7, a 140 m2 (1,500 ft2) coverage range, support for 300+ simultaneous connected devices, is powered using PoE+, has 10 GbE uplink and can be wall or ceiling mounted.

Features

Ubiquiti UniFi U7 Pro XG Wireless Access Point Wi Fi 7

Ubiquiti UniFi U7 Pro XG Wireless Access Point Wi Fi 7 Feature 1

Deployment

Build Features

Ubiquiti UniFi U7 Pro XG Wireless Access Point Wi Fi 7 Feature 2

Front View

Ubiquiti UniFi U7 Pro XG Wireless Access Point Wi Fi 7 Feature 3

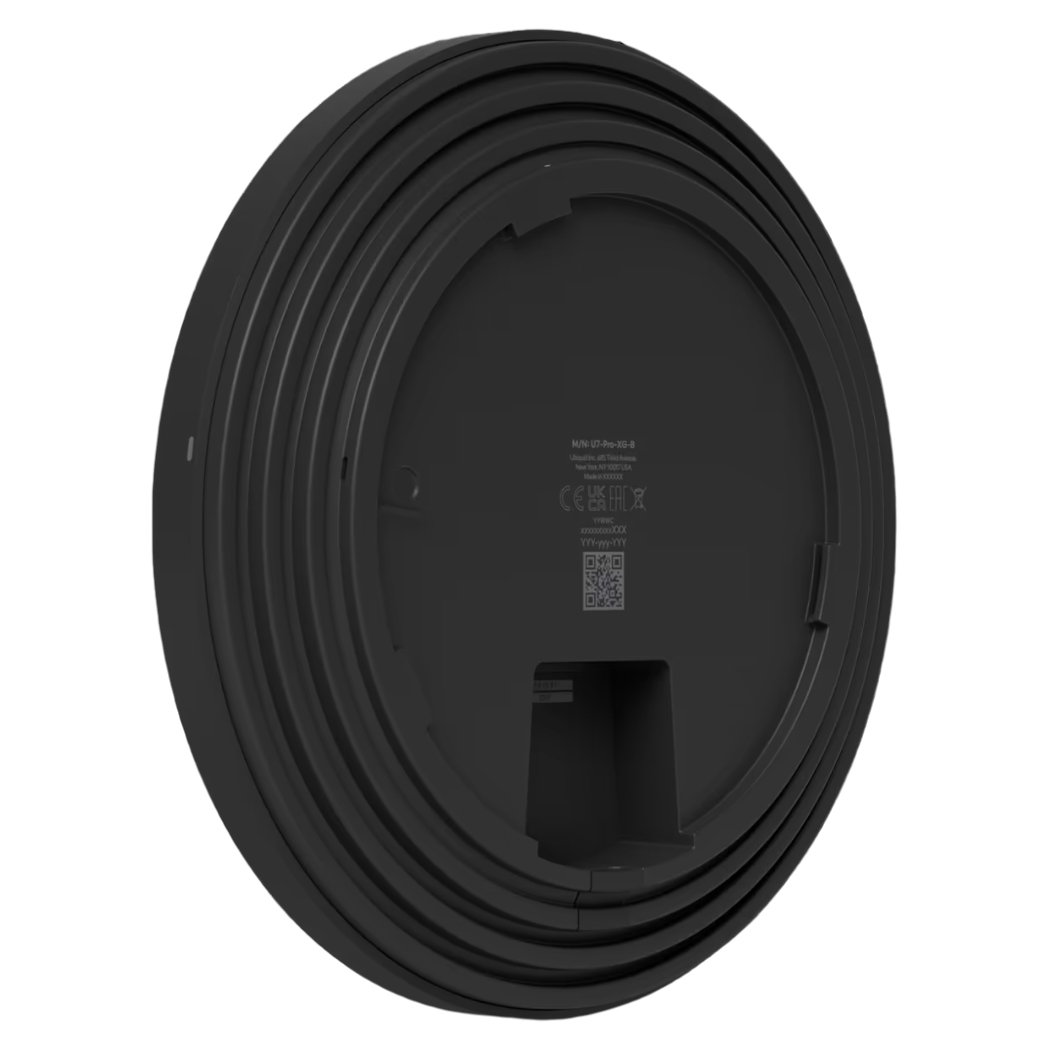

Bottom View

Ubiquiti UniFi U7 Pro XG Wireless Access Point Wi Fi 7 Feature 4

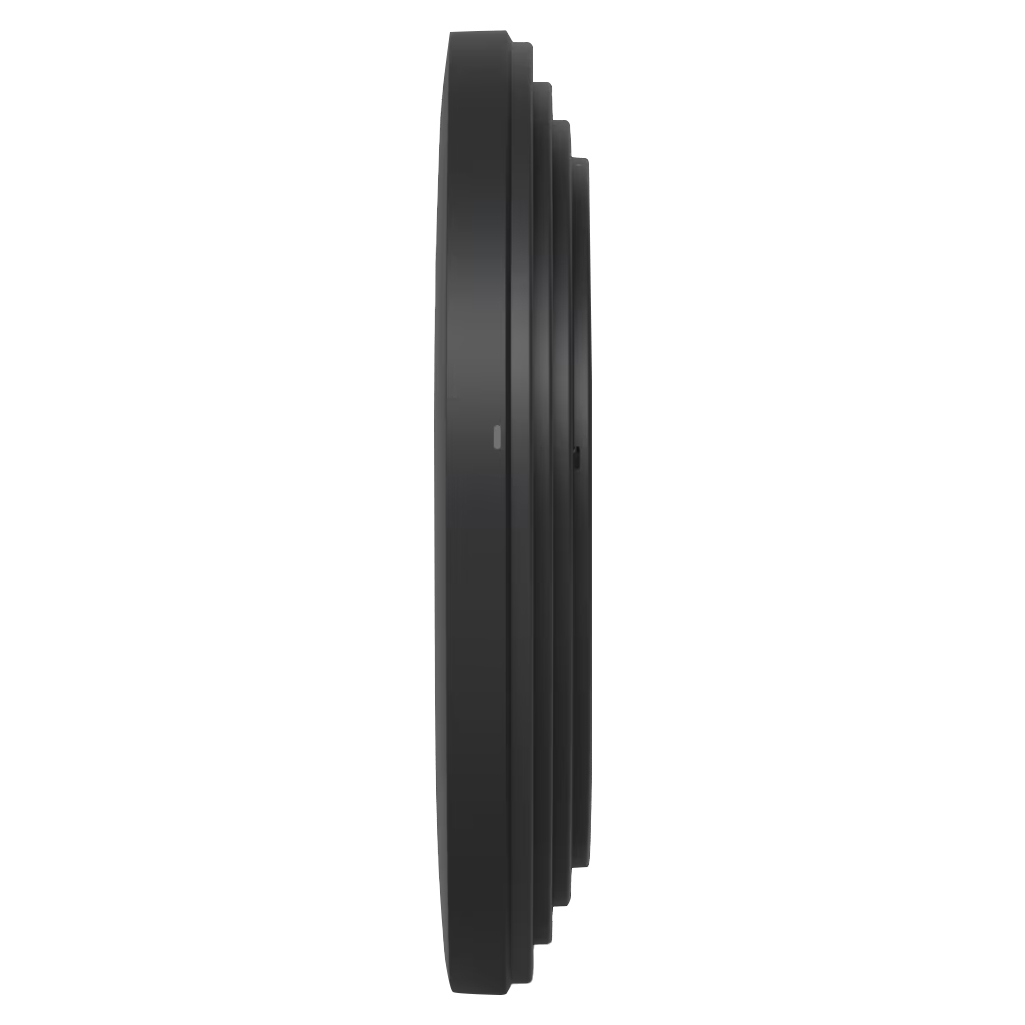

Side View

Specifications

General Data

Model Number U7-Pro-XG-B
Colour Black
Dimensions Ø206 x 32.5 mm (Ø8.1 x 1.3")
WiFi Standard WiFi 7
Spatial Streams 6
Coverage Area 140 m2 (1,500 ft2 )
Max. Client Count 300+
Uplink 10 GbE
Mounting Ceiling, Wall (Lite Mount Included)
Power Method PoE+
Application Requirements UniFi Network: Version 9.1.120 and later

Performance

MIMO 6 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate 6 GHz: 5.8 Gbps (BW320)
5 GHz: 4.3 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40)
Antenna Gain 6 GHz: 6 dBi
5 GHz: 5 dBi
2.4 GHz: 4 dBi
Max. TX Power 6 GHz: 24 dBm
5 GHz: 26 dBm
2.4 GHz: 23 dBm
Max. BSSIDs 8 per Radio
Supported Data Rates 802.11be (WiFi 7)
6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)
5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Features

Wireless Meshing Yes
Band Steering Yes
802.11v BSS Transition Management Yes
802.11r Fast Roaming Yes
802.11k Radio Resource Management (RRM) Yes
Advanced Radio Management Yes
Passpoint (Hotspot 2.0) Yes
Private Pre-Shared Key (PPSK) Yes
WiFi Speed Limiting Yes
Client Device Isolation Yes
WiFi Schedules Yes
RADIUS Over TLS (RadSec) Yes
Dynamic RADIUS-assigned VLAN Yes
Captive Hotspot Portal Custom Branding Landing Page
Voucher Authentication
Payment-Based Authentication
External Portal Server Support
Password Authentication
Guest Network Isolation

Hardware

Max. Power Consumption 22 W
Supported Voltage Range 42.5—57 V DC
Networking Interface (1) 10 GbE RJ45 port
Weight 750 g (1.7 lb)
Management Ethernet
Enclosure Material UV-stabilised polycarbonate, Aluminium alloy
Mount Material Stainless steel (SUS304), galvanised steel (SGCC)
LEDs System: White/Blue
Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
NDAA Compliant Yes
Certifications CE, FCC, IC
Ambient Operating Temperature -30 to 40° C (-22 to 104° F)
Ambient Operating Humidity 5 to 95% noncondensing
Backed by a 1 year Ubiquiti warranty.
