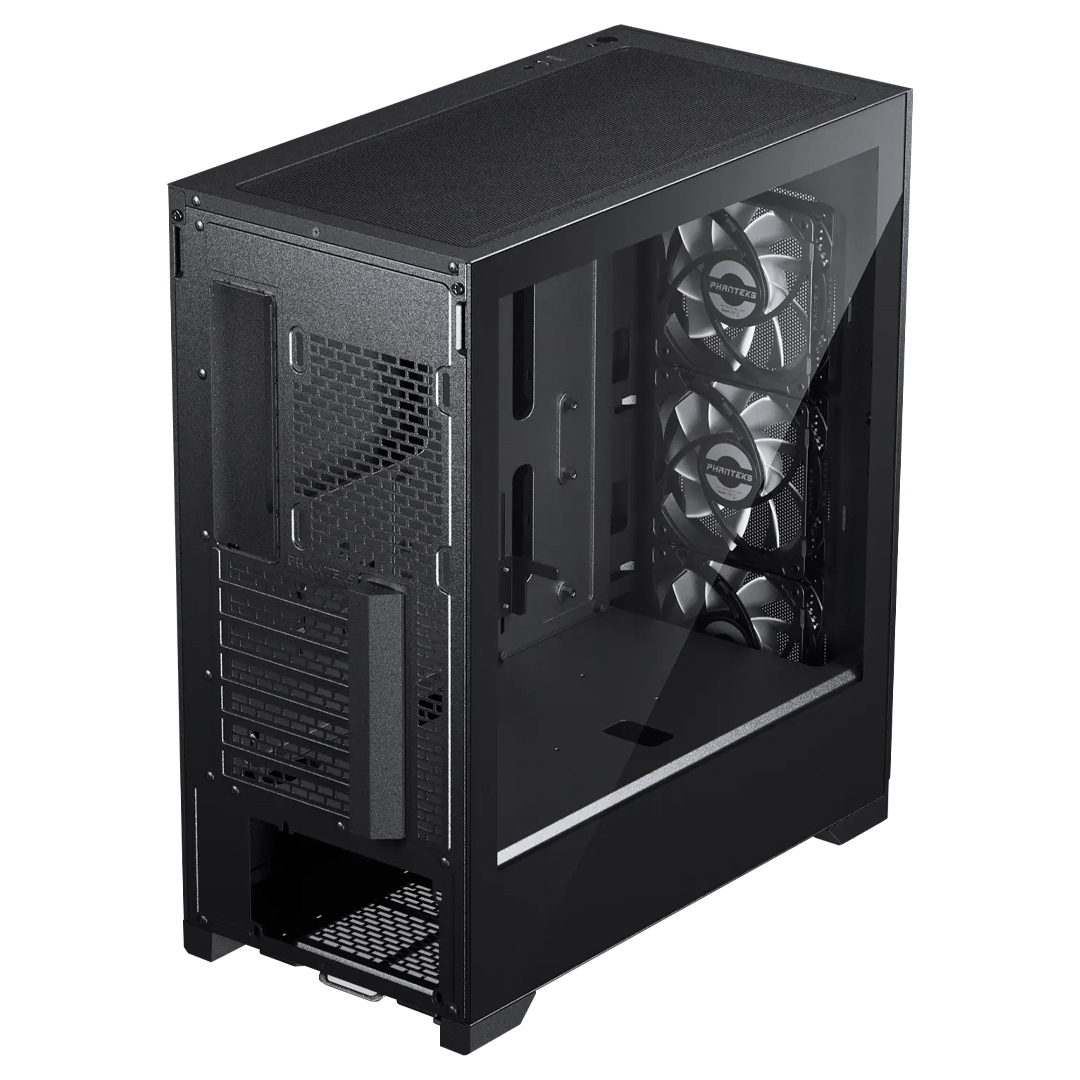

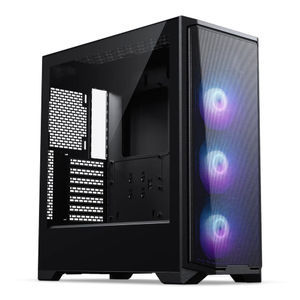

The Phanteks Eclipse G370A D-RGB High Airflow Tempered Glass Case is engineered for superior cooling and vibrant aesthetics, for demanding gaming and workstation builds. This mid-tower case features a full mesh front design for exceptional airflow, supporting up to seven 120mm fans (top, front and rear) and a dedicated 360mm top radiator. Equipped with three pre-installed front D-RGB M25 fans that sync with motherboard lighting software, it offers stunning illumination alongside its performance. Built for versatility, it accommodates up to SSI-EEB motherboards form factors, and provides ample clearance for graphics cards up to 375mm in length and coolers heights up to 170mm.
Features
Eclipse G370A
High Airflow Gaming Chassis
The Phanteks Eclipse G370A is all about performance without frills. High airflow mesh throughout the chassis with 7x 120 mm fan positions and dedicated top 360 radiator clearance provides ample fresh airflow to unlock even the most demanding workstation-grade systems.
Extensive mainboard support up to and including SSI-EEB mainboards makes the G370A punch way above its weight.
Performance without Compromise

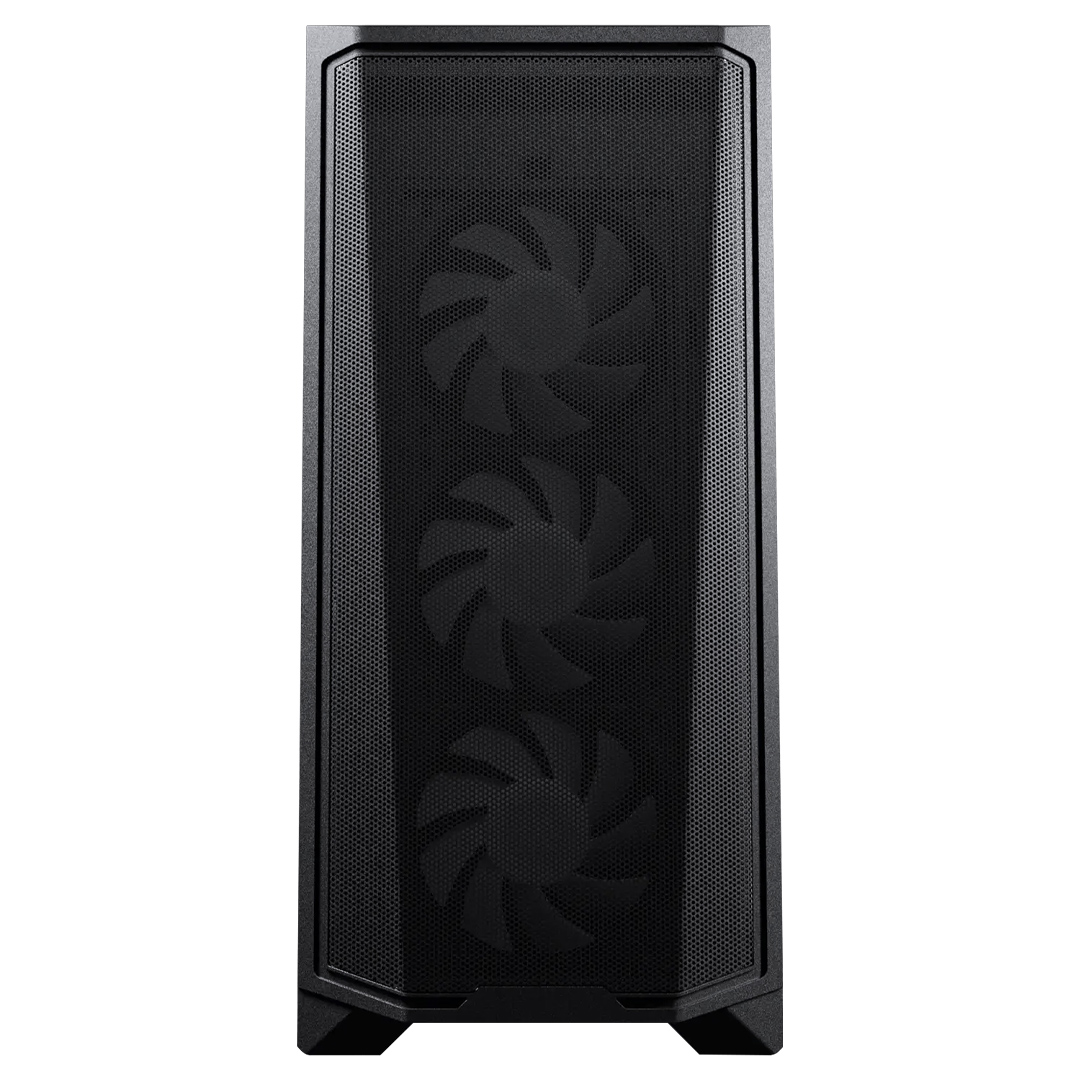

- High airflow mesh throughout the chassis for the best cooling performance.
- Dedicated 360 radiator space in the top to cool any CPU.
- Support for up to 7x 120 mm fans.
Professional Capabilities
- Workstation-ready design built for high-performance systems.
- Supports server grade mainboards, including SSI-EEB.
- Perfect for creators, developers, and power users.
Included M25 Fans
- Pre-installed M25 fans with integrated D-RGB lighting.
- Syncs seamlessly with mainboard lighting software.
To operate the D-RGB lighting, it must be connected to a Phanteks controller or an A-RGB equipped mainboard. They strive to make it as easy to use and compatible as possible.
Storage
SSD
Mount up to 2x 2.5” SSDs using the dedicated dual SSD bracket.
HDD
Support for 3.5″ drive at the base of the chassis.
Fan Positions
- 3x 120 mm top fans.
- 3x 120 mm front fan.
- 1x 120 mm rear fans.
Radiator Positions
- 1x 360 top radiator up to 400 x 120 x 60 mm
- 1x 240 radiator in the front. (Not possible with 360 top radiator installed)
Specifications
General Data
| Model Number |
PH-EC370A_DBK01 |
| Case Dimensions |
465 x 476 x 220 mm | 18.30 x 18.74 x 8.66 in |
| Form Factor |
Mid-Tower |
| Mainboard Support |
SSI-EEB | E-ATX | ATX | Micro-ATX | Mini-ITX |
| Materials |
Steel chassis | Tempered glass window | ABS plastic |
| Colour |
Black |
| Expansion Slots |
7 |
| Vertical GPU Support |
No |
| Internal 2.5″ Positions |
2 |

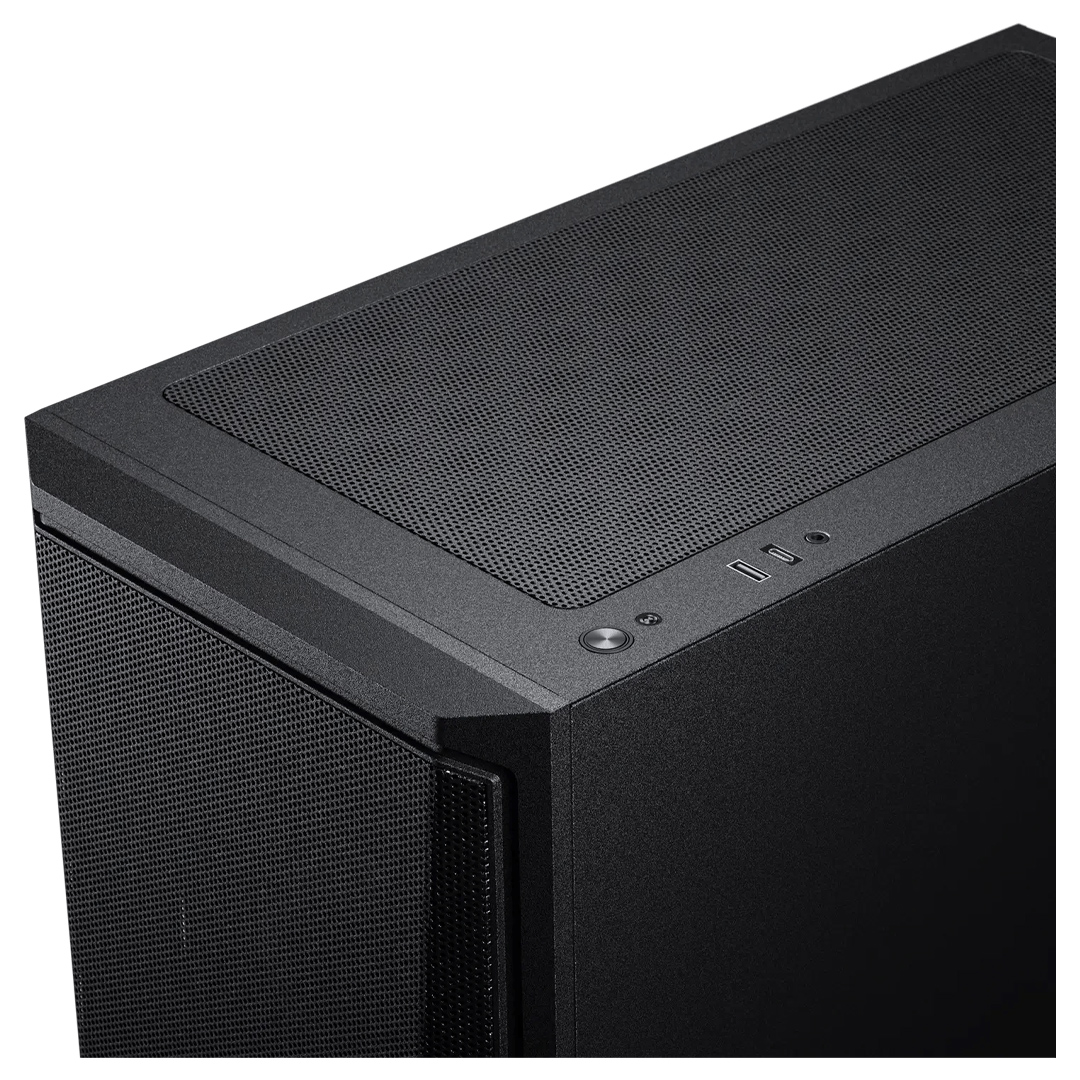

| Front I/O |
1x USB 3.0
1x USB-C 3.0
1x Microphone | Headphone combo
Power button
Reset button |
| Net Weight |
6.43 kg | 14.17 lbs |
| Warranty |
2 Years Limited |
| What's Included |
1x Eclipse G370A chassis
1x SSD bracket Pre-installed |
| Accessory Box |
6x Zip ties
1x Stand-off removal tool |
| Screws |
18x Mainboard | SSD screws
13x PSU | Chassis screws
4x HDD screws
4x HDD standoff
4x HDD rubber dampener
1x Mainboard stand-off |
Fan
| Total Fans |
7 x 120 mm |
| Top |
3 x 120 mm |
| Front |
3 x 120 mm |
| Rear |
1 x 120 mm |
Radiator
| Top |
Max. 360 x 120 mm |
| Front |
Max. 240 x 120 mm |
Clearance
| CPU Cooler Height |
170 mm | 6.69 in |
| GPU Length |
375 mm | 14.76 in
With front fans installed |
| GPU Width |
170 mm | 6.69 in |
| Power Supply |
200 mm | 7.87 in |
| Top 360 Radiator (Length x Width x Height) |
400 x 120 x 60 mm | 15.74 x 4.72 x 2.36 in |
Backed by a 2 year Phanteks warranty.
